7HFKQLFDO*XLGH

September 1999

0095-0699-A

Prepared byECG Technology

Communications Group

Compaq Computer Corporation

Contents

Introduction..................................3

Cluster Configurations................5

Part Numbers and

Components.................................6

Ordering Process........................8

2UGHULQJDQG&RQILJXUDWLRQ

*XLGHIRUWKH3UR/LDQW&OXVWHU

IRU1HW:DUH

Abstract:The Compaq ProLiant Cluster for NetWare 4.2, featuring

the Novell High Availability Server (NHAS) for NetWare 4.2/4.11

and Compaq servers and storage, extends reliabilityon the system

level and provides automaticfailover and failbackbetween two

servers witha No Single Point of Failure shared storage system. As a

result, theCompaq ProLiant Cluster for NetWare 4.2delivers to

NetWare 4.2 environments the highest level of availabilityin the

industry.

This document details thehardware necessaryand provides

configuration guidelines to helpselect the components neededto set

up the ProLiant Cluster for NetWare4.2.

2UGHULQJDQG&RQILJXUDWLRQ*XLGHIRUWKH3UR/LDQW&OXVWHUIRU1HW:DUH 

0095-0699-A

Notice

The information in this publication is subject to change without notice and is provided “AS IS” WITHOUT

WARRANTY OF ANY KIND. THE ENTIRE RISK ARISING OUT OF THE USE OF THIS

INFORMATION REMAINS WITH RECIPIENT. IN NO EVENT SHALL COMPAQ BE LIABLE FOR

ANY DIRECT, CONSEQUENTIAL, INCIDENTAL, SPECIAL, PUNITIVE OR OTHER DAMAGES

WHATSOEVER (INCLUDING WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS

PROFITS, BUSINESS INTERRUPTION OR LOSS OF BUSINESS INFORMATION), EVEN IF

COMPAQ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

The limited warranties for Compaq products are exclusively set forth in the documentation accompanying

such products. Nothing herein should be construed as constituting a further or additional warranty.

This publication does not constitute an endorsement of the product or products that were tested. The

configuration or configurations tested or described may or may not be the only available solution. This test

is not a determination or product quality or correctness, nor does it ensure compliance with any federal

state or local requirements.

Product names mentioned herein may be trademarks and/or registered trademarks of their respective

companies.

Compaq, Contura, Deskpro, Fastart, Compaq Insight Manager, LTE, PageMarq, Systempro, Systempro/LT,

ProLiant, TwinTray, ROMPaq, LicensePaq, QVision, SLT, ProLinea, SmartStart, NetFlex, DirectPlus,

QuickFind, RemotePaq, BackPaq, TechPaq, SpeedPaq, QuickBack, PaqFax, Presario, SilentCool,

CompaqCare (design), Aero, SmartStation, MiniStation, and PaqRap, registered United States Patent and

Trademark Office.

Netelligent, Armada, Cruiser, Concerto, QuickChoice, ProSignia, Systempro/XL, Net1, LTE Elite,

Vocalyst, PageMate, SoftPaq, FirstPaq, SolutionPaq, EasyPoint, EZ Help, MaxLight, MultiLock,

QuickBlank, QuickLock, UltraView, Innovate logo, Wonder Tools logo in black/white and color, and

Compaq PC Card Solution logo are trademarks and/or service marks of Compaq Computer Corporation.

Microsoft, Windows, Windows NT, Windows NT Server and Workstation, Microsoft SQL Server for

Windows NT are trademarks and/or registered trademarks of Microsoft Corporation.

NetWare and Novell are registered trademarks and intraNetWare, NDS, Novell Directory Services, and

Novell High Availability Server (NHAS) are trademarks of Novell, Inc.

Pentium is a registered trademark of Intel Corporation.

Ordering and Configuration Guide for the ProLiant Cluster for NetWare 4.2

Technical Guide prepared by ECG Technology Communications Group

Second Edition (June 1999)

Document Number 0095-0699-A

2UGHULQJDQG&RQILJXUDWLRQ*XLGHIRUWKH3UR/LDQW&OXVWHUIRU1HW:DUH 

0095-0699-A

Introduction

When availability is a priority, the Compaq ProLiant Cluster for NetWare 4.2 provides robust

fault tolerance across applications, clients, and storage by using Novell High Availability Server

(NHAS) and the Compaq RAID Array 4000 Fibre Channel technology shared storage. The

Compaq ProLiant Cluster for NetWare 4.2 consists of the following components:

•Two certified Compaq ProLiant servers

•Compaq StorageWorks RAID Array 4000 (formerly the Fibre Channel Storage System)

•Industry-Standard Network Interconnects

•Novell High Availability Server software

•NetWare 4.2/4.11 Network Operating System

A cluster, unlike stand-by failover solutions, consists of two servers, each with its own rights,

permissions, clients, and volumes performing simultaneous, independent tasks. Should either of

the servers fail, the surviving server will inherit all responsibilities and permissions of the failed

server. Each server must be able access to the other’s storage in order to respond successfully to

requests that had been handled by the failed server. Currently, only the Compaq RAID Array

4000, formerly the Compaq Fibre Channel Storage System, allows for multi-server (multi-

initiator) control of external storage on ProLiant servers.

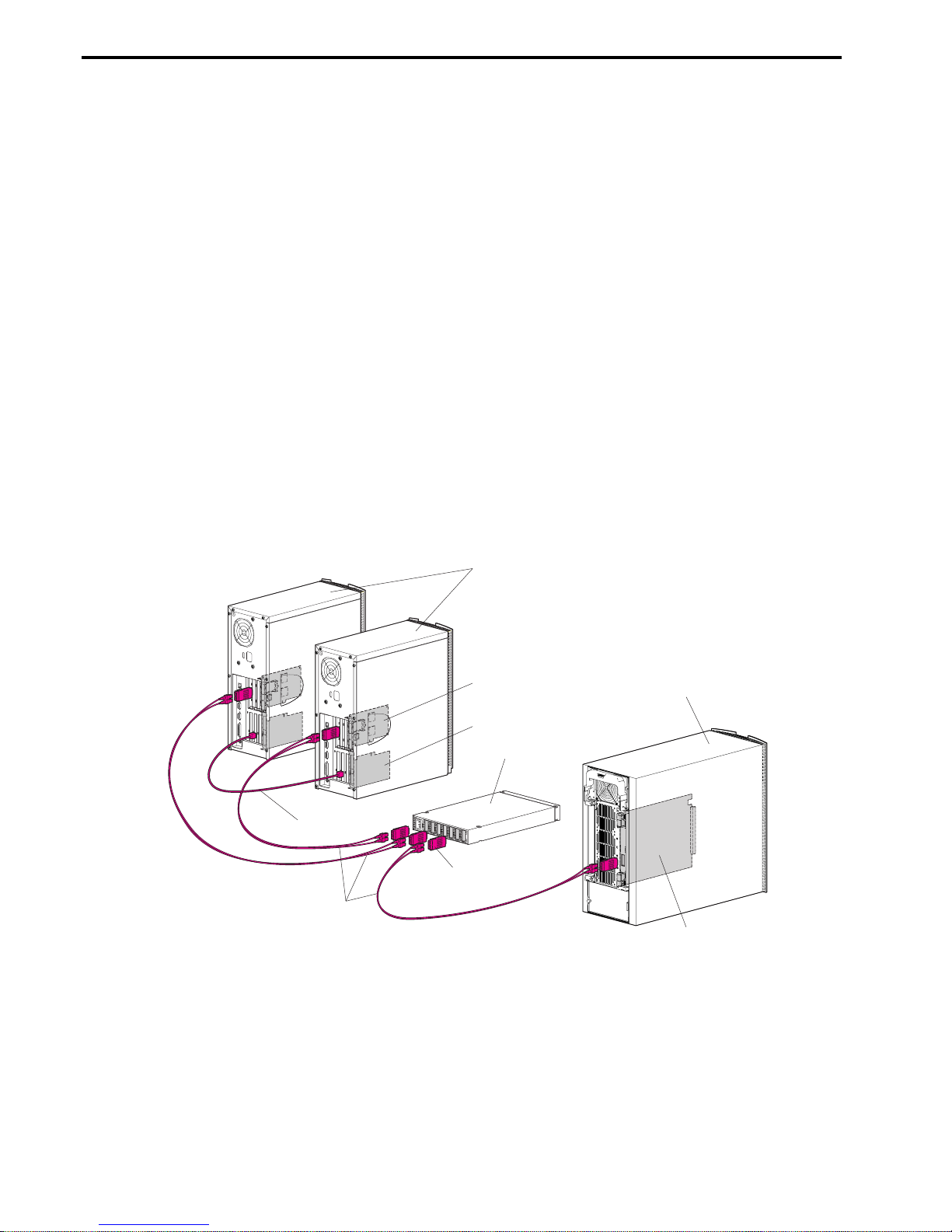

Fibre Channel Array

Fibre Channel

Storage Hub 7

ProLiant Server

Fibre Cable

Fibre Channel Array Controller

Fibre Channel Host Controller

Network Interface Controller

(Dedicated Interconnect)

Gigabit Interface Converter

Interconnect Cable

Figure 1. Minimum configuration for the ProLiant Cluster for NetWare 4.2

CompaqRAIDArray4000

2UGHULQJDQG&RQILJXUDWLRQ*XLGHIRUWKH3UR/LDQW&OXVWHUIRU1HW:DUH 

0095-0699-A

In order for the surviving server to mount the volumes of the failed server, it must first detect the

failure. On the ProLiant Cluster for NetWare 4.2, both nodes in the cluster monitor the other

through three different interconnections. The cluster interconnects for the ProLiant Cluster for

NetWare 4.2 are:

•The Fibre Channel Arbitrated Loop and shared storage – the “Disk Link”.

•The servers’ public LAN connection – the “NetWare Link”.

•An optional dedicated connection between the two servers – the “Dedicated Link”.

For an even higher level of availability, each interconnect can be configured with a redundant

backup interconnect. The backup links consists of redundant Network Interface Cards (NICs)

and cables for the NetWare and Dedicated links, and redundant Fibre Channel Host Controllers,

storage hubs, Fibre Channel Array Controllers, and cables for the Disk link. If the primary

interconnect fails, communication continues over the backup.

The ProLiant Cluster for NetWare 4.2 consists of ProLiant Servers, the Compaq StorageWorks

RAID Array 4000 storage system, Novell High Availability Server, Novell NetWare 4.2, and at

least two network adapters. The optional dedicated link between the servers requires two

additional network adapters.

2UGHULQJDQG&RQILJXUDWLRQ*XLGHIRUWKH3UR/LDQW&OXVWHUIRU1HW:DUH 

0095-0699-A

Cluster Configurations

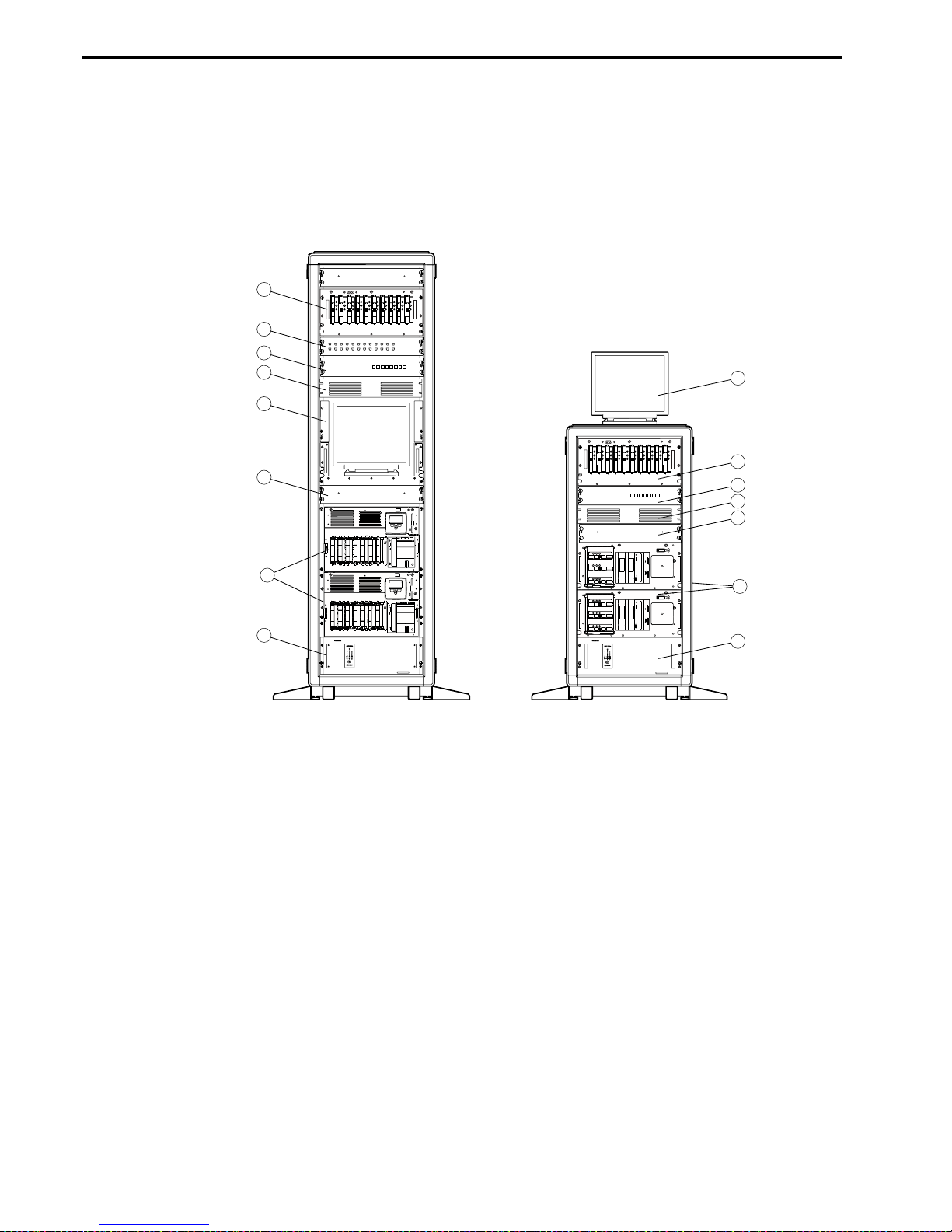

Figure 2 shows two examples of rack-mounted cluster configurations. Each of these

configurations includes two ProLiant servers and a complete Compaq StorageWorks RAID Array

4000 storage system with a Fibre Channel Storage Hub 7.

Compaq StorageWorks RAID Array 4000 úMonitor

óEthernet Hub ÷Keyboard tray

ìSwitchbox øProLiant Servers

öDual Fibre Channel Storage Hub 7 íUninterruptible Power Supply (UPS)

Figure 2. Examples of rack-mounted ProLiant Cluster for NetWare 4.2

Optional components include UPS modules, racks, monitors, rack-mounted keyboards, and

switchboxes. The racks shown are configured for optimal placement of cluster components.

Compaq recommends the Compaq Rack Builder Pro software to customize and optimize rack

configurations to your needs. You can download the Rack Builder or Rack Builder Pro software

from the Compaq website at

http://www.compaq.com/products/servers/options/rackacces/rackbuilder.html

2UGHULQJDQG&RQILJXUDWLRQ*XLGHIRUWKH3UR/LDQW&OXVWHUIRU1HW:DUH 

0095-0699-A

Part Numbers and Components

Part numbers as of June 1999

Servers

123740-001 ProLiant 1850R 6/550 Model 1

386745-001 Proliant 1850R 6/500 Model 1

328970-001 ProLiant 1850R 6/450 Model 1

333100-001 ProLiant 1850R 6/400 Model 1

126747-001 ProLiant 3000 6/550 Model 1 512K (128MB)

382200-001 ProLiant 3000 6/500 Model 1 512K (128MB)

179720-001 ProLiant 3000 6/450 Model 1 Rack (128MB)

382250-001 ProLiant 3000R 6/500 Model 1 512K (128MB)

179730-001 ProLiant 3000R 6/450 Model 1 Rack (128 MB)

100734-002 ProLiant 5500 6/500 1 MB (256 MB) Model 1 Tower

100745-002 ProLiant 5500R 6/500 1 MB (256 MB) Model 2 Rack

352310-001 ProLiant 5500R 6/400 512K (128 MB) Model 1 Rack

388393-002 ProLiant 6400R 6/500-1 MB Model 2-256

388394-002 ProLiant 6400R 6/500-2 MB Model 2-1024

400092-002 ProLiant 6400R 6/500-512 KB Model 1-256

112726-001 ProLiant 6500 6/500-2 MB Model 2-512

179650-001 ProLiant 6500 6/450-2 MB Model 2-512

179610-001 ProLiant 6500 6/400-1MB Model 2-256

179600-001 ProLiant 6500 6/400-512 KB Model 1-256

112893-001 ProLiant 7000 6/500-2MB Model 2S-512

386671-001 ProLiant 7000 6/450-2MB Model 2S-512

312150-001 ProLiant 7000 6/400-1MB Model 1S-256

Miscellaneous

303309-002 Crossover Ethernet Direct Link Heartbeat Cable

309835-B21 100’ Ethernet Cable

347272-B21 CL14U Cluster Rack Kit

2UGHULQJDQG&RQILJXUDWLRQ*XLGHIRUWKH3UR/LDQW&OXVWHUIRU1HW:DUH 

0095-0699-A

Related Storage Part Numbers

223100-001/291 RAID Array 4000 – Rack Mount

241300-001/291 RAID Array 4000 – Tower

223180-B21/291 Fibre Channel Host Adapter/P

262394-B21/291 Fibre Channel Host Adapter/E

234453-001/B31/291 Fibre Channel Storage Hub 7

295573-001 Fibre Channel Storage Hub 12

234459-B21 GBIC-SW Connector Kit

340412-B21 GBIC-LW Connector Kit

234457-B21 2m multi-mode Fibre Channel Cable Kit

234457-B22 5m multi-mode Fibre Channel Cable Kit

234457-B23 15m multi-mode Fibre Channel Cable Kit

234457-B24 30m multi-mode Fibre Channel Cable Kit

234457-B25 50m multi-mode Fibre Channel Cable Kit

242795-B21 Fibre Channel Storage Hub 7 Rackmount Kit

296324-B21 ProLiant/F to RAID Array 4000 Upgrade Kit

297162-B21 RAID Array 4000 Tower to Rack Conversion Kit

223187-B21 RAID Array 4000 Redundant Controller

224206-001 Optional Redundant Power Supply

262398-B21 Fibre Channel Array Controller 64-MB Cache Upgrade Kit

234468-B21 Fibre Channel Troubleshooting Kit

2UGHULQJDQG&RQILJXUDWLRQ*XLGHIRUWKH3UR/LDQW&OXVWHUIRU1HW:DUH 

0095-0699-A

Ordering Process

1. Obtain the Novell High Availability Server software.

Contact your local Novell reseller for pricing and ordering information.

2. Order Compaq ProLiant servers.

The most basic blocks of your cluster, Compaq ProLiant servers, are tested

and certified for ProLiant Cluster for NetWare 4.2. When selecting the

ProLiant model for your network, keep in mind that each server in your

cluster should be able to deliver satisfactory performance when operating in

failover mode. Also, make sure that the ProLiant model that you select has

enough PCI/EISA slots to satisfy both current and future connections to the

LAN, storage, and other cluster nodes.

3. Make sure that you have at least one Ethernet adapter for each server

in the cluster.

As a minimum, each server in the cluster must contain one network adapter. If

only one NIC is present in each server, this connection will be used for both

LAN connections and NHAS monitoring. Order additional NICs for

redundant LAN connections or dedicated NHAS monitoring as needed.

4. Order Compaq Fibre Channel Host Controller(s).

Each server must have at least one Fibre Channel Host Controller to connect

to the RAID Array 4000 shared storage. If additional Fibre Channel loops of

shared storage are used, order additional host adapters accordingly.

Additional controllers will also be necessary to configure the RA4000 for No

Single Point of Failure.

5. Order Compaq Fibre Channel Storage Hub(s).

In order to share a RAID Array 4000, the servers must access the array

through a Fibre Channel Storage Hub. Order one hub for each Fibre Channel

loop in your cluster. Order an additional hub if you are configuring a

redundant Fibre Channel loop for No Single point of Failure storage

configuration.

6. If you order a Compaq Fibre Channel Storage Hub 7 and will be

mounting the unit in a rack, you will need a Fibre Channel Storage Hub 7

Rackmount Kit.

The Compaq Fibre Channel Storage Hub 7 cannot be mounted in a rack

system without the rackmount kit. Order a rackmount kit for each FC Storage

Hub 7 that will be rack-mounted. Compaq Fibre Channel Storage Hub 12 does

not require a rackmount kit.

7. Order Compaq Raid Array 4000 Storage System(s).

As the main component of the shared storage, at least one Compaq RA4000

storage system is required for each ProLiant Cluster. Additional RA4000

storage systems may be connected within the cluster as part of a single Fibre

Channel loop or added as a separate loop. In addition to the RA4000 storage

system(s), each loop will require its own hub and host adapters.

Order other server options as

needed

Order Compaq RAID Array 4000

storage options as needed

Order additional NICs for LAN

connections as necessary

Order Compaq RAID Array

4000 Storage System(s)

If you order a Fibre Channel

Storage Hub 7 and will be

mounting the unit in a rack, you

will need a Fibre Channel Storage

Hub Rackmount Kit

Order Fibre Channel Storage

Hub(s)

Order at least one Compaq Fibre

Channel Host Controller per

server. Order additional

controllers for No Single Point of

Failure

Make sure you have at least one

Ethernet adapter for each server

in the cluster. Order additional

NICs, for redundant or dedicated

connections, as needed.

Order Compaq ProLiant Servers

Order Novell Software

2UGHULQJDQG&RQILJXUDWLRQ*XLGHIRUWKH3UR/LDQW&OXVWHUIRU1HW:DUH 

0095-0699-A

8. Order Compaq Fibre Channel Storage options as needed.

Order hard drives, cabling, and redundant power supplies as per your requirements. The RAID

Array 4000 Redundant Controller can also be ordered. This option enables you to configure a

dual redundant Fibre Channel loop, and includes an additional Fibre Channel Array Controller,

two GBIC-SW Connector Kits, and a Fibre Channel cable. Also, be sure you have the correct

drivers and firmware for the Redundant Controller option. The Redundant Controller option

requires Fibre Channel Array Controller firmware version 2.34 or higher on both controllers, and

NetWare drivers CPQFC.HAM version 2.00 and CPQFC.CDM version 1.30 (found on Smart

Start 4.30 and Novell Software Support Diskettes (NSSD) 5.10A)

9. Order additional NICs for LAN connections as necessary.

10. Order other server options as needed.

Autres manuels pour 1850R - ProLiant - 128 MB RAM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Compaq Serveur

Compaq

Compaq NC3122 Manuel utilisateur

Compaq

Compaq 108164-003 - ProLiant - 800 Guide de démarrage rapide

Compaq

Compaq 1850R - ProLiant - 128 MB RAM Guide de démarrage rapide

Compaq

Compaq ML350 - ProLiant - G2 Manuel

Compaq

Compaq ProLiant 1000 Guide de référence rapide

Compaq

Compaq AlphaServer DS20E Manuel utilisateur

Compaq

Compaq 234664-002 - ProLiant - ML330T02 Instructions d'utilisation et de sécurité

Compaq

Compaq 108164-003 - ProLiant - 800 Guide de démarrage rapide

Compaq

Compaq BL20p - HP ProLiant - 512 MB RAM Instructions d'utilisation et de sécurité

Compaq

Compaq 108164-003 - ProLiant - 800 Guide de référence rapide

Compaq

Compaq 221050-001 - ProLiant - 5000R Manuel utilisateur

Compaq

Compaq ProSignia 300 Manuel

Compaq

Compaq ProLiant 1600 Manuel

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Instructions de montage

Compaq

Compaq ProLiant 4500 Servers Manuel

Compaq

Compaq ML570 - ProLiant - G2 Manuel

Compaq

Compaq ProLiant 5000 Manuel utilisateur

Compaq

Compaq 226824-001 - ProLiant - ML750 Instructions d'utilisation et de sécurité

Compaq

Compaq t1000 - Terminal Thin Client PC Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Compaq

Compaq ALPHA GS320 Guide de configuration rapide

Compaq

Compaq 124708-001 - ProLiant Cluster - 1850 Guide de sécurité

Compaq

Compaq Evo Thin Client t20 Manuel utilisateur

Compaq

Compaq 219700-001 - ProLiant - 1500 Guide de référence rapide

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur

Planet

Planet NAS-7410 Manuel utilisateur
