Compaq RA8000 Manuel utilisateur
RAID Array 8000/ESA12000 Fibre Channel
Storage Subsystem for SGI IRIX
Quick Setup Guide
AA–RFBHA–TE 387398-001
2Quick Setup Guide
In this Quick Setup Guide we tell you how to create an
initial hardware configuration for both the
Compaq
StorageWorks RAID Array 8000 Fibre Channel Storage
Subsystem
and the
Compaq StorageWorks Enterprise
Storage Array 12000 Fibre Channel Storage Subsystem
(the “RA8000/ESA12000 storage subsystem” or the
“storage subsystem”).
To create this configuration you will:
• Install Storage Building Blocks (SBBs) and Program
Cards in the RA8000/ESA12000 storage subsystem
cabinet;
• Install a fibre channel adapter in the server;
• Connect the fibre channel adapter to the storage
subsystem HSG80 controller via a fibre channel hub;
• Connect the StorageWorks Command Console
(SWCC) client PC to the HSG80 controller to act as
a maintenance terminal;
• Turn on the ac power to the storage subsystem;
• Install StorageWorks Software on the SGI server.
EK–SMCPR–UG. A01 (387404-001) for information
about selecting a location.
The instructions for installing and connecting storage
subsystem components are given for the SW370
pedestal, but apply equally to other Compaq cabinet
options.Depending on the storage subsystem you have
ordered, you might have to install the storage subsystem
in a cabinet and connect the cache module to a cache
battery. Refer to the
User’s Guide
for more information.
NOTE
You can find complete instructions for unpacking and
installing the RA8000/ESA12000 storage subsystem in
the User’s Guide and in the RA8000/ESA12000 HSG80
Solution Software V8.3 for SGI IRIX Installation
Reference Manual, AA–RFBKA–TE (387399–001).
RA8000/ESA12000 Storage subsystem User’s Guide
,
• Install the (SWCC) Client Graphical User Interface;
• Configure a Storageset;
• And reboot the storage system.
Before you start these steps follow the instructions on the
shipping container to unpack the RA8000/ESA12000
storage subsystem.Then move the storage subsystem to
the operating location you have selected. Refer to the
BeforeYou Begin
Compaq StorageWorks RA8000/ESA12000 Fibre Channel Storage Subsystem for SGI IRIX 3
Install the PCMCIA Card in the HSG80
Controller
• Remove the ESD cover from the controller PCMCIA
slot.
• Insert the PCMCIA card in the controller slot.
• Replace the ESD cover over the controller slot.
Install the SBBs in the RA8000/ESA12000
Storage Subsystem Cabinet
• Insert an SBB into the shelf guide slots and slide the
SBB into the shelf until the mounting tabs snap into
place.
• For optimum SCSI bus distribution, install the SBBs
from left-to-right and from bottom-to-top.
• Repeat the steps if you have two controllers.
InstalltheSBBsandProgram Cards
1
4Quick Setup Guide
Turn Off the Server
• Shut down the operating system running on your
server.
• Turn off the power to the server and all attached
peripherals.
• Disconnect power cables from the server.
Insert the Adapter in the SGI Server
• Open the server to gain access to the expansion slots.
• Insert the adapter in an empty PCI or XIO expansion
slot.
• Secure the adapter in the slot with the screw provided.
NOTE:Your adapter might not look like this.
Install the Fibre Channel Adapter
2
Compaq StorageWorks RA8000/ESA12000 Fibre Channel Storage Subsystem for SGI IRIX 5
• Connect one end of the SGI Media Interface Adapter
(X–F–OE–KIT) to the SGI fibre channel host adapter;
connect the other end to the fibre channel hub.
• Connect one end of a fibre channel cable to host port
1 on the HSG80 controller; connect the other end to
the fibre channel hub.
Be sure to install a GBIC–SW module on the hub
end of each cable.
The following page illustrates the
adapter-to controller connections
for the four possible configurations:
• single controller, one host adapter
• single controller, two host adapters
• dual controller, one host adapter
• dual controller, two host adapters
Connect the Fibre Channel Adapter to the Storage Subsystem Controller
3
6Quick Setup Guide
Single Controller, One Host Adapter
Single Controller, Two Host Adapters
Dual Controller, One Host Adapter
Dual controller, Two Host Adapters
Connect the Fibre Channel Adapter to the Subsystem Controller (Cont’d)
TO
HOST
ADAPTER
Optical
Interconnect
SHR-1187-98.AI
HUB 1
HUB 2
TO
HOST
ADAPTER 1
TO
HOST
ADAPTER 2
Optical
Interconnect
Optical
Interconnect
SHR-1189-98AI
HUB 1
HUB 2
TO
HOST
ADAPTER 1
TO
HOST
ADAPTER 2
Optical
Interconnect
Optical
Interconnect
SHR-1188-98AI
TO
HOST
ADAPTER
Optical
Interconnect
SHR-1186-98AI
3
Compaq StorageWorks RA8000/ESA12000 Fibre Channel Storage Subsystem for SGI IRIX 7

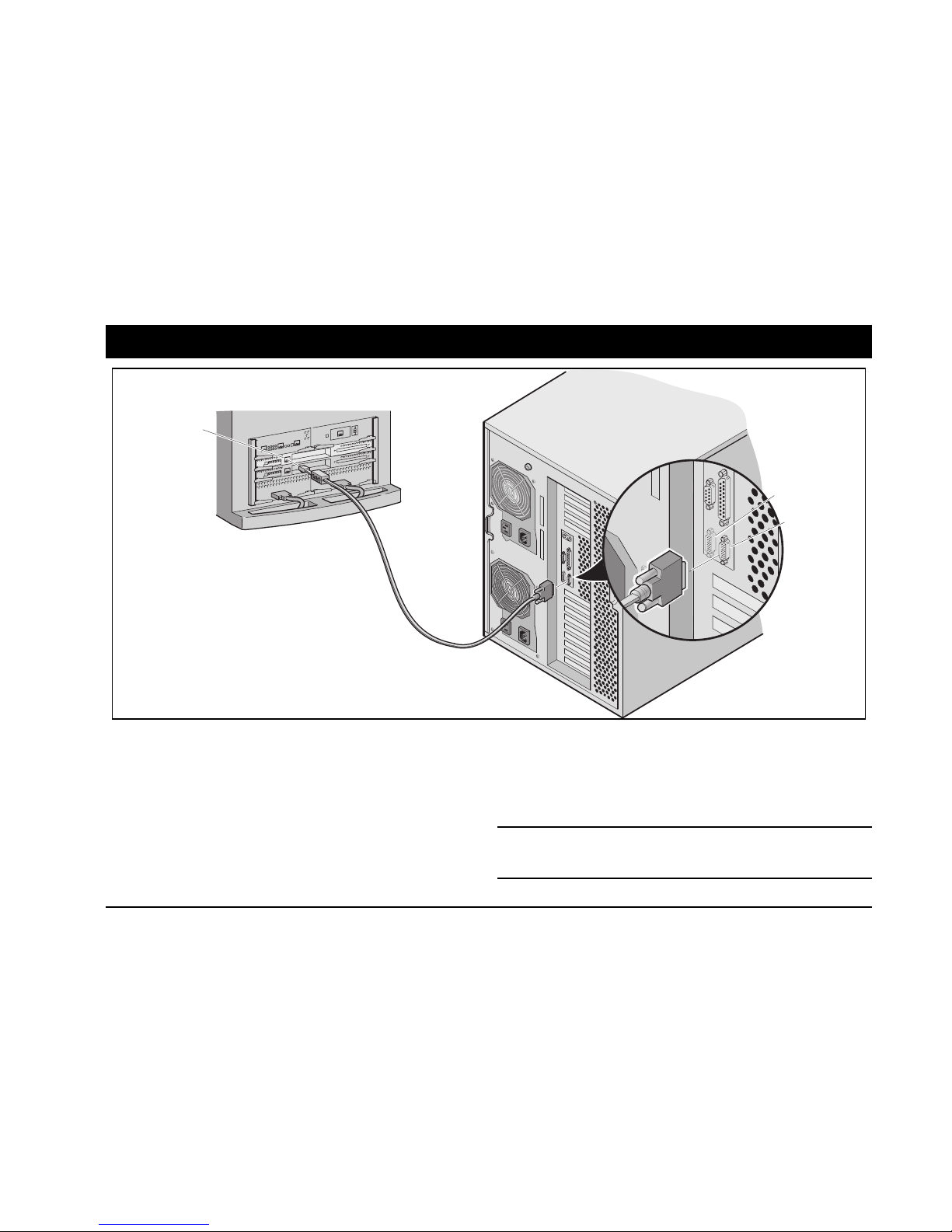

Connect the PC to the HSG80 Controller to
Provide for a Maintenance Terminal
• Connect the RJ12 connector on the communications
cable to the maintenance port on the HSG80 controller.
• Connect the 9-pin serial connector on the communica-
tions cable to either the COM1 or COM2 port on the
PC that will be used for the SWCC client.
NOTE
Make a note of the serial port you use;you need to know
it when you set up your communication program and
configure the controller.
MAINTENANCE
PORT
COM PORT 2
COM PORT 1
Connect the PC as a MaintenanceTerminal
4
8Quick Setup Guide
Connect the Hub to an AC Power Outlet
• Connect one end of the hub ac power cord to the hub.
• Connect the other end of the ac power cord to an ac
outlet.
Turn on the Storage Subsystem Power
• Connect one end of the storage subsystem cabinet ac
power cord to the cabinet ac receptacle.
• Connect the other end of the power cord to an ac
outlet.
• Push in the “1” side of the cabinet ac power switch.
• When the RESET LED on the HSG80 controller blinks
at a rate of once per second the storage subsystem is
ready to operate.
AC POWER
SWITCH
FUSE
AC
RECEPTACLE
Turn on the Subsystem Power
5
Compaq StorageWorks RA8000/ESA12000 Fibre Channel Storage Subsystem for SGI IRIX 9
• At the
HSG80>
prompt
Type: SET THIS_CONTROLLER PORT_1_AL_PA=71
SET THIS_CONTROLLER PORT_2_AL_PA=72
Type: SET THIS_CONTROLLER PORT_1_PROFILE=PLDA
SET THIS_CONTROLLER PORT_2_PROFILE=PLDA
Type: SET THIS_CONTROLLER PORT_1_TOPOLOGY=LOOP_HARD
SET THIS_CONTROLLER PORT_2_TOPOLOGY=LOOP_HARD
Type: SET THIS_CONTROLLER SCSI_VERSION=SCSI-2
SET THIS_CONTROLLER SCSI_VERSION=SCSI-2
Type: SET THIS_CONTROLLER COMMAND_CONSOLE_LUN
Type: RESTART OTHER
RESTART THIS
Install the SWCC Client
• Insert the storage subsystem CD–ROM in the
CD–ROM drive.
• Run
File Manager
or Windows
Explorer
.
• Navigate to the folder
drive_letter:\SWCC\Client
.
• Choose
Intel client
; then double–click on
Setup
.
• When the setup wizard appears, follow the instructions
to complete the installation.
HSG80 Controller Setup
• Using a serial communications program on your PC,
connect to the HSG80 using the COM port connected
in Step 4.
• Select a baud rate of 9600.
Install StorageWorksCommand Console (SWCC) Client on the PC
6
10 Quick Setup Guide
Turn on the SGI Server
• Connect ac power to the SGI server and boot the IRIX
operating system.
Install the Storageworks Software
• Insert the storage subsystem CD–ROM in the
CD–ROM drive.
• Mount the CD–ROM with the command
mount –t iso9660 –r /dev/rdsk/dks0d7vol /mnt
(Note:The name of dks0d7vol might be different on
your system.)
• Create a directory in which the file archive can be
loaded
mkdir /tmp/hsg80
• Change to the directory
cd /tmp/hsg80
• Extract the file archive with the command
tar xvf /mnt/agent/sgi/stm_sgi.tar
• Execute the installation script
./stgwks_sgi.sh
StorageWorks and Command Console Agent
Installation and Configuration Menu
StorageWorks Options:
- - - - - - - - - - -
1) Install Storageworks software
2) StorageWorks Maintenance
Agent Options:
- - - - - - -
3) Install Agent
4) Agent Maintenance
Q) Quit
• Choose option 1) in the
Installation
menu to install the
StorageWorks software.
• Choose option 3) in the
Installation
menu to install the
Comand Console Agent. Follow the text-based prompts
and enter appropriate information using Table 2–2,
Section 2.1.3 of the
RA8000/ESA12000 HSG80
Solution Software V8.3 for SGI IRIX Installation
Reference Manual.
Install the StorageWorks Software on the SGI Host System
7
