QUICKSPECS

Overview

1DA-10010-01-003 — 12.03.1999

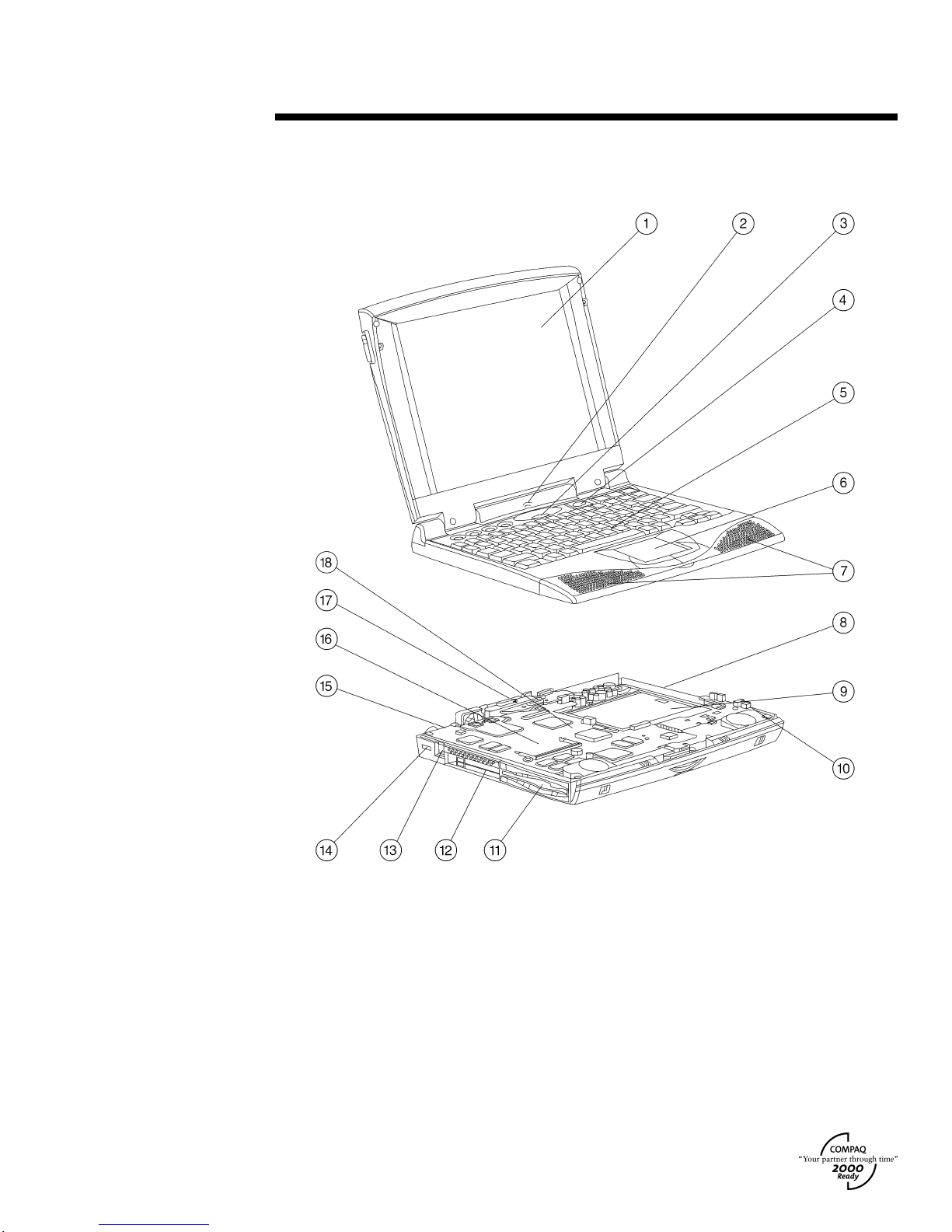

Compaq Armada 1500c

1. Display

2. Microphone

3. Stand-by Button

4. Power Switch

5. Full-size Keyboard with Four

User-programmable Keys

6. Touchpad Pointing Device

7. Stereo Speakers

8. 24X Max2CD-ROM Drive

9. Upgradable SMART Hard Drive

10. NiMH or Li-Ion Battery Pack (model dependent)

11. Dual Bay (supports additional battery or diskette

drive)

12. Two Type II/One Type III PC Card Slots; Card

Bus-capable6

13. 56K V.903Data/14.4 Kb/s Fax Modem

14. DC Power

15. Universal Serial Bus (USB)

16. Memory Slot

17. Convenience Base Connector

18. Processor Board

AT A

LANCE

•All-in-one form factor with three

spindle support

•Intel Mobile Celeron™ processor

up to 400 MHz

•128-KB integrated cache

•12.1-inch TFT display supporting

resolutions up to 800 x 600

•32-MB standard SDRAM,

expandableup to 160 MB

•Dual-function bay supportseither

diskette drive or additional battery

•4-GB1SMART Upgradable hard

drives

•Internal 24X Max2CD-ROM Drive

•56K V.903internal modem

•Touchpad pointing device

•Sound Blaster Pro-compatible

with 16-bit stereo Compaq

Premier•Sound™, integrated

speakers and microphone

Software MPEG1

•Intelligent Manageability for lower

total cost of ownership

•Optional Pass-Through or

Ethernet Convenience Bases

•CompaqServices, including a

one-year, Worldwide Limited

Warranty4with secondbusiness

day5expedited pick-up and repair

in North America

QUICKSPECS

Standard Features

2 DA-10010-01-003 — 12.03.1999

Compaq Armada 1500c

All-in-one Design

Armada 1500c, designed for affordable mainstream computing, includes integrated Diskette Drive, Hard Drive,

CD-ROM Drive and modem, providing full functionality in the office or on the road; dual-function bay supports either

diskette drive or second battery for additional flexibility.

Processor

Intel Mobile Celeron processor 400 MHz

C400/12T/4GB/D/M/3

C400/12T/4GB/D/M/2

C400/12S/4GB/D/M/2

C400/12T/4GB/D/M/1

C400/12S/4GB/D/M/1

Intel Mobile Celeron processor 366 MHz

C366/12T/4GB/D/M/3

C366/12S/4GB/D/M/1

C366/12T/4GB/D/M/1

Intel Mobile Celeron processor 300 MHz

C300/12T/4GB/D/M/3

C300/12T/4GB/D/M/1

Cache Memory

Integrated 128 KB

Memory

Standard 32 MB

Maximum 160 MB

Communications

Integrated 56K V.903Worldwide Modem

Keyboard

101/102-key compatible keyboard with isolated, inverted-T cursor control keys, and right-control key, four user-

programmable keys; special feature hotkeys for instant access to power conservation, QuickLock/QuickBlank, toggle

between internal and external, or simultaneous displays, battery gauge, speaker volume control, brightness and

contrast

Pointing Device

Touchpad

PC Card Slots

Two Type II/One Type III PC Card Slot(s) which support both 32-bit CardBus6 and 16-bit PC Cards; zoomed video

support in bottom slot only

Storage

Removable Diskette

Drive 1.44 MB

CD-ROM 24X Max2CD-ROM Drive (optional DVD Kit)

Hard Drives 4-GB1SMART

MODELS

Windows NT Workstation 4.0

C400/12T/4GB/D/M/3

150129-006

C366/12T/4GB/D/M/3

388067-006

C300/12T/4GB/D/M/3

386338-006

Windows 98

C400/12T/4GB/D/M/2

150129-006

C400/12S/4GB/D/M/2

150055-006

Windows 95

C400/12T/4GB/D/M/1

150129-002

C400/12S/4GB/D/M/1

150055-002

C366/12T/4GB/D/M/1

388067-002

C366/12S/4GB/D/M/1

388065-002

C300/12T/4GB/D/M/1

386338-002

QUICKSPECS

Standard Features

3DA-10010-01-003 — 12.03.1999

Compaq Armada 1500c

Multimedia

Compaq Premier•Sound for enhanced stereo audio

Integrated 16-bit Sound Blaster Pro-compatible stereo audio

Integrated stereo speakers and microphone

Software/hardware volume control

Headphone out

Microphone in jacks

Software MPEG1 support

Internal 24X Max2CD-ROM Drive

Interfaces

PC Card Two Type II/OneType III

Enhanced Parallel 1

Serial 1

External Monitor 1

External Keyboard/

Pointing Device 1

Convenience Base 1

Headphone/Line out 1

Microphone 1

AC Power 1

RJ-11 1

USB 1

Graphics

64-bit video graphics with 2-MB SDRAM for increased color depth and graphics performance

Display

12.1-inch color high-contrast and fast response STN with 800 x 600 resolution (up to 16.7M colors internal)

C400/12S/4GB/D/M/2

C400/12S/4GB/D/M/1

C366/12S/4GB/D/M/1

12.1-inch color TFT with 800 x 600 resolution (up to 16.7M colors internal)

C400/12T/4GB/D/M/3

C400/12T/4GB/D/M/2

C400/12T/4GB/D/M/1

C366/12T/4GB/D/M/3

C366/12T/4GB/D/M/1

C300/12T/4GB/D/M/3

C300/12T/4GB/D/M/1

Software

Windows NT Workstation 4.0

Insight Management Agents

Intelligent Manageability

Security 32

Diagnostics for Windows NT

Compaq Power Management

Online Safety and Comfort Guide

Reference Guide

C400/12/T/4GB/D/M/3

C366/12T/4GB/D/M/3

C300/12T/4GB/D/M/3

QUICKSPECS

Standard Features

4 DA-10010-01-003 — 12.03.1999

Compaq Armada 1500c

Software (continued)

Windows 98

Insight Management Agents

Intelligent Manageability

Security 32

Diagnostics for Windows 98

Compaq Power Management

Online Safety and Comfort Guide

Reference Guide

C400/12T/4GB/D/M/2

C400/12S/4GB/D/M/2

Windows 95

Insight Management Agents

Intelligent Manageability

Security 32

Diagnostics for Windows 95

Compaq Power Management

Online Safety and Comfort Guide

Reference Guide

C400/12T/4GB/D/M/1

C400/12S/4GB/D/M/1

C366/12T/4GB/D/M/1

C366/12S/4GB/D/M/1

C300/12T/4GB/D/M/1

OS Support

Windows NT Workstation 4.0

Windows 98

Windows 95

Intelligent Manageability

Lowers total cost of ownership by providing enhanced security, asset management, fault prediction with SMART

drives; also provides SMART drive alert, battery fault alert, thermal alert and memory alert for investment and

data protection

Security

Cable lock support

Power-on password

Set-up passwords

Ability to disable serial port, parallel port, diskette drive, diskette drive boot sequence

Drive Lock for advanced Data Protection

Power Supply

External AC adapter and power cord

QUICKSPECS

Standard Features

5DA-10010-01-003 — 12.03.1999

Compaq Armada 1500c

Battery

Li-Ion batteries are standard, providing up to three hours of batter life7with one battery; up to six hours when using

two batteries.

C400/12T/4GB/D/M3

C400/12T/4GB/D/M/2

C400/12S/4GB/D/M/2

C400/12T/4GB/D/M/1

C40012S/4GB/D/M/1

C366/12T/4GB/D/M/3

C366/12T/4GB/D/M/1

NiMH battery is standard, providing two to three hours of battery life7with one battery; four to six hours when using

two batteries.

C300/12T/4GB/D/M/1

C300/12T/4GB/D/M/3

Power Conservation

Hibernation, Instant-On via Standby; pop-ups with three presets and one custom level of power conservation

Service and Support

Compaq Services provides a range of services for the Armada 1500c, including a one-year, Limited Warranty4,

with 7 x 24 service line at 1-800-OK-Compaq (1-800-652-6672) and a free, one-year, second business day5

pick-up and delivery service from Compaq. All shipping and handling materials are supplied by Compaq.

QUICKSPECS

Options

6 DA-10010-01-003 — 12.03.1999

Compaq Armada 1500c

Memory

128-MB Memory Upgrade 315177-B21

64-MB Memory Upgrade 314891-B21

32-MB Memory Upgrade 314890-B21

Monitors8

TFT8000 Flat Panel 307906-001

TFT5000 Flat Panel 325700-001

P1100 Color9325606-001

P900 Color 386326-001

P700 Color 380207-001

P110 Color9325600-001

P75 Color 307806-001

V1100 Color9386472-001

V1000 Color9351757-001

V900 Color9303500-001

V700 Color (opal) 325800-001

V75 Color (carbon) 307710-002

V500 Color 325900-001

S910 Color9138485-001

S900 Color9360562-001

S710 Color 152991-001

S700 Color 360512-001

Optical Drive

DVD-ROM Drive 401885-B21

Hard Drive

6.4-GB1SMART Hard Drive 310313-B21

PC Cards/Communications

Compaq Microcom 420 56K3Global Fax

Modem PC Card 317900-001

Compaq Microcom 550 Combo PC Card 321550-001

10/100 TX PC Card UTP Controller 335506-B21

10 T PC Card UTP Controller 292806-B21

16/4 TR PC Card IBM UTP/STP

Controller 301208-B21

For additional compatible PC Cards, view the Compaq PC

Card Solutions List on the Compaq website at

http://www.compaq.com/support/techpubs/pcmcia/

pccardlist.html. Please note this website is available in

English only.

Convenience Bases

Convenience Base II (Ethernet) 316239-001

Convenience Base II

(Pass-Through) 316238-001

Power

Li-Ion Battery 254936-B21

NiMH Battery 254935-B21

External Battery Charger 254938-B21

Auto/Aircraft Adapter 296537-B21

AC Power Cord (10-ft) 217932-002

AC Adapter 401883-B21

Input Devices

External Enhanced III Keyboard (opal) 294343-001

External Enhanced III Keyboard (carbon) 118003-008

Compaq Mouse (opal) 143315-B21

Compaq Mouse (carbon) 103180-B21

Other

Security Lock 294316-B21

Portable Video Conferencing Kit 296954-001

Armada Headset with microphone 220460-001

Universal Monitor Stand 294315-B21

Margi DVD To Go Playback PC Card 202861-B21

Carrying Cases

Compaq Value Case 294266-B21

Compaq Workstation Case 294267-B21

Compaq Global Case 294268-B21

Compaq Professional Case (Nylon) 401366-B21

Compaq Professional Case (Leather) 401367-B21

For additional Compaq Brand cases, call

1-800-888-5903.

QUICKSPECS

Memory

7DA-10010-01-003 — 12.03.1999

Compaq Armada 1500c

STANDARD MEMORY

32 MB installed on the System Board (1 slot available)

Standard Slot

32 MB Empty

STANDARD MEMORY PLUS

OPTIONAL MEMORY

Support for up to 160 MB of 60ns SDRAM is available with the installation of an optional Memory

Upgrade.

Up To Slot

64 MB

96 MB

160 MB

Following are memory options available from Compaq:

•128-MB Memory Upgrade 315177-B21

•64-MB Memory Upgrade 314891-B21

•32-MB Memory Upgrade 314890-B21

QUICKSPECS

Storage

8 DA-10010-01-003 — 12.03.1999

Compaq Armada 1500c

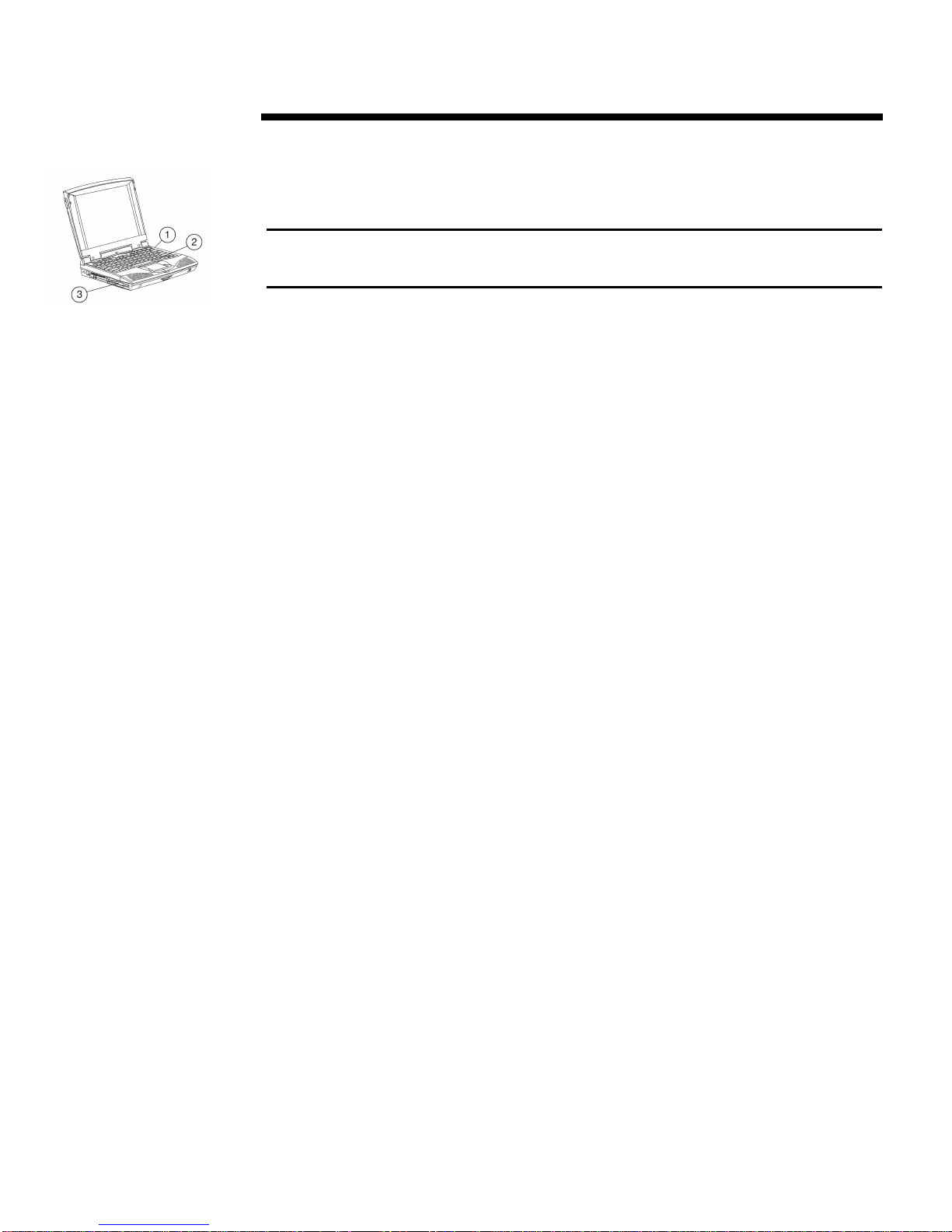

DRIVE SUPPORT Quantity

Supported Drive Bay

Supported

Removable Media

1.44-MB Diskette Drive Up to 1 Dual Bay

24X Max2CD-ROMDrive (optional DVD Kit) Up to 1 CD-ROM Drive Bay

Hard Drives

4-GB1SMART HardDrive Up to 1 UpgradableHard Drive

6.4-GB1SMARTHard Drive Up to 1 Upgradable Hard Drive

1 CD-ROM Drive Bay

2 Upgradable Hard Drive

(Internal)

3 Dual Bay

QUICKSPECS

Technical Specifications

9DA-10010-01-003 — 12.03.1999

Compaq Armada 1500c

System Unit Dimensions(HxWxD)2.1 x 12.2 x 9.6 in/5.38 x 31.1 x 24.5 cm

Weight

C366/12T/4GB/D/M/3 7.33 lbs/3.33 kg

C366/12T/4GB/D/M/1 7.33 lbs/3.33 kg

C300/12T/4GB/D/M/3 7.33 lbs/3.33 kg

C300/12T/4GB/D/M/1 7.33 lbs/3.33 kg

Stand-Alone Power Requirements

Nominal Operating Voltage (Li-Ion) 14.2 VDC

Nominal Operating Voltage (NiMH) 9.6

Maximum Operating Power 35W

Peak Operating Power 40W

Temperature

Operating 50° to 95°F/10° to 35°C

Non-operating –4° to 140°F/–20° to 60°C

Relative Humidity (non-condensing)

Operating 10% to 90%

Non-operating 5% to 95%

Shock

Operating 10 G, 11 ms, half-sine

Non-operating 60 G, 11 ms, half-sine

Vibration

Operating 0.25 G, 1 Oct/Min sweep rate

Non-operating 1 G, 1 Oct/Min sweep rate

Maximum Altitude (unpressurized)

Operating 10,000 ft/3,048 m

Non-operating 30,000 ft/9,144 m

QUICKSPECS

Technical Specifications

10 DA-10010-01-003 — 12.03.1999

Compaq Armada 1500c

Dimensions (HxW) 7.24 x 9.7 in/18.4 x 24.6 cm

12.1-Inch Color TFT

800 x 600 Display Diagonal Size 12.1 in/30.7 cm

Mounting Internal

Number of Colors 16M

Contrast Ratio 100:1

Brightness Over 120 cd/m2(typical)

Pixel Resolution

Pitch 0.3 x 0.3 mm

Format 800 x 600

Configuration RGB Stripe

Backlight Edge Lit

Character Display 80 x 25, 80 x 50

Total Power Consumption (with backlight) 6W (maximum)

4 GB1Capacity 4 GB1Seek Time (typical reads, including settling)

Height 1 in/25.4 mm Single Track 4 ms

Width 2.5 in/63.5 mm Average 13 ms (read)

Interface ATA Full-Stroke 23 ms

Transfer Rate Rotational Speed 4,009 rpm

33.3 MB Physical ConfigurationSynchronous

(Maximum) Bytes/sector 512

Hard Drives

Operating Temperature 41° to 131°F/5° to 55°C

Diskette Drive DisketteSize 3.5 in

Light None

Height 0.82 in/2.08 cm

Bytes per Sector 512

Sectors per track

High density 18 (1.44 MB)/15 (1.2 MB)

Low density 9

Tracks per side

High density 80 (1.44 MB)/80 (1.2 MB)

Low density 80

Read/Write heads 2

Access Times

Track-to track (high/low) 3 ms/6 ms

Average (high/low) 94 ms/174 ms

Settling time 15 ms

Latency average 100 ms

Autres manuels pour Armada 1500C series

Table des matières

Autres manuels Compaq Ordinateur portable

Compaq

Compaq Presario 1400 - Notebook PC Manuel utilisateur

Compaq

Compaq Presario CQ45 Manuel

Compaq

Compaq Armada 110 Manuel

Compaq

Compaq Compaq Presario Manuel utilisateur

Compaq

Compaq N400c - Evo Notebook - PIII 700 MHz Instructions d'installation

Compaq

Compaq Essential 615 Manuel utilisateur

Compaq

Compaq Armada 4100 Mode d'emploi

Compaq

Compaq ARMADA 6500 SM Manuel utilisateur

Compaq

Compaq 2710p - Notebook PC Manuel utilisateur

Compaq

Compaq Presario 1900 - Notebook PC Manuel

Compaq

Compaq Armada 6500 Manuel utilisateur

Compaq

Compaq 1600R - ProLiant - 128 MB RAM Manuel

Compaq

Compaq Evo N200 Instructions d'installation

Compaq

Compaq Presario CQ35-100 - Notebook PC Manuel

Compaq

Compaq Armada E500 Series Mode d’emploi

Compaq

Compaq Compaq Presario,Presario 1255 Manuel

Compaq

Compaq Evo Notebook N200 Series Manuel utilisateur

Compaq

Compaq Armada 7400 Series Caractéristiques techniques

Compaq

Compaq 510 - Notebook PC Manuel utilisateur

Compaq

Compaq Presario X1000 - Notebook PC Fiche technique

Compaq

Compaq Evo Notebook N400c Series Manuel

Compaq

Compaq Presario CQ62-300 - Notebook PC Manuel d'utilisation et d'entretien

Compaq

Compaq Sapphire Instructions d'installation

Compaq

Compaq Evo D500 - Convertible Minitower Guide de démarrage rapide

Manuels Ordinateur portable populaires d'autres marques

HP ze2401xt - Pavilion Notebook PC Manuel utilisateur

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Dell

Dell Alienware 17 R2 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

HP ENVY 17 Manuel

Winbook

Winbook LM Manuel utilisateur

Dell

Dell Inspiron 1464 Manuel utilisateur

Dell

Dell Inspiron 15R 5537 Manuel utilisateur

HP PROBOOK 4520S Manuel

Dell

Dell Latitude ATG D620 Manuel utilisateur

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Dell

Dell Latitude 7310 Manuel utilisateur

Dell

Dell Precision GU806 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

HP Compaq tc4200 Guide de démarrage rapide

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel
