Compaq Presario V3000 - Notebook PC Manuel utilisateur

Maintenance and Service

Guide

Compaq Presario V3000 Notebook PC

Document Part Number: 418333-001

June 2006

This guide is a troubleshooting reference used for maintaining

and servicing the computer. It provides comprehensive

information on identifying computer features, components, and

spare parts; troubleshooting computer problems; and performing

computer disassembly procedures.

Microsoft and Windows are U.S. registered trademarks of

Microsoft Corporation. Intel and Core are trademarks or registered

trademarks of Intel Corporation or its subsidiaries in the United States and

other countries. AMD, Sempron, Turion, and combinations thereof, are

trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark

owned by its proprietor and used by Hewlett-Packard Company under

license.

The information contained herein is subject to change without notice. The

only warranties for HP products and services are set forth in the express

warranty statements accompanying such products and services. Nothing

herein should be construed as constituting an additional warranty. HP shall

not be liable for technical or editorial errors or omissions contained herein.

Maintenance and Service Guide

Compaq Presario V3000 Notebook PC

First Edition: June 2006

Document Part Number: 418333-001

Maintenance and Service Guide iii

Contents

1 Product Description

1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.2 Resetting the Computer. . . . . . . . . . . . . . . . . . . . . . . 1–4

1.3 Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

1.4 External Components . . . . . . . . . . . . . . . . . . . . . . . . 1–6

1.5 Design Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–18

2 Troubleshooting

2.1 Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

2.2 Using the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . 2–2

2.3 Setup Utility Menus . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

2.4 Troubleshooting Flowcharts . . . . . . . . . . . . . . . . . . . 2–9

iv Maintenance and Service Guide

Contents

3 Illustrated Parts Catalog

3.1 Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 3–1

3.2 Computer Major Components. . . . . . . . . . . . . . . . . . 3–2

3.3 Display Assembly Components . . . . . . . . . . . . . . . 3–18

3.4 Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . 3–20

3.5 Plastics Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–22

3.6 Cable Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–23

3.7 Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–24

3.8 Sequential Part Number Listing . . . . . . . . . . . . . . . 3–26

4 Removal and Replacement Preliminaries

4.1 Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.2 Service Considerations . . . . . . . . . . . . . . . . . . . . . . . 4–2

Plastic Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 4–2

4.3 Preventing Damage to Removable Drives . . . . . . . . 4–3

4.4 Preventing Electrostatic Damage . . . . . . . . . . . . . . . 4–4

4.5 Packaging and Transporting Precautions . . . . . . . . . 4–5

4.6 Workstation Precautions . . . . . . . . . . . . . . . . . . . . . . 4–6

4.7 Grounding Equipment and Methods . . . . . . . . . . . . . 4–7

Contents

Maintenance and Service Guide v

5 Removal and Replacement Procedures

5.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

5.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . 5–2

5.3 Preparing the Computer for Disassembly . . . . . . . . . 5–4

5.4 Hard Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6

5.5 RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10

5.6 Computer Feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11

5.7 Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–12

5.8 Mini Card Module. . . . . . . . . . . . . . . . . . . . . . . . . . 5–15

5.9 Optical Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–19

5.10 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–21

5.11 Switch Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–25

5.12 Display Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 5–30

5.13 Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–42

5.14 TouchPad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–46

5.15 Wireless Switch Board . . . . . . . . . . . . . . . . . . . . . 5–50

5.16 Modem Module. . . . . . . . . . . . . . . . . . . . . . . . . . . 5–52

5.17 Audio/Infrared Board . . . . . . . . . . . . . . . . . . . . . . 5–54

5.18 Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . 5–56

5.19 USB Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–58

5.20 Speaker Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 5–60

5.21 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–62

5.22 ExpressCard Assembly . . . . . . . . . . . . . . . . . . . . . 5–67

5.23 Fan/Heat Sink Assembly. . . . . . . . . . . . . . . . . . . . 5–70

5.24 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–78

vi Maintenance and Service Guide

Contents

6 Specifications

A Screw Listing

B Backup and Recovery

C Display Component Recycling

D Connector Pin Assignments

E Power Cord Set Requirements

Index

Maintenance and Service Guide 1–1

Product Description

The Compaq Presario V3000 Notebook PC offers advanced

modularity, Intel® Core™ Duo and Core Solo processors or

AMD Turion™ 64 Mobile Technology and Mobile AMD

Sempron™ processors, and extensive multimedia support.

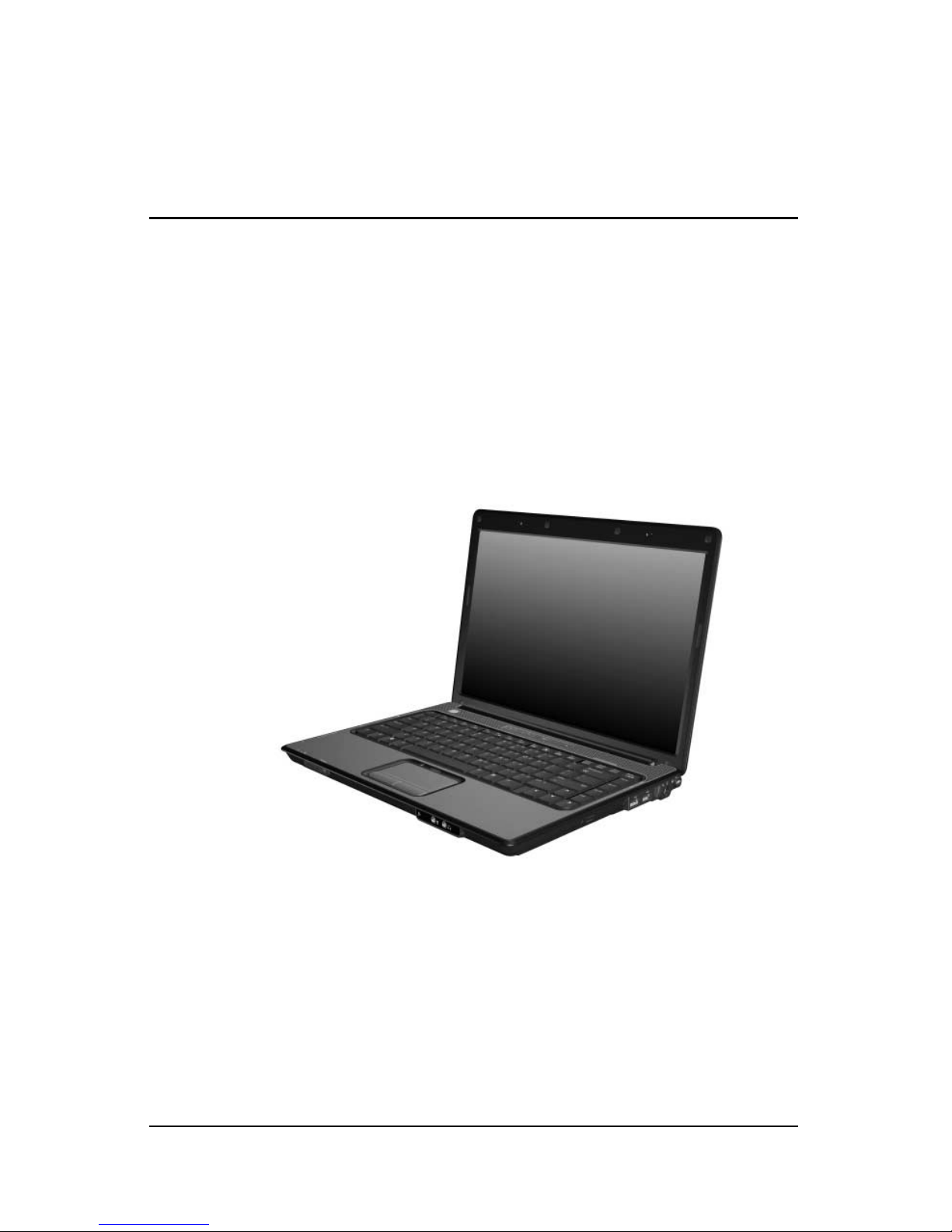

Compaq Presario V3000 Notebook PC

1–2 Maintenance and Service Guide

Product Description

1.1 Features

■The following processors are available, varying by

computer model:

❏Intel Core Duo T2600 (2.16-GHz)

❏Intel Core Duo T2500 (2.00-GHz)

❏Intel Core Duo T2400 (1.83-GHz)

❏Intel Core Duo T2250 (1.73-GHz)

❏Intel Core Duo T2300 (1.66-GHz)

❏Intel Core Duo T2050 (1.60-GHz)

❏Intel Core Solo T1350 (1.80-GHz)

❏AMD Turion ML-52 1.60-Ghz

❏AMD Turion ML-50 1.60-GHz

❏Mobile AMD Sempron 3400+ (1.80-GHz)

❏Mobile AMD Sempron 3200+ (1.60-GHz)

■14.0-inch WXGA (1280 × 768) TFT display with over

16.7 million colors, varying by computer model

■120-, 100-, 80-, 60-, or 40-GB high-capacity hard drive,

varying by computer model

■256-MB DDR synchronous DRAM (SDRAM) at 667 MHz

and 533 MHz, expandable to 2.0 GB

■Microsoft® Windows® XP Home Edition or Windows XP

Professional, or Free DOS, varying by computer model

■Full-size Windows keyboard with embedded numeric keypad

■TouchPad pointing device with on/off button and dedicated

two-way scroll zone

■Integrated 10/100 BASE-T Ethernet local area network

(LAN) network interface card (NIC) with RJ-45 jack

■Integrated high-speed 56K modem with RJ-11 jack

Product Description

Maintenance and Service Guide 1–3

■Integrated wireless support for Mini Card IEEE 802.11b and

802.11b/g WLAN device

■Support for ExpressCard

■External 65-watt AC adapter with 3-wire power cord

■6-cell or 12-cell Li-Ion battery

■Stereo speakers with volume up and down buttons

■Integrated microphone (select models only)

■Support for the following optical drives:

❏DVD/CD-RW Combo Drive

❏DVD±RW/R and CD-RW Double-Layer Combo Drive

with LightScribe

■Connectors:

❏Audio-in (microphone)

❏Audio-out (headphone)

❏Consumer infrared lens

❏Docking (select models only)

❏ExpressCard

❏External monitor

❏IEEE 1394 digital (select models only)

❏Memory Reader (select models only)

❏Power

❏RJ-11 (modem)

❏RJ-45 (network)

❏S-Video-out (select models only)

❏Universal Serial Bus (USB) v. 2.0

1–4 Maintenance and Service Guide

Product Description

1.2 Resetting the Computer

If the computer you are servicing has an unknown password,

follow these steps to clear the password. These steps also

clear CMOS:

1. Prepare the computer for disassembly (refer to Section 5.3,

“Preparing the Computer for Disassembly,” for more

information).

2. Remove the real-time clock (RTC) battery (refer to

Section 5.5, “RTC Battery,” for more information).

3. Wait approximately 5 minutes.

4. Replace the RTC battery and reassemble the computer.

5. Connect AC power to the computer. Do not reinsert any

batteries at this time.

6. Turn on the computer.

All passwords and all CMOS settings have been cleared.
