Getting Started

Compaq Notebook Series

Document Part Number: 272637-001

June 2002

This guide explains how to set up your hardware and software,

begin using the notebook, troubleshoot problems, and contact

Compaq if you need assistance. The last chapter introduces you

to the exterior features of the notebook.

Compaq, the Compaq logo, Evo, and Presario are trademarks of Compaq

Information Technologies Group, L.P. in the U.S. and/or other countries.

Microsoft and Windows are trademarks of Microsoft Corporation in the U.S.

and/or other countries. All other product names mentioned herein may be

trademarks of their respective companies.

Compaq shall not be liable for technical or editorial errors or omissions

contained herein. The information is provided “as is” without warranty of any

kind and is subject to change without notice. The warranties for Compaq

products are set forth in the express limited warranty statements accompanying

such products. Nothing herein should be construed as constituting an additional

warranty.

Getting Started

First Edition June 2002

Reference Number: N1005/900

Document Part Number: 272637-001

Getting Started iii

Using This Guide

This preface explains how to interpret the symbols, text styles,

and paths in your notebook documentation.

Warnings, Cautions and Notes

Warnings and cautions contain important information that can

protect you, your work, and your system. Always read warnings

and cautions.

Notes contain additional information about a topic. Some notes

provide basic information for inexperienced users. Others provide

technical information for advanced users.

The following icons identify warnings, cautions, and notes.

ÅWARNING: The information in a warning protects against bodily

harm or loss of life.

ÄCAUTION: The information in a caution protects against damage

to your work, your notebook, or an optional external device.

✎The information in a note provides supplementary information

for inexperienced or advanced users.

iv Getting Started

Using This Guide

Text Styles

Some text in your notebook documentation is styled

typographically to help you interpret the information it contains.

For example, keyboard keys are styled like this: shift key. Buttons

that display on the screen are styled like this: Next button.

The following table identifies and explains the text styles used in

your notebook documentation.

Style Explanation

keys Identifies a key, such as the enter key, on the

notebook keyboard or on an optional external

keyboard.

A plus sign (+) between 2 or more keys indicates

that they are a key combination. To use most key

combinations:

■Briefly press the first key, then briefly press

each succeeding key.

■Press and hold the first key, press and hold

each succeeding key, then release all the keys

simultaneously.

Unless you are instructed to do so, do not press the

keys in a key combination simultaneously.

commands Identifies characters you are asked to type. For

example, to visit the Compaq Web site, you would

type http://www.compaq.com into the address field

on your Web browser.

Initial Capital

Letters

Identifies words that appear on the screen. For

example, in a procedure for displaying an icon on

the taskbar, you might be asked to select a Show

Icon On The Taskbar check box.

Using This Guide

Getting Started v

Paths and Views

Following a Path

Many instructions in the documentation direct you to locations

within the operating system, an application, or a utility where you

can select settings. The greater than symbol (>) is used to direct

you from destination to destination along the path to the settings.

As you follow paths, do nothing at each destination along the way

except select the next destination. The paths in your notebook

documentation:

■Explain whether to look for an icon, a tab, or a button on the

screen. Tabs are displayed along the top edge of individual

windows.

■Are based on the notebook pointing device functions set at

the factory:

❏To select, press the left TouchPad button 1once.

❏To double-click, press the left TouchPad button twice.

❏To right-click, press the right TouchPad button 2once.

Most paths to Windows destinations begin with Start >. To select

Start (and display the Windows Start menu), select the Start

button in the lower left corner of your screen or press either of the

Microsoft logo keys 3on the keyboard.

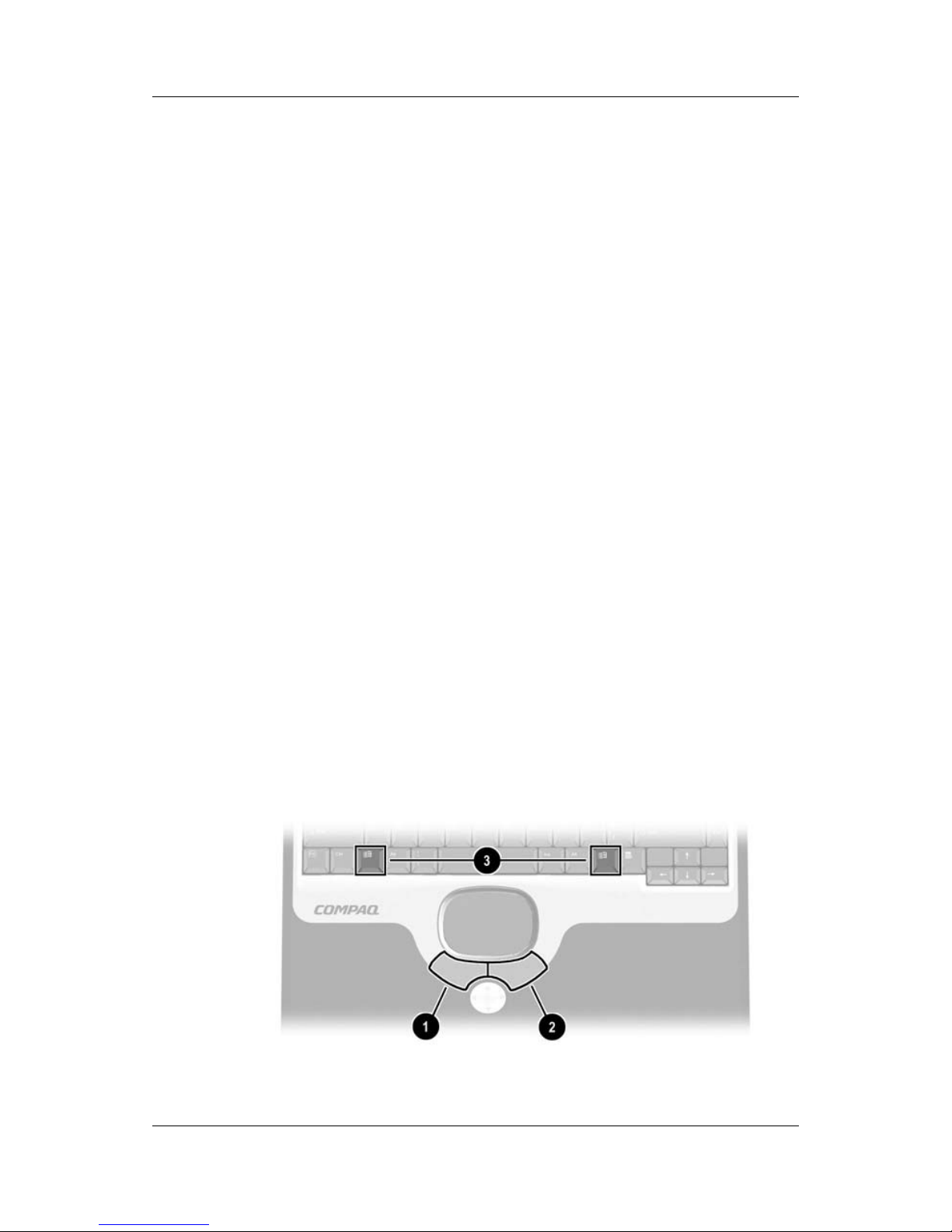

Identifying TouchPad buttons and the Microsoft logo keys

vi Getting Started

Using This Guide

Choosing a View Mode

This documentation is based on your notebook running either

Windows XP Home or Windows XP Professional. These

operating systems are similar and may be set to run in one of two

view modes:

■Category view (default mode)

■Classic view (similar to Windows 2000 operating system

view mode)

As installed, Windows XP Home or Windows XP Professional

runs in Category view. To compare Category view with Classic

view or to select either view:

1. Right-click the Start button > Properties > Start Menu tab.

2. Select the Classic or Category radio button. (The views are

displayed in the illustration on the Start Menu tab.)

3. Follow the instructions on the screen.

Getting Started vii

Contents

Using This Guide

1 Setting Up the Notebook

Setting Up the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

Installing the Battery Pack. . . . . . . . . . . . . . . . . . . . . 1–2

Connecting the Notebook to External Power . . . . . . 1–3

Opening the Notebook. . . . . . . . . . . . . . . . . . . . . . . . 1–4

Turning On the Notebook . . . . . . . . . . . . . . . . . . . . . 1–5

Setting Up the Software . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

Turning Off the Notebook . . . . . . . . . . . . . . . . . . . . . . . . 1–6

Using the Notebook Safely . . . . . . . . . . . . . . . . . . . . . . . 1–7

2 Beginning to Use the Notebook

Selecting Regional Settings . . . . . . . . . . . . . . . . . . . . . . . 2–1

Selecting Screen Settings . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Protecting the Notebook Against Viruses . . . . . . . . . . . . 2–2

Installing Optional Software . . . . . . . . . . . . . . . . . . . . . . 2–3

Installing Software in Windows XP Professional . . . 2–3

Installing Software in Windows XP Home . . . . . . . . 2–4

Accessing Notebook Documentation. . . . . . . . . . . . . . . . 2–5

Opening the Documentation Library CD . . . . . . . . . 2–6

Using the Documentation Library CD. . . . . . . . . . . . 2–7

3 Troubleshooting

Quick Solutions Checklist . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Is the Notebook Receiving Power? . . . . . . . . . . . . . . 3–2

Is the Notebook Turned On? . . . . . . . . . . . . . . . . . . . 3–3

viii Getting Started

Is the Notebook in Standby or Hibernation? . . . . . . . 3–3

Is the Notebook Overheated? . . . . . . . . . . . . . . . . . . 3–4

Is the System Unresponsive?. . . . . . . . . . . . . . . . . . . 3–4

Is an External Device Not Working?. . . . . . . . . . . . . 3–5

Are You Using All Available Documentation?. . . . . 3–5

Is Software Functioning Abnormally? . . . . . . . . . . . 3–6

Contacting Compaq . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–7

Preparing to Call Technical Support . . . . . . . . . . . . . 3–7

Taking the Notebook to a Service Provider. . . . . . . . 3–8

4 Identifying External Hardware

Display Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

Pointing Device Components. . . . . . . . . . . . . . . . . . . . . . 4–2

Top Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

Power Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

Keyboard and Drive Lights . . . . . . . . . . . . . . . . . . . . 4–4

Power and Volume Controls . . . . . . . . . . . . . . . . . . . 4–5

Easy Access Buttons and Keyboard Keys. . . . . . . . . 4–6

Function and Keypad Keys . . . . . . . . . . . . . . . . . . . . 4–7

Front Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . 4–8

Rear Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9

Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9

Vents and Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10

Left Side Components . . . . . . . . . . . . . . . . . . . . . . . . . . 4–11

Right Side Components . . . . . . . . . . . . . . . . . . . . . . . . . 4–12

Underside Components . . . . . . . . . . . . . . . . . . . . . . . . . 4–13

Memory and Mini PCI Compartments . . . . . . . . . . 4–13

Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–14

Additional Standard Components . . . . . . . . . . . . . . . . . 4–15

Documentation and Restore CDs . . . . . . . . . . . . . . 4–15

Cord and Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–16

Adapters and Accessories . . . . . . . . . . . . . . . . . . . . 4–17

Index

Getting Started 1–1

Setting Up the Notebook

Setting Up the Hardware

To set up the notebook for the first time, you will need the

notebook, the AC Adapter 1, the power cord 2, and the battery

pack 3. During the hardware setup, you will: install the battery

pack, connect the computer to external power, open the display,

and turn on the computer.

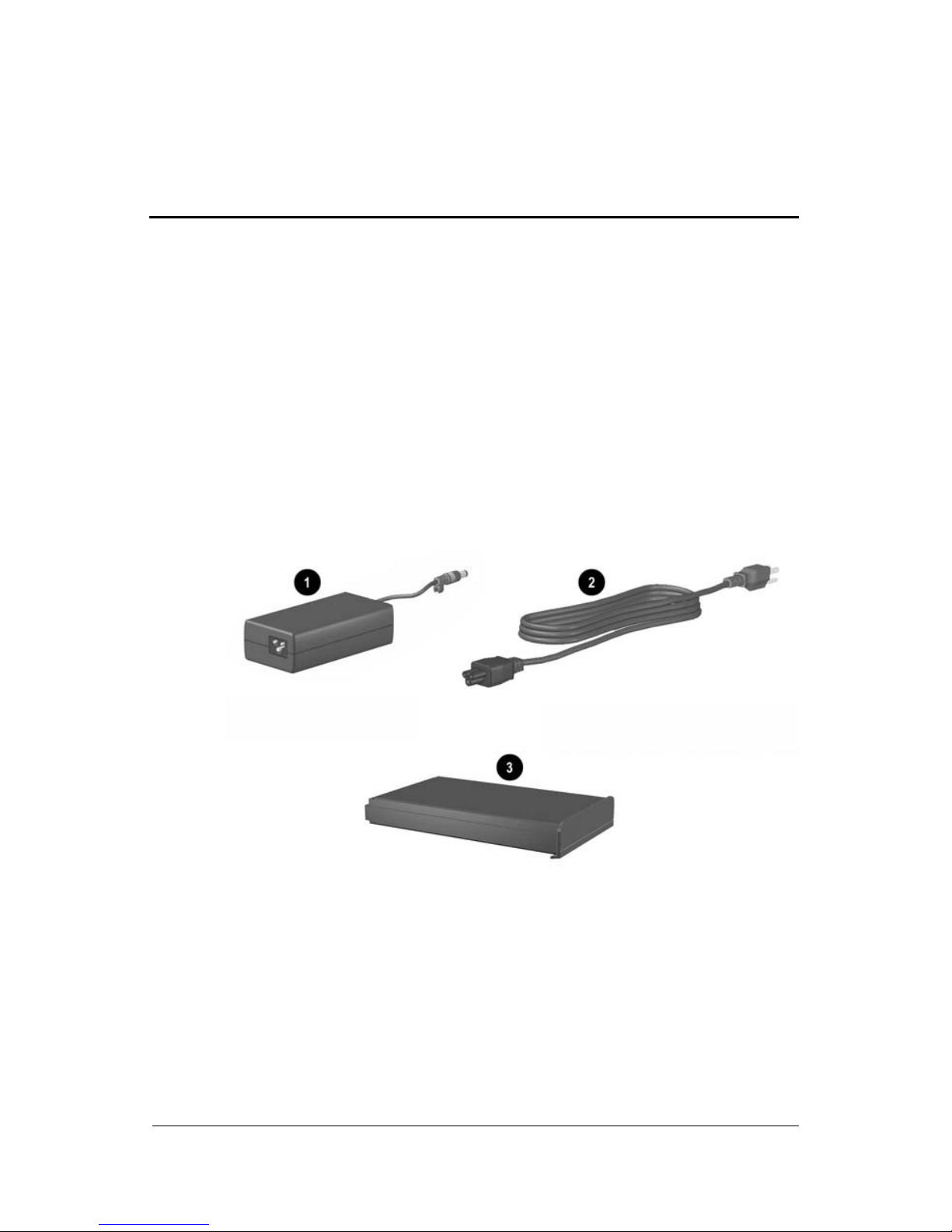

Identifying the AC Adapter, the power cord, and the battery

pack (AC Adapters and power cords vary by region.)

1–2 Getting Started

Setting Up the Notebook

Installing the Battery Pack

To install the battery pack:

1. Place the notebook upside down on a flat surface, preferably

on top of a clean cloth.

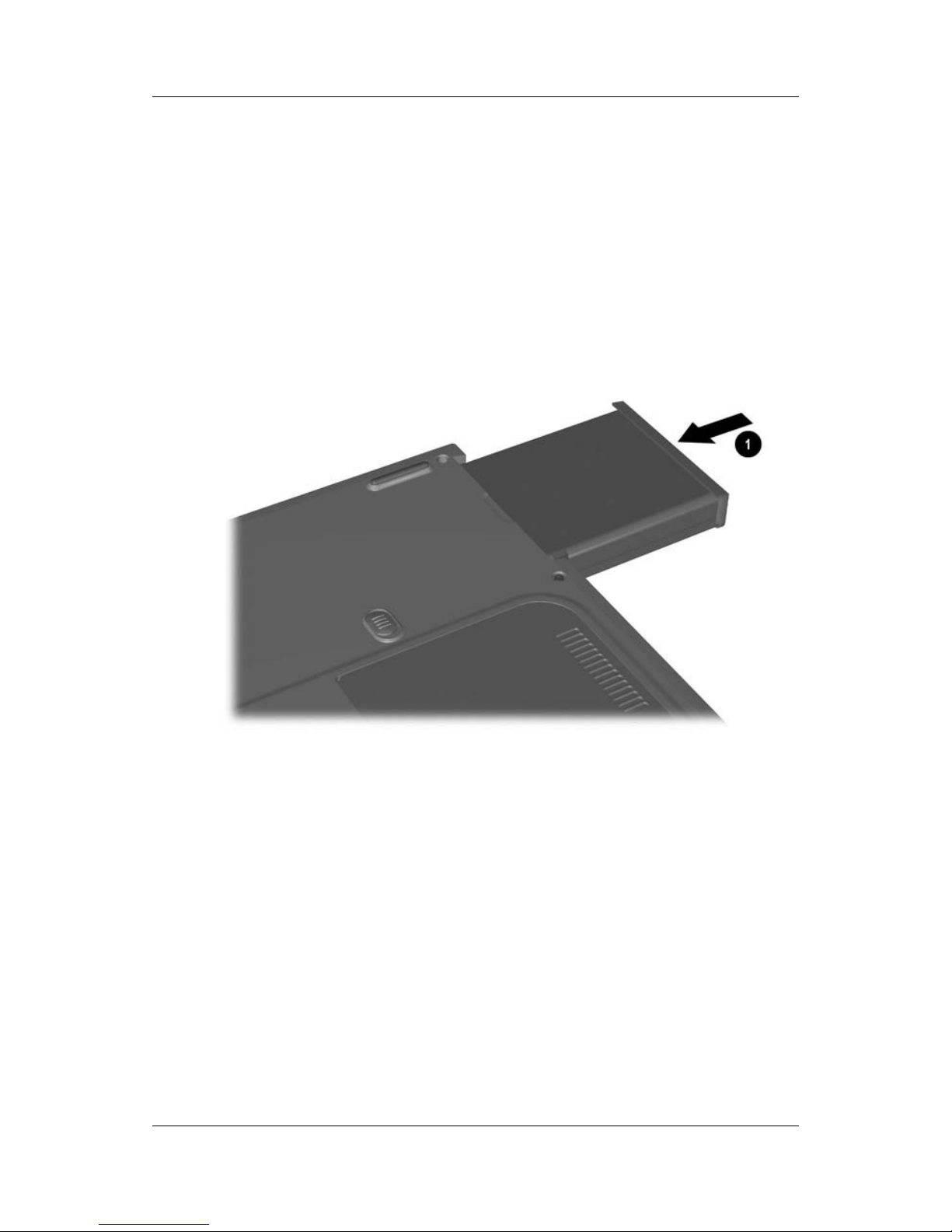

2. Slide the battery pack 1into the battery compartment until it

clicks into place. (The battery will install only one way.)

Installing the battery pack
