Compaq Presario Desktop Products

Upgrading and

Servicing Guide

The information in this document is subject to change without

notice.

Hewlett-Packard®Company makes no warranty of any kind with regard to this

material, including, but not limited to, the implied warranties of merchantability

and fitness for a particular purpose.

HP shall not be liable for errors contained herein or for incidental or consequential

damages in connection with the furnishing, performance, or use of this material.

HP assumes no responsibility for the use or reliability of its software on equipment

that is not furnished by HP.

This document contains proprietary information that is protected by copyright. All

rights are reserved. No part of this document may be photocopied, reproduced,

or translated to another language without the prior written consent of HP.

Hewlett-Packard Company

P.O. Box 4010

Cupertino, CA 95015-4010

USA

Hewlett-Packard is a registered trademark of Hewlett-Packard Company in the

United States of America and other countries/regions.

This product incorporates copyright protection technology that is protected by

method claims of certain U.S. patents and other intellectual property rights owned

by Macrovision Corporation and other rights owners. Use of this copyright

protection technology must be authorised by Macrovision Corporation, and

is intended for home and other limited viewing uses only unless otherwise

authorised by Macrovision Corporation. Reverse engineering or disassembly is

prohibited. Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216,

4,819,098, and 4,907,093 licensed for limited viewing uses only.

Other brand or product names are trademarks of their respective holders.

HP supports lawful use of technology and does not endorse or encourage the use

of our products for purposes other than those permitted by national copyright law.

Upgrading and Servicing Guide iii

safety information.......................................................................... 1

opening and closing the pc............................................................. 1

preparing the pc.......................................................................................1

before opening the pc ...............................................................................1

after closing the pc ...................................................................................2

removing the side panel ............................................................................2

replacing the side panel ............................................................................2

removing the front panel............................................................................2

replacing the front panel ...........................................................................3

locating components inside the PC..............................................................3

removing and replacing drives....................................................... 3

removing a drive ......................................................................................3

replacing or adding a drive .......................................................................4

adding memory ............................................................................. 6

removing a memory module.......................................................................6

installing a memory module .......................................................................6

removing or installing an add-in card ............................................ 7

removing an add-in card ...........................................................................7

installing an add-in card............................................................................8

replacing the battery...................................................................... 8

table of contents

iv Upgrading and Servicing Guide

Upgrading and Servicing Guide 1

safety information

This product has not been evaluated for connection to

an “IT” power system (an AC distribution system with

no direct connection to earth, according to

IEC 60950).

WARNING: Please read “safety

information” in the User’s Guide before

installing and connecting your system to

the electrical power system.

opening and closing the pc

preparing the pc

Before you upgrade any component in your PC, you

need to prepare the PC so that you can safely handle

it and the components.

Read the following items before attempting to upgrade

or service the PC.

• These procedures assume familiarity with the

general terminology associated with personal

computers, and with the safety practices and

regulatory compliance required for using and

modifying electronic equipment.

• Write down and save the system model and serial

numbers, all installed options, and other

information about the system. It will be easier to

consult this information than to open up and

examine the PC.

• Compaq recommends that you use an antistatic

wrist strap and a conductive foam pad when

working on the system.

WARNING: Always disconnect the modem

cord from the telephone system, and then

disconnect the PC from the power source

before removing the front and side panels

of the PC. Failure to do so before you

open the PC, or do any procedures, can

result in personal injury or equipment

damage.

before opening the pc

1 Remove any diskette or optical disc (CD or DVD)

from the PC.

2 Click the Start button, and then click Turn Off

Computer. Click Turn Off.

3 Disconnect the modem/telephone cable, if present.

CAUTION: To reduce the risk of personal

injury from electrical shock or hot

surfaces, disconnect the power cable

from the wall outlet, and allow the

internal system components to cool

before touching.

4 Disconnect the power cable from the electrical

outlet and then from the PC.

5 Disconnect all other attached cables (such as the

keyboard, mouse and monitor) and all external

devices.

CAUTION: Static electricity can damage

the electronic components of the PC or

optional equipment. Ensure that you are

discharged of static electricity by briefly

touching a grounded metal object.

2Upgrading and Servicing Guide

after closing the pc

To avoid injury and equipment damage, always

follow this procedure in this order after closing the PC.

1 Reconnect the power cable.

ARNING: To reduce the risk of electrical

shock, fire, or damage to the equipment,

do not plug telecommunications or

telephone connectors into the network

interface card (NIC) (labeled as an

Ethernet connector).

2 Reconnect the modem/telephone cable, and all

other cables (such as the keyboard, mouse, and

monitor) and external devices.

3 Turn on the PC and all peripherals.

4 If you installed an add-in card, install any software

drivers supplied by the card manufacturer.

removing the side panel

1 Remove the side panel by loosening the screw (D)

that secures the panel to the PC chassis.

2 Slide the panel back about 1 inch (2.5 cm), and

then lift it off the unit.

WARNING: Beware of sharp edges inside

the chassis.

replacing the side panel

1 Place the side panel in the proper position on the

chassis, and slide it into place.

2 Ensure that the hole for the thumbscrew aligns

with the hole in the chassis, and replace the

thumbscrew (D).

removing the front panel

This procedure is necessary only when removing or

replacing an optical drive, memory card reader,

diskette drive or the hard disk drive.

1 Press and hold down the square button (1) near the

top front of the inside of the chassis. Press one tab

(2), and then press the other tab (3), toward the

outside edge of the chassis.

2 Remove the front panel.

Upgrading and Servicing Guide 3

replacing the front panel

1 Align the top of the front panel with the top of the

chassis front.

2 Press the panel onto the chassis at the top and at

each side near the bottom until the panel snaps into

place.

locating components inside the PC

AUpper optical drive bay, may be a CD-ROM, CD-RW,

DVD-ROM, DVD+RW/+R or combination drive

BLower optical drive bay, may be empty (blank plate) or a

CD-ROM, CD-RW, DVD-ROM, DVD+RW/+R or

combination drive

CMemory card reader (select models)

DDiskette (floppy) drive (select models)

EFront connector panel (no replacement instructions)

FHard disk drive

removing and replacing

drives

Your PC has several drives that you can replace or

upgrade. See the preceding topic, “locating

components inside the PC” for drive type and

location.

CAUTION: Back up your personal files on

the hard disk drive to an external

storage device, such as a CD, before

removing the hard disk drive. Failure to

do so will result in data loss. After

replacing the hard disk drive, you need

to run System Recovery, using the

recovery discs, to load the factory-

installed files. See the User’s Guide for

details about the recovery procedure.

You can add an optical drive into an empty lower

optical drive bay.

IMPORTANT: Before adding a new optical drive,

make sure that it is compatible with the Microsoft®

Windows®XP operating system. Also, make sure you

have the correct software and drivers for the optical

drive to work with the operating system.

removing a drive

1 Complete the procedures to prepare the PC, to

remove the side panel, and to remove the front

panel. See “opening and closing the pc” on

page 1.

4Upgrading and Servicing Guide

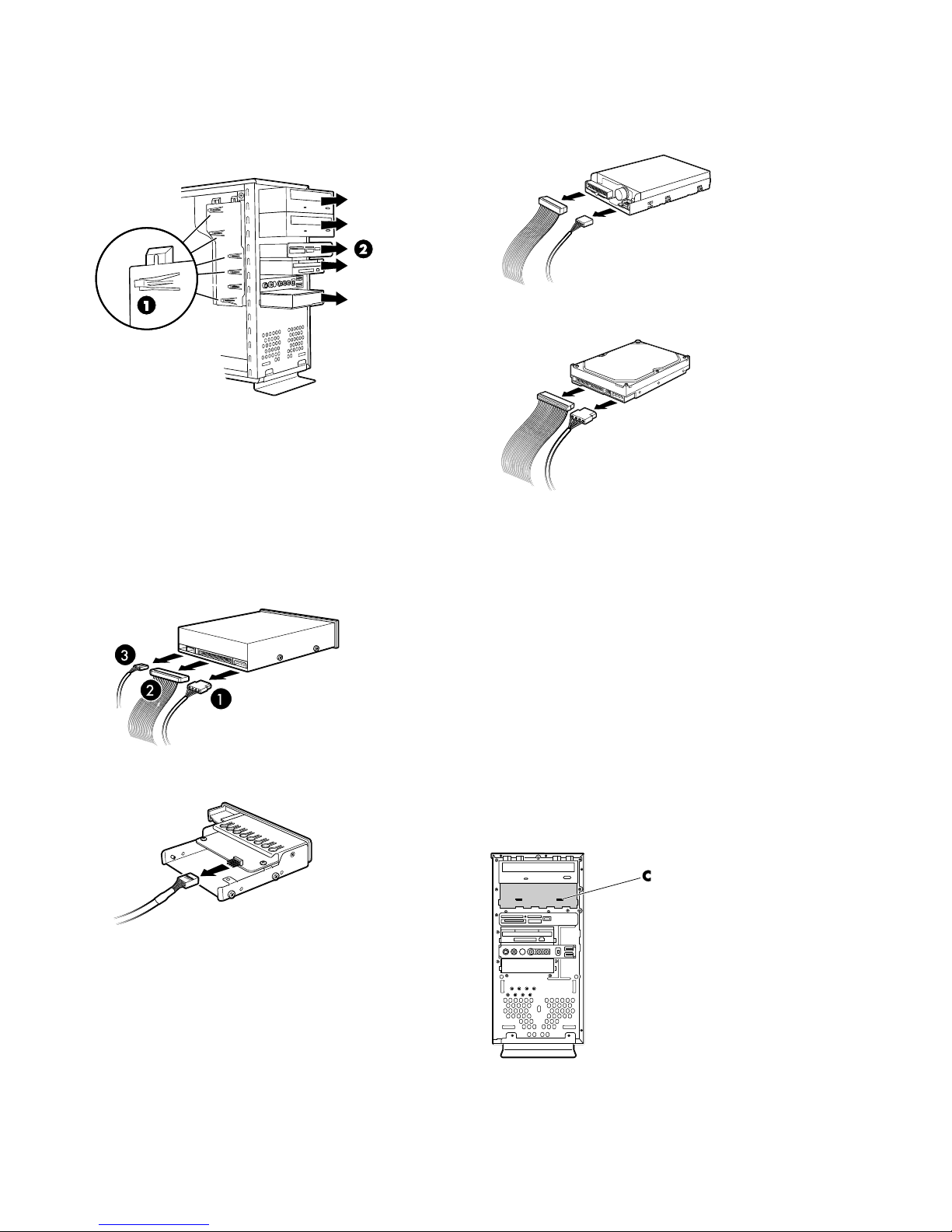

2 Locate the drive you want to remove.

3 Release the drive from the chassis by lifting the

tab (1) on the latch drive bracket, and then sliding

(2) the drive partway out of the bay. (The latch

drive bracket secures the drives in their respective

positions in the chassis.)

4 Disconnect the power cable (1) and data cable (2)

from the back of the drive you want to remove, as

indicated in the following illustrations. Use a gentle

rocking motion. Some units may have a sound

cable. If so, disconnect the sound cable (3).

disconnecting the optical drive cables

disconnecting the memory card reader drive

cable

disconnecting the diskette (floppy) drive cables

disconnecting the hard disk drive cables

5 Pull the drive out of the drive bay.

6 If you are replacing the old drive with a new drive,

remove the four guide screws (two on each side)

from the old drive. You need these screws to install

the new drive.

replacing or adding a drive

1 If necessary, remove the existing drive.

See ”removing a drive“ on page 3.

2 If you are adding a drive to an empty lower optical

drive bay, you must remove the blank plate from

the bay. To do so, insert a flat screwdriver into the

blank plate slot (C) and rotate the screwdriver to

break the blank plate out of the chassis. Discard the

blank plate.

Upgrading and Servicing Guide 5

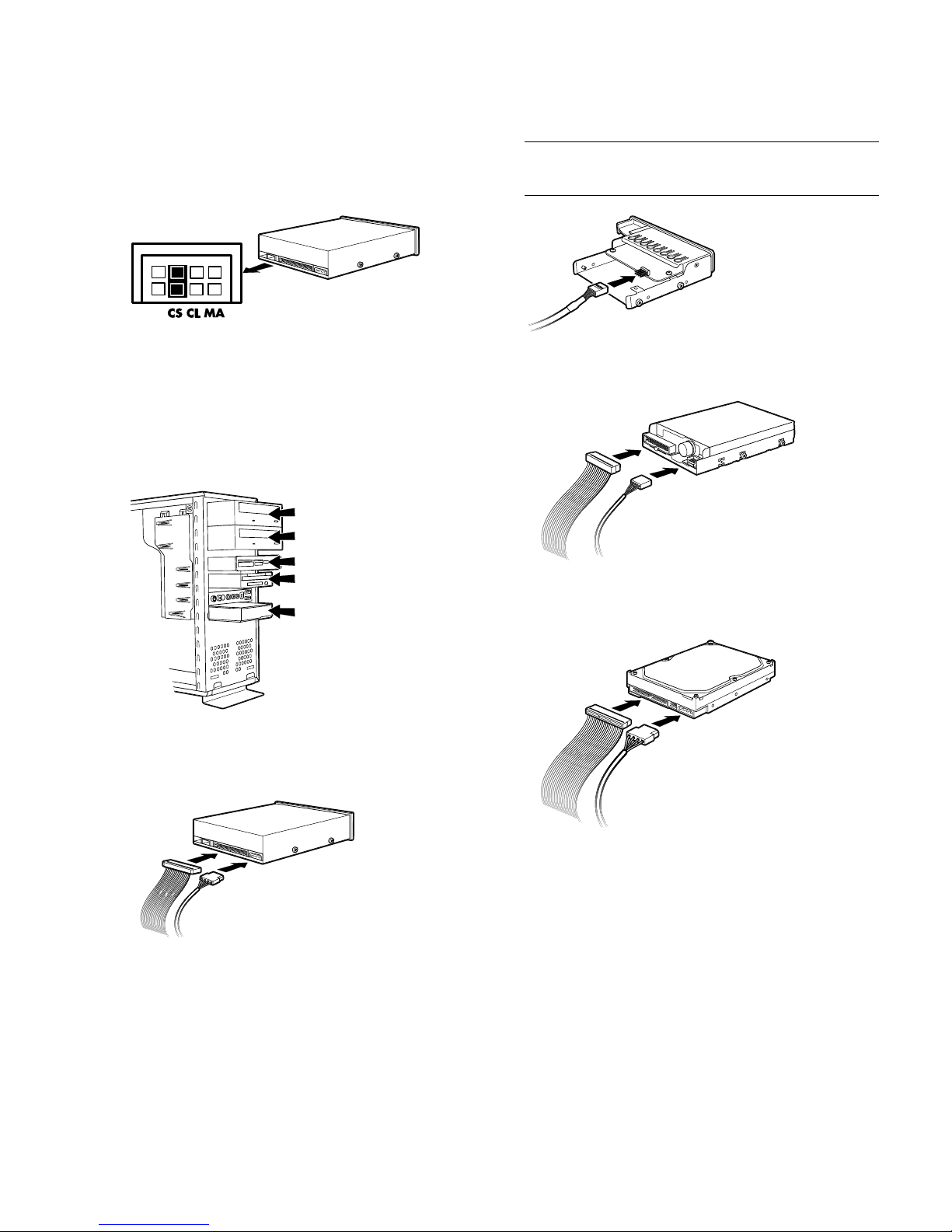

3 Make sure the jumper on the new optical drive or

hard drive is in the CS (Cable Select) position. Your

drive may vary from the illustration.

cable select jumper

4 Install four guide screws on the sides of the new

drive (two on each side). The screws help guide the

drive into its proper position in the bay.

5 Slide the drive partway into the drive bay, making

sure to align the guide screws with the guide slots.

6 Reconnect the power and data cables to your

drive, as indicated in the following illustrations.

connecting the optical drive cables

NOTE: An optical drive may include a sound cable.

Connect this cable also.

connecting the memory card reader drive cable

connecting the diskette (floppy) drive cables

connecting the hard disk drive cables

7 Push the drive the rest of the way into the bay until

the drive snaps into place.

8 Complete the procedures to replace the front panel,

replace the side panel, and close the PC. See

“opening and closing the pc” on page 1.

6Upgrading and Servicing Guide

adding memory

Your PC comes with random access memory (RAM),

which temporarily stores data and instructions on your

PC. The PC ships with one or more memory modules,

but you can replace the existing memory module(s)

with higher-capacity ones.

The motherboard contains sockets for DDR DIMMs

(double data rate dual in-line memory modules). The

exact number of sockets and type of DDR memory

module depends on which model PC you have.

ADDR DIMM

To determine which type of memory module your PC

uses, and for specific memory module information

and specifications, go to the Web site listed in your

Warranty and Support Guide and click the

Support link.

WARNING: Using the wrong type of

memory module could damage the

system.

removing a memory module

1 Complete the procedures to prepare the PC, and to

remove the side panel. See “opening and closing

the pc” on page 1.

2 Gently lay the PC on its side.

3 Locate the memory sockets on the motherboard.

CAUTION: When handling a memory

module, be careful not to touch any of

the contacts. Doing so may damage the

module.

4 Move any cabling out of the way, if necessary.

5 Push down the two retaining clips on the ends of

the memory socket until the memory module pops

out of the socket.

WARNING: Do not pull the memory

module out of the socket. Use the

retaining clips to eject the module.

6 Lift the memory module from the memory socket.

installing a memory module

Upgrade the memory in your PC with memory of the

same type and speed as the memory originally

installed in your PC.

CAUTION: When handling a memory

module, be careful not to touch any of

the contacts. Doing so may damage the

module.

1 Open both latches of the memory module socket.

• If you are replacing a memory module, put the

new memory module in the same memory slot

from which the old memory was removed.

• If you are adding a memory module, install the

new module into the socket nearest the

preinstalled module, and install additional

modules in the next available sockets.

Autres manuels pour SR1000

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Compaq Ordinateur de bureau

Compaq

Compaq iPAQ IA-2 Feuille d'instructions

Compaq

Compaq Presario 5600 Series Manuel utilisateur

Compaq

Compaq dc5100 - Microtower PC Manuel utilisateur

Compaq

Compaq Deskpro 2000 Manuel utilisateur

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Manuel technique

Compaq

Compaq Pavilion Slimline s3000 - Desktop PC Manuel utilisateur

Compaq

Compaq D310v - Evo - 256 MB RAM Manuel d'utilisation et d'entretien

Compaq

Compaq Presario 3500 Series Manuel utilisateur

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Guide rapide

Compaq

Compaq Evo Workstation w6000 Instructions d'utilisation

Compaq

Compaq SR5250NX - Presario - 1 GB RAM Comment utiliser

Compaq

Compaq dc7700 - Convertible Minitower PC Manuel utilisateur

Compaq

Compaq Presario SG3700 - Desktop PC Comment utiliser

Compaq

Compaq Presario 6500 - Desktop PC Mode d’emploi

Compaq

Compaq AP400 - Professional - 64 MB RAM Manuel utilisateur

Compaq

Compaq dc7700 - Convertible Minitower PC Instructions d'utilisation

Compaq

Compaq Deskpro Workstation AP230 Manuel d'utilisation et d'entretien

Compaq

Compaq 5000 Series Guide de dépannage

Compaq

Compaq ML330 - ProLiant - G3 Manuel

Compaq

Compaq SR5410F - Presario - 1 GB RAM Comment utiliser

Compaq

Compaq CQ2300 - Desktop PC Manuel d'utilisation et d'entretien

Compaq

Compaq dc5750 - Microtower PC Instructions d'utilisation

Compaq

Compaq 6000 - ProLiant - 128 MB RAM Manuel utilisateur

Compaq

Compaq Deskpro 2000 Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur
