1-1

Compaq Professional Workstation AP200 Maintenance and Service Guide

Chapter 1

Illustrated Parts Catalog

This chapter provides an illustrated parts breakdown and a reference for spares parts for the

Compaq Professional Workstation AP200.

Mechanical Parts

74d

74f

74i

74g

73a

74e

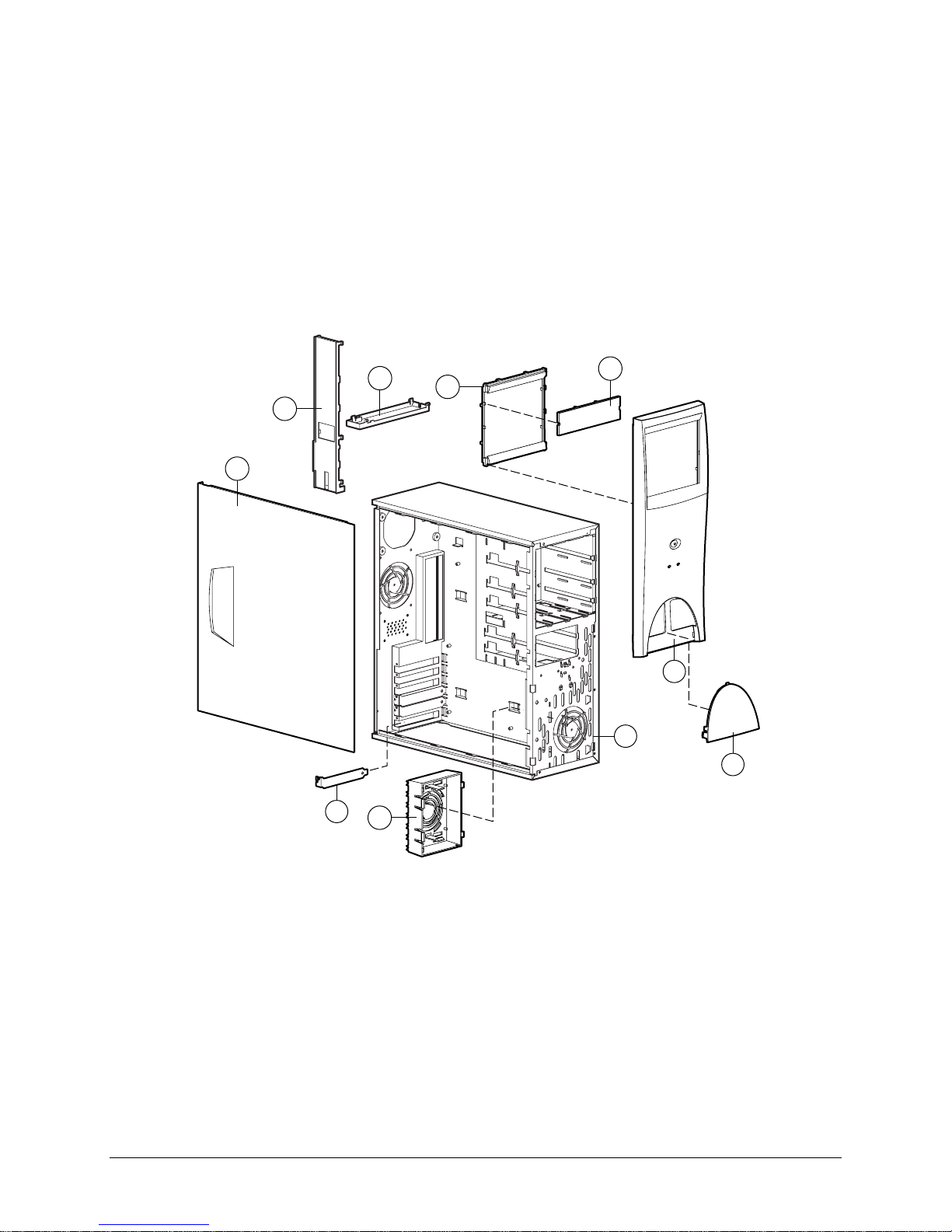

Figure 1-1. Exploded view of the Compaq Professional Workstation AP200 mechanical parts.

1-2 Illustrated Parts Catalog

System Components

14 74c

2019

Figure 1-2. Exploded view of the Compaq Professional Workstation AP200 system components.

1-3

Compaq Professional Workstation AP200 Maintenance and Service Guide

Spares Parts List

Parts or components marked with an asterisk (*) are not illustrated.

Table 1-1

Compaq Professional Workstation AP200

Spares Parts List

Reference Description Spares Part #

MECHANICAL

1 Access panel 166867-001

2 Front bezel with minitower logo 352649-001

3 Chassis/base pan 166880-001

SYSTEM

4 Speaker 166507-001

5 SPS-Speaker 5 watt 167029-001*

6 SPS-BD audio Ess 1869 5 watt 356081-001*

7 Auxiliary fan (optional) on the Compaq Professional AP200 Workstation,

models 350- and 400-MHz.

Auxiliary fan (standard) on the Compaq Professional AP200 Workstation,

models 450- and 500-MHz.

166922-001

8 Power supply, 200W 166814-001

9 System board for the Compaq Professional AP200 Workstation, models

350-,400-, and 450-MHz. 352648-001

10 System board for the Compaq Professional AP200 Workstation, models

350-,400-, 450- and 500-MHz. 110940-001

11 Intel Pentium II Processor, 350/100 MHz, 512K with heat sink 166874-001*

12 Intel Pentium II Processor, 400/100 MHz, 512K with heat sink 166882-001*

13 Intel Pentium II Processor, 450/100 MHz, 512K with heat sink 167032-001*

14 Intel Pentium III Processor, 500/100 MHz, 512K with heat sink 116401-001

15 Audio board 332859-001

16 Lock security bracket 199109-001*

17 Battery 234556-001

18 Power switch and LEDs with cable 166925-001

Continued

1-4 Illustrated Parts Catalog

Compaq Professional Workstation AP200 Spares Parts List

Continued

Reference Description Spares Part #

MEMORY

19 16-MB memory module (Unregistered 100-MHz SDRAM) 166964-001

20 32-MB memory module (Unregistered 100-MHz SDRAM) 166968-001

21 64-MB memory module (Unregistered 100-MHz SDRAM) 166967-001

22 128-MB memory module (Unregistered 100-MHz SDRAM) 166965-001

MASS STORAGE

23 4.3-GB Wide-Ultra SCSI hard drive 179287-001

24 9.1-GB Wide-Ultra SCSI hard drive 179288-001*

25 6.4-GB Ultra ATA hard drive 166973-001

26 10-GB Ultra ATA hard drive (5400 RPM) 320662-001*

27 10-GB Ultra ATA hard drive (7200 RPM) 330520-001*

28 1.44-MB diskette drive 179161-001

29 32X Max CD-ROM drive (IDE) 327659-001

30 DVD-ROM drive 105771-001*

31 Zip drive 401624-001*

CABLE KITS

32 Miscellaneous Cable Kit (166838-001, 288489-002, 247116-001,

242947-001) 166879-001

33 SCSI cable 297511-001

34 SCSI LED cable 247485-001*

35 NIC Wake-on-LAN cable 166974-001*

36 Power cord 121258-001*

KEYBOARD AND MOUSE

37 Keyboard 269513-xxx*

38 3-button mouse 327716-001*

Continued

1-5

Compaq Professional Workstation AP200 Maintenance and Service Guide

Compaq Professional Workstation AP200 Spares Parts List

Continued

Reference Description Spares Part #

MONITORS

39 P75 307815-xxx*

40 V75 307713-xxx*

41 V90 305602-xxx*

42 P1610 monitor 305708-xxx*

43 P110 monitor 284959-xxx*

44 P110 monitor (INT) 284959-xxx*

45 SPS, TFT5000 Aoki flat panel monitor - TC099 carbon, touch screen, NA 115712-001*

46 SPS, TFT5000 Aoki flat panel monitor - TC099,opal, touch screen, NA 115714-001*

47 TFT8000 Indian Chief flatpanel monitor Opal, without protective panel,

TC095,WW 307911-001*

48 TFT8000 Indian Chief flatpanel monitor Opal, with protectivepanel,

TC095,WW 102358-B24*

49 TFT8000 Indian Chief flatpanel monitor Carbon, without protective panel,

TC095,WW 102359-B24*

50 TFT8000 Indian Chief flatpanel monitor Carbon, with protectivepanel,

TC095,WW 102360-B29*

51 TFT 500:

Order TFT 500 spares part from the TFT 500 guide

(PN 285012-001)

GRAPHICS

52 GLoria Synergy+ Graphics Controller with 4 MB memory (Accelerated

Graphics Port or AGP) 327599-001

53 GLoria Synergy+ Graphics Controller 4 MB memory upgrade (AGP) 327600-001*

54 GLoria Synergy Graphics Controller (PCI) 298796-001*

55 Matrox Productiva G100 Multi-Monitor Series 101239-001*

56 Matrox Millennium G200 AGP 8 MB Graphics Controller (SGRAM) 294409-001*

57 Matrox Millennium G200 AGP Graphics Controller 8 MB memory upgrade

(SGRAM) 386047-001*

CONTROLLERS

58 Wide-Ultra SCSI Controller, PCI 179261-001

Continued

1-6 Illustrated Parts Catalog

Compaq Professional Workstation AP200 Spares Parts List

Continued

Reference Description Spares Part #

COMMUNICATIONS

59 Netelligent 16/4 TR PCI UTP/STP Controller 268010-001*

60 Compaq NC3120 Fast Ethernet NIC PCI, 10/100 317606-001*

61 Compaq NC3121 Fast Ethernet NIC PCI, 10/100, Wake-on-LAN 323556-001

SOFTWARE

62 Magellan Driver CD 297863-001*

63 Spaceball Driver CD 298033-001*

64 Microsoft Windows NT Workstation 4.0 CD 275573-xx1*

65 Compaq SmartStartfor Workstations CD 275574-xx3/xx2(SP)*

MISCELLANEOUS

66 Magellan 3D Pointing Device (spacemouse) 297645-001*

67 Spaceball 3D Pointing Device 297644-001*

68 3.5- to 5.25-inch diskette drive mounting bracket with screws

and brace for use in bay 3 only 166923-001*

69 3.5- to 5.25-inch hard drive mounting bracket 243231-001*

70 3.5- to 5.25-inch 1/2 height mounting bracketfor use in bays 1 and 2 only 243230-002*

71 Shipping box with buns (US) 166990-001*

72 Shipping box with buns (INTL) 166990-002*

Continued

1-7

Compaq Professional Workstation AP200 Maintenance and Service Guide

Spares Parts List - Compaq Professional Workstation AP200

Continued

Reference Description Spares Part #

MISCELLANEOUS

73 Miscellaneous hardware kit includes:

a. slot cover (5)

b. I/O panel*

c. fan guard*

d. screw, 6-32 pan head x 1/4 inch (4)*

e. screw, M3 x 1/4 inch*

f. thumbscrew (2)*

g. plastite flathead screw (4)*

h. plastic push lock fastener for fan assembly (4)*

166877-001

74 Miscellaneous plastics kit, minitower and desktop includes:

a. diskette bezel*

b. rubber feet (8)*

c. processor retainer with pins

d. blank bezel

e. subpanel

f. drivelock, minitower

g. drivelock, desktop

h. drivelock springs (2)*

i. card guide

j. desktop logo plate*

352656-001

DOCUMENTATION

75 Maintenance and Service Guide 352658-001*

76 Illustrated Parts Map 352659-001*

77 Service Quick Reference Guide (revision -038) 162212-001*

*Not illustrated
