CommScope FDH 3000 Manuel utilisateur

FDH 3000

288 Cabinet With Splicing

User Manual

22673-A

www.commscope.com

ADC-96-139 Rev B

ADCP-96-139

Rev B, July 2017

Fiber Distribution Hub

ADCP-96-139 • Rev B • July 2017 • Preface

Page ii

REVISION HISTORY

TRADEMARK INFORMATION

CommScope, CommScope(logo), and NG4access are registered trademarks of CommScope, Inc.

ADC and ADC Telecommunications are registered trademarks of CommScope, Inc.

Telcordia is a registered trademark of Telcordia Technologies, Inc.

GORE is a registered trademark of W. L. Gore & Associates, Inc.

DISCLAIMER OF LIABILITY

Contents herein are current as of the date of publication. CommScope reserves the right to change the contents without prior notice.

In no event shall CommScope Inc. be liable for any damages resulting from loss of data, loss of use, or loss of profits and

CommScope Inc. further disclaims any and all liability for indirect, incidental, special, consequential or other similar

damages. This disclaimer of liability applies to all products, publications and services during and after the warranty period.

This publication may be verified at any time by contacting CommScope’s Technical Assistance Center at 1.800.830.5056, or by e-

mail to [email protected].

ISSUE DATE REASON FOR CHANGE

1 3/2008 Original.

B July 2017 Updated to CommScope format.

ADCP-96-139 • Rev B • July 2017 • Preface

Page iii

ABOUT THIS MANUAL

This publication describes the OmniReach FDH 3000 288 cabinet with splicing. Also included

are procedures for mounting the cabinet, installing and splicing feeder and distribution cables,

installing additional splitter modules, installing additional distribution panels, storing the

splitter output fibers, connecting the splitter output fibers to the distribution fibers, and

replacing damaged components.

RELATED PUBLICATIONS

Listed below are related manuals and their publication numbers. Copies of these publications

can be ordered on the CommScope website at the following URL:

http://www.commscope.com/SupportCenter

Optical Fiber Connector Wet and Dry Cleaning Instructions 90-159

Plug And Play Splitter Installation Guide 96-087

Round Splice Tray Cable Routing Instructions 90-321

Breakout and Moisture Blocking Kit for Dielectric Uni-Tube Cable Instructions 93-064

Breakout and Moisture Blocking Kit for Armored Uni-Tube Cable Instructions 93-039

ADMONISHMENTS

Important safety admonishments are used throughout this manual to warn of possible hazards to

persons or equipment. An admonishment identifies a possible hazard and then explains what

may happen if the hazard is not avoided. The admonishments — in the form of Dangers,

Warnings, and Cautions — must be followed at all times. These warnings are flagged by use of

the triangular alert icon (seen below) and are listed in descending order of severity of injury or

damage and likelihood of occurrence.

Title ADCP Number

Danger: Danger is used to indicate the presence of a hazard that will cause severe personal

injury, death, or substantial property damage if the hazard is not avoided.

Warning: Warning is used to indicate the presence of a hazard that can cause severe personal

injury, death, or substantial property damage if the hazard is not avoided.

Caution: Caution is used to indicate the presence of a hazard that will or can cause minor

personal injury or property damage if the hazard is not avoided.

ADCP-96-139 • Issue A • June 2001 • Preface

Page iv

GENERAL SAFETY PRECAUTIONS

STANDARDS CERTIFICATION

Telcordia: This equipment complies with the applicable sections of GR-3125-CORE

LIST OF ACRONYMS AND ABBREVIATIONS

The acronyms and abbreviations used in this manual are detailed in the following list:

AWG American Wire Gauge

CCentigrade

FFahrenheit

FDH Fiber Distribution Hub

FMS Mounting Sleeve

FTTP Fiber To The Premises

OSP Outside Plant

PMF Pad Mount Frame

PNP Plug and Play

Warning: Wet conditions increase the potential for receiving an electrical shock when

installing or using electrically-powered equipment. To prevent electrical shock, never install or

use electrical equipment in a wet location or during a lightning storm.

Danger: Do not look into the ends of any optical fiber. Exposure to laser radiation may result.

Do not assume the laser power is turned-off or that the fiber is disconnected at the other end.

Danger: Use adequate lifting equipment when moving or installing Fiber Distribution Hub

cabinets. Verify that the maximum lift weight rating of the equipment is sufficient to handle the

weight of the cabinet.

Danger: Do not stand under a Fiber Distribution Hub cabinet as it is being hoisted into

position for mounting. A failure of the lifting equipment or apparatus could result in serious

personal injury and cause significant damage to the cabinet.

Warning: Before digging, check with all local utilities for the presence of buried cables or

pipes. Contact with underground cables or pipes, especially electric power cables and gas

service lines, could interrupt local utility service and cause serious personal injury and

extensive property damage.

ADCP-96-139 • Rev B • July 2017 • Preface

Page v

TABLE OF CONTENTS

Content Page

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Admonishments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv

Standards Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv

List of Acronyms and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iv

1 DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 General Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2 Main Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.3 Specifications and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 BEFORE STARTING THE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.1 Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 Unpacking and Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.3 Cabinet Installation Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.4 OSP Cable and Cabinet Grounding Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.5 Tools and Materials Required for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.6 Cabinet Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3 MOUNTING THE CABINET ON A MOUNTING SLEEVE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.1 Installation Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.2 Excavation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.3 Placement of the FMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.4 Cable Conduit Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.5 Grounding System Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.6 Back Fill. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.7 Mounting the Cabinet on the FMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.8 Grounding Wire Connection To Cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4 MOUNTING THE CABINET ON A CONCRETE PAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.1 Installation Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.2 Base Construction and Conduit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.3 Concrete Pad Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.4 Grounding System Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.5 Mounting the Cabinet on the Concrete Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4.6 Grounding Wire Connection To Cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5 FEEDER CABLE INSTALLATION AND SPLICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.1 Cable Bracket Cover Removal/Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.2 Feeder Cable Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.3 Grounding the Feeder Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.4 Splicing the Feeder Cable Fibers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

6 DISTRIBUTION CABLE INSTALLATION AND SPLICING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6.1 Distribution Cable Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6.2 Grounding the Distribution Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

ADCP-96-139 • Rev B • July 2017 • Preface

Page vi

TABLE OF CONTENTS

Content Page

6.3 Splicing the Distribution Cable Fibers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

7 PLUG AND PLAYER SPLITTER MODULE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

8 ROUTING AND CONNECTING THE SPLITTER OUTPUT FIBERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

8.1 Storing The Splitter Output Fibers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

8.2 Enabling Service To a Subscriber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

9 PASS-THROUGH ROUTING PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

9.1 Sliding Adapter Pack Pass-Through Routing Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

9.2 Splitter Compartment Pass-Through Routing Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

10 MAINTENANCE AND REPAIR PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

10.1 Painting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

10.2 Distribution Panel Adapter Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

10.3 Splitter Compartment Adapter Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

10.4 Replacing a Damaged Fiber or Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

10.4.1 Splitter Output Fiber Connector Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

10.5 Door Gasket Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

10.6 Door Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

10.7 Grounding System Terminal Access Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

11 CUSTOMER INFORMATION AND ASSISTANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

ADCP-96-139 • Rev B • July 2017

Page 1

1 DESCRIPTION

1.1 General Description

The 288 cabinet with splicing is a secure, above-ground, outdoor fiber optic distribution cabinet

that is designed to hold the various optical components required for Fiber To The Premises

(FTTP) distribution network applications. The cabinet is designed for pedestal-mount

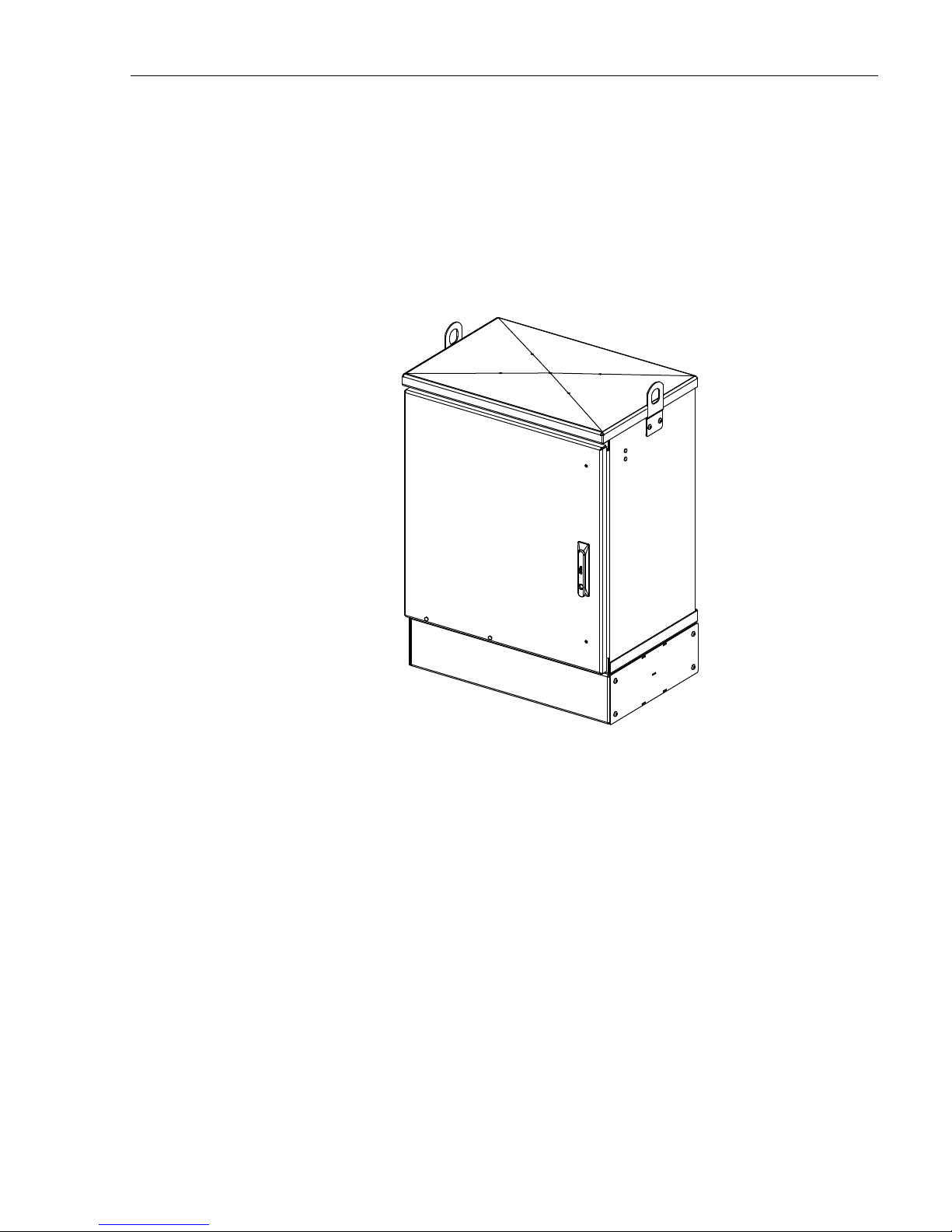

applications. Figure 1 shows a typical cabinet.

Figure 1. Typical Cabinet

The cabinet may be mounted on a concrete pad or on a mounting sleeve. Mounting kits

(accessories) are available for each mounting option. The feeder and distribution cables

(stranded cable only) enter/exit the cabinet from the bottom.

Clamps are provided for securing the cables to the inside of the cabinet. The bottom of the

cabinet is enclosed with a moisture barrier. The cable entry/exit hole is fitted with a flexible

membrane to resist the entry of dust, moisture, and insects. GORE membrane vents are

provided to release any moisture that may accumulate within the cabinet.

The exterior shell of the cabinet is constructed of heavy gauge aluminum and is coated with an

almond-colored finish. Each cabinet is equipped with a single front door equipped with a

tamper-resistant latch, padlock hasp, stainless steel hinges, and door catches that prevent

accidental closing. Access to the cabinet requires a 216B key tool (accessory) to release the latch

handle. Lifting eyes are provided for hoisting the cabinet into position for mounting. Each

cabinet is equipped with a 6-inch ground spacer/riser for extra ground clearance. An additional

spacer/riser (accessory item) can be installed if even more ground clearance is required.

22673-A

ADCP-96-139 • Rev B • July 2017

Page 2

1.2 Main Components

Figure 2 shows the main components of a typical 288 cabinet with splicing. Included are:

Figure 2. Main Components of a Typical 288 Cabinet With Splicing

•Distribution Panels: Provide a point for connecting the splitter output fibers with the

terminated distribution cable fibers. Each panel provides mounting spaces for 72 bulkhead

adapters. The cabinet may be ordered with one to six distribution panels installed.

Additional panels may be ordered and installed as needed. UPC/SC or APC/SC style

connectors are available.

SLIDING

ADAPTER

PAC K

STORAGE

PANEL

DISTRIBUTION

PANELS

RADIUS

LIMIITERS

SPLITTER

COMPARTMENT

DISTRIBUTION

SPLICE WHEEL

STORAGE

FEEDER

SPLICE TRAY

STORAGE

GROUNDING

BLOCK

22674-A

ADCP-96-139 • Rev B • July 2017

Page 3

•Storage Panel: Provides a temporary “parking lot” for unused splitter output fibers. Each

splitter module comes with a connector pack that mounts in the storage panel. Up to nine

8-position connector packs (72 fibers total) can be mounted in the storage panel.

•Radius Limiters: Provide a place for storing excess slack from the splitter output fibers.

•Splitter Compartment: Provides a place for mounting the splitters. Will support up to 12

splitters. Unused splitter slots can be used for pass-though fibers. The splitters specified

for use with the FDH 3000 cabinet are equipped with bend-optimized fibers.

•Sliding Adapter Pack (Input panel): Provides a place for terminating spare feeder cable

fibers. Will support up to 36 adapters. Spare feeder cable fibers are typically used for

signal pass-through functions.

•Grounding Block: Provides a point for grounding the cabinet and OSP cables.

•Feeder Cable Splice Tray Storage: Provides storage for one or two 5 x 11.75 inch

rectangular splice trays which are used for splicing the feeder cable fibers to the splitter

input pigtails. Each stranded cable splice tray provides storage for up to 36 splices.

•Distribution Cable Splice Tray Storage: Provides storage for up to thirty-six round

splice trays which are used for splicing the distribution cable fibers to the distribution

panel pigtails. Each stranded cable splice tray provides storage for up to twelve splices.

1.3 Specifications and Dimensions

Table 1 lists the specifications for the FDH 3000 288 cabinet. Figure 3 shows dimensions.

Table 1. 288 Cabinet With Splicing Specifications

PARAMETER SPECIFICATION

Cabinet

Dimensions (H x W x D)

Pedestal-Mount (See Figure 3) 36.0 x 26.8 x 18.2 inches (91.3 x 68.1 x 46.2 cm)

Weight (fully loaded) 208 lbs (94.3kg)

Certification (pending) GR-3125-CORE

Distribution panels (maximum) 4

Distribution ports Up to 288 with four 72-port distribution panels.

Distribution port adapters/connectors UPC/SC or APC/SC,

Splitter compartment splitter capacity 12 splitters

Splitter compartment adapter capacity 24 adapters

Storage panel capacity 72 connectors

Sliding adapter pack capacity 36 adapters

Splitter Modules

Splitter module input and output pigtails Bend-optimized fiber terminated with UPC/SC or APC/

SC connectors

Test bandpass 1260–1360 nm, 1480–1500 nm, 1550–1560 nm

ADCP-96-139 • Rev B • July 2017

Page 4

Figure 3. Typical 288 Cabinet With Splicing

Overall bandpass 1260–1625 nm

Return loss at test bandpass >55 dB

Maximum insertion loss at test bandpass

1 x 2

1 x 4

1 x 8

1 x 16

1 x 32

1 x 64

2 x 16

2 x 32

Note: Includes loss from input and output connectors

4.1 dB with UPC, 4.3 with APC

7.6 dB with UPC, 7.8 dB with APC

10.7 dB with UPC, 10.9 dB with APC

13.9 dB with UPC, 14.1 dB with APC

17.1 dB with UPC, 17.3 dB with APC

20.8 dB with UPS, 21 dB with APC

14.5 dB with UPC, 14.7 dB with APC

17.8 dB with UPC, 18 with APC

Table 1. 288 Cabinet With Splicing Specifications, continued

PARAMETER SPECIFICATION

35.96 INCHES

(91.3 CM)

26.8 INCHES

(68.1 CM)

18.2 INCHES

(46.2 CM) 22675-A

Autres manuels pour FDH 3000

Table des matières

Autres manuels CommScope Régulateurs de température

CommScope

CommScope FDH 3000 Manuel utilisateur

Manuels Régulateurs de température populaires d'autres marques

Swegon

Swegon LUNAd MB Manuel utilisateur

Lucky Reptile

Lucky Reptile Thermo Control II Manuel utilisateur

SENSORMETRIX

SENSORMETRIX Argon 100 Manuel utilisateur

Fuji Electric

Fuji Electric PXE4 Manuel utilisateur

Yuyao gongyi

Yuyao gongyi XMT-808 series Manuel utilisateur

Selec

Selec TC544C Manuel utilisateur

P.W. KEY

P.W. KEY rt-208gt Manuel utilisateur

Future Design

Future Design FDC-9200 Manuel utilisateur

BH Thermal

BH Thermal BriskONE Manuel utilisateur

Omron

Omron E5EX-H Manuel utilisateur

West Control Solutions

West Control Solutions KS 45 Guide de démarrage rapide

MCS

MCS RITC-15B Manuel utilisateur

SMC Networks

SMC Networks Thermo-con INR-244-639 Manuel utilisateur

eltherm

eltherm Ex-TC It Series Manuel utilisateur

Omron

Omron C200H-TV Series Manuel utilisateur

industrie technik

industrie technik CA1 Manuel utilisateur

KRAL

KRAL EET 32 Manuel utilisateur

dixell

dixell XR420C Schéma de câblage
