Installation Instruction Guide for

CMC-21, CMC-28, CMC-35

Compact Modular Cabinets (CMC)

Material ID 860647713

Rev B, V.05,

February 2022

Page 1

38 Pages

Customer Service Information

■Technical support

Call: 1-800-255-1479 (Option3 / Wireless Products) – Web: www.commscope.com/wisupport.

Safety Agency Statements and Safety Precautions

Safety Agency Statements:

■Only qualified personnel are to install and maintain the cabinet.

■Install cabinet within a restricted access location where access is by use of a tool, lock and key or

other means of security; and controlled by the authority responsible for the location.

■The cabinet is only suitable for mounting on a concrete or other noncombustible surface.

■Maximum ambient temperature (Tma) of 46º C (115º F) permitted by manufacturer specification.

■All conduit hubs must be of Type 3R or equivalent to maintain the cabinet as Rainproof.

■It is essential to connect the cabinet to earth ground before connecting supply, high leakage current.

■All cabinet equipment cabling is to meet applicable NEC1and network communications standards.

Safety Precautions:

Note: In areas that utilize joint buried plant, and per company practice, test and verify that voltage is not

present on the cable shield. If voltage is present on the shield, stop work and notify supervision.

■Follow all product warnings and instructions as specified in this document, cabinet and equipment

labels inside the cabinet to reduce risk of fire, electric shock, and injury.

■Install all equipment and supplied hardware as specified in this document.

— Install only approved devices in the cabinet and do not drill, saw, or cut inside the cabinet.

— Never install cable, connectors, jacks in a wet location unless designed for wet locations.

— Never install electrical equipment during a thunderstorm, there is risk of electric shock.

— Never touch uninsulated live power wires or terminals, always disconnect from power first.

— It is mandatory to use insulated tools using power and hand tools.

■Do not transport or lift cabinet with the batteries installed, or store batteries inside cabinet.

■All personnel must wear standard safety headgear, eye protection, and insulated gloves (if required).

■At all times, keep bystanders away from all work operations.

Warning:

Do not drill or punch any holes in the cabinet. Use only the provided

knockouts in the cabinet for cable ingress and cable egress.

Drilling or punching holes in any other location will immediately void

the warranty. No exemptions.

1Registered trademark of the National Fire Protection Association.

CommScope Instruction Guide

860647713, Rev B, V.05

Page 2

38 Pages

Contents

Section 1. Overview and Specifications..................................................................................... 3

► Reference Documents and Manuals ....................................................................................... 3

► Cabinet Weights (approximate) ............................................................................................... 3

► CMC-21, 28, and 35 Configuration Format and Definition ...................................................... 4

► CMC-21, 28, and 35 Cabinet Rack Unit (RU) Configurations ................................................. 5

► Field Replacement Units (FRU) and Aftermarket Kits (AMK) ................................................. 5

► Cabinet Views.......................................................................................................................... 6

► Door Clearances...................................................................................................................... 9

► Rear Panel Removal and Installation .................................................................................... 10

► Door Intrusion Alarm Switch .................................................................................................. 10

Section 2. CMC Cabinet Concrete Pad Installation................................................................. 11

► Step 1. Remove Packaging, Prepare Cabinet for Installation............................................. 11

► Step 2. Remove Pad Gasket from Cabinet and Prepare Pad ............................................ 12

► Step 3. Place Cabinet onto Concrete Pad or Steel Structure ............................................. 14

► Step 4. Fasten Cabinet to Concrete Pad or Steel Structure ............................................... 15

► Step 5. Route and Connect Cables .................................................................................... 17

► Step 6. Connect Cabinet to Main Earth Ground ................................................................. 19

► Step 7. Connect Cabinet Outgoing Office Alarms............................................................... 19

► Step 8. Connect Cabinet to Main Power Source, Turn-up.................................................. 19

Section 3. Pole and Wall / H-Frame Mounting ......................................................................... 20

► Pole Mount Kit 760242250 .................................................................................................... 20

► Wall / H-Frame Mounting Kit 760242247 .............................................................................. 24

► Install Cabinet onto Upper and Lower Mounting Brackets .................................................... 27

Section 4. Cabinet Battery Installation ..................................................................................... 29

► Battery Safety Recommendations ......................................................................................... 29

► Required Tools ...................................................................................................................... 30

► Recommended Battery Dimensions and Battery Tray Configurations.................................. 30

► Battery Voltage and Battery Supply Resistance.................................................................... 31

► Battery Installation ................................................................................................................. 32

► Step 1 – Cabinet Preparation Prior to Installation, VRLA............................................. 32

► Step 2 – VRLA Battery Installation ............................................................................... 32

► Battery Interconnect Kit 860651309, Installation – CMC-28/35 ............................................ 34

Material ID 860647713

Rev B, V.05, February 2022

Page 3

38 Pages

Section 1. Overview and Specifications

This guide provides instruction on how to install a CMC-21, CMC-28, or CMC 35 cabinet onto a concrete

pad or steel structure, pole or wall / H-frame mounting, and battery installation.

Common Features

■All cabinets have same mounting footprint – Figure 20

■Door with padlock, open/close turn-latches - Figure 1

■LED light and door intrusion switches - Figure 3

■With thermosiphon or air conditioner - Figure 6 and Figure 7

■Ground bar (8-pos) - Figure 3

■Convenience outlet, GFCI (20 A) - Figure 3

■Optional 7RU or 8RU compartment divider and door baffle - Figure 3

■Large format allows only 23-inch rack mounting

■Main earth ground lugs, bottom rear - Figure 2

■Rear access panel with open/close turn-latches and padlocks and environmental vents - Figure 2

■Side wall, rear, and floor knockouts for cable ingress/egress - Figure 2

► Reference Documents and Manuals

Make sure to have these documents provided with the cabinet in hand at time of installation and refer to

them as needed.

■Installation Guide – This document

■Equipment Manuals – Vendor manuals pertaining to equipment installed in the cabinet, such as a

power system.

► Cabinet Weights (approximate)

CMC-21

■Empty Max Weight (no batteries, with or without equipment): 167-271 lbs. (76-123 Kgs)

■Weight with Pallet (no batteries): 193-297 lbs. (88-135 Kgs)

■Cabinet Weight with Batteries (after installation): See Table C, page 5

CMC-28

■Empty Max Weight (no batteries, with or without equipment): 203-363 lbs. (92-165 Kgs)

■Weight with Pallet (no batteries): 229-389 lbs. (104-176 Kgs)

■Cabinet Weight with Batteries (after installation): See Table C, page 5

CMC-35

■Empty Max Weight (no batteries, with or without equipment): 275-435 lbs. (125-197 Kgs)

■Weight with Pallet (no batteries): 301-461 lbs. (137-209 Kgs)

■Cabinet Weight with Batteries (after installation): See Table C, page 5

CommScope Instruction Guide

860647713, Rev B, V.05

Page 4

38 Pages

► CMC-21, 28, and 35 Configuration Format and Definition

Configuration Format and Example

■Format: SxxBx-Tx-AxxDxx-xx (18 characters max)

■Example: 21B1-T1-A02D01-01 per Table A

CMC-21 with 1 battery string – T1 Thermosiphon, A02 AC System, D01 Power System - Variant-01

Table A: Format with Size and Configuration, Cooling, AC and DC Power

Definitions Descriptions

Platform Size: xx = xx represents size of 21, 28, 35 RU (Equipment Mounting Rack Unit)

Configurations: Bx = Battery String(s)

Example: B0 = No Battery String – All Electronic

Example: B1 = Hybrid configuration with equipment & 1 string of battery

Cooling: Tx = Thermosiphon

T1 = 1400W (150W/K)

T2 = 3500W (400W/K)

T3 = 800W (100W/K)

Dx = DC Power Air Conditioner

D1 = 2K BTU (~600 W)

D2 = 4K BTU (~1200 W)

D3 = 6K BTU (~2000 W)

D4 = 8K BTU (~2500 W)

D5 = 10K BTU (~3000 W)

D6 = 12K BTU (~3500 W)

D7 = 19K BTU (~5500 W)

AC System

(Load Center,

SPD)

Axx = xx represents AC assembly configurations (up to 99)

A00 = No AC Power Panel Assembly

A01 = 125A 12 Pos External AC Load Center, 100A Main Breaker, SPD

A02 = 200A 20 Pos External AC Load Center, SPD

DC Power

System

Dxx = xx represents various DC shelf configurations (1 for ABB, 2 for EV, and so on…up to 99)

D00 = No DC Power System

D01 = 460158782, ABB Infinity (150045762), 600A, NE-S 4824-23-AC5H-PS8-DC1E, 6RU

D02 = 460143035 ABB 2RU Infinity Flex, 19" Three Slot Rectifier chassis plus 1RU distribution

D03 = 460152515 ABB 3RU Infinity Flex, 19" Three Slot Rectifier Chassis plus 2 RU distribution

D04 = 460159701 ABB P/N CC109148144, Slimline SPS 2 slot rectifier shelf

D05 = 460159365, Delta Rectifier Plant, 600A, -48V, 7RU

D06 = 460169347, ABB Infinity S, 300A, 19", NE-S 48-19-ACH5, PS6, DC1E, 6RU, with LVBD

D07 = 460142334, ABB Infinity S, 300A, 19", NE-S 48-19-ACH5, PS6, DC1E, 6RU, no LVBD

D08 = 460160236, ABB Infinity (150045738), 600A, NES-48-23-AC5H-PS8-DC1E, 6 RU, with LVBD

D09 = Eltek 6RU chassis

D10 = Master Bus Bar System for battery applications.

-XX XX = number of possible layouts with identical "Base Structure" content

Note: Customer is to provide breaker/fuse protection for door cooling unit furnished with an empty

cabinet (no equipment) per UL rating shown in Table B.

Table B. Breaker/Fuse UL Ratings for Empty Cabinets with Cooling Units per Table A

Unit

Type

Breaker/Fuse UL Rating

Manufacturer

Thermosiphon

@ 3-amps, -48 VDC, Nominal

BlackShields

Material ID 860647713

Rev B, V.05, February 2022

Page 5

38 Pages

► CMC-21, 28, and 35 Cabinet Rack Unit (RU) Configurations

Table Bshows RU space allocated to a cabinet based on number of battery strings with remaining RU

space dedicated to cabinet equipment.

Note 1: The bottom two battery shelves for CMC-21 and CMC-28 cabinets are adjustable from 7 or 8RU,

and for a CMC-35 the bottom three battery shelves are adjustable from 7 or 8RU.

Note 2: All batteries must be of the same type and from same manufacturer. Do not mix battery types

from different manufacturers. Pole or wall / H-frame mounting a cabinet with batteries is limited to

two battery strings; CMC-21/28 cabinets only – CMC-35 is not suitable for pole or wall / H-frame.

Table C: Rack Unit Configurations per Number of Cabinet Battery Strings

Cabinet

No. of

Battery

Strings

Cabinet Weight After Battery

Installation, with or without

Equipment (see Note)

Max No. of Battery

String RUs

Max No. of

Equipment RUs

(see Note)

Cooling

Type per

Table A

CMC-21

167-271 lbs. (76-123 Kgs)

0RU

21RU

T1, T3,

D2, D3

631-735 lbs. (286-333 Kgs)

7 or 8RU

14 or 13RU

1095-1147 lbs. (497-520 Kgs)

14 or 16RU

7 or 5RU

1559 lbs. (707 Kgs)

21RU

0RU

CMC-28

203-363 lbs. (92-165 Kgs)

0RU

28RU

T1, T2,

D3, D5

667-827 lbs. (301-375 Kgs)

7 or 8RU

21 or 20RU

1131-1231 lbs. (513-558 Kgs)

14 or 16RU

14 or 12RU

1595-1695 lbs. (724-769 Kgs-)

21 or 24RU

7 or 4RU

2059 lbs. (934 Kgs)

28RU

0RU

CMC-35

275-435 lbs. (125-197 Kgs)

0RU

35RU

T1, T2,

D3, D5

739-899 lbs. (335-408 Kgs)

7 or 8RU

28 or 27RU

1203-1363 lbs. (546-618 Kgs)

14 or 16RU

21 or 19RU

2131 lbs. (966 Kgs)

28 or 32RU

7RU or 3RU

Note: Based on an average VRLA battery weight of 116 lbs. at 464 lbs. for one string of batteries plus

weight of cabinet with or without equipment before battery installation. Amount of available total

RUs will vary in relation to equipment installed in the cabinet.

► Field Replacement Units (FRU) and Aftermarket Kits (AMK)

Table D: FRU and AMK List

Item

Material ID

Description

760242232

FRU, CMC-21 Equipment Back Panel

760242233

FRU, CMC-28 Equipment Back Panel

760242234

FRU, CMC-35 Equipment Back Panel

760242240

FRU, Solar Shield, CMC

760242242

FRU, Inner Loop Fan, CMC HX Thermosiphon, T1

760242243

FRU, Outer Loop Fan, CMC HX Thermosiphon, T1

760242247

AMK, H-frame / Wall Mount Kit, CMC

760242250

AMK, Pole Mount Kit, CMC

760242554

AMK, Plinth, 6" High, CMC

CommScope Instruction Guide

860647713, Rev B, V.05

Page 6

38 Pages

► Cabinet Views

Figure 1. Front Views – CMC-21 Example

Figure 2. Left, Rear, and Right Views – CMC-21 Example

Material ID 860647713

Rev B, V.05, February 2022

Page 7

38 Pages

Figure 3: Compartment Views – CMC-21 Example

Figure 4. Right Side Views with Optional 100 or 200-Amp AC Load Center, CMC-21 Example

Figure 5. Equipment Cabinet with Solar Shield On or Off – CMC-21 Example

CommScope Instruction Guide

860647713, Rev B, V.05

Page 8

38 Pages

► Door View Examples with Thermosiphon and Air Conditioner Units

Note: See Table A for CMC cooling configurations and cooling unit manual provided with the cabinet for

power, alarm, and network connections; operation, settings, and maintenance.

Door with Thermosiphon (T1-T3)

A thermosiphon (Figure 6) lowers the inside cabinet temperature by means of a refrigerant liquid that

absorbs heat from the interior heat exchanger of the unit and converts it to a gas. This exchange allows

the gas to move into the exterior heat exchanger where it is converted back into a liquid that delivers heat

out to exterior air.

■All units have a DC power input and alarm output terminal block and RJ45 ports.

Door with Air Conditioner: DC Power (D1-D7)

A CMC cabinet may utilize a DC unit per cabinet configuration and operating requirements defined by

customer, Table A.

■All units have power input and alarm terminal blocks, I/O and RJ45 ports, and an interface display.

Figure 6. CMC-28 Door Examples with Thermosiphon Units T1 and T2 per Table A

Figure 7. CMC-28 Door Examples with DC A\C Units D3 and D5 per Table A

Material ID 860647713

Rev B, V.05, February 2022

Page 9

38 Pages

► Door Clearances

Note: Figure 8 shows AC load center on cabinet right side to clarify door clearances. Optional AC load

center can be mounted per customer request on either side. However, AC load center should not

be installed on the left side for wall / H-frame mounting.

Figure 8. Top View, Door at 90º and 110º for CMC-21, 28 and 35 Cabinets

CommScope Instruction Guide

860647713, Rev B, V.05

Page 10

38 Pages

► Rear Panel Removal and Installation

Prior to panel removal or installation, use door key (Figure 11) that ships with cabinet to open or close

1/4-turn latches when removing or installing a panel, Figure 9.

Note: Rear panel has ground cable attached on the inside of the panel.

Removal and Installation (Figure 9)

■Removal

— Turn panel latches to open position and pull out top of panel first; then tilt panel out and pull up on

panel to remove the panel from the opening.

— To remove the panel from the cabinet, disconnect ground cable from the green connector shown

in Figure 9. Prior to replacing the panel, make sure to reconnect ground cable to green connector.

■Installation

— Tilt panel bottom in and insert bottom into cabinet; press into panel and close latches.

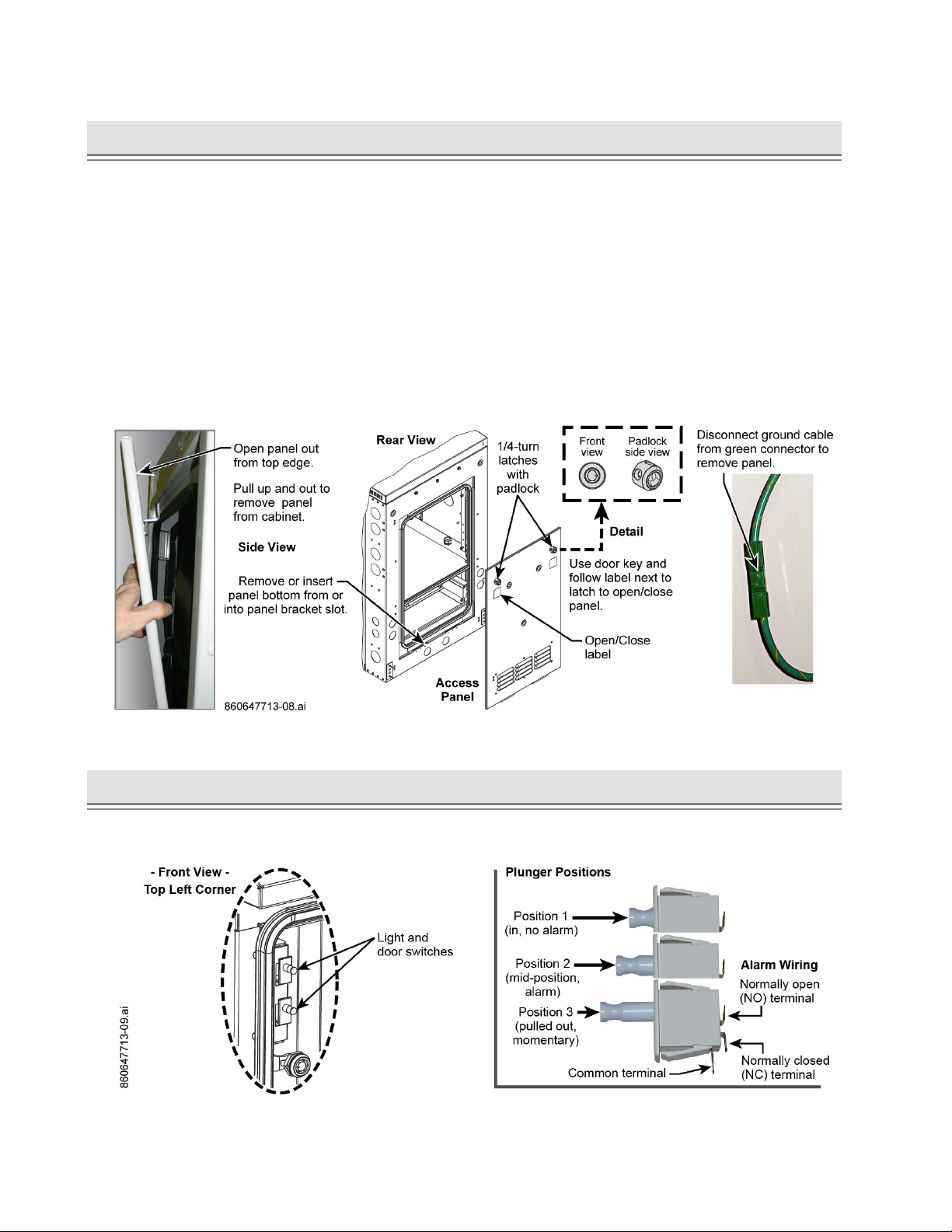

Figure 9. Rear Access Panel Removal and Installation, Ground Cable Disconnect

► Door Intrusion Alarm Switch

The light and door intrusion switches are on the top left corner of the doorframe inside the cabinet.

Connect the door alarm as required to an alarm center, Figure 10.

Figure 10. Light and Door Intrusion Switches

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels CommScope Support et étagère

CommScope

CommScope ODF-FF19CM-40RU Manuel utilisateur

CommScope

CommScope FIST-GR2-SMS-01 Manuel utilisateur

CommScope

CommScope BSAMNT Series Manuel utilisateur

CommScope

CommScope BSAMNT-3 Manuel utilisateur

CommScope

CommScope MC-MNT-3XV-SIDE Manuel utilisateur

CommScope

CommScope NETpodium 1-1671579-1 Manuel utilisateur

CommScope

CommScope 2RU FMT Manuel utilisateur

CommScope

CommScope RK4P45-29A Manuel utilisateur

CommScope

CommScope BSAMNT-SBS-2-3 Manuel utilisateur

CommScope

CommScope OTE-M Manuel utilisateur

CommScope

CommScope DB5091-3 Manuel utilisateur

CommScope

CommScope 639849 Manuel utilisateur

CommScope

CommScope F-118-GL-E Manuel utilisateur

CommScope

CommScope IST-GPS2 Manuel utilisateur

CommScope

CommScope NETpodium 1-1671405-1 Manuel utilisateur

CommScope

CommScope NETpodium 1-1671578-1 Manuel utilisateur

CommScope

CommScope FL1000 Manuel utilisateur

CommScope

CommScope BSAMNT-SBS-1-2 Manuel utilisateur

CommScope

CommScope SYSTIMAX iPatch 600A Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
