CommScope LSX-288 Manuel utilisateur

23202-A

LGX-Compatible (LSX) 288-Position 

Termination With Splicing Module

User Manual

ADCP-93-103Issue 3November 2016

ADCP-93-103 Rev B

ADCP-93-103 • Issue 3 • November 2016 • Preface

Page ii

REVISION HISTORY

ISSUE DATE REASON FOR CHANGE

1 7/2014 Original.

2 Novemeber2016 Updated to CommScope format.

TRADEMARK INFORMATION

CommScope and CommScope (logo), are trademarks.

Telcordia is a registered trademark of Telcordia Technologies, Inc.

GORE is a registered trademark of W. L. Gore & Associates, Inc.

PATENTS INFORMATION

This product is covered by one or more U.S.patents or their foreign equivalents. For patents, see

http://www.commscope.com/ProductPatent/ProductPatent.aspx

DISCLAIMER OF LIABILITY

Contents herein are current as of the date of publication. CommScope reserves the right to change the contents without prior notice.

In no event shall CommScope be liable for any damages resulting from loss of data, loss of use, or loss of profits and

CoommScope further disclaims any and all liability for indirect, incidental, special, consequential or other similar

damages.This disclaimer of liability applies to all products, publications and services during and after the warranty period.

This publication may be verified at any time by contacting CommScopes’s Support Center at

http://www.commscope.com/SupportCenter

ADCP-93-103 • Issue 3 • November 2016 • Preface

Page iii

TABLE OF CONTENTS

Content Page

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Admonishments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

List of Acronyms and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi

1 DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 General Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.2 Product Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.3 Main Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.4 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.5 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 UNPACKING THE PRODUCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.1 Mounting the Panel on the Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.2 Breaking Out a Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.3 Installing a Cable Clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.4 Cable Routing Within Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4 PATCH CORD ROUTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.1 Removing the Front Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.2 Selecting Patch Cord Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.3 Routing Patch Cords on Front of Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.4 Cross-Connecting Within a Stand-Alone Bay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.5 Cross-Connecting Between Two or More Bays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.6 Interconnect Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5 CUSTOMER INFORMATION AND ASSISTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

ADCP-93-103 • Issue 3 • November 2016 • Preface

Page iv

ADCP-93-103 • Issue 3 • November 2016

Page v

ABOUT THIS MANUAL

This manual describes and provides operating instructions for the LGX-Compatible (LSX) 288-

Position Termination With Splicing panel, for the sake of brevity also called the “LSX-288

termination with splicing panel.”

ADMONISHMENTS

Important safety admonishments are used throughout this manual to warn of possible hazards to

persons or equipment. An admonishment identifies a possible hazard and then explains what

may happen if the hazard is not avoided. The admonishments — in the form of Dangers,

Warnings, and Cautions — must be followed at all times. These warnings are flagged by use of

the triangular alert icon (seen below) and are listed in descending order of severity of injury or

damage and likelihood of occurrence.

Danger: Danger is used to indicate the presence of a hazard that will cause severe personal

injury, death, or substantial property damage if the hazard is not avoided.

Warning: Warning is used to indicate the presence of a hazard that can cause severe personal

injury, death, or substantial property damage if the hazard is not avoided.

Caution: Caution is used to indicate the presence of a hazard that will or can cause minor

personal injury or property damage if the hazard is not avoided.

GENERAL SAFETY PRECAUTIONS

Warning: Wet conditions increase the potential for receiving an electrical shock when

installing or using electrically-powered equipment. To prevent electrical shock, never install or

use electrical equipment in a wet location or during a lightning storm.

Warning: Before digging, check with all local utilities for the presence of buried cables or

pipes. Contact with underground cables or pipes, especially electric power cables and gas

service lines, could interrupt local utility service and cause serious personal injury and

extensive property damage.

Danger: Use adequate lifting equipment when moving or installing the cabinet. Verify that the

maximum lift weight rating of the equipment is sufficient to handle the weight of the cabinet.

Danger: Do not stand under a cabinet as it is being hoisted into position for mounting. A failure

of the lifting equipment or apparatus could result in serious personal injury.

ADCP-93-103 • Issue 3 • November 2016

Page vi

LIST OF ACRONYMS AND ABBREVIATIONS

The acronyms and abbreviations used in this manual are detailed in the following list:

AWG American Wire Gauge

CCentigrade

DI Distribution Intercept

DSL Digital Subscriber Line

DSLAM Digital Subscriber Line Access Multiplexer

FFahrenheit

MON Monitor

POTS Plain Old Telephone Service

ADCP-93-103 • Issue 3 • November 2016

Page 1

1 DESCRIPTION

This section describes the LSX 288-position termination with splicing panel. Topics include

general description, product function, main components, and dimensions and specifications

1.1 General Description

The LSX 288-position termination with splicing panel, shown in Figure 1, is a 23-inch rack-

mount, LGX-compatible panel that provides a splicing transition between one or more fiber

optic cables and a termination bulkhead for fiber optic patch cords.

This panel has a 15-inch depth permitting splice trays to be mounted in its back compartment.

The rear door swings down and locks in an open position to provide a horizontal working

surface for installing splices. The panel is designed to be mounted on an LSX 18-inch deep

high-density frame.

In a typical application, the panel serves as a splicing and distribution point to transition from

Outside Plant (OSP) or Intra Facility Cable (IFC) to inbuilding circuits connected to with patch

cords. The panel is shipped with pre-terminated, factory-installed pigtails, either of ribbon or

stranded construction. The panel may be used in either an interconnect or cross-connect

configuration, and in either single mode or multimode applications.

The panel is 11 inches (27.9 cm) high. Five panels fit on a standard 7 foot (2.1 m) frame.

23202-A

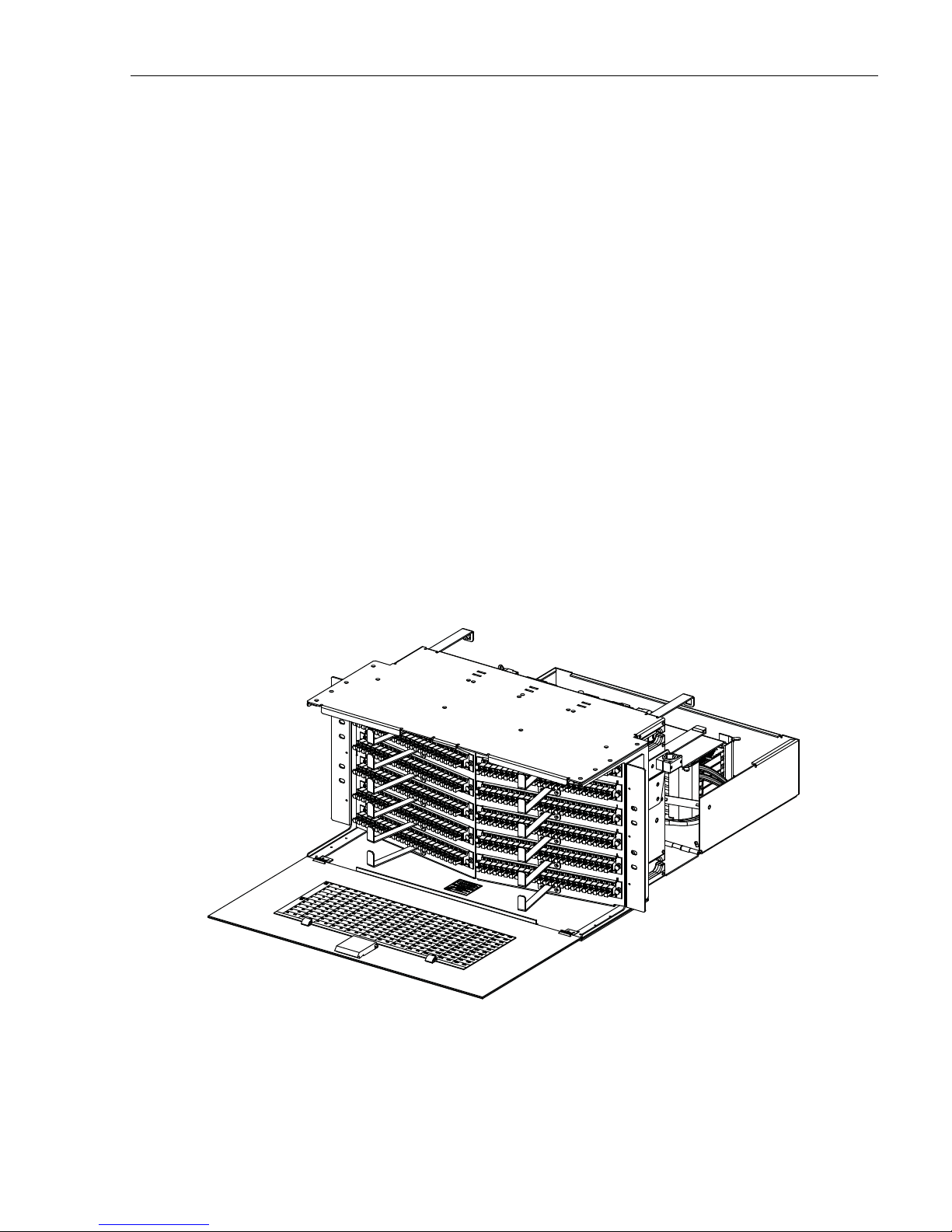

Figure 1. LSX 288-Position Termination With Splicing Panel

ADCP-93-103 • Issue 3 • November 2016

Page 2

1.2 Product Function

Figure 2 summarizes the functional components of the LSX panel. As shown, an OSP or IFC

cable is routed through the panel to the splice area access door, where the component fibers are

spliced to internal ribbon pigtails. The internal pigtails transition to the bulkhead, located on the

front of the panel. Patch cords installed from the front side of the panel provide the connection

to fiber optic terminal equipment.

INTERNAL

PIGTAILS

SPLICETRAY

ACCESS DOOR

OSP OR IFC

CABLE

23203-A

MASS FUSION

SPLICE CHIP

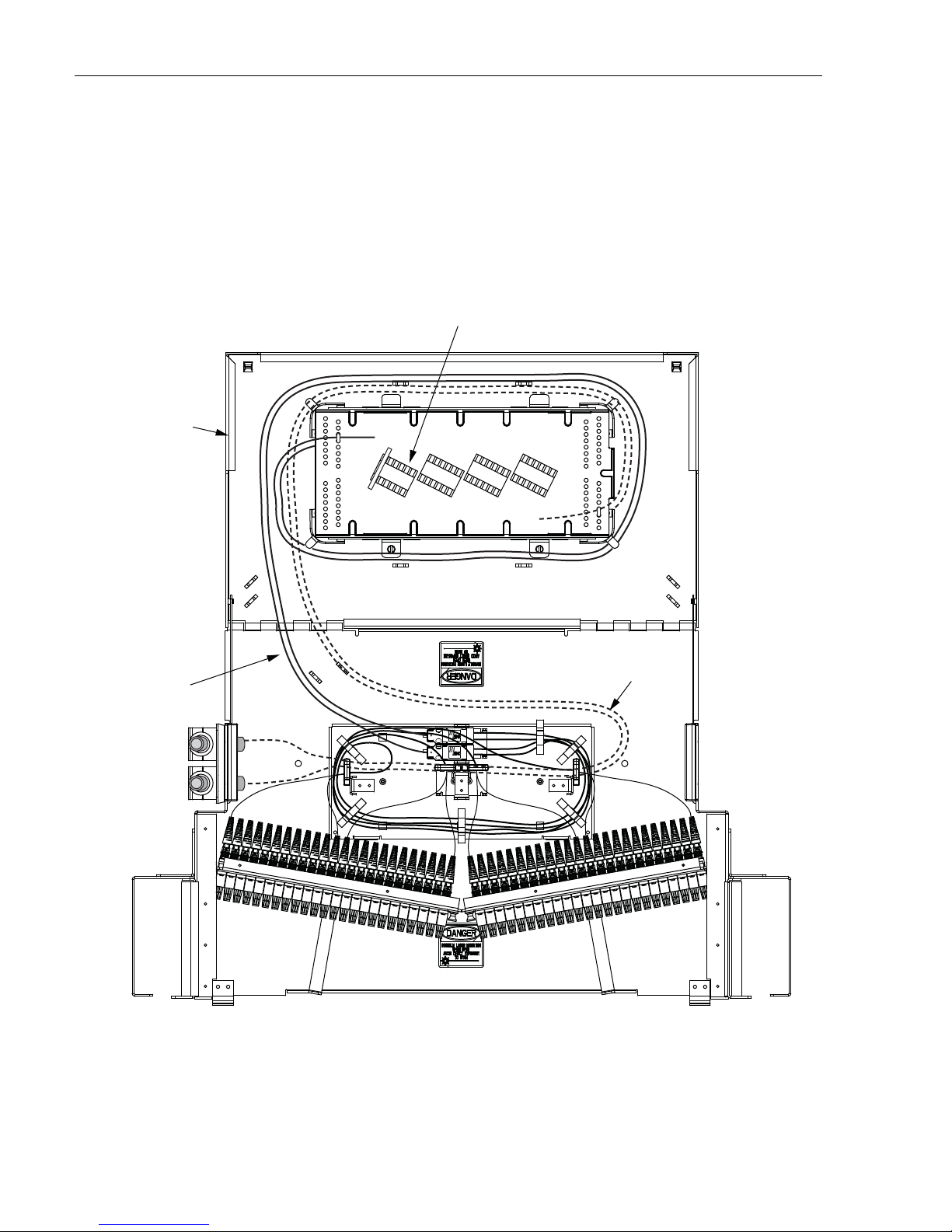

Figure 2. Functional Components of LSX Termination

With Splicing Panel (Cut-Away Top View)

ADCP-93-103 • Issue 3 • November 2016

Page 3

1.3 Main Components

Figure 3 shows the main external features of the LSX 288 Termination With Splicing Panel.

23205-A

CONNECTOR

PACK

BULKHEAD

CHASSIS

PATCH CORD

GUIDE

REMOVABLE

FRONT COVER

PATCH CORD

DESIGNATION

CARD

MOUNTING

BRACKET

SPLICETRAY

ACCESS DOOR

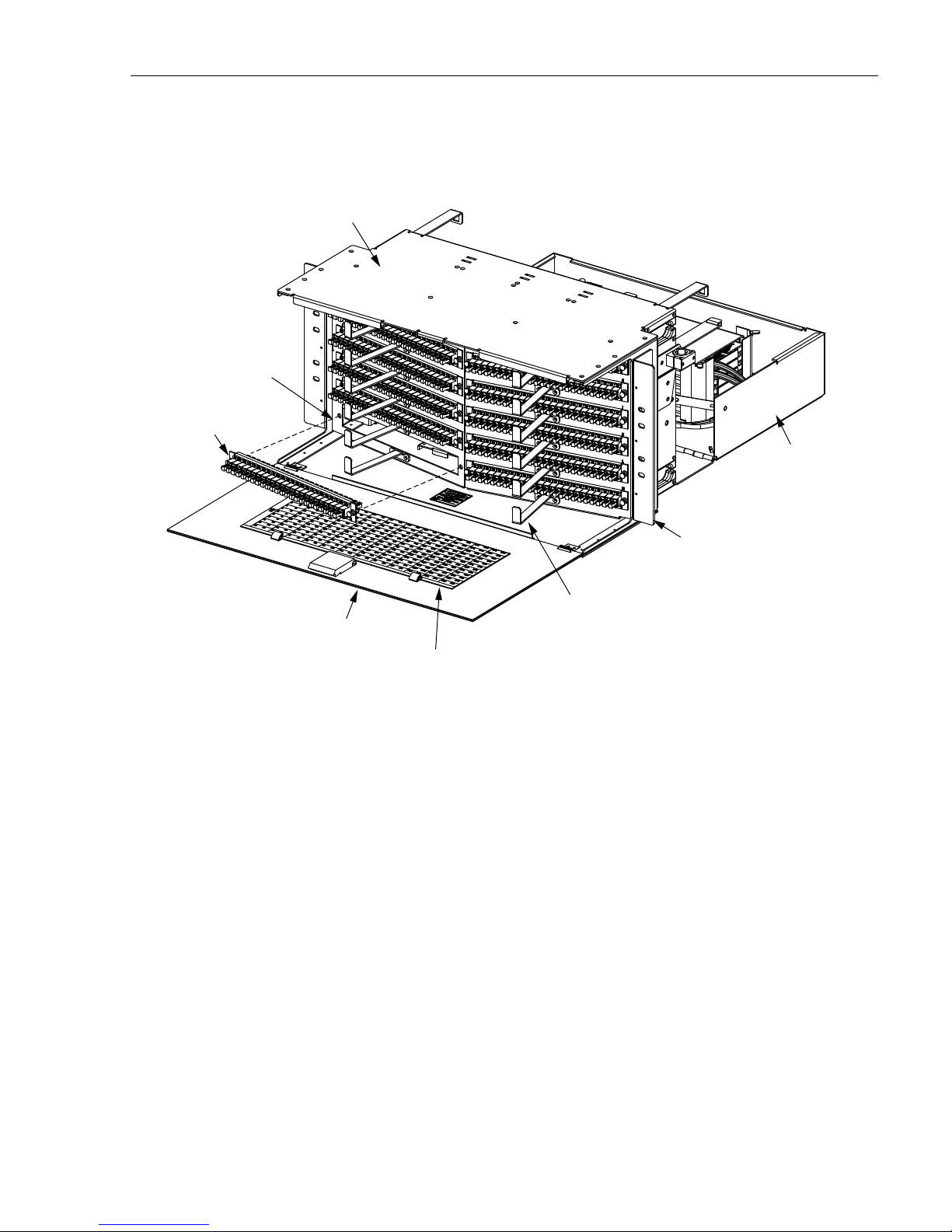

Figure 3. Main External Features (Front View)

The features shown are as follows (going from top left counterclockwise in Figure 3):

•Chassis—is LGX compatible. It is of solid metal construction and painted white. Five

chassis may be installed on an LGX frame.

•Bulkhead—holds the pass-through adapters that provide the physical interface between

the connector ends of the LSX internal pigtails and patch cords installed on the front side

of the bulkhead. Its angled construction facilitates installation of patch cords.

•Connector Pack—mounts in the bulkhead providing one row of 24 adapters/connectors

for terminating patch cords. SC or LC connector types are available.

•Removable Front Cover—provides unimpeded access for installation of patch cords.

•Patch Cord Designation Card—is used to record patch cord usage.

•Patch Cord Guides—provide cable management in routing patch cords.

•Mounting Bracket—is designed for 23-inch rack mount.

•Splice Tray Access Door—provides access to rear splice area.

ADCP-93-103 • Issue 3 • November 2016

Page 4

Every panel has a rear splice area such as shown in Figure 4.

23207-A

OSP OR IFC

CABLE CLAMP

SPLICE

TRAYS

SPLICETRAY

ACCESS DOOR

CABLE RING

(TYPICAL)

RIBBON

FANOUT

BRACKET

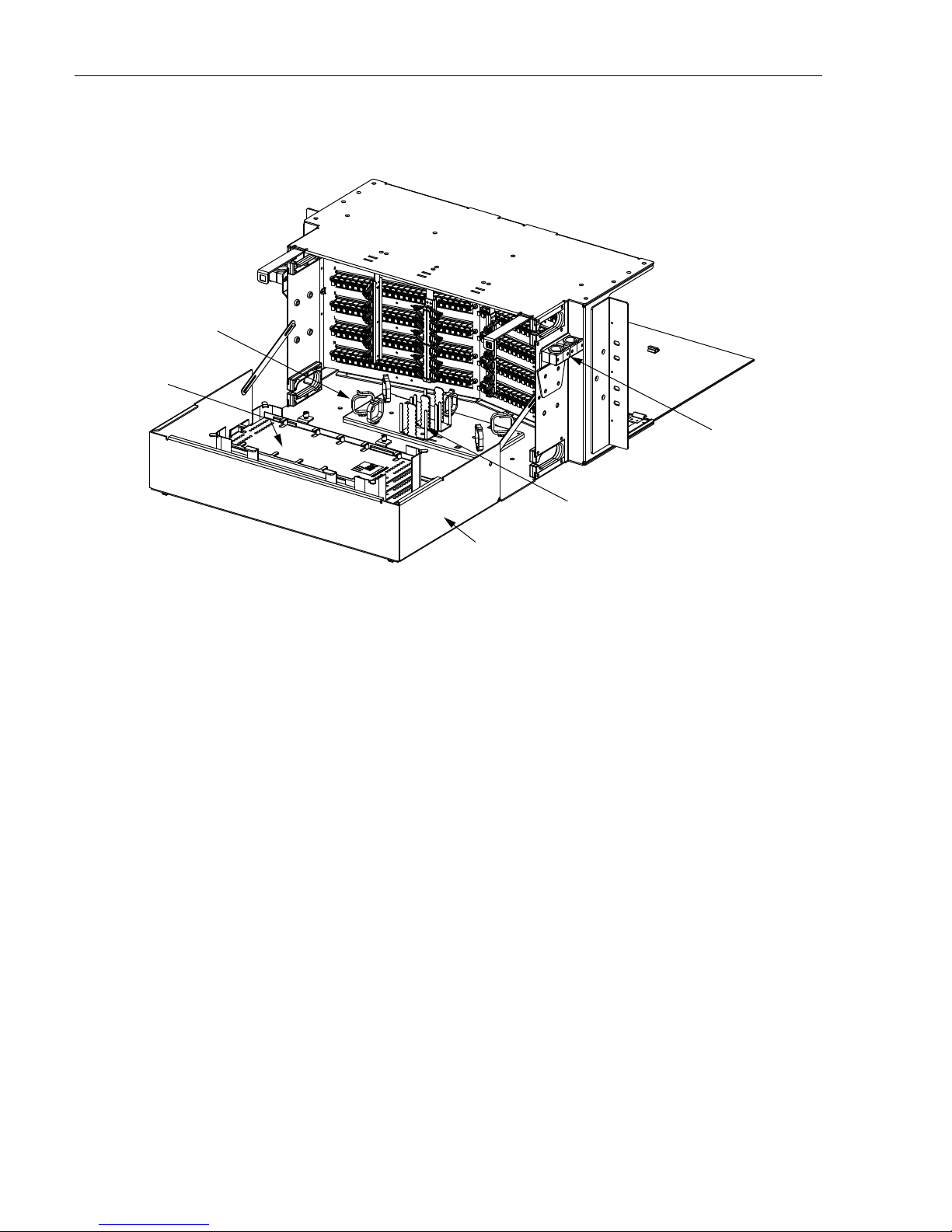

Figure 4. Main Internal Features (Rear View)

From top left counterclockwise, the main features in the rear splice area are as follows:

•Cable Ring—routes and secures stranded or ribbon cable on entry into splice area.

•Splice Trays—secure and protect splices.

•Splice Tray Access Door—folds down providing a horizontal splice deck.

•Ribbon Fanout Bracket—holds one stack of four fanout chips.

•OSP or IFC Cable Clamp—secures the cable to the panel.

Each panel is shipped with a cable clamp as well as vertical cable guides and cable shields (two

of each, not shown). Accessories available for the panel include patch cords, heatshrink- or

mass-fusion splice chips, and cable clamps (if additional clamps are needed).
