1 About this manual
This kit is used to install 16 drop cables up to 2,4 mm diameter in a new unused round port of the FIST-GCO2-BX6 and
BX8, the FIST-GC02-FX and the FIST-EDSA2.

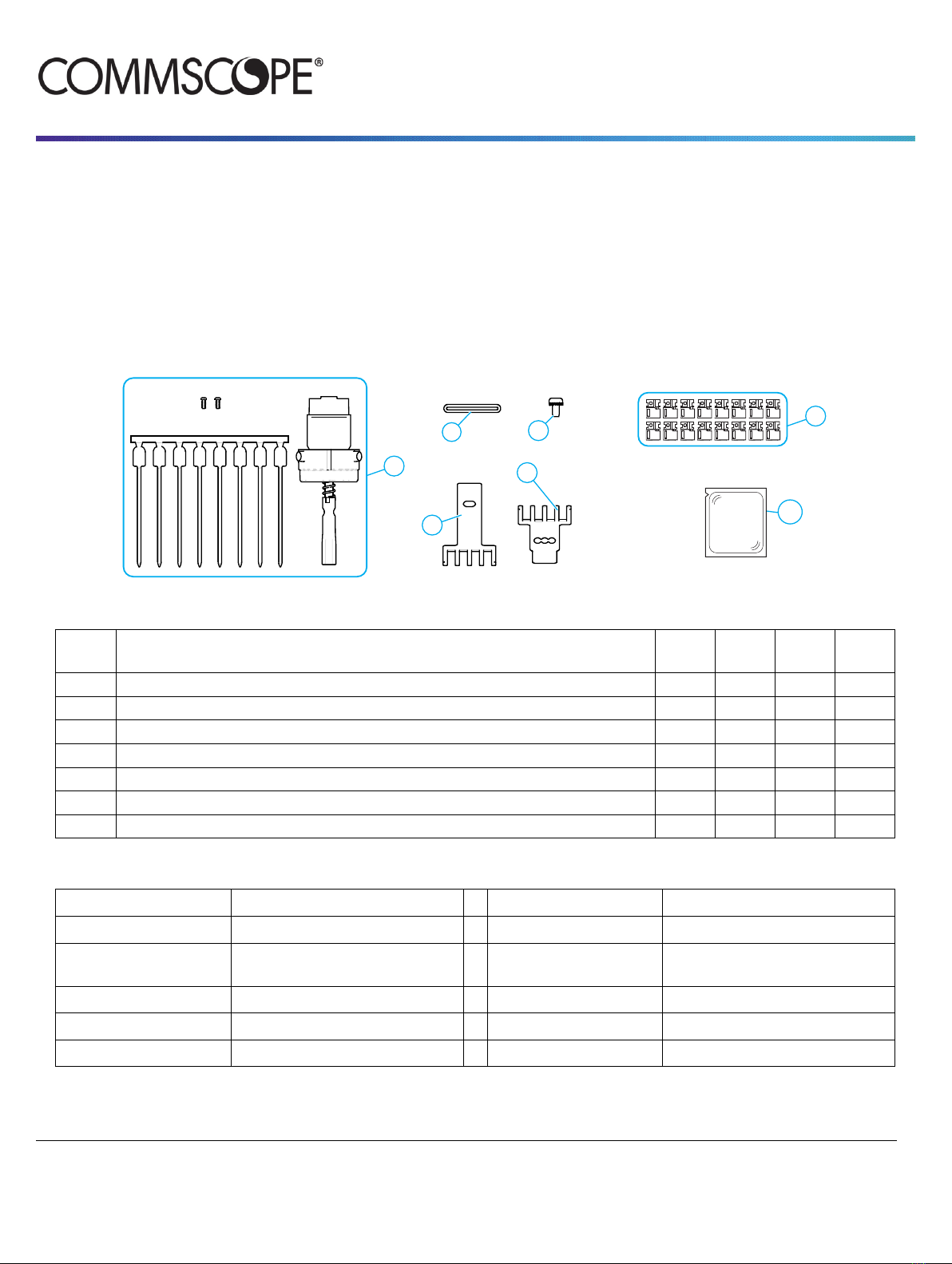

2 Kit contents
1
6
4
5
3
2
7
Kit contents may differ depending on the order.
N° Description Qty
FX
Qty
BX6
Qty
BX8
Qty
EDSA2
1 FIST GCO2 RSKG-16 with securing screws and blind plugs 1 1 1 1
2 O-ring 1 1 1 1
3 Cable term GC02 brkt 16 OUT - 1 - -
4 Cable term GC02-FX brkt 16 OUT 1 - 1 1
5 Bolt with star washer 1 1 1 1
6 Mini termination units 16 16 16 16
7 Lubrication oil 1 1 1 1
3 Cable diameter range gel seals
Number of ports Cable diameter range (mm) Number of ports Cable diameter range (mm)
1 11 - 14 8 3 - 5
2 8 - 11 16 0 - 2.4 (up to 3 depending on
the kit contents)
3 6.5 - 8 FOSC OSKG 6 - 15
4 4 - 7 FIST OSKG 5 - 18
4 FLAT 8 x 4,5 - 11 x 6,5 FIST OSKG 20 16 - 20
Installation Instructions
page 1 / 4
© 2021 CommScope, Inc. All Rights Reserved
TC-910-IP Rev. C, March 2021
http://
www.commscope.com
FIST RSKG 16
860661094 Rev. A © 2021 CommScope, Inc. All Rights Reserved
Visit our website or contact your local CommScope® representative for more information. www.commscope.com. All trademarks identified by ® are
registered trademarks in the US and may be registered in other countries. All third party product names, trademarks and registered trademarks are property
of their respective owners. This product may be covered by one or more U.S. patents or their foreign equivalents. For patents, see www.cs-pat.com.
For technical assistance, customer service, or to report any missing/damaged parts, visit us at: http://www.commscope.com/SupportCenter.
page 1 / 4

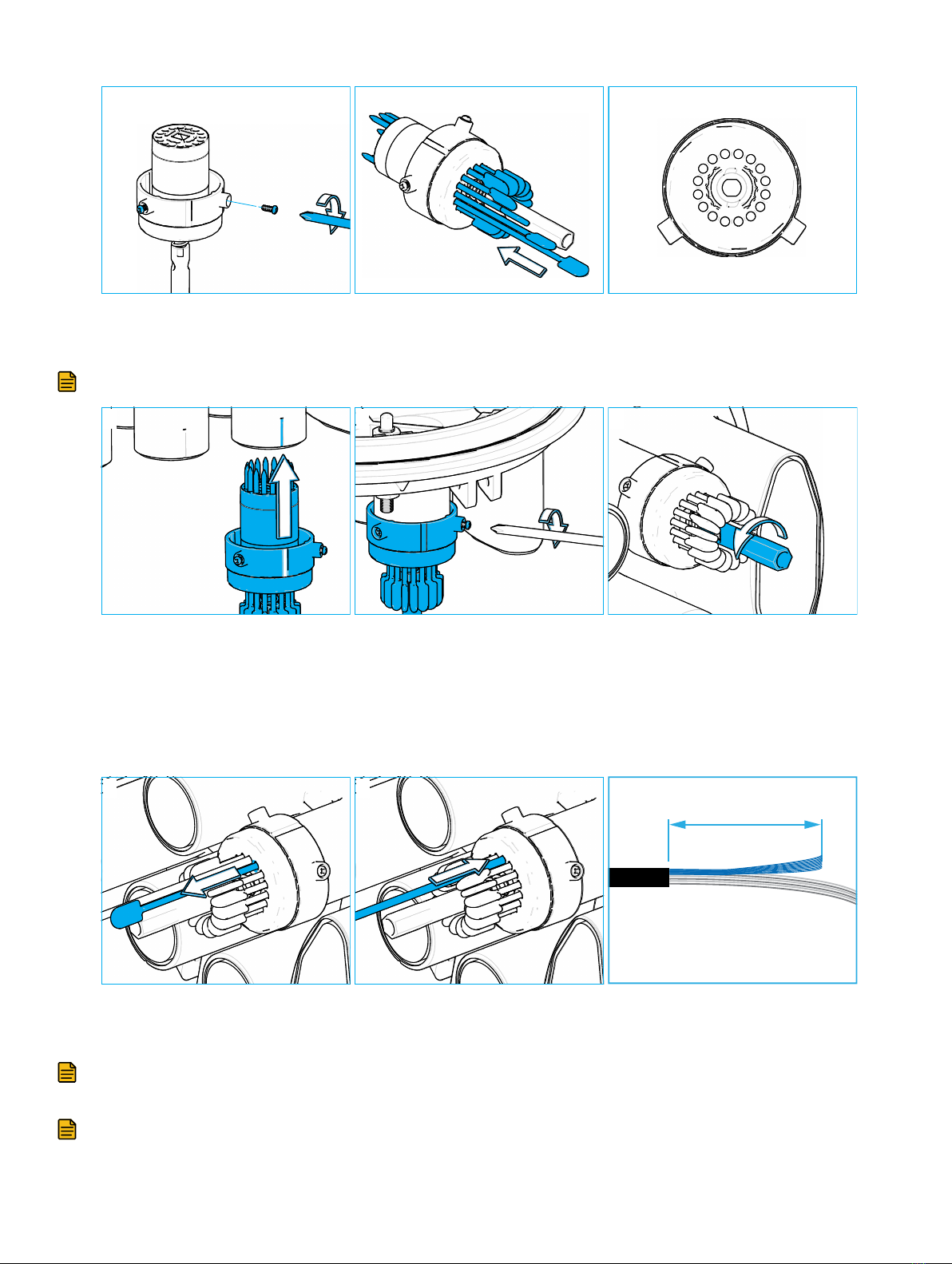

4 Install gel seal
1
2
3
12
34
56
78
910
11 12
13 14
15 16
1 Before installing the gel seal in the port, install the 2 securing screws.
2 Before installing the gel seal in the port, install all blind plugs.
3 The first cable must be installed in the port position number 1. The next cable must follow the numbering.
Note: The lubrication oil in the kit makes it easier to install gel seal in the closure ports.
4
5
6
4 Open the port. The cutting wire can be used. Make sure that the edges are free of burrs. Install the seal in the port,
mark line always facing forward. The mark line on the gel seal should match with the mark line on the FIST-GCO2
drop port. (The mark at the FIST-GCO2- FX/EDSA2 should be hidden when the seal is installed).
5 Tighten the 2 screws and make sure they grip in the port.
6 Make sure the seal is decompressed before installing a cable.
5 Prepare cable
1
2
+/- 15 cm
3
1 Remove the blind plug.
2 Feed the cable through the port. Cutting the cable edge under 45° will help to feed the cables through the RSKG
seal. Prepare as per standard practice.
Note: The lubrication oil in the kit makes it easier to guide cables through ports in the gel seal.
3 Leave around 15 cm of aramid yarn.
Note: In order to have a good cable management, make sure all cables have the same length!
page 2 / 4
© 2021 CommScope, Inc. All Rights Reserved

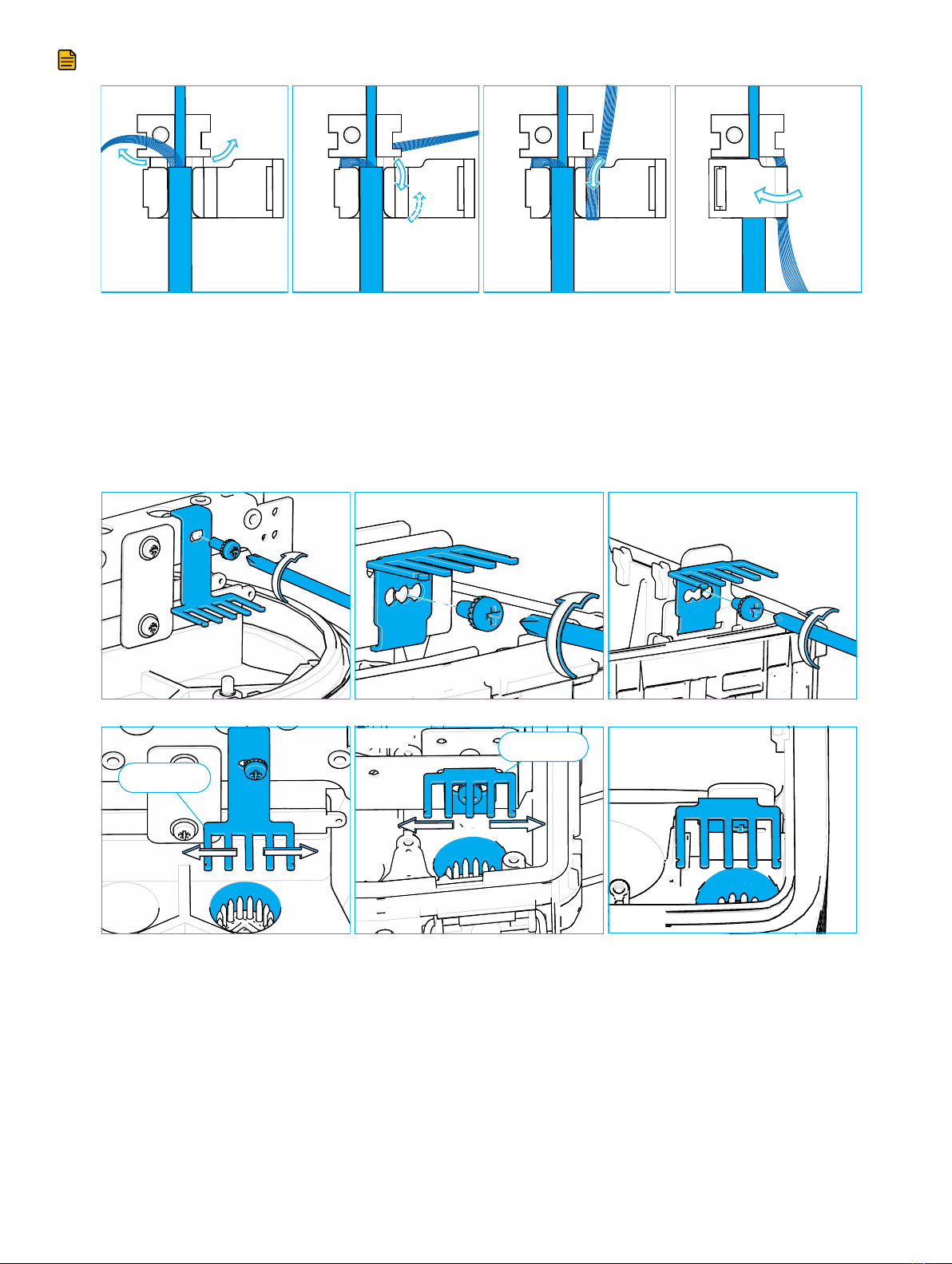

Note: Maximum cable diameter to be used in mini termination unit is 2.4 mm.
4
5
6
7
4 Place the cable in the groove of the mini termination unit and route the aramid yarn through the left groove.
5 Then lead the aramid yarn behind the back over the hinging part to the front.
6 Wrap 1 x over the hinging part and bring back to the front.
7 Keep the aramid yarn under tension and close the hinging part. Make sure not to pull at the cable! Cut away the
remaining strands.
6 Install cable
6.1 Install bracket
BX6
BX8/FX
EDSA2
with port
Allign bracket
BX6
with port
Align bracket
BX8/FX
EDSA2
1 BX6: Install the bracket as shown. Make sure it is positioned at the center of the port.
2 BX8/FX: Secure the metal bracket to the frame. Make sure it is positioned at the center of the port.
3 EDSA2: Secure the metal bracket to the frame. Make sure to select the right hand side hole in the bracket.
page 3 / 4
© 2021 CommScope, Inc. All Rights Reserved

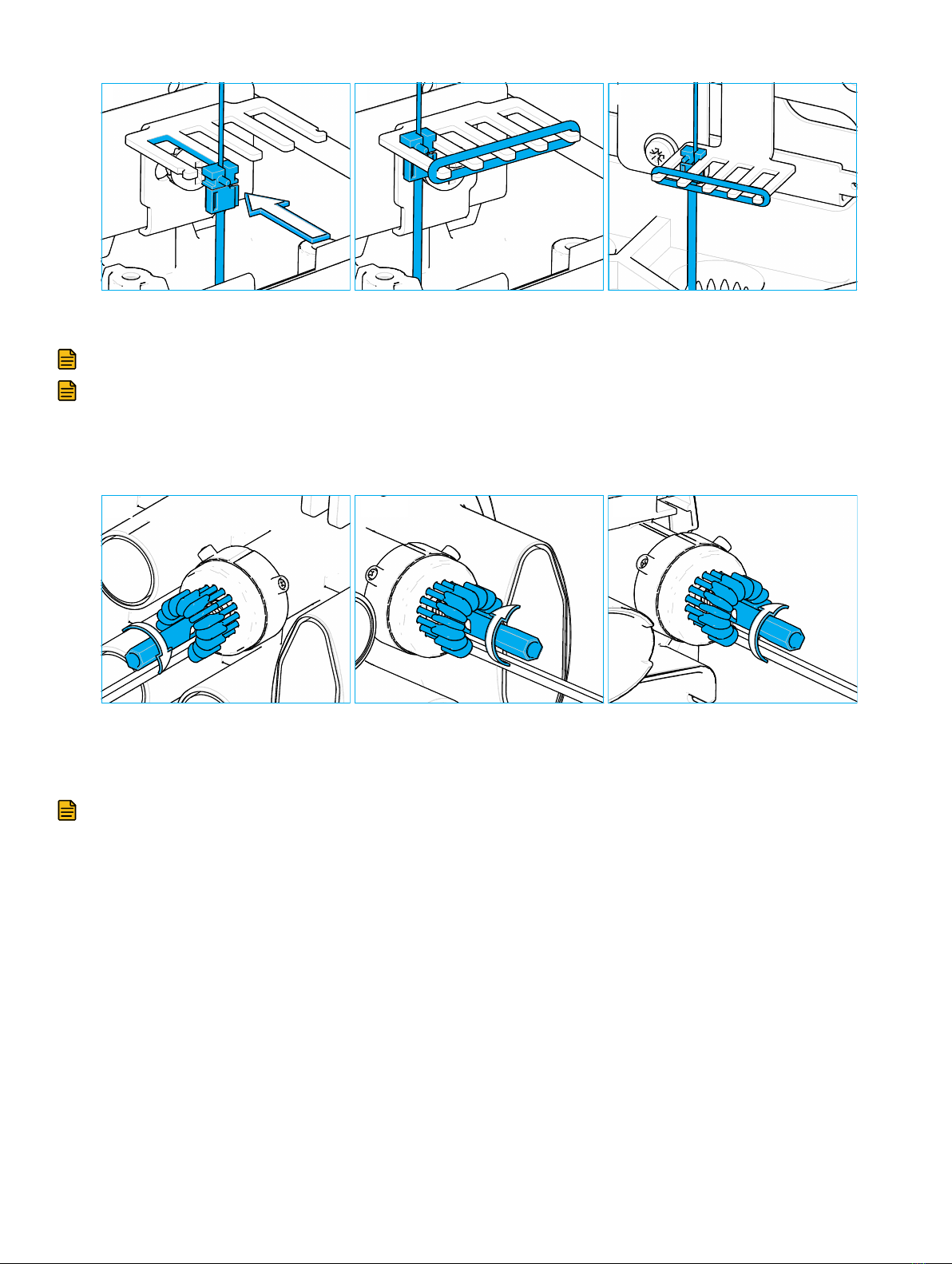

6.2 Install cable
1
2
3
1 Pull back the cable and side the mini termination unit in the holder.
2 Install all mini termination units in the holder for future cable installations. Secure with the O-ring. (BX8/FX/EDSA2)
Note: For BX8/FX closures: Start with closure ports 3 and 8.
Note: For EDSA2 it is recommended to divide the fibers that are coming from the round port in separate slots in
the tube holders.
3 Install all mini termination units in the holder for future cable installations. Secure with the O-ring. (BX6)
6.3 Activate seal mechanism
BX6
BX8/FX
EDSA2
1 Engage the seal mechanism by tightening the ‘nut’ of the central bolt assembly until the spring is no longer visible
and the ‘nut’ is flush with the gland body.
2 To add a cable: release the trigger, remove the blind plug, prepare a new cable and continue with one of the
previous sections above depending on the closure type.
Note: Depending on outside conditions, some oil bleed-out may occur. This will not affect in any way the sealing
performance.
7 OPTIONAL: Secure cable to the outside bracket
A cable securing frame is optional available for the FIST-GCO2-BX6, FIST-GC02-BX8 and the FIST-GC02-FX.
