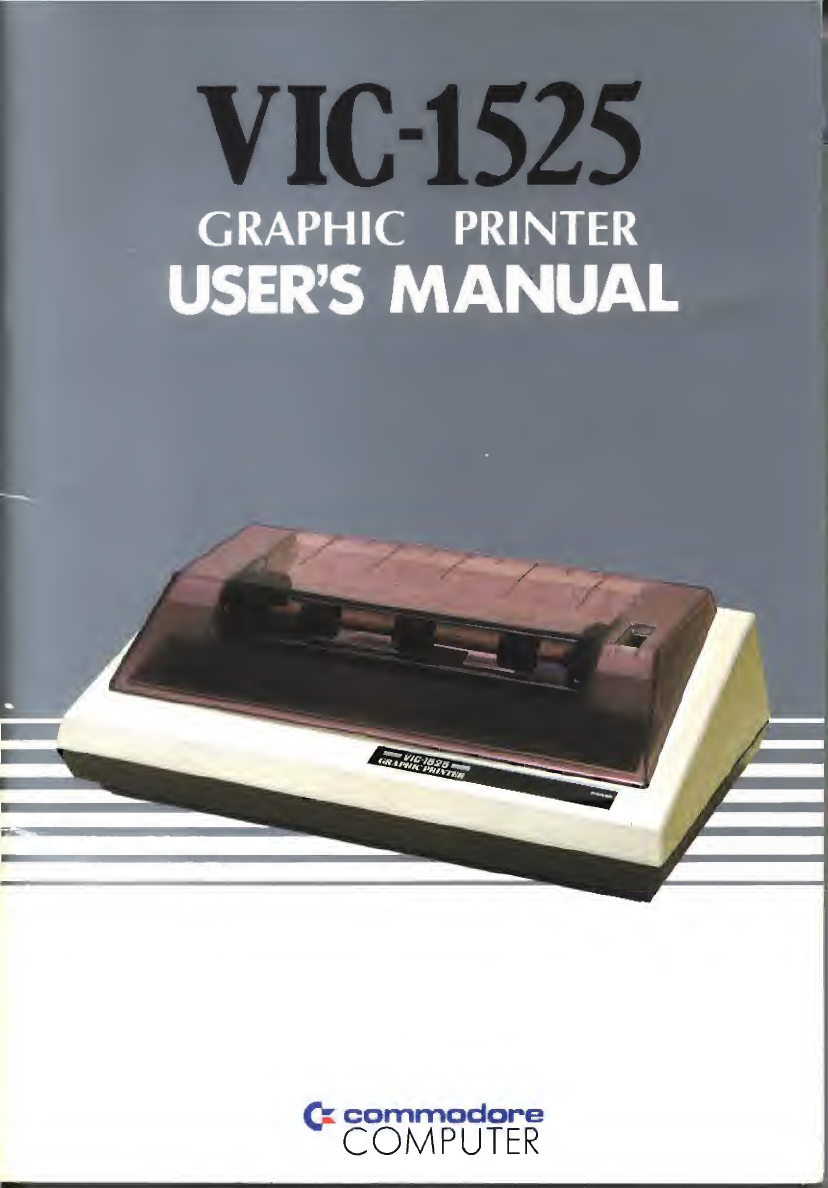

Commodore VIC-1525 Manuel utilisateur

VIC 1525

USER'S MANUAL

Cx commodore

COMPUTER

INFORMATION TO USER

"WARNING: THIS EQUIPMENT HAS BEEN CERTIFIED TO COMPLY WITH

THE LIMITS FOR ACLASS BCOMPUTING DEVICE, PURSUANT TO SUB-

PART JOF PART 15 OF FCC RULES. ONLY PERIPHERALS (COMPUTER

INPUT/OUTPUT DEVICES, TERMINALS, PRINTERS, ETC.) CERTIFIED TO

COMPLY WITH THE CLASS BLIMITS MAY BE ATTACHED TO THIS

COMPUTER. OPERATION WITH NON-CERTIFIED PERIPHERALS IS LIKELY

TO RESULT IN INTERFERENCE TO RADIO AND TV RECEPTION."

"THIS EQUIPMENT GENERATES AND USES RADIO FREQUENCY ENERGY

AND IF NOT INSTALLED PROPERLY, THAT IS, IN STRICT ACCORDANCE

WITH THE MANUFACTURER'S INSTRUCTIONS, MAY CAUSE INTER-

FERENCE TO RADIO AND TELEVISION RECEPTION. IT HAS BEEN TYPE

TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR ACLASS B

COMPUTING DEVICE IN ACCORDANCE WITH THE SPECIFICATIONS IN

SUBPART JOF PART 15 OF FCC RULES, WHICH ARE DESIGNED TO

PROVIDE REASONABLE PROTECTION AGAINST SUCH INTERFERENCE

IN ARESIDENTIAL INSTALLATION. HOWEVER, THERE IS NO GUAR-

ANTEE THAT INTERFERENCE WILL NOT OCCUR IN APARTICULAR

INSTALLATION. IF THIS EQUIPMENT DOES CAUSE INTERFERENCE TO

RADIO OR TELEVISION RECEPTION, WHICH CAN BE DETERMINED BY

TURNING THE EQUIPMENT OFF AND ON, THE USER IS ENCOURAGED TO

TRY TO CORRECT THE INTERFERENCE BY ONE OR MORE OF THE

FOLLOWING MEASURES:

•REORIENTTHE RECEIVING ANTENNA

•RELOCATE THE COMPUTER WITH RESPECT TO

THE RECEIVER

•MOVE THE COMPUTER AWAY FROM THE RECEIVER

•PLUG THE COMPUTER INTO ADIFFERENT OUTLET

SO THAT COMPUTER AND RECEIVER ARE ON DIFFERENT

BRANCH CIRCUITS

"IF NECESSARY, THE USER SHOULD CONSULT THE DEALER OR AN

EXPERIENCED RADIO/TELEVISION TECHNICIAN FOR ADDITIONAL

SUGGESTIONS. THE USER MAY FIND THE FOLLOWING BOOKLET PRE-

PARED BY THE FEDERAL COMMUNICATIONS COMMISSION HELPFUL:

'HOW TO IDENTIFY AND RESOLVE RADIO-TV INTERFERENCE

PROBLEMS.' THIS BOOKLET IS AVAILABLE FROM THE U.S. GOVERN-

MENT PRINTING OFFICE, WASHINGTON, D.C. 20402, STOCK NO. 004-

000-00345^."

PART NO: 320970

VIC 1525

GRAPHIC PRINTER

USER'S MANUAL

P/N 1525001-02

Cz. commodore

COMPUTER

WARNING: This equipment has been certified to comply with the limits for a

Class Bcomputing device, pursuant to Subpart Jof Part 15 of FCC Rules. Only

computers certified to comply with the Class Blimits may be attached to this

printer. Operation with noncertified computers is likely to result in interference

to radio and TV reception,"

This warning is valid for the equipment which has the following FCC label

on its rear.

CERTIFIED TO COMPLY WITH CLASS BLIMITS

PART 15 OF FCC RULES SEE INSTRUCTIONS IF

INTERFERENCE TO RADIO RECEPTION IS SUS-

PECTED.

The information in this manual has been reviewed and is believed to be

entirely reliable. No responsibility, however, is assumed for inaccuracies.

The material in this manual is for information purposes only, and is subject

to change without notice.

This manual is copyrighted and contains proprietary information. No part

of this publication may be reproduced, stored in aretrieval system, or

transmitted in any form or by any means, electronic, mechanical, photo-

copying, recording or otherwise, without the prior written permission of

COMMODORE BUSINESS MACHINES, Inc.

TABLE OF CONTENTS

Section 1:GENERAL INFORMATION

External Appearances and Names of Parts 3

2. Operating Your Printer 4

3. Interface 5

Section 2. PREPARING TO USE YOUR PRINTER

1. Installation 6

2. Installing the Ribbon Cassette 6-7

3. Paper Instructions 8-11

4. Connecting the Printer to Your Computer 11

5. Performing the Printer Power-On Test 12

6. Performing the Print Head Test 12

7. Maintenance 13

8. Cautions 14

Section 3: USING YOUR PRINTER

Introduction 15

1. Special Printer-Associated Commands 15-17

2. Printing in the Direct Mode 18

3. Printing Under Program Control 19

4. Printing Modes and Control Codes 19-20

4.1 Standard Character Mode 20

4.2 Double Width Character Mode 20

4.3 Graphic Mode 20-22

4.4 Print Position Determination 22-23

4.5 Print Start Position-Dot Address 24

4.6 Repetition of Graphic Data 25

4.7 "CURSOR UP" Mode 25-26

4.8 "CURSOR DOWN" Mode 26

4.9 Reverse Field Mode 26-27

4.10 Reset Reverse Field Mode 27

4.1

Mixture of Various Print Mode 27-28

4.12 Line Feed Spacing 28

4.13 Data Buffer Size 28-29

5. Automatic Printing 29

Section 4: APPENDICES

1. Appendix A:

VIC 1525 Printer Specifications 30

VIC 1515 Printer Specifications 31

2. Appendix B:

Hard Copy off the Screen 32

3. Appendix C:

VIC Printer Code Table (Cursor Up Mode) 33

VIC Printer Code Table (Cursor Down Mode) 34

Section 1:

GENERAL INFORMATION

Welcome to anew dimension in computing. Because you bought the

Commodore VIC printer, you've added agreat deal of versitility and

convenience to the use of your Commodore computer. This manual contains all

the information you need to check out, hook up, and operate your printer, but

in order to get the most out of your computer system you should continue to

look at both your computer's User's Guide and Programmer's Reference Manual.

Your VIC printer is designed to operate through software control. That means

you have to make the printer's operation part of aprogram. For example the

VIC-20 has aTYPEWRITER cartridge that comes in the VIC SIX-PACK. It's

designed to operate the printer by holding down the SHIFT key and pressing

the f/1 Yellow Function Key.

The VIC Printer prints both capital and small letters, numbers, and all the

graphic characters available on your computer. It will even print custom made

graphics and charts that you design on your VIC-20 or Commodore 64. In

addition your printer has avariety of built-in functions of its own. This is

because your printer has its own computer inside.

The advantages of this internal computer are 1) it automatically resets all its

switches to the starting sequence every time you turn the printer on; 2) it

contains its own internal memory which means that you can store information

to be printed directly in the printer without using up your computer's memory.

Your printer is designed to connect directly into your computer through the

Serial Port (6-pins). However, you can connect your printer to as many as 5VIC

disk drives by daisy-chaining. Daisy-chaining means connecting 1peripheral to

your computer and any additional peripherals plug into the Serial Port of the

last item connected.

1.External Appearance and Names of Parts

Paper Holder

Ribbon Cassette

Self-Diagnostic Switch

Connector

Printer Cover

Paper Feed Dial

Upper Case

Lower Case

Power Cord

2. Operating Your Printer

PART OPERATION &FUNCTION

a. Power Switch

b. Power Indicator

c. Self-Diagnostic Switch

1.3

d. Printer Cover

Turns printer on and off

Lights up when printer is turned on

Select printer device number, "4" is the normal

position for one printer. "5" is the position to use

with your second printer. "T" is the self-diagnostic

test position.

Use your cover to protect your printer from dust

and to reduce the noise level while the printer is in

operation.

e. Tractor Mechanism

f. Paper Advance Dial

g. Fuse

After loading your paper properly (see Section 2,

part 3) the Tractor Mechanism should be snapped

closed to hold the paper in place. Tractor holes on

the edges of the paper must line up with the pins

of the Tractor Mechanism.

Once you have properly threaded your paper, you

can use the Paper Feed Dial to move the paper

ahead, 1line at atime in the forward direction

only!

The Fuse is located on the underside of the printer.

It is rated at 0.5 Afor 117V version, 0.25A for

220/240V version. If you turn on your printer

and it does not work, then turn the printer off

and check the fuse.

3. Interface

Connector

Interface

Pin No. Signal

lSERIAL SRQ

2GND

3SERIAL ATN

4SERIAL CLK

5SERIAL. DATA

6RES

1.5

a. Use the enclosed connecting cable to connect the printer to

your computer. Plug one end of the 6-pin connector cable into

the 6-hole Serial Port on your computer. Plug the other end of

the 6-pin connector into the 6-hole connector of your printer.

If you are facing the back of the printer, the connector hole is

in the lower left (see figure 1.2).

b. Select the device number

1.6 Device Selector Switch

Just as your computer has different character modes, so does

your printer. To choose either the GRAPHICS/UPPER CASE

or UPPER CASE/LOWER CASE mode, you must assign a

SECONDARY ADDRESS (SA) so that the printer prints in

the same mode that you've chosen for your computer. The

secondary address can either be or 7.

SA =0: "CURSOR UP" (graphics/upper case) Mode

SA =7: "CURSOR DOWN" (upper case/lower case) Mode

If there is an error in your program that pertains to printer

operation, your printer will stop printing and the appropriate

error message will appear on the screen of your computer.

User defined machine language IRQ routines should not ex-

ceed 10 milliseconds.

If this is done, the printer may give "Device not present" error.

Section 2:

PREPARING TO USE YOUR PRINTER

1. Installation

Please follow the precautions listed below when setting up your printer.

These measures are designed to help you keep your printer functioning at

its best.

*Place your printer on aflat and level surface, like atabletop.

*Avoid placing your printer in rooms with high humidity.

*Keep your printer as dust-free as possible.

*Keep your printer out of direct sunlight.

*Avoid placing your printer through extreme temperature

changes.

2. Installing the Ribbon Cassette

a. Find the packet that contains the ribbon cassette. You should have

received this packet in the same box that your printer came in.

b. Remove the ribbon cassette from the packet and place it carefully in

front of you.

c. Look at the cassette. You will notice that one side has aflat surface

while the other side has little tabs sticking out. Place the cassette so

that the tabs are closest to you.

d. Now place the ribbon cassette on the same surface as your printer.

Place the cassette so that it is between you and your printer, making

sure that the tabs are still closest to you.

e. Remove the clear printer cover from the top of your printer.

fNow look at the drawings (2.1) shown on the next page. As you can

see, you should install the ribbon cassette on the right side of your

printer first. Be sure to install the right half of the cassette on the

right side of the printer (location 0).

g' Lift both parts of the cassette up to the printer. Notice that the

silver ribbon holders in the printer have holes drilled into them.

These correspond to apin located on the bottom of each half of

the cassette.

Autres manuels pour VIC-1525

Table des matières

Autres manuels Commodore Imprimante

Commodore

Commodore MPS 1224C Manuel utilisateur

Commodore

Commodore DPS-1101 Manuel utilisateur

Commodore

Commodore MPS-803 Manuel utilisateur

Commodore

Commodore MPS-803 Manuel utilisateur

Commodore

Commodore 1526 Manuel utilisateur

Commodore

Commodore MPS-801 Manuel utilisateur

Commodore

Commodore 1515 Manuel utilisateur

Commodore

Commodore VIC-1525 Manuel utilisateur

Commodore

Commodore 4022 Manuel utilisateur

Commodore

Commodore MPP-1361 Manuel utilisateur

Commodore

Commodore MPS 1200 Manuel utilisateur

Commodore

Commodore 4022 Manuel utilisateur

Commodore

Commodore MPS-801 Manuel utilisateur

Commodore

Commodore MPS 1250 Manuel utilisateur

Commodore

Commodore MPS 1250 Manuel utilisateur

Commodore

Commodore MPS-803 Manuel utilisateur

Commodore

Commodore CBM 4023 Manuel utilisateur

Commodore

Commodore VIC-1525 Manuel utilisateur

Commodore

Commodore VIC-1515 Manuel utilisateur

Commodore

Commodore amiga mps 1230 Manuel utilisateur

Commodore

Commodore MPS 1000 Manuel utilisateur

Commodore

Commodore MPS-802 Manuel utilisateur

Commodore

Commodore MPP-1361 Manuel utilisateur

Commodore

Commodore 1526 Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
