Commlite CM-EF-NZ Manuel utilisateur
CM-EF-NZ
Electronic AF Lens Mount Adapter from EF/EF-S Lens
to Nikon Z-Mount Mirrorless Camera
User Manual
Foreword
Main Features
Thanks for purchasing Commlite electronic lens mount adapter EF-NZ.
Before usage of the adapter, please ensure the adapter is compatible with your
camera and lens. In order to avoid the damage of product caused by incorrect
use, please read the user manual carefully.
1. Built-in USB Port for Compatibility Upgrade
2. Support EXIF INFO. Transmitting
3. Support AF Function
4. Support Electronic Aperture Control
5. Support VR Stabilizer Function
6. Gold-plating Contacting Pins and Detachable 1/4 Tripod Foot
7. Made of Aluminum Alloy, Powerful and Stable
1
Notice
1. This adapter is built-in with USB firmware upgrade port, please pay
attention to Commlite website (www.commlite.com) to learn the update
information in the first place;
2. After installing EF-NZ adapter, please set the lens to AF mode if the AF
function is required;
3. Please hold your camera tightly during your moving shooting when your
lens is heavier than the camera;
4. For some incompatible camera and lens, one can try to use the adapter as
the manual adapter; During the usage, while it shows prompt like ‘Incorrect
installation of lens’, please set the menu mode to 'Release Shutter without
Lens' or 'Shutter Priority';
2
Components
Lens Connecting Side
Camera Connecting Side
Lens Mounting Mark
USB Port
Metal Signal Contact
Metal Signal Contact
1/4 Screw Base Plate
Lens Release Button
Camera Connecting Side Cap
Lens Connecting Side Cap
3
Assemble and Disassemble
1. Assemble
Step 1. Connect the EF/EF-S lens to EF-NZ mount adapter
Refer to the follow illustration, press down the ‘lens release button’ of
the adapter, align the red mark on the EF/EF-S lens to the correspond-
ing mark on the adapter, and turn clockwise until tightened
4

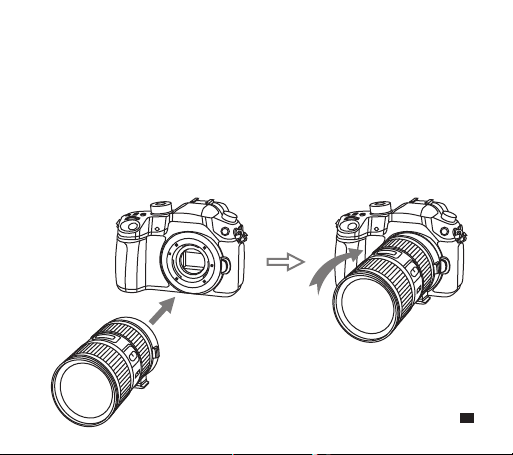

Step 2. Connect the mount adapter to Z-Mount camera
Refer to the follow illustration, press down the ‘lens release button’ of
the Z-Mount camera, align the red mark on the adapter to the
corresponding mark on the camera, and turn clockwise until tightened
5
2. Disassemble
Step 1. Turn off the camera power, then take off the adapter which is
connected with EF/EF-S lens from Z-Mount camera
Refer to the follow illustration, press down the ‘lens release button’ of
the Z-Mount camera, turn counterclockwise the adapter which is
connected with EF/EF-S lens until it can be easily taken off
6
Step 2. Take off the EF/EF-S lens from the Z-Mount adapter
Refer to the follow illustration, press down the ‘lens release button’ of
the mount adapter, turn counterclockwise the EF/EF-S lens until it can
be easily taken off
7
Specification
Compatible Lens
Compatible Camera
Front Installation
Rear Installation
Camera-Mount Outer Diameter
Lens-Mount Outer Diameter
Length
EF/EF-S Series Lens (For specific compatible
lens models, please enter the official
website to view the compatibility table)
Z-Mount Camera (For specific
compatible camera models, please enter
the official website to view the compatibility
table)
EF/EF-S Series Lens
Z-Mount Camera
67.5mm
69.5mm
34mm
8
