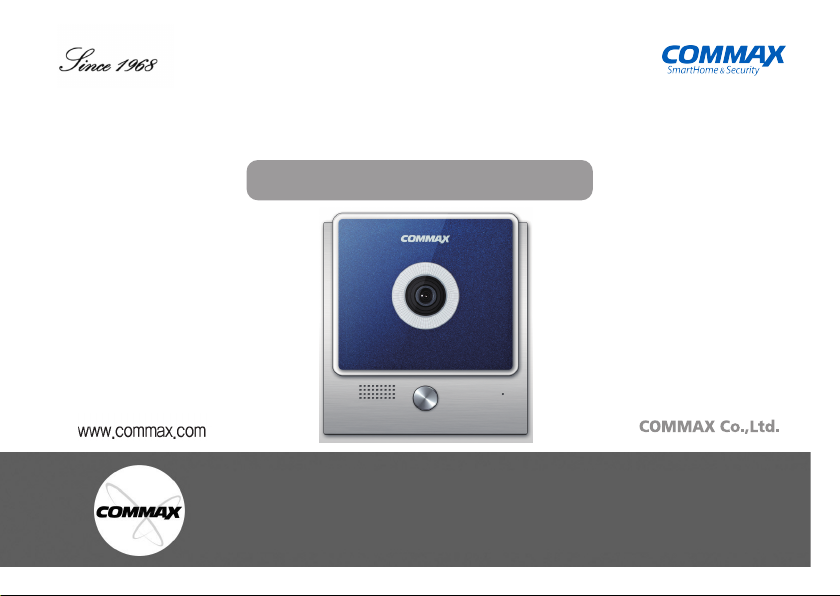

Color Door Camera DRC-4U

User Manual

•Thank you for purchasing COMMAX products.

•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

•The company is not responsible for any safety accidents caused by abnormal operation of the product.

1. Part Names. 2. Wiring and Installation

LED & Sensor

Microphone

Camera Lens

Speaker

Call Button

Angle Adjustment Lever

Wall Bracket

Volume

Adjuster

Monitor Connection

Terminal

SCREW M3X8(1EA)

SCREW T4X18(2EA)

[FIG-1]

[FIG-2]

①Fix a bracket on a wall with screws

②

[FIG-2]

③Put a door camera unit into a wall bracket

④Wire door release connection terminal as shown in [FIG-2]

⑤Tighten a screw at the top side of a door camera. [FIG-1]

Wiring #1, 2, 3, 4 on the back side of a door camera with

a monitor as shown in

3. Package contents

카메라

고정 스크류

현관카메라 벽걸이 브라켓

고정 스크류

Screw(2EA)

(T4X18)

Connector

(4PX200) Manual

Camera

Screw(1EA)

(M3X8)

QTpQPp QRpXpRp TpSpUpVp

Door Camera Bracket

Bracket

4. Specification

Wiring 4 wires(polarity)to a monitor

2 wires(non-polarity)to a electric door look

NTSC or PAL STANDARD.

Angle Adjustment Up / Down / Left / Right : Every 10°

Rated Voltage 12V (Supplied from monitor)

Sensor Type C-MOS(1/3")

Transmission Full Duplex

Minimum Illumination 0.1 Lux(within300mm)

LED Embedded LED(Night working)

Effective Viewing Angle Diagonal 100˚, Horizontal 80˚, Vertical 60˚

Operating Temperature -10°C(tested up to -40°C)~+40°C

Dimension (mm) 140(W) x 153(H) x 45(D)

Diameter(pie) Ø0.5 Ø0.65 Ø0.8 Ø1

Distance(meter) 28m

50m 70m 115m

Model No. DRC-4U

camera and a monitor

(TIV Cable)

Video Transmission

Standard

Environment Condition

Warranty Period

Product Life-Cycle

Storage Temperature

1 year

Storage Humidity

10 years

-40 °C to 50 °C

Less than 90 %

Printed In Korea / 2014.02.105

PM104U000010

513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea

Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133

Web site : www.commax.com
