Comica VM10 PRO Manuel utilisateur

User Manual

Mini Cardioid Digital Shotgun Microphone

Foreword

Main Features

Thanks for purchasing COMICA VM10 PRO

.Cardioid Pattern, Accurate Sound Pickup

.Digital / Analog Output Mode Switch, Universal for Camera and Smartphone

.Stepless Gain Control with Preamp in Digital Mode

.Support Real-time Monitor in Digital Mode

.No Power Driven, Plug and Play

.Professional Shock-mount, Eective Shock Absorption

.Full Metal Material, Super Shielding

Notice

When working with devices with USB-A and Lightning interface in digital mode, it is necessary to

purchase relevant audio output cable or audio adapter cable by yourself

Some smartphones with USB-C interface are incompatible in digital mode, such as ViVO and

OPPO

When working in digital mode, the 3.5mm TRS audio output port is intelligently identiﬁed as the

monitoring port, the gain control knob and digital mode indicator light are available only in digital

mode 1

Item Check List

User manual

MiniCardioid Digital&Analog Dual-mode Shotgun Mic

① ②

③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

1. Microphone

2. Shock Mount

3. 3.5mm TRS - TRS Audio Cable

4. 3.5mm TRS - TRRS Audio Cable

5. USB C-USB C Audio Cable

6. Wind Mu

7. Carry Case

8. User Manual

9. Warranty Card

Components and Instruction

Gain Control Knob

Digital/Analog Modes Switch Button

Digital Mode Indicator Light

USB-C Audio Output Port

In Digital Mode：

3.5mm TRS/TRRS Monitoring Port

In Analog Mode：

3.5mm TRS Audio Output Port

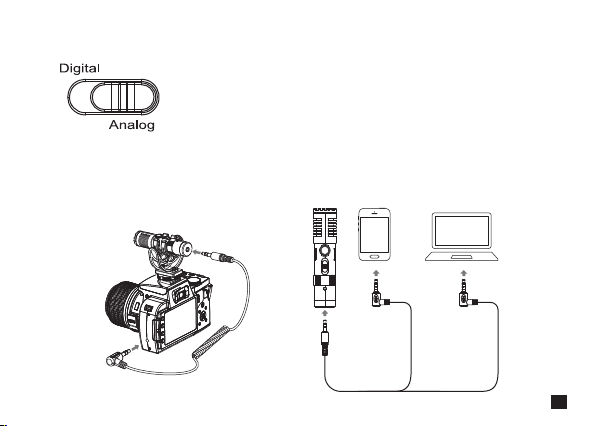

Installation

Digital Mode：

1. Set the digital/analog switch button to the digital icon;

2. Connect the mic and the phone/computer via the USB C-USB C audio cable and related audio

cables/adapters. The digital working status indicator is on after successful connection(If the indicator

is not on, it may be caused by compatibility/system problems); choose whether to monitor according

to your needs.

Analog Mode：

1. Set the digital/analog switch button to the analog icon;

2. When used with camera, it can be connected via 3.5mm TRS-TRS audio cable; when used with

phone or computer, it can be connected via 3.5mm TRS-TRRS audio cable.

Speciﬁcation

Polar Pattern

Sensitivity

Frequency Response

Maximum SPL

S/N

Equivalent Noise

Dynamic Range

Sampling Rate

Bit Depth

Output Port

Monitoring Port

Dimension

Net Weight

Working Temperature

Storage Temperature

Cardioid Pattern

Analog Mode：-35±2dB

Digital Mode：-15dB ~ -35dB ±2dB

60Hz ~ 20kHz

120dB

70dB

24dBA

96dB

48kHz

24-bit

3.5mm TRS / USB-C

3.5mm TRS/TRRS

Ф22mm * L92mm

37g

0℃~ 50℃

-20℃~ 60℃
