Comica SIG.LAV V05 MI Manuel utilisateur

User Manual

SIG.LAV V05 MI

Multi-functional Single Lavalier Microphone

(For Iphone with Lightning Interface, MFI Certified)

Foreword

Thanks for purchasing Comica SIG.LAV V05 MI multi-function

single lavalier microphone .

This product can be equipped with Smartphone(with Lightning

Interface) for audio recording. It is designed with functions of

supporting adjustable sensitivity, low-cut switch, real-time

monitoring, work indicator light, CR2032 3V battery power supply,

flexible back clip, which can bring you better experience and

sound quality effect and without any concern!

Please carefully read this instruction manual before use. The

product has been precisely calibrated at the factory, and please

do not assemble and disassemble the parts by yourself, or the

warranty will be invalid!

Notice

This product is compatible with iOS 10.2 or above

Please set your Iphone to fly mode to avoid any interference during

work.

Please stay away from heat source or interference source when

using.

Please avoid falling, collision or impact when using.

Please do not use in rain or humidity, or there will be a risk of shot

circuit.

Main Functions

. Design for Iphone with Lightning Interface

. Low-cut Filter Function

. Stepless Gain Control

. Real-time Monitor

. Super-shield and Low Noise Mic

. LED Working Indicator

Package List

Body of Microphone Back Clip

Carrying Case Instruction Warranty Card

User Manual

SIG.LAV V05 MI

Multi-functional Single Lavalier Microphone

(For Iphone with Lightning Interface, MFI Certified)

Low-cut Filter

Function

Stepless Gain

Adjustment

Design for Iphone

with Lightning Interface

Real-time

Audio Monitor

Super-shield

and Low Noise Mic

Working Indicator

Components

Microphone

Lightning Interface Audio Output Cable

Monitoring Jack

Work Indicator Light

Mic

Gain Control Wheel

Power / Record / Low Cut Function Switch

Back Clip

Battery Holder

Installation and Use

1. Switch to Record / Low Cut Function, the indicator light turns green

Switch to Record/Low Cut Function Switch

the indicator light turns green

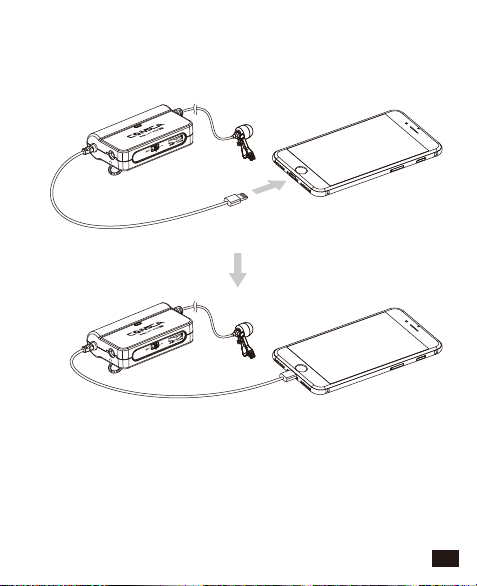

2. Insert the Lightning Interface output connector into the Lightning

Interface input interface of Iphone and use with the recording

system for recording

Function Description

1. Gain Control Wheel

During the usage, the gain control wheel can adjust the output

sensitivity of microphone

2. 3.5mm monitoring jack

You can monitor the recording situation through the 3.5mm

monitoring jack

3. Power /Low Cut Switch

You can Power off or Power on the device in two working modes:

Normal Recording Mode and Low-cut Function mode.

Switch Between Off、Normal Recording、and Low-cut Function modes

Gain Control Wheel

dB re 1 V/Pa

-10

-20

-30

20Hz 100 1000 10 000 20 000

-2.0

-20.0

-10.0

0.0

-2.0

-4.0

-6.0

-8.0

-10.0

-12.0

-14.0

-16.0

-18.0

-20.0

-22.0

-24.0 -25.0

dB rel. 1V/Pa

+5.0

Frequency:

500 Hz :

1000 Hz :

4000 Hz :

Polar Pattern

Frequency Response

Specification

Product Features

Polar Pattern

Sensitivity

Gain Range

Frequency Response

S/N

Max SPL

Battery

Working Temperature

Storage Temperature

Omni-directional

-35dB ±2dB

Maximum increase +10dB

60Hz - 18kHz

>65dB

100dB

CR2032 3V

0℃~ +50℃

-20℃~ +60℃

Email: [email protected]
