Comfortaire Century M5SB A Series Document technique

NORTEK - Manufactured Housing HVAC Equipment Guide

HVAC EQUIPMENT GUIDE

Electric Furnaces, 80% Gas Furnaces

95% Gas Furnaces, 83% Oil Furnaces

Coils and Accessories

Nortek-Style Manufactured Housing Furnaces

NORTEK - Manufactured Housing HVAC Equipment Guide

NORTEK - Manufactured Housing

HVAC Equipment Guide

Table of Contents

Cover Page.........................................................................................................1

E7-Page .............................................................................................................2

MG1E-Page........................................................................................................3

MG1E-Venting .................................................................................................... 4

MG1E-Nat Gas ...................................................................................................5

MG1E-Propane...................................................................................................6

MG2R-Page........................................................................................................7

MG2R-Venting....................................................................................................8

MG2R-Nat Gas...................................................................................................9

MG2R-Propane ................................................................................................10

M5SB-Page......................................................................................................11

M5SB-Venting ..................................................................................................12

Furnace Duct Connector...................................................................................13

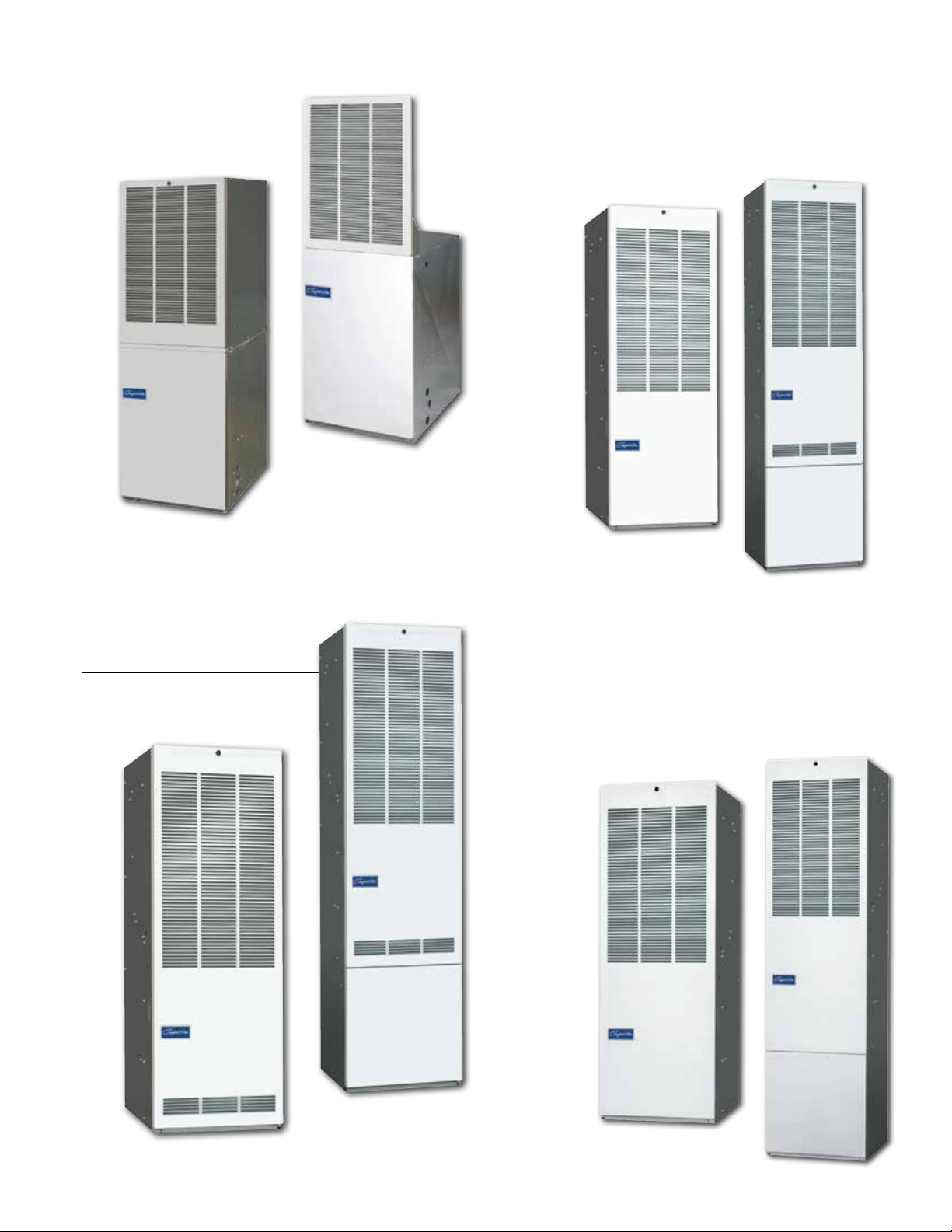

NORTEK - Manufactured Housing HVAC Equipment Guide

MANUFACTURED HOUSING

ELECTRIC FURNACES

E7ED - Downflow

E7EM - Upflow / Downflow

E7ED

E7EM

M5SB*B

M5SB*A

MG1E*B

MG1E*A

MG2R*B/C

MG2R*A

MANUFACTURED HOUSING

GAS FURNACES

MG2R*A - Downflow Without Coil Box

MG2R*B - Downflow With Coil Box

MG2R*C - Downflow With Coil Box

MANUFACTURED HOUSING

GAS FURNACES

MG1E*A - Downflow Without Coil Box

MG1E*B - Downflow With Coil Box

MANUFACTURED HOUSING

OIL FURNACES

M5SB*A - Downflow Without Coil Box

M5SB*B - Downflow With Coil Box

NORTEK - Manufactured Housing HVAC Equipment Guide

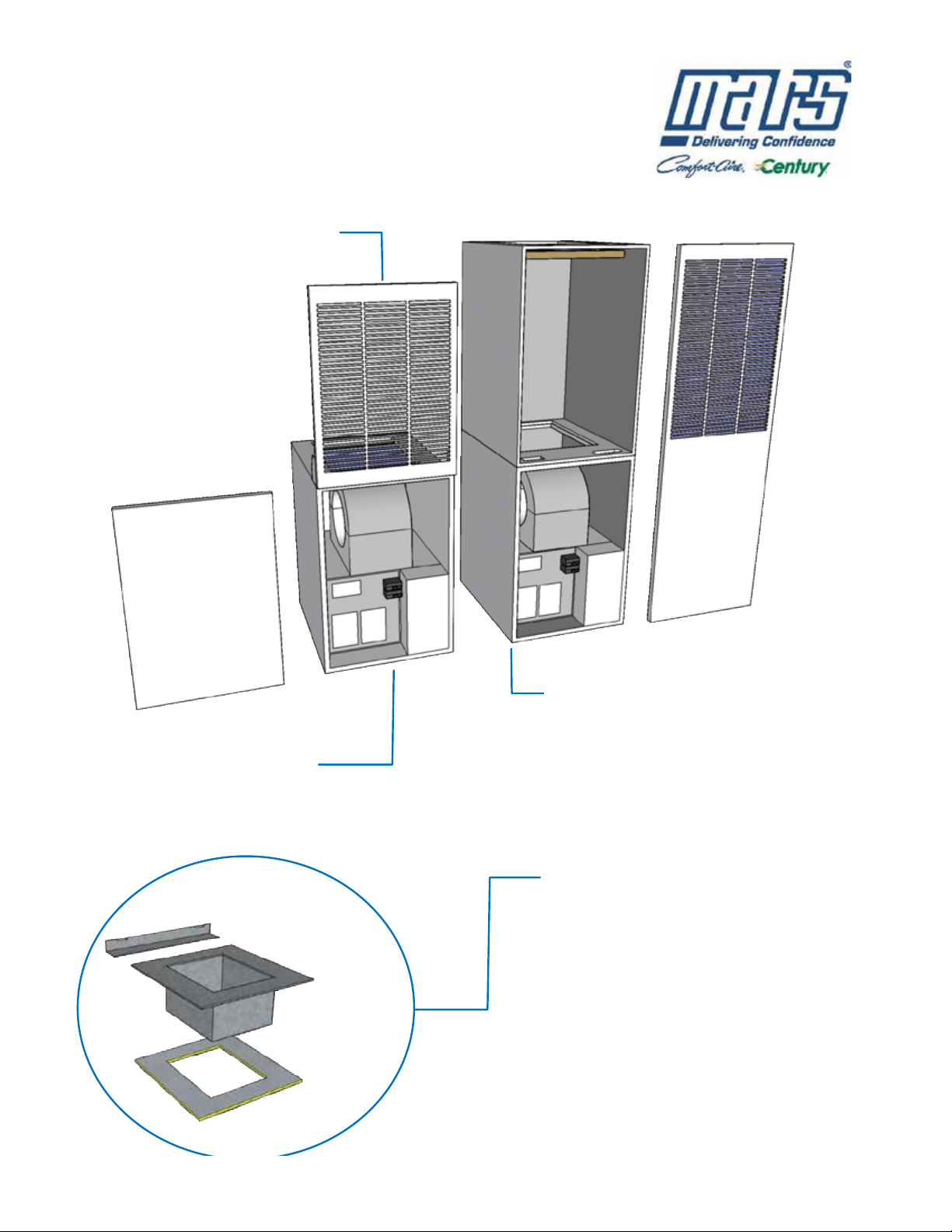

E7-Series Electric Furnaces:

•E7ED Downflow Only w/ 31” Coil Cabinet

•E7EM Upflow/Downflow NO CABINET

E7EM-Series Upflow/Downflow

(All Have 4-Ton Blowers)

E7EM-010H*-- 10kW E7EM-012H*– 12kW

E7EM-015H*– 15kW E7EM-017H*– 17kW

E7EM-020H*– 20kW E7EM-023H*– 23kW

Mounting Bracket

w/ Tabs

Duct

Connector

Insulation

Finger-Tab Duct Connectors

901988A 2” Duct Connector

901989A 4” Duct Connector

901990A 6” Duct Connector

901991A 8” Duct Connector

901992A 10.25” Duct Connector

Solid Door for E7EM

Part # 917260

5-Ton Blower Assembly for E7EM or E7ED

Part # 1027059 (Not Shown)

E7ED-Series Downflow w/ 31” Coil Cabinet

(All Have 4-Ton Blowers)

E7ED-010H*-- 10kW E7ED-012H*– 12kW

E7ED-015H*– 15kW E7ED-017H*– 17kW

E7ED-020H*– 20kW E7ED-023H*– 23kW

Filter Sizes:

E7EM (1) 20x18x1

E7ED (1) 20x18x1, (1) 30x18x1

Optional Frame and Grille Assembly

for E7EM Models Part # 902989

Louvered Door for E7ED

Part # 101480702R

NORTEK - Manufactured Housing HVAC Equipment Guide 3

Mounting Bracket

w/ Tabs

Duct

Connector

Insulation

MG1E-Series 80% AFUE Gas Furnaces:

•MG1E-***F1ABM*Downflow w/ 20” Coil Cabinet

•MG1E-***F1AAM*Downflow NO CABINET

Filter Sizes:

MG1E (All) - 19.5”x 28” Blue Hogs Hair Filter

Finger-Tab Duct Connectors

901988A 2” Duct Connector

901989A 4” Duct Connector

901990A 6” Duct Connector

901991A 8” Duct Connector

901992A 10.25” Duct Connector

Louvered Door for MG1E (All)

Part # 903407

**SEE NEXT PAGE FOR VENT PRODUCTS**

MG1E-***F1AAM* Downflow with no coil cab

(All Have 4-Ton Blowers)

MG1E-056F1AAM*– 56KBtu Input

MG1E-070F1AAM*– 70KBtu Input

MG1E-077F1AAM*– 77KBtu Input

MG1E-090F1AAM*– 90KBtu Input

High Altitude (above 2000’ Installation) for MG1E (ALL):

See Nat/LP Orifice Page MANDATORY

1018498 High Altitude Pressure Switch Hose Kit – used where

nuisance tripping occurs on OEM switch OPTIONAL

MG1E-***F1ABM* Downflow w/ 20” Coil Cab

(All Have 4-Ton Blowers)

MG1E-056F1ABM* – 56KBtu Input

MG1E-070F1ABM* – 70KBtu Input

MG1E-077F1ABM* – 77KBtu Input

MG1E-090F1ABM* – 90KBtu Input

26” Coil Cabinet - Part # 922594

Louvered Door for MG1E (All)

Part # 903407

Solid Door for Coil Cab on MG1E-***F1ABM* ONLY

Part # 903094

NORTEK - Manufactured Housing HVAC Equipment Guide

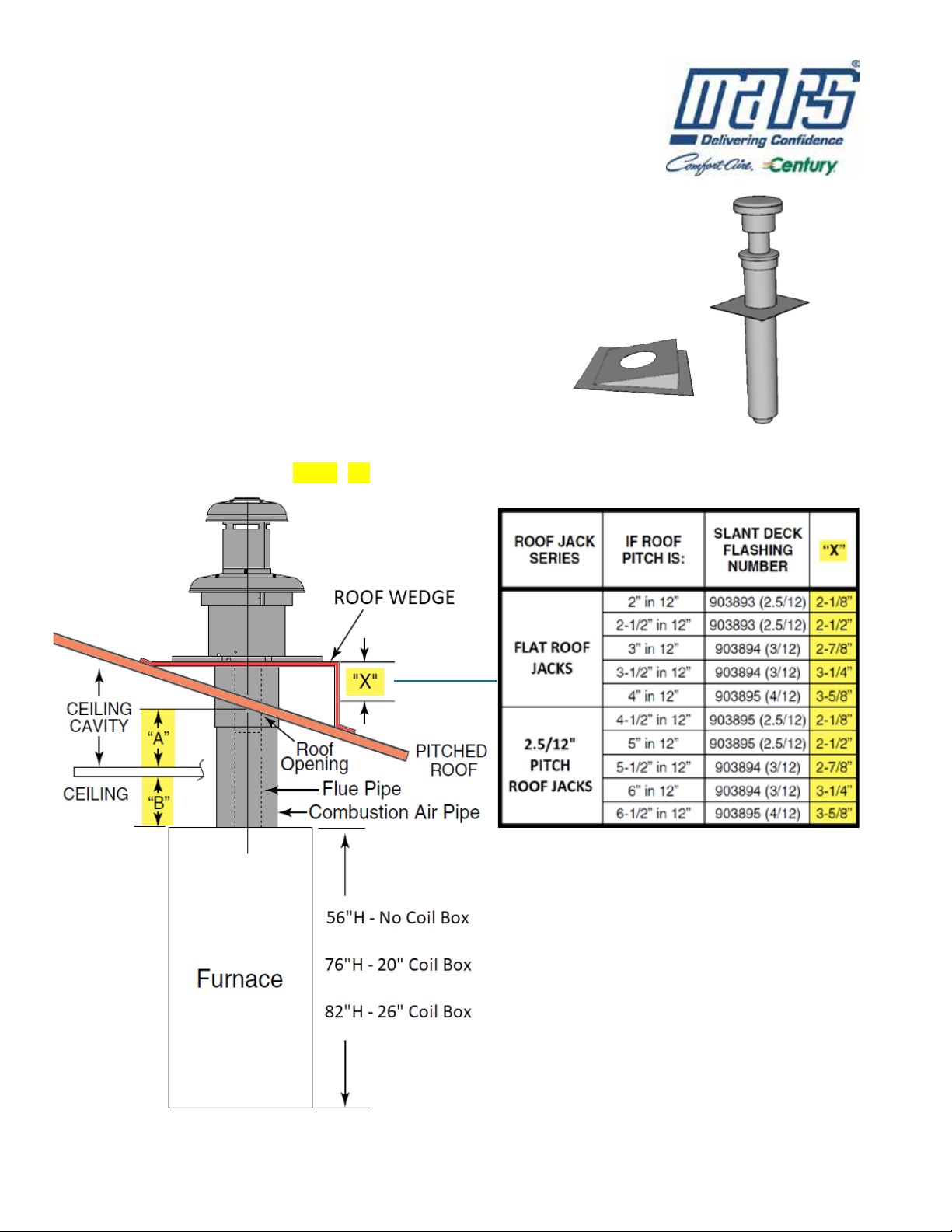

MG1E-Series 80% AFUE Gas Furnaces:

•MG1E-***F1ABM*Downflow w/ 20” Coil Cabinet

•MG1E-***F1AAM*Downflow NO CABINET

TO SELECT ROOFJACK: A + B (+X IF PITCHED ROOF)

FLAT ROOF JACKS: Use alone or in combination with wedges below for pitched roofs

903658 – Flat Roof Jack 15” to 23”

903659 – Flat Roof Jack 21” to 35”

903660– Flat Roof Jack 27” to 47”

PITCHED ROOF JACKS: Use alone or in combination with wedges below for higher pitch roofs

903664 – 2/12 Pitch Roof Jack 35” to 63”

920638 – 2/12 Pitch Roof Jack 51” to 95”

ROOF WEDGES: Use in combination with Flat or Pitched Roof Jacks

903893 – 2.5/12 Roof Wedge

903894 – 3/12 Roof Wedge

903895 – 4/12 Roof Wedge

ROOFJACK ACCESSORIES:

902521 – Ceiling Ring for Roof Jacks

901937 – 16” Exterior Roof Jack Extension

901935 – 10” Interior Roof Jack Extension

903107 – 18” interior Roof Jack Extension

NORTEK - Manufactured Housing HVAC Equipment Guide

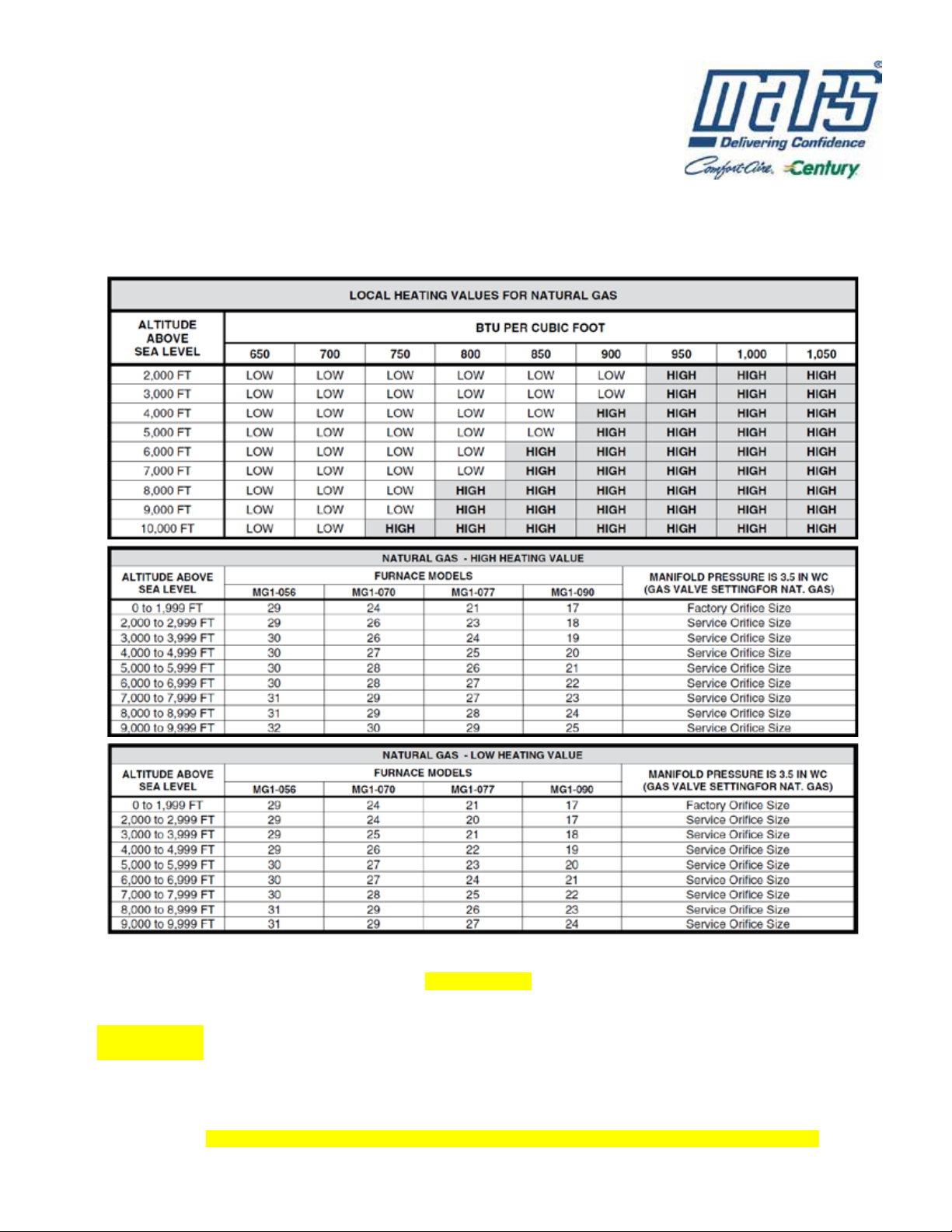

MG1E-Series 80% AFUE Gas Furnaces NAT GAS Orifice Selection

ORIFICE PART NUMBERS:

661017R - #17 661018R - #18 661019R - #19** 661020R - #20 661021R -

#21

661022 - #22 662023R - #23 661024R - #24 661025R - #25 661026R -

#26

661027 - #27 661028 - #28 661029R - #29 661030R - #30 661031 - #31

661032R - #32** 661035 - #35 661036R - #36 661037R - #37 661038 - #38

661039R - #39** 661040 - #40 661041R - #41 661042R - #42 661043R - #43

661044R - #44 661045R - #45 661046R - #46 661047R - #47 661048R - #48

661049R -#49 661050R - #50 661051R - #51 661052R – #52 661055R - #55

661056R - #56 661057R - #57 661058R - #58 661059 - #59 661060 - #60

661061R - #61

**NOTE: #19, #32, and #39 Orifices have been discontinued. Use the next size smaller orifice**

NATURAL GAS ORIFICES: Use the following steps to determine appropriate orifice for installation altitude.

1. Consult Local Utility for “LOCAL HEATING VALUE” at installation site. Use “Local Heating Values” chart to

determine if this value is considered “LOW” or “HIGH” based on installation altitude.

2. Use “Natural Gas – High Heating Value” or “Natural Gas – Low Heating Value” chart to determine appropriate

orifice based on furnace model.

NORTEK - Manufactured Housing HVAC Equipment Guide

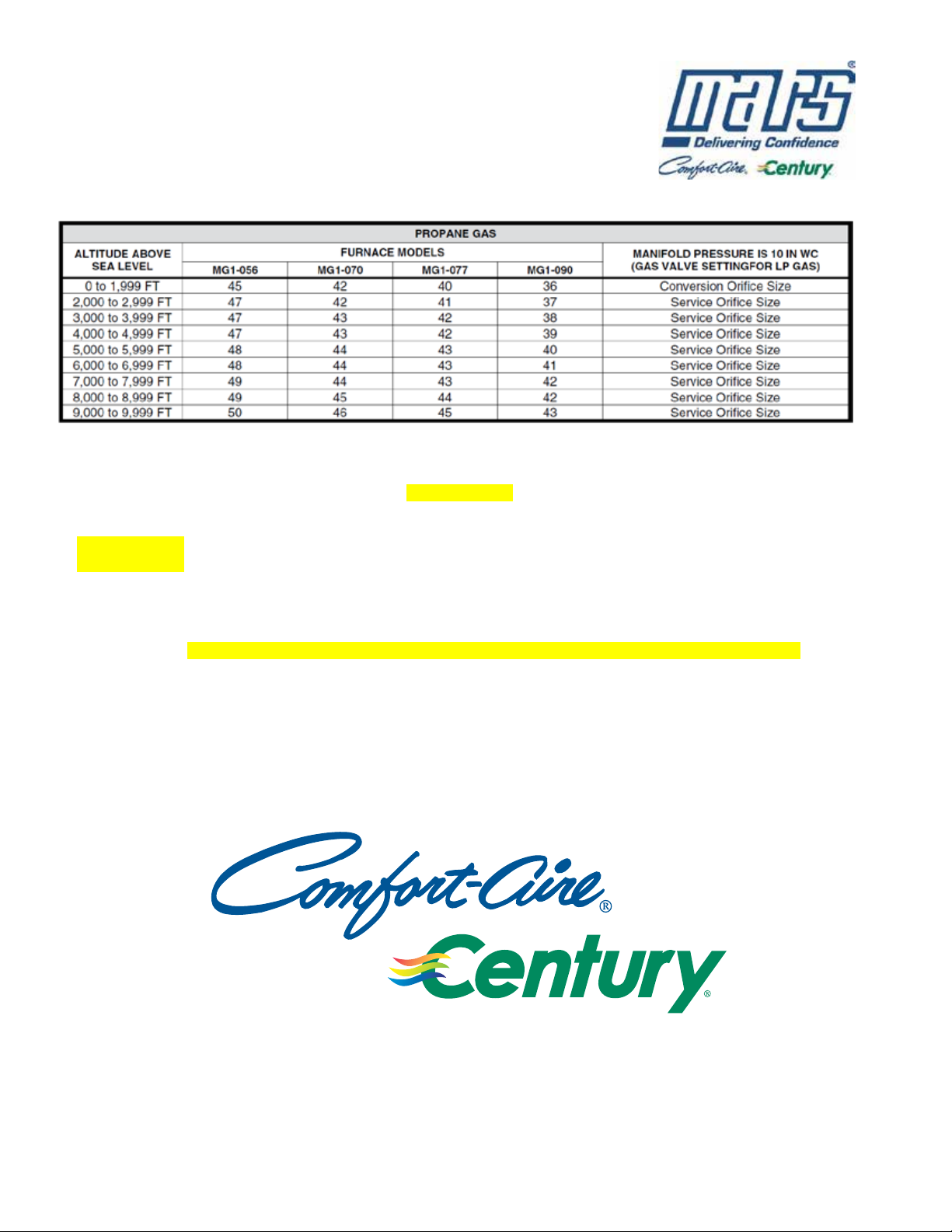

MG1E-Series 80% AFUE Gas Furnaces PROPANE Orifice Selection

ORIFICE PART NUMBERS:

661017R - #17 661018R - #18 661019R - #19** 661020R - #20 661021R -

#21

661022 - #22 662023R - #23 661024R - #24 661025R - #25 661026R -

#26

661027 - #27 661028 - #28 661029R - #29 661030R - #30 661031 - #31

661032R - #32** 661035 - #35 661036R - #36 661037R - #37 661038 - #38

661039R - #39** 661040 - #40 661041R - #41 661042R - #42 661043R - #43

661044R - #44 661045R - #45 661046R - #46 661047R - #47 661048R - #48

661049R -#49 661050R - #50 661051R - #51 661052R – #52 661055R - #55

661056R - #56 661057R - #57 661058R - #58 661059 - #59 661060 - #60

661061R - #61

**NOTE: #19, #32, and #39 Orifices have been discontinued. Use the next size smaller orifice**

NOTES: Includes 4% Input Reduction for each 1,000 feet. Reference Sources: ANSI Z223.1, CSA B149.1, NFPA 54 and National Fuel Gas Code.

PROPANE ORIFICES: Use the chart below to determine appropriate orifice based on model and installation altitude.

NORTEK - Manufactured Housing HVAC Equipment Guide

Mounting Bracket

w/ Tabs

Duct

Connector

Insulation

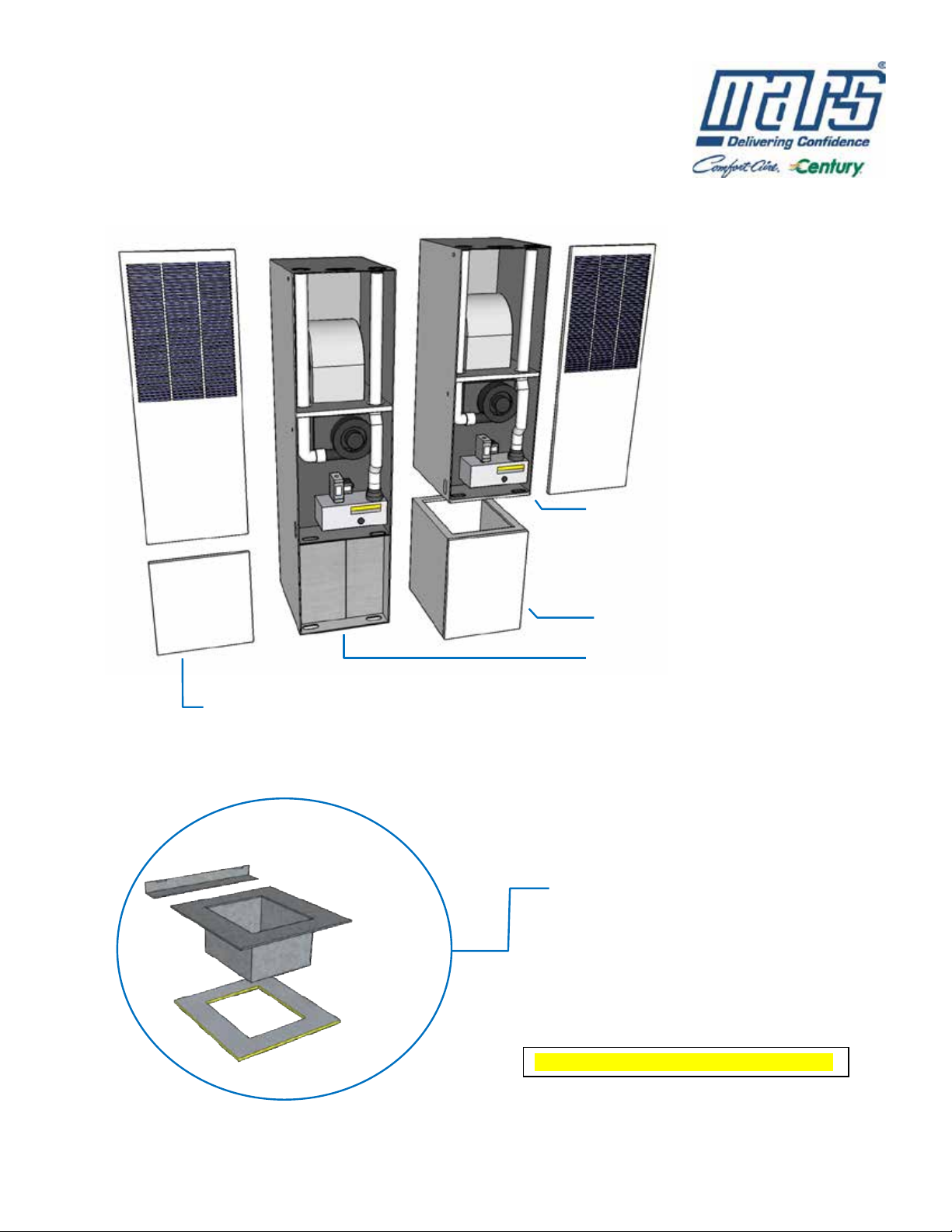

MG2R-Series 95% AFUE Gas Furnaces:

•MG2R-***F1ABM*Downflow w/ 20” Coil Cabinet

•MG2R-***F1ACM* Downflow w/ 25” Coil Cabinet

•MG2R-***F1AAM*Downflow NO CABINET

Finger-Tab Duct Connectors

901988A 2” Duct Connector

901989A 4” Duct Connector

901990A 6” Duct Connector

901991A 8” Duct Connector

901992A 10.25” Duct Connector

MG2R-***F1AAM* Downflow with no coil cab

(All Have 4-Ton Blowers)

MG2R-045F1AAM*– 45KBtu Input

MG2R-060F1AAM*– 60KBtu Input

MG2R-072F1AAM*– 72KBtu Input

MG2R-***F1ABM* Downflow w/ 20” Coil Cab

(All Have 4-Ton Blowers)

MG2R-045F1ABM* – 56KBtu Input

MG2R-060F1ABM* – 70KBtu Input

MG2R-072F1ABM* – 72KBtu Input

Louvered Door for MG2R

Part # 903977 (F1AAM*/F1ABM*)

Part # 104391801R (F1ACM*)

Solid Door for MG2R Coil Cab

Part # 903094 (F1ABM*)

Part # 104391803R (F1ACM*

Filter Sizes:

MG2R (All) - 19.5”x 21.5” Blue Hogs Hair Filter

26” Coil Cabinet - Part # 922594

**SEE NEXT PAGE FOR VENT PRODUCTS**

MG2R-***F1ACM* Downflow w/ 25” Coil Cab

(All Have 4-Ton Blowers)

MG2R-045F1ACM* – 56KBtu Input

MG2R-060F1ACM* – 70KBtu Input

MG2R-072F1ACM*

– 72KBtu Input

NORTEK - Manufactured Housing HVAC Equipment Guide

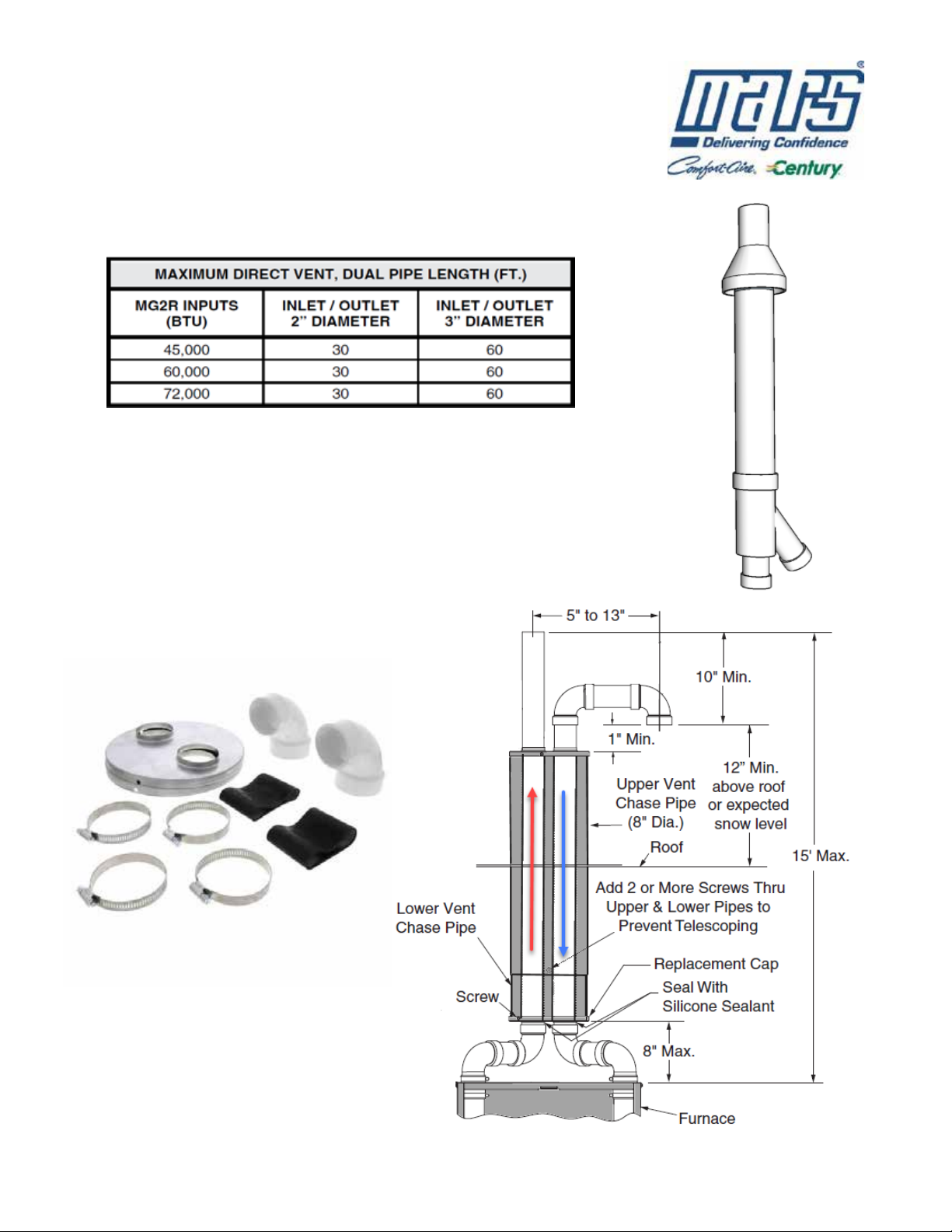

MG2R-Series 95% AFUE Gas Furnaces:

•MG2R-***F1ABM*Downflow w/ 20” Coil Cabinet

•MG2R-***F1ACM* Downflow w/ 25” Coil Cabinet

•MG2R-***F1AAM*Downflow NO CABINET

CONCENTRIC PVC KITS: Vertical or Horizontal Intake and Exhaust Termination Kit

904952 – 2” Concentric for MG2R

904953 – 3” Concentric for MG2R

TRANSITION VENT KIT: Use with Existing Roof Jack Opening

904106 – 2” Transition Vent Kit for MG2R

PIPING SIZE TABLE: Combined Intake and Exhaust Max. Length

*Consult IOM for complete venting information

1. Subtract 2.5ft. for each additional 2” Long Radius Elbow, subtract 5ft. for each

additional 2” Short Radius Elbow, subtract 3.5ft. for each additional 3” Long

Radius Elbow, and 7ft. for each additional 3” Short Radius Elbow.

2. Two (2) 45 degree elbows are equivalent to one (1) 90 degree elbow.

3. This table applies for elevations from sea level to 2,000ft. elevation. For higher

elevations, decrease pipe lengths by 8% per 1000ft. of altitude.
