USER MANUAL
Range Hood
Power supply: 120V
Rated power: 323W
Frequency: 60Hz
MODEL NUMBER
Free 3 months
extensionof the
original limited warranty
period!* Simply text a
picture of your proof of
purchase to:
1-844-224-1614
*The warranty extension is for the
three months immediately following
the completion of the product’s
original warranty period.
CVB27W7ASS
WARNING alerts you to situations that may
cause serious body harm, death or property
damage.
INTENDED FOR RESIDENTIAL COOKING USE ONLY
READ ALL INSTRUCTIONS BEFORE INSTALLATION AND USE
WARNING CAUTION IMPORTANT
IMPORTANT indicates installation, operation,
maintenance or valuable information that is not
hazard related.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer at the address or
telephone number listed in the warranty.
2. Before servicing or cleaning unit, unplug and switch power off at
service panel and lock service disconnecting means to
prevent power from being switched on accidentally. When the
service disconnecting means cannot be locked, securely fasten
a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by
qualified personnel in accordance with all applicable codes and
standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to
prevent backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as
those published by the National Fire Protection Association
(NFPA) and the American Society for Heating, Refrigeration and
Air Conditioning Engineers
(ASHRAE) and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any solid-state speed control device.
8. TO REDUCE THE RISK OF FIRE , USE ONLY METAL
DUCTWORK.
9. This unit must be grounded. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The plug must be
plugged into an outlet that is properly installed and grounded.
10. Do not use an extension cord. If the power supply cord is too short,
have a qualified electrician install an outlet near the appliance.
11. When applicable local regulations comprise more restrictive
installation and/or certification requirements, the aforementioned
requirements prevail on those of this document and the installer
agrees to conform to these at his own expense.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when
flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to
accumulate on fan, filters or in exhaust ducts.
d) Use proper pan size. Always use cookware appropriate for the
size of the surface element.
1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced impeller,
keep drywall spray, construction dust, etc. off power unit.
4. Install the vent hood in a location away from strong drafts, such as
windows, door, and strong HVAC vent for best performance
5. The minimum hood distance above cooktop must not be less than
25-5/8". For best capture of cooking impurities, the bottom of the hood
should be at a maximum of 29-1/2" above cooking surface.
6. Two installers are recommended because of the large size and weight
of this unit.
7. To reduce the risk of fire and to properly exhaust air, be sure to duct air
outside — Do not exhaust air into spaces within walls or ceiling or into
attics, crawl space or garage.
8. Because of the high exhausting capacity of this unit, you should make
sure enough air is entering the house to replace exhausted air by
opening a window close to or in the kitchen.
9. Always leave safety grills and filters in place. Without these
components, operating blowers could catch onto hair, fingers and loose
clothing.
10. The vent hood and filters should be cleaned frequently.
WARNING WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal
tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF
THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND
CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels —This
could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know how to
operate it.
B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
5. Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION
SAVE THESE INSTURCTIONS
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
2
Components
Ref. Qty. Product Components
1 1 Box assembly
4
21 Fan assembly
31 Filter Assembly
The Activated Charcoal filter(optional)
1
2
3
4
5
2
512 Screws
3

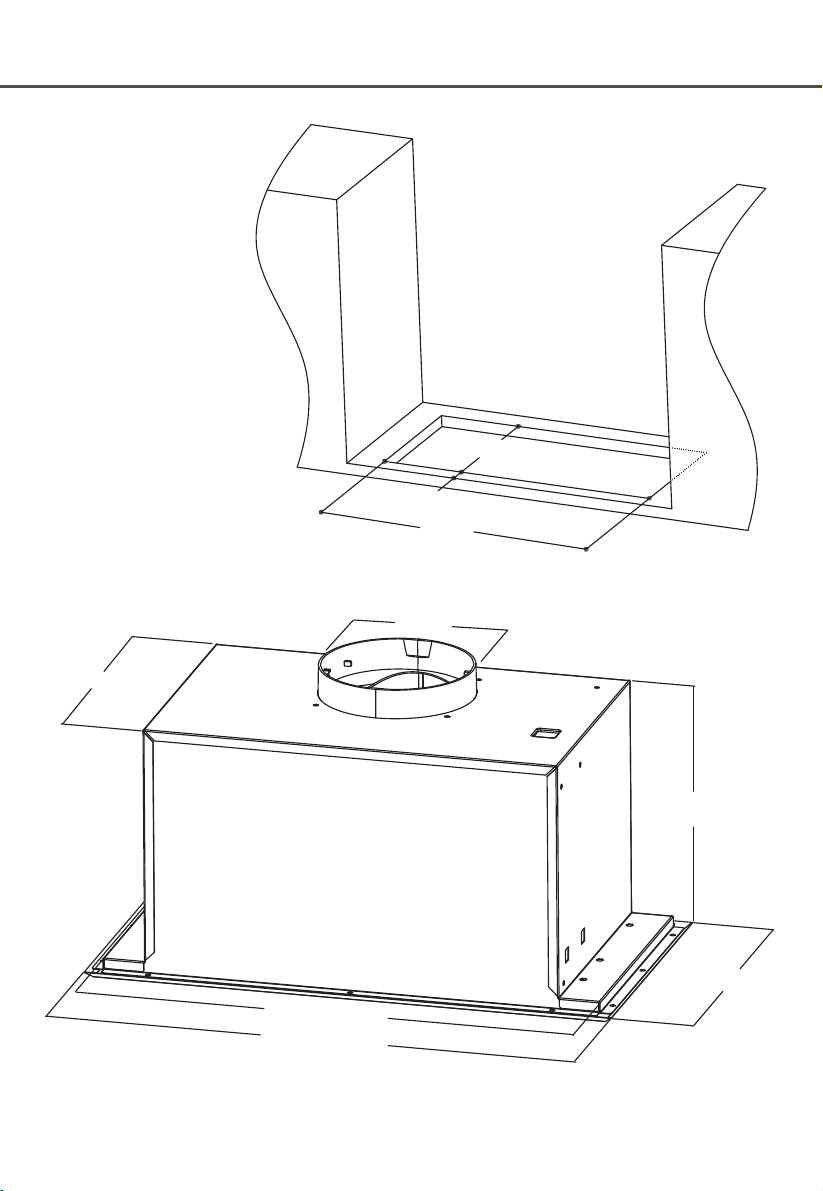

Measurement
10.20"
0.51"
Φ5.91"
10.08"
9.76"
11.18"
(A)
26.46"
27.56"
26.65"
4

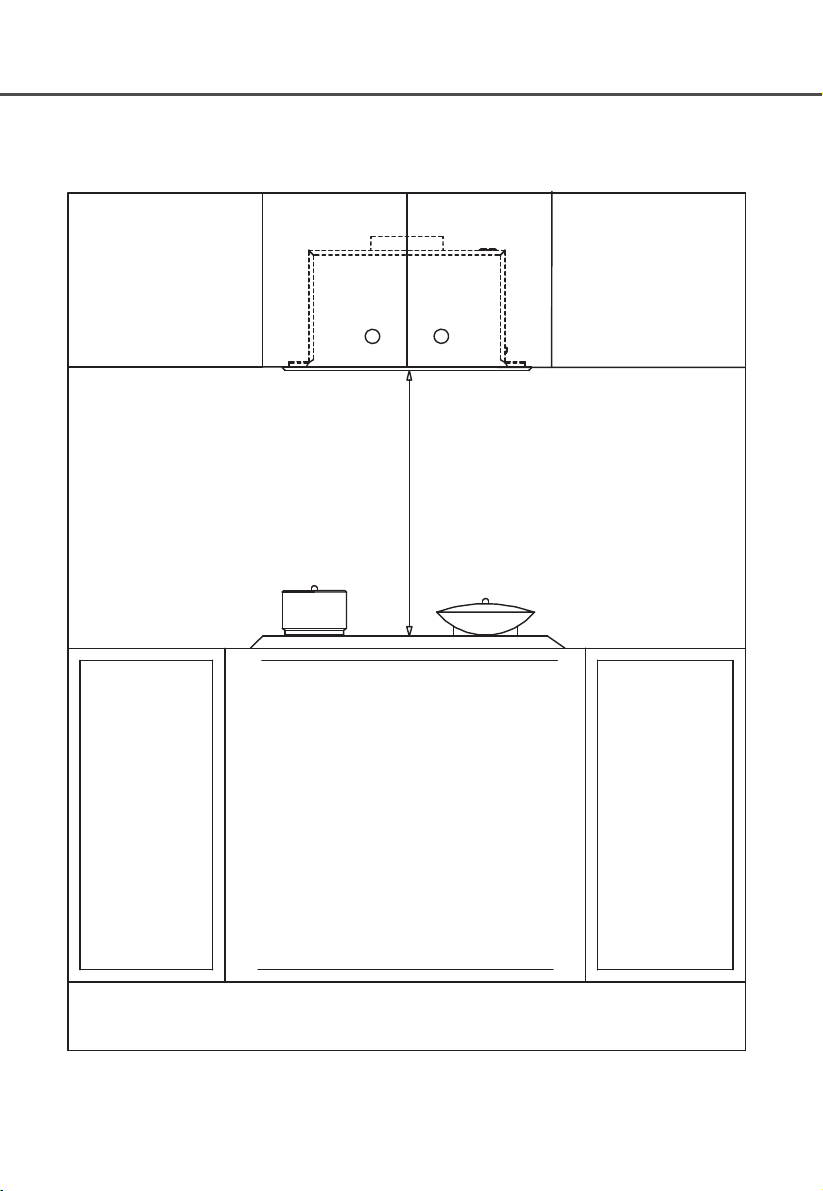

Measurement
25.6"-29.53
5
Installation
There are two venting options, extraction-air venting and
recirculation venting. Plan for one venting option before installation.
Extraction-air (Outdoor)
Venting Option
Recirculation Venting
Option
6
Unlatch the metal filter,
remove the filter.
Installation
Remove the stainless steel
frame by unfastening the 4
Philips head screws.
Cut the zip ties , remove the
one screw securing the black
terminal box lid.
Cut the zip ties, remove the
buckle, disconnect the wiring
harness connector.
Disconnect the lighting
wiring harness connectors.
Secure the hood into the cabinet
using the 12 screws provided.
7
Reconnect all wiring
harness connectors and re-
secure the black terminal
box lid.
Replace the metal Filter.
Install the air outlet pipe(Extraction
venting option，only use metal pipe
not plastic pipe).
Re-secure the stainless
steel frame back into place
using the 4 screws
removed as described
above.
Installation
8
Use
Display fan gear "1、2、3". When the fan is running.
Display "0". Delayed shutdown mode, or standby mode.
Increase the motor speed. When + are on.
Turn the Motor ON. When is off.
Automatic shutdown after 3 minutes. When is on.
Turn the Motor OFF. When is flashing.
Turn the Motor and Lights ON. When is off.
Change the motor speed circularly
(1—2—3—1—2—3). When is on.
Enter delayed shutdown mode(Automatic
shutdown after 3 minutes). When is on.
Turn the Motor and Lights OFF. When is flashing.
Speed adjustment. See
Button Function
Turns the lighting system on or off. Button on.
Decrease the motor speed. When + are on.
9
Maintenance
Cleaning of the filter
Please do not use abrasive detergent for it will damage the filter.
Make sure that the hood is shut off before cleaning.
Press the lock catch of metal Filter, remove the Filter. (page 7)
Put into a dishwasher with detergent, set the temperature below
60 degrees.
Changing the filter
Press the lock catch of metal Filter, remove the Filter. (page 7)
Remove the saturated Activated Charcoal Filters
(12173000001200), as indicated.
Fit the new Charcoal Filters, as indicated.
Replace the metal Filter.
10
