Comeup CWG-30151 Manuel utilisateur

Electric Winch

Model: CWG-30151

PN: 150511 380V50Hz 153388 380V50Hz

154564 415V50Hz

931625 220/380V60Hz

Introduction

 Feature

Lifting capacity: 500 kg wire rope top layer

Lifting height: 58 m

Lifting speed: 12-18 m/min at 50Hz ; 14-21 m/min at 60Hz

Brake: Electromagnetic spring-applied failsafe brake

Control: Pendant switch powers the winch

 Unpacking

．Winch assembly 1pc

．Wire rope 9 mm x 60 m w/weight hook CHW-0005 1pc

．Wire rope 8 mm x 100 m w/weight hook

for PN:150511 / 154564 / 931625 1pc

．Pendant switch PB-331 w/cord 2.0 mm2

x 5C x 3 m 1pc

 Read this manual carefully

You should carefully read and understand this manual carefully before

operating it. Careless winch operation may result in personal injury hazards

or property damage.

 Information requesting or parts ordering

Please specify the followings information:

．Winch PN

．Serial number

．Part description

．Replacement part number

．Quantity for each part

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be clear and dry.

 Performance

 Wiring Diagram

Winch Model CWG-30151

Motor kw x p 1.5 x 4

Recommend

Wire Rope

Size(mm) 9

Breaking (kg)

3,750

1st

Layer

Rated Load

(kg)

50Hz 742

2nd

Layer

Rated Load

(kg)

50Hz 662

3rd

Layer

Rated Load

(kg)

50Hz 597

60Hz 60Hz 60Hz

Speed

(m/min)

50Hz 12 Speed

(m/min)

50Hz 13.3

Speed

(m/min)

50Hz 14.8

60Hz 14 60Hz 16.1

60Hz 17.8

Rope-Winding Cumulating

Sum (m)

12 Rope-Winding Cumulating

Sum (m)

26 Rope-Winding

Cumulating Sum (m)

4th

Layer

Rated Load

(kg)

50Hz 544

5th

Layer

Rated Load

(kg)

50Hz 500

60Hz 60Hz

Speed

(m/min)

50Hz 16.2

Speed

(m/min)

50Hz 18

60Hz 19.6

60Hz 21

Rope-Winding Cumulating

Sum (m)

57 Rope-Winding Cumulating

Sum (m)

Warning

．The winch is not intended to be used in any manner for the movement or

lifting of personnel.

．The lifting capacity shown is based on the top layer of rope on the drum.

．The rope winding on the drum shall remain 5 wraps from the drum.

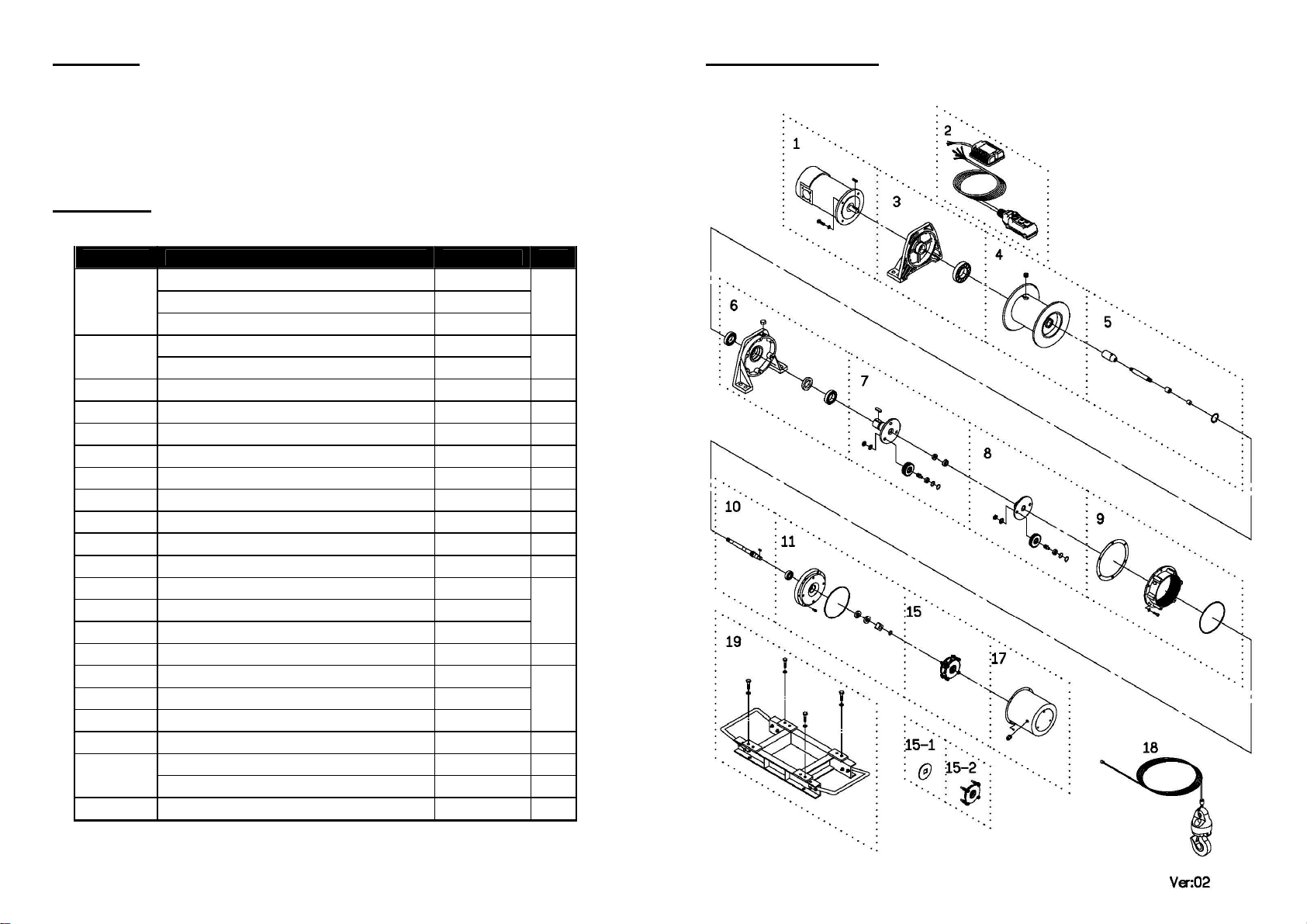

Parts List

Item No.

Description Part No. Qty

Induction motor kit 380 V 880827

1 Induction motor kit 415 V 880828

Induction motor kit 220V / 380V 60Hz 880825

2 Control kit 380V,PB-331 881968 1

Control kit 415V,PB-331 882176

3 Motor support rack kit 880806 1

4 Drum kit 880807 1

5 Connect shaft kit 880808

6 Gearbox support rack kit 880809

7 2

stage carrier kit 881663 1

8 1

stage carrier kit 881664

9 Gear box kit 880814

10 1

shaft kit 880815

11 Gearbox rear cover kit 880816

15A Brake kit 380V 882044

1 15B Brake kit 415V 882045

15C Brake kit DC 90V for PN:931625 882042

15-1 Brake disc 882046 1

15-2A Brake coil 380V 882049

1 15-2B Brake coil 415V 882050

15-2C Brake coil DC 90V for PN:931625 882047

17 Brake cover kit 880822

18 Wire rope w/weight hook 9 mm x 60 m

880823

Wire rope w/weight hook 8 mm x100 m

881456 1

19 Base plate kit 880824 1

Winch Assembly
