Comeup CWG-30075 Manuel utilisateur

Electric Winch

Model: CWG-30075

PN : 150583 380V50Hz 153400 400V50Hz

154155 415V50Hz

931075 380V60Hz

Introduction

 Feature

Lifting capacity:

300 kg wire rope top layer

Lifting height: 29 m

Lifting speed: 10-15 m/min at 50Hz ; 12-18m/min at 60Hz

Brake: Electromagnetic spring-applied failsafe brake

Control: Pendant switch powers the winch

 Unpacking

．Winch assembly 1pc

．Wire rope 6 mm x 30 m 1pc

．Weight hook CHW-0031 1pc

．Pendant switch PB-331 w/cord 2.0 mm2

x 5C x 3 m 1pc

 Read this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage.

 Information requesting or parts ordering

Please specify the followings information:

．Winch PN

．Serial number

．Part description

．Replacement part number

．Quantity for each part

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be clear and dry.

 Performance

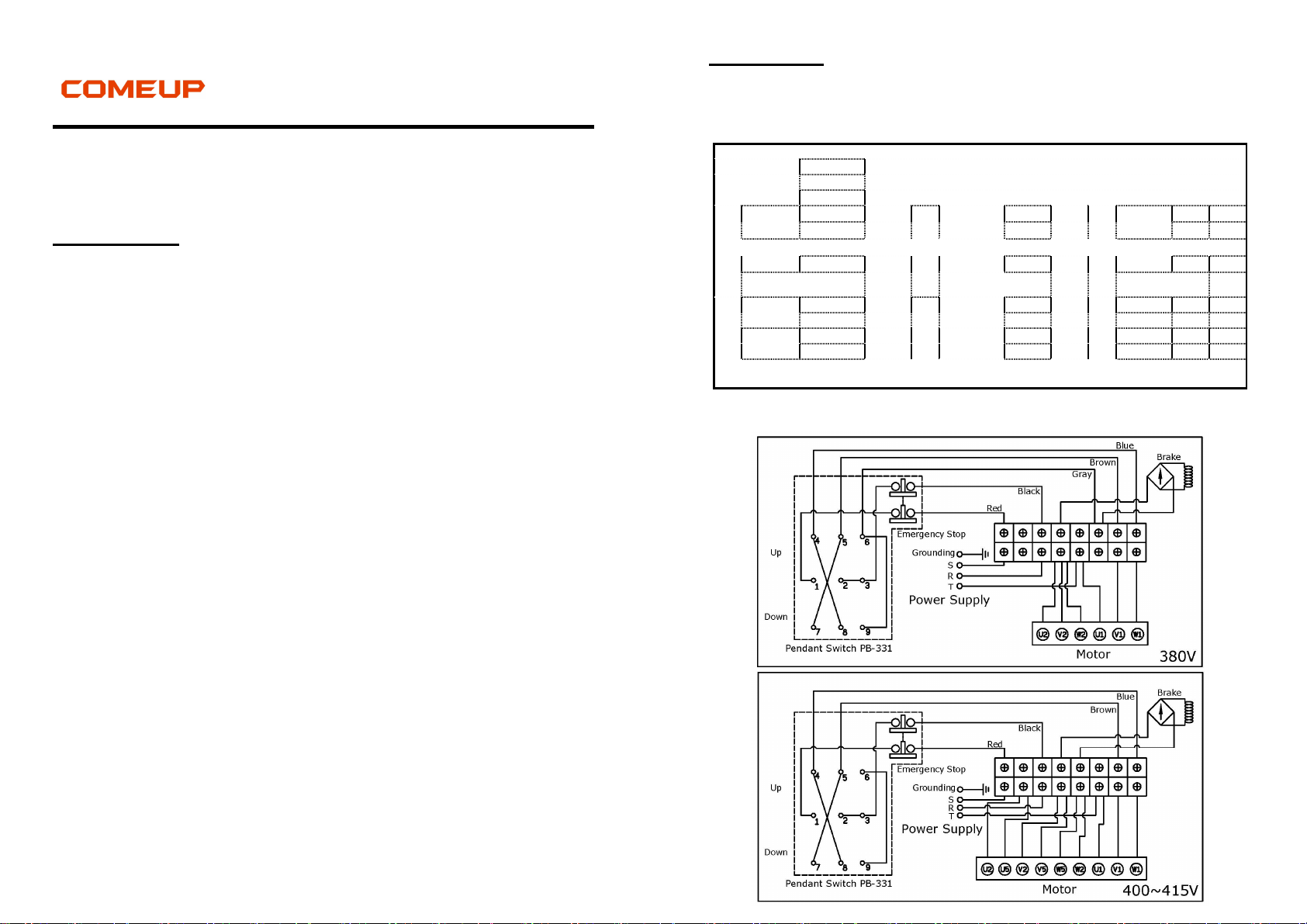

 Wiring Diagram

Winch Model CWG-30075

Motor kw x p 0.75 x 4

Recommend

Wire Rope

Size (mm) 6

Breaking (kg)

2,010

1st

Layer

Rated Load

(kg)

50Hz 444

2nd

Layer

Rated Load

(kg)

50Hz 396

3rd

Layer

Rated Load

(kg)

50Hz

358

60Hz 444 60Hz 396 60Hz

358

Speed

(m/min)

50Hz 10.0 Speed

(m/min)

50Hz 11.4

Speed

(m/min)

50Hz

12.5

60Hz 12.0 60Hz 13.7

60Hz

Rope-Winding Cumulating

Sum (m)

5.4 Rope-Winding

Cumulating

Sum (m)

11.5

Rope-Winding

Cumulating Sum (m)

18.3

4th

Layer

Rated Load

(kg)

50Hz 326

5th

Layer

Rated Load

(kg)

50Hz 300

60Hz 326 60Hz 300

Speed

(m/min)

50Hz 13.8 Speed

(m/min)

50Hz 15.0

60Hz 16.7 60Hz 18.0

Rope-Winding Cumulating

Sum (m) 25.7 Rope-Winding

Cumulating Sum (m) 30

Warning

．The winch is not intended to be used in any manner for the movement or

lifting of personnel.

．The lifting capacity shown is based on the top layer of rope on the drum.

．The rope winding on the drum shall remain 5 wraps from the drum.

Parts List

Item No.

Description Part No. Qty

Induction motor kit , 380V 50Hz 881689

1 Induction motor kit , 380V 60Hz 880852

Induction motor kit , 400/415V 881690

2 Control kit, PB-331 881968 1

3 Bridge rectifier 880368 1

4 Support bracket 880369 2

5 Drum kit 880370 1

6-1 Tie bar 881862 1

6-2 Tie bar kit 880371 3

7 2

shaft kit 880372 1

8 Gear box kit 880373 1

9 1

stage carrier 880374 1

10 1

shaft kit 880375 1

11 Conductor kit 880376 1

12 Brake coil 880388 1

13 Conductor plate A 880403 2

14 Brake disc 880379 2

15 Hex socket 880380 1

16 Conductor plate B kit 880381 1

17 Brake cover 880382 1

18 Wire rope 880383 1

19 Weight hook CHW-0031 880384 1

Winch Assembly
