Comeup CWG-10077 Manuel utilisateur

Electric Winch

Model: CWG-10077

PN: 157766 110V50Hz 152260 220V50Hz 152450 240V50Hz

157774 110V50Hz 155074 220V50Hz 152478 240V50Hz

150730 110V50Hz 154050 240V50Hz 150655 240V50Hz

Introduction

 Feature

Lifting capacity: 300 kg wire rope top layer

Lifting height: 58 m for standard 6 mm x 60 m rope

Lifting speed: 12-19 m/min at 50Hz

Brake: Electromagnetic spring-applied failsafe brake

Control: Pendant switch powers the winch

 Unpacking

．Winch assembly 1pc

．Wire rope 6 mm x 60 m for PN:157766、152260、152450、150730

1pc

．Wire rope 7 mm x 40 m for PN:152478、157774、155074、154050

1pc

．Wire rope 6 mm x 55 m for PN:150655 1pc

．Weight hook CHW-0031 1pc

．Pendant switch PB-331 w/cord 3.5 mm2

x 5C x 3 m 1pc

 Read this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage.

 Information requesting or parts ordering

Please specify the followings information:

．Winch PN

．Serial number

．Part description

．Replacement part number

．Quantity for each part

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be clear and dry.

 Performance

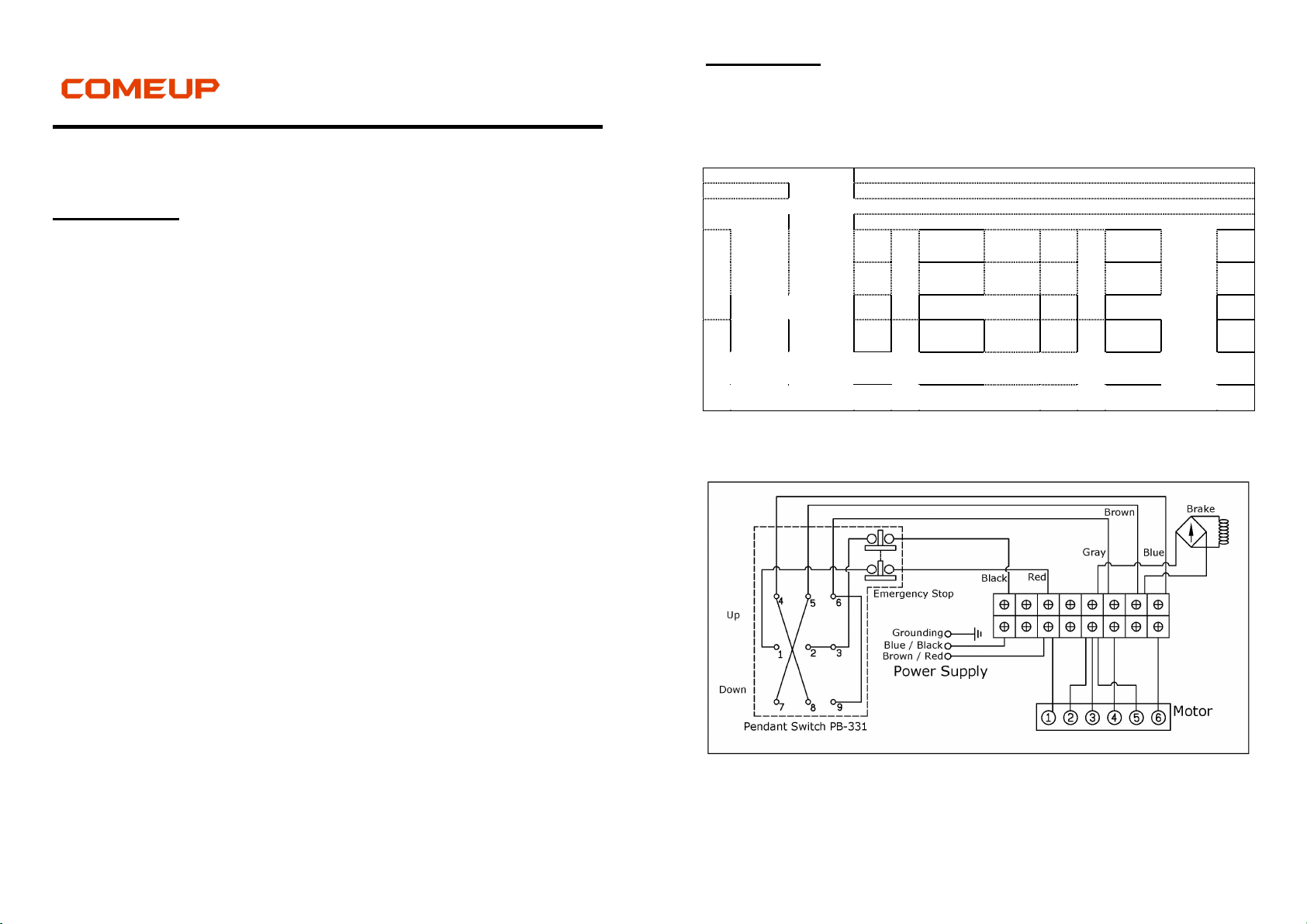

 Wiring Diagram

Winch Model CWG-10077

Motor hp x p 1.5 x 4

Recommend

Wire Rope

Size(mm) 6

Breaking (kg)

2,010

1st

Layer

Rated Load

(kg) 50Hz 467

2nd

Layer

Rated Load

(kg) 50Hz 420

3rd

Layer

Rated Load

(kg) 50Hz 382

Speed

(m/min) 50Hz 12 Speed

(m/min) 50Hz 13.5

Speed

(m/min)

50Hz 14.9

Rope-Winding Cumulating

Sum (m)

8.1 Rope-Winding Cumulating

Sum (m)

17.2

Rope-Winding

Cumulating Sum (m)

27.1

4th

Layer

Rated Load

(kg) 50Hz 350

5th

Layer

Rated Load

(kg) 50Hz 323

6th

Layer

Rated Load

(kg) 50Hz 300

Speed

(m/min) 50Hz 16.2

Speed

(m/min) 50Hz 17.6

Speed

(m/min)

50Hz 19

Rope-Winding Cumulating

Sum (m) 38 Rope-Winding Cumulating

Sum (m) 50 Rope-Winding

Cumulating Sum (m) 60

Warning

．The winch is not intended to be used in any manner for the movement or

lifting of personnel.

．The lifting capacity shown is based on the top layer of rope on the drum.

．The rope winding on the drum shall remain 5 wraps from the drum.

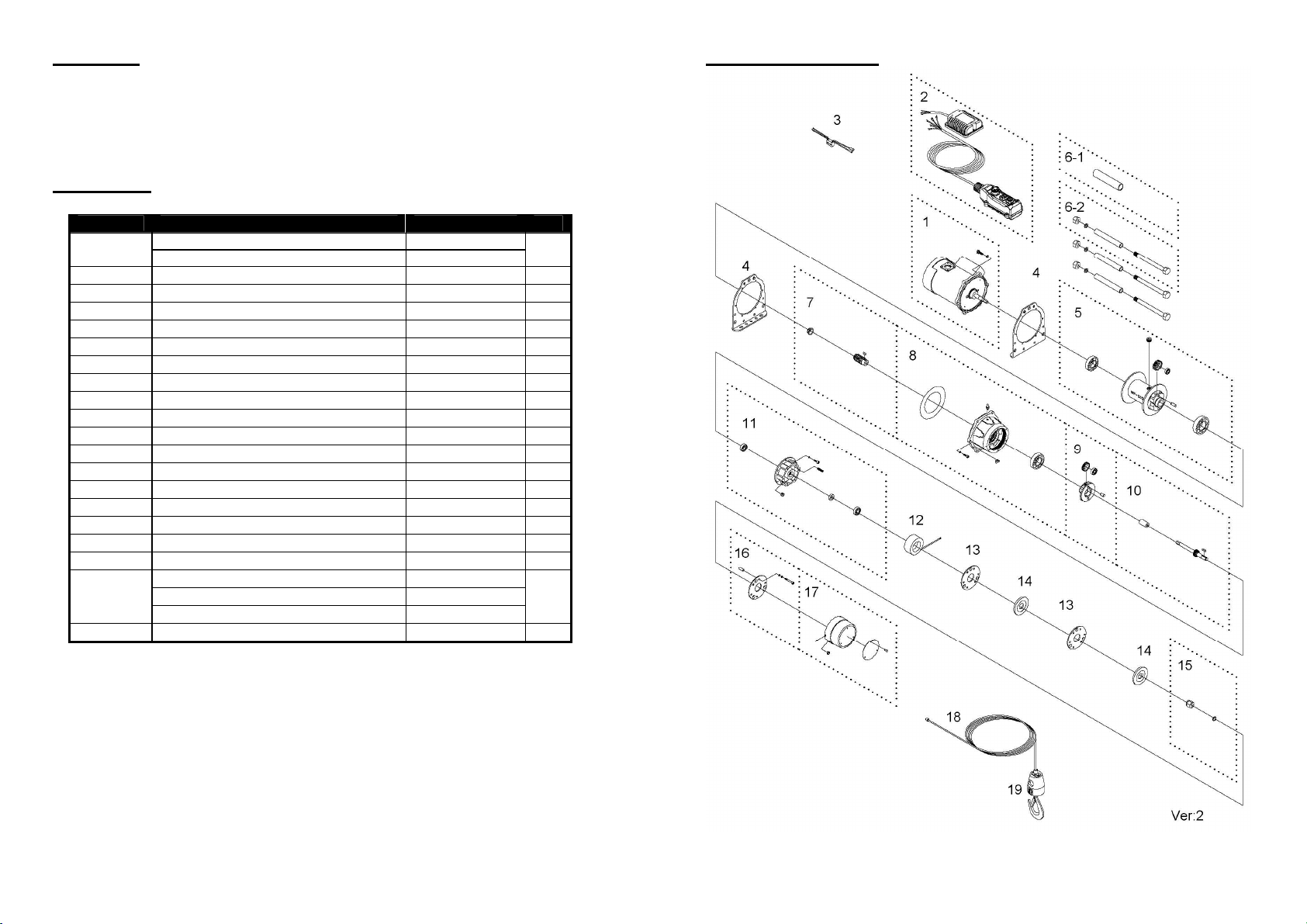

Parts List

Item No.

Description Part No. Qty

Induction motor kit

,110V/220V/50Hz

880795

Induction motor kit

,240V/50Hz

880796

2 Control kit, PB-331 882029 1

3 Bridge rectifier 880368 1

4 Support bracket 880776 2

5 Drum kit 880777 1

6-1 Tie bar 881863 1

6-2 Tie bar kit 880778 3

7 2

shaft kit 880781 1

8 Gear box kit 880782 1

9 1

stage carrier kit 880783 1

10 1

shaft kit 880784 1

11 Conductor kit 880785 1

12 Brake coil 880786 1

13 Conductor plate A 880787 2

14 Brake disc 880379 2

15 Hex socket 880790 1

16 Conductor plate A kit 880788 1

17 Brake cover kit 880792 1

Wire rope 6 mmx 60 m 881328

1 Wire rope 7 mmx 40 m 880793

Wire rope 6 mmx 55 m 881633

19 Weight hook, CHW-0031 880384 1

Winch Assembly
