Comeup CAP-9s Manuel utilisateur

Self-Recovery Winch

Model:

CAP

PN: 859329 12vdc

859312 12vdc

Introduction

Feature

Line pull:

9,000 lb wire rope first layer

Synthetic rope:

10mm × 30.5

synthetic rope

SK75

Brake:

Full Load Holding Proprietary Cone Brake

Clutch:

Lift and

turn T Bar to activate free

spool

Control:

Handheld pendant switch

Unpacking

．

．．

．

Winch assembly……………………………………………………...

1 pc

．

．．

．

Control box…………………………………………….……………...

1 pc

．

．．

．

Remote control………………………………………………………

1 pc

．

．．

．

Synthetic

rope with

clevis

ook

…

…………………………………

1 pc

．

．．

．

Hawse

fairlead…………………………………………

……………

1 pc

．

．．

．

′

2 gauge battery le

ad……………………

…………

………………

1 pc

Read this manual carefully

Carefully read and understand this manual before operating the winch.

Careless winch operation may result in personal injury, danger to others and

or damage to property

Installation

Before using the winch ensure all electrical components are in good

condition and all connections are sound.

Winch and Hawse fairlead mounting

．

．．

．

It is important that the winch is mounted on a flat

and hard surface or mounting channel to ensure

the motor, drum and gearbox housing align

correctly.

．

．．

．

Hawse fairlead does not mount to the winch directly.

．

．．

．

The synthetic rope shall be wound in an under-wound orientation only.

．

．．

．

Four (4) M10 x 1.50 pitch 8.8 grade high tensile steel bolts must be used in

order to sustain the loads imposed on the winch mounting.

Wiring Diagram

Attach the black lead firmly to the negative (–)battery terminal and red lead

to the positive (+) battery terminal. Voltage drop at the winch motor must not

exceed 10% of the nominal voltage of 12vdc.

Correct method to tighten the motor & contactor nuts

1. Hold the lower nut on the stud and tighten the upper nut clockwise.

2. The torque setting for the nut is 124 lb-in.

Warning

．

．．

．

The winch is not to be used for transporting or lifting of personnel.

．

．．

．

The rated line pull shown is based on the first layer of rope on the drum.

．

．．

．

The rope shall remain with at least 10 wraps on the drum at all times

．

．．

．

The manufacturer is not responsible for damage to the synthetic rope

Parts List

Item No. Description Part No. Qty

1 Motor 12V 882272 1

2 Tie bar kit 882273 2

3 Motor support rack 882274 1

4 Motor coupling 880005 1

5 Drum bushing 880006 2

6 Drum kit 882275 1

7 Gearbox support rack 882276 1

8 Grounding lead 880009 1

9 Synthetic rope 882271 1

10 1

shaft 882277 1

11 3

ring gear kit 882278 1

12 3

stage carrier 880013 1

13 3

bushing 880014 1

14 2

stage carrier 880015 1

15 1

stage carrier 880016 1

16 1

& 2nd ring gear 880017 1

17 1

pinion kit 880018 1

18 Clutch kit 881303 1

19 Gear box kit 882279 1

20 Cone brake disc kit 880021 1

21 Brake cover kit 882280 1

22 Hawse fairlead 882152 1

23 Mounting hardware 880024 1

24 Remote control 880126 1

25 Handsaver strap 880026 1

26 Control box 12V 881164 1

26-1 Remote socket kit 12V 881373 1

26-2 Control pack 12V 881400 1

27 Brake clutch base 881100 1

28 Clevis hook 882024 1

29 Clamp 882160 2

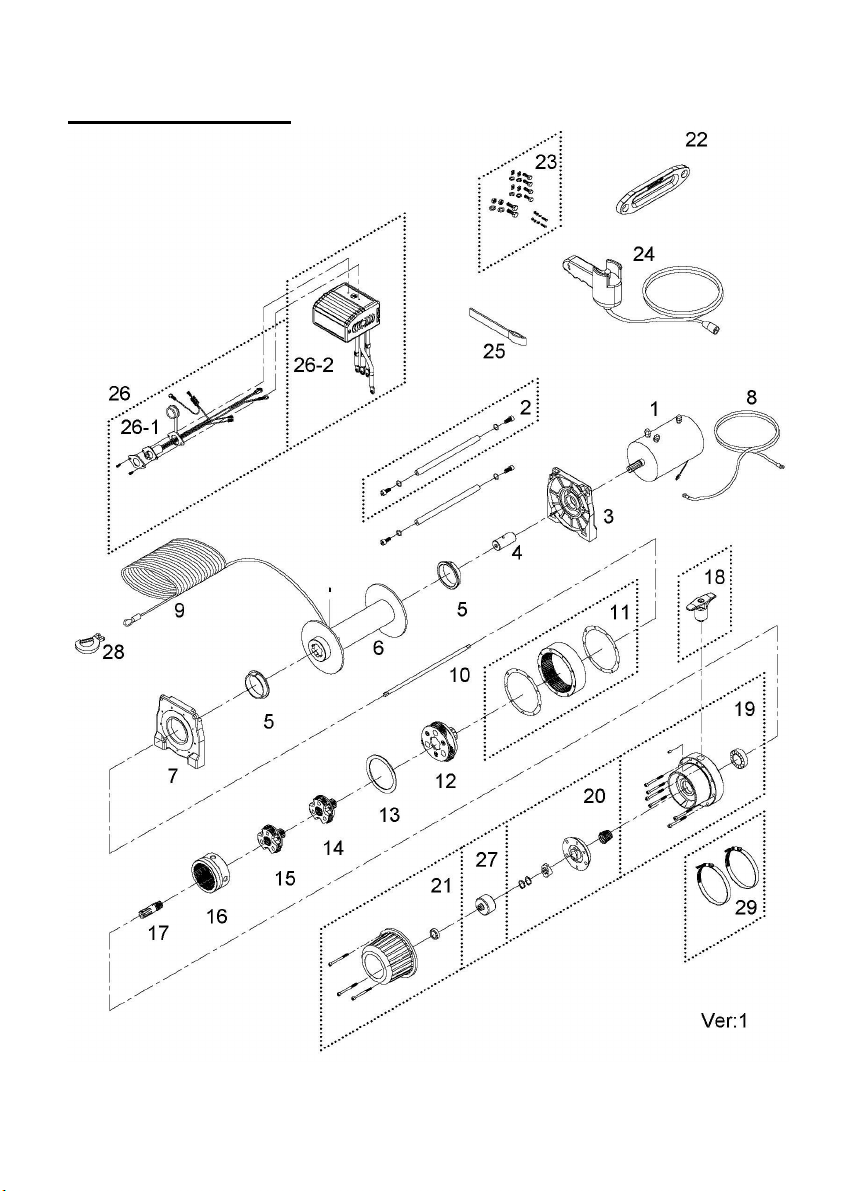

Winch Assembly
