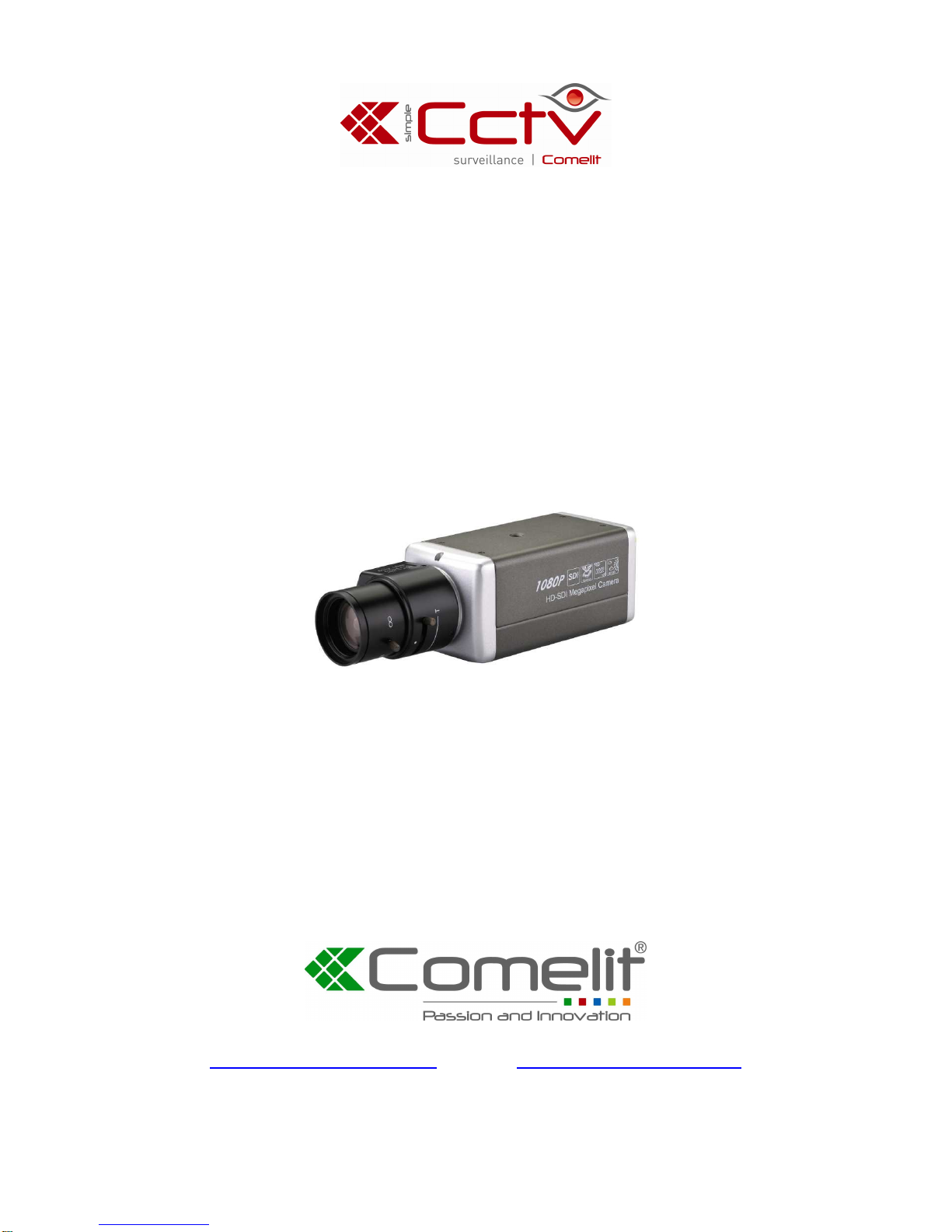

Comelit HDCAM502A Manuel utilisateur

HD-SDI BOX CAMERA, 2 MEGAPIXEL

ART. HDCAM502A

Please read this manual thoroughly before use, and keep for future reference

Via Don Arrigoni, 5 24020 Rovetta S.Lorenzo (Bergamo)

http://www.co elitgroup.co e-mail: export.depart ent@co elit.it

SAFETY PRECAUTIONS

Please read before using

1. Please read the service manual in details before using.

2. Don't try to disassemble the chassis or the part easily, in case that touch the power by

mistake, is shocked by electricity the danger or caused inside parts to be damaged,

3. Do not attempt to service this unit yourself unless you are authorized to do so. Opening

cover may exposure you to dangerous voltage or other hazards. Refer all servicing to

qualified personnel only.

4. When being regular, please lock the parts firmly first to prevent the machine damage.

5. Please connect correctly in accordance with the regulation, prevent the machine from

using, or striking improperly.

6. Please don't use any organic solution or the corrosively sanitizer to insert and wipe away

the chassis outside. While inserting and wiping away, please turn off the power, and use

the clean cloth is stained with letting a small amount of branch water, insert and wipe

away appearance.

7. Please don't use the camera under the following abominable environments: Temperature

is lower than -10 degrees Centigrade, or is higher than +50 degrees Centigrade.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of insulated dangerous Voltage within the

product’s enclosure that may be sufficient magnitude to

constitute risk of electrical shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operation and maintenance (servicing) instructions in the

literature accompanying the appliance.

Product Features

1. Full HD 1080p

2. SDI output.

3. CVBS Output.

4. Lens type: DC / Manual (C/CS mount).

5. 30x Sense-Up.

6. Picture-Effect: Mirror.

7. Smart NR.

8. 2DNR & 3DNR function (Digital Noise Reduce).

9. Defog function.

10. OSD menu language: English/ Chinese

11. OSD operation: buttons

12. 12 VDC input.

Key Features



SDI output

Our camera provides high definition image up to 2 Megapixels via HD-SDI interface with

conventional coaxial connection. For best performance we recommend to use standard RG-59

cable.

 CVBS output

You could connect the camera directly to a monitor with AV port to see picture or connect to

standard DVR with analog recording.

 SENSE-UP up to 30x

Allow user selectable digital show shutter speed in order to allow extra brightness into a

camera thereby providing higher sensitivity in low light conditions.



DEFOG

This function improves the clarity of images taken in poor conditions such as fog, smoke, rain

or snow. Applied to live or recorded color video, it provides real time results and displays visual

details that would normally have been difficult to distinguish

Specifications

Pick up device 1/3” CMOS Panasonic 2 Megapixel

Resolution (H x V) 1920 x 1080 @ 30 fps

Video Output HD-SDI (BNC) / CVBS (RCA)

DEFOG OFF / Low / Middle / High

Lens Shading Compensation

OFF / ON

Lens Type DC / Manual (C/CS)

Electronic Shutter Auto 1/50 ~ 1/50,000 sec / Flk

Min. Illumination 0.02 Lux ( F1.2 , AGC ON)

ACCE (WDR) OFF / Low / Middle / High

AGC Low / High / OFF

BLC BLC / HSBLC / OFF

White Balance AWC-SET / MANUAL / INDOOR / OUTDOR / ATW

Camera Title ON / OFF

Day & Night Auto

SMART NR ON / OFF

2DNR & 3DNR ON / OFF

Sense-up ON / OFF (Selectable range 2x~ 30x)

Picture-Effect Mirror

OSD Control Button

Power Source 12 VDC ± 10% / 1A

Power Consumption 2.52 W

Current 210 mA (max)

Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)

Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)

Dimensions (W x H x D) 56 x 50 x 125.7

Please use suitable adapter DC12V ± 10 %,1A. Otherwise, this product will be damaged.

MAIN MENU

1. LENS

DC Default

VIDEO N/A

LENS

MANUAL

Fixed or Varifocal lens can be installed on this camera.

Manual – Iris is adjusted manually

DC – Iris is adjusted automatically by the camera according to light conditions.

Notice: we recommend using high quality megapixel lens in order to get the best result in

term of picture.

2. EXPOSURE

SETUP

1. LENS DC

2. EXPOSURE 

3. WHITE BAL ATW

4. DAY&NIGHT AUTO

5. NR 

6. SPECIAL 

7. ADJUST 

8. RESET 

9. EXIT 

EXPOSURE

SHUTTER 1/60

AGC LOW

SENS-UP OFF

BRIGHTNESS ɩ ɩ ɩ ɩ ɩ ɩ |

| ɩ ɩ ɩ ɩ ɩ 060

ACCE OFF

DEFOG OFF

BACKLIGHT OFF

RETURN RET

EXPOSURE

SHUTTER 1/60, FLK, 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000,

1/50000, x2, x4, x6, x8, x10, x15, x20, x25, x30, AUTO

AGC MIDDLE, HIGH, LOW

SENS-UP x2, x4, x6, x8, x10, x15, x20, x25,

x30

AUTO

RETURN RET

SENS-UP

OFF

BRIGHTNESS 0~100

ACCE OFF, LOW, MIDDLE, HIGH

DEFOG OFF, LOW, MIDDLE, HIGH

OFF

GAIN MIDDLE, HIGH, LOW

AREA POSITION SIZE,RET,

AGAIN

DEFAULT

BLC

RETURN RET

SELECT AREA1, AREA2, AREA3, AREA4

DISPLAY ON, OFF

LEVEL 0~100

MODE ALL, DAY, NIGHT

BLACK MASK ON, OFF

DEFAULT

BACKLIGHT

HBLC

RETURN RET

SHUTTER

AES (auto electronic shutter) - the camera automatically sets the optimum shutter speed.

FLK - flickerless mode, avoids interference from light sources (recommended for video-iris or

DC-iris lenses only).

FIXED - forces a fixed shutter speed.

AGC

Regulate the gain or amplification of the video signal, mainly used in low-light conditions with the iris

fully open.

Can be used only when DAY&NIGHT is not set to AUTO.

SENSE-UP

Allow user selectable digital show shutter speed in order to allow extra light into a camera thereby

providing higher sensitivity in low light conditions.

ACCE (DWDR)

Stand for Adaptive Contrast and Color Enhancement which is equivalent to Wide Dynamic Range

technique.

The contrast ratio of the image can be effectively expressed and the edge information can be

improved in order to enhance the overall visibility of the image.

DEFOG

Improves the clarity of images taken in poor conditions such as fog, smoke, rain or snow. Applied to

live or recorded color video, it provides real time results and displays visual details that would

normally have been difficult to distinguish.

3. WHITE BALANCE

WHITE BAL

ATW

AWCSET

INDOOR

OUTDOOR

BLUE 0~100

RED 0~100

MANUAL

RETURN RET

4. DAY & NIGHT

DAY&NIGHT

DELAY 0~60

N-D(AGC) 0~100

AUTO

REURN

COLOR

BURST ON, OFF

IR SMART ON, OFF

IR LED ON, OFF

IR PWM 0~100

B/W

RETURN RET

EXT

5. NR

2DNR OFF, ON

S-LEVEL 0~100

E-LEVEL 0~100

3DNR ON

RETURN RET

LEVEL 0~100

SMART NR ON, OFF

RETURN RET

SMART NR.

Avoid over exposure problem when the camera is focus on area with wall.

6. SPECIAL

SPECIAL

OFFCAM TITLE

ON 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ＜＞

CLR POS END

FREEZE OFF, ON

MIRROR OFF, MIRROR, V-FLIP, ROTATE

OFF

PIP OFF, ON

D-ZOOM x2.0~62.0

PAN&TILT D-ZOOM

DEFAULT

D-ZOOM

RETURN

NEG. IMAGE OFF, ON

D-EFFECT

RETURN

OFF

SELECT AREA1, AREA2, AREA3

OFFDISPLAY

ON POSITION

SENSITIVITY 0~100

MOTION VIEW OFF, ON

DEFAULT

MOTION

RETURN RET

OFFPRIVACY

ON SELECT ARE1~ARE8

DISPLAY ON / POSITION

COLOR 1~16

DEFAULT

RETURN RET

LANGUAGE ENG

LIVE DPC ON, OFF

LEVEL 0~60

STATIC DPC ON, OFF

START

LEVEL 0~60

SENS-UP x2, x4, x6, x8, x10, x15, x20

DEFECT

RETURN RET

CAM ID 0~255

OFFID DISPLAY

ON CAM001~CAM255

BAUDRATE 9600, 19200, 38400, 2400, 4800

RS485

RETURN RET, END

VERSION 110727

RETURN RET

6. ADJUST

ADJUST

SHARPNESS ON, 0FF

LEVEL 0~100(50)

RESOLUTION ON, OFF

SHARPNESS

RETURN RET

GAMMA USER, 0.45, 0.50, 0.55, 0.60,

0.65, 0.70, 0.75, 0.80, 0.85, 0.90,

0.95, 1.00

BLUE GAIN 0~100

RED GAIN 0~100

LCD

RETURN RET

BLACK LEVEL 0~30

BLUE GAIN 0~100

RED GAIN 0~100

MONITOR

CRT

RETURN

TEXT COLOR 1~8OSD

OUTLINE OFF, ON
