INSTRUCTION MANUAL

Please read this manual thoroughly before use, and keep it handy for future reference.

Design and specifications are subject to change without notice.

Full HD

Day&Night

Box

Camera

Art.

AHCAM742A

Mega

High Resolution

FCC COMPLIANCE STATEMENT

CE COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

FCC INFORMATION : This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

CAUTION : Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

WARNING : This is a Class A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate measures.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.\

3. Heed all warnings.

4. Follow all instructions.

5. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

7. Only use attachments/accessories specified by the manufacturer.

8. Use only with the cart, stand, tripod, bracket, or table specified by

The manufacturer, or sold with the apparatus. When a cart is used,

Use caution when moving the cart/ apparatus combination to avoid

Injury from tip-over.

9. CAUTION – THESE SERVICING IN STRUCTIONS ARE FOR USE BY QUALIFIED

SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT

PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING

INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.

10. Use satisfy clause 2.5 of IEC60950-1/UL 60950-1 or Certified/Listed Class 2 power

source only.

11. Indoor use only.

EXPLANATION OF GRAPHICAL SYMBOLS

The lighting flash with arrowhead symbol, within an equilateral triangle, is

Intended to alert the user to the presence of uninsulated “dangerous voltage”

within the product`s enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the product.

CONTENTS

• INTRODUCTION 5

• CAMERA OVERVIEW 6

• CONTENTS OF PACKAGE 6

• STRUCTURE OF THE SETUP MENU 7

• LENS 16

• SPECIFICATIONS 17

INTRODUCTION

The 1/2.9”2.2M Full HD CMOS camera, especially for closed circuit television

CCTV and security surveillance application.

Features:

• High performance SONY 1/2.9” 2.2M EXMOR CMOS

• 1.0 lux(Color), 0.1 lux(BW)

• Auto electronic shutter [1/60(1/50) ~ 1/50,000] and manual electronic shutter modes

• 25/30 fps @ 1080p

• BLC (Back-light compensation)

• Auto and manual white balance modes (ATW/AWC/Manual/AWB)

• Day & Night (ICR) : Auto / Color / BW

• OSD (on screen display)

• 3 DNR (Digital Slow Shutter)

• DWDR

• Privacy mask Function (4zone)

• Motion Detection

• Defog

• HSBLC

• Operates in AC 24V / DC 12V ± 10%

IMPORTANT : The user of this camera is responsible for checking and

complying with local, state, and federal laws and statutes concerning the

recording and monitoring of audio signals.

CAMERA OVERVIEW

2x1/4-20UNC

Bottom View

3(1.781) 4

0(0.55)

6.9(0.27)

56.0(2.2)

1-32UNEF

0(2.59)

Front View

Side View

Unit: mm(Inch)

Left Button (Long Key : AHD)

Up Button

Enter Button

Right Button (Long Key : TVI)

Down Button

Power Indicator

Video Out Connector(BNC)

AC24V/DC12V Input Terminal

Video out Mode switch (HD / CVBS)

CONTENTS OF PACKAGE

Installation of the camera must be performed by qualified service personnel in accordance

with all local and national electrical and mechanical codes.

Carefully remove the color camera and its accessories from the carton and verify that they

were not damaged in shipment.

The content of the package includes:

1. Color camera

2. L wrench

3. This manual

STRUCTURE OF THE SETUP MENU

<SETUP>

LENS

EXPOSURE

BACKLIGHT

WHITE BAL

DAY&NIGHT


FUNCTION

SYSTEM

EXIT

LENS

MANUAL

EXPOSURE

SHUTTER

AGC

SENS-UP

BRIGHTNESS

D-WDR

DEFOG

RETURN

BACKLIGHT

OFF

BLC

HSBLC

WHITE BAL

ATW

AWC->SET

INDOOR

OUTDOOR

MANUAL

AWB

DAY&NIGHT

AUTO

COLOR

B&W


SHARPNESS

LSC

D-EFFECT

RETURN

FUNCTION

DNR

MOTION

PRIVACY

DEFECT DET

RETURN

SYSTEM

CAMTITLE

MONITOR

VIDEO OUT

LANGUAGE

COMET

RETURN

RESET

SAVE&END

RESET

NOT SAVE

LENS

The EXPOSURE menu is used to set the automatic light control method for the camera.

It provides the ability to adjust the SHUTTER speed. AGC SENS-UP, BRIGHTNESS, D-WDR,

and DEFOG functions of the camera.

1) DC Select the DC mode.

▶

INDOOR, OUTDOOR

Select the DC iris speed ▶ 0~15

2) MANUAL Select the MANUAL mode

EXPOSURE

The EXPOSURE menu is used to set the automatic light control method for the camera.

It provides the ability to adjust the SHUTTER speed, AGC, SENS-UP, BRIGHTNESS, D-WDR,

and DEFOG functions of the camera.

1) SHUTTER Select the SHUTTER speed level.

▶

Auto, 1/60(50), FLK~1/240 – 1/50000, x2 ~ x30

2) AGC Adjust the Auto Gain Control level. ▶OFF, Auto (x2 ~ x30)

3) SENS-UP

SelecttheDigitalSlowShutterlevel.

▶

OFF,AUTO(x2~x30)

4) BRIGHTNESS

AdjusttheBRIGHTNESSlevel.

▶

0-100

5) D-WDR Select the Digital WDR. ▶ AUTO, ON(level 0~8), OFF

6 ) DEFOG Select the DEFOG mode.▶ AUTO, ON(level 0~8), OFF

POS/SIZE Adjust the window position & size

GRADATION ▶ 0 ~ 2

DEFAULT Initialize the setting values

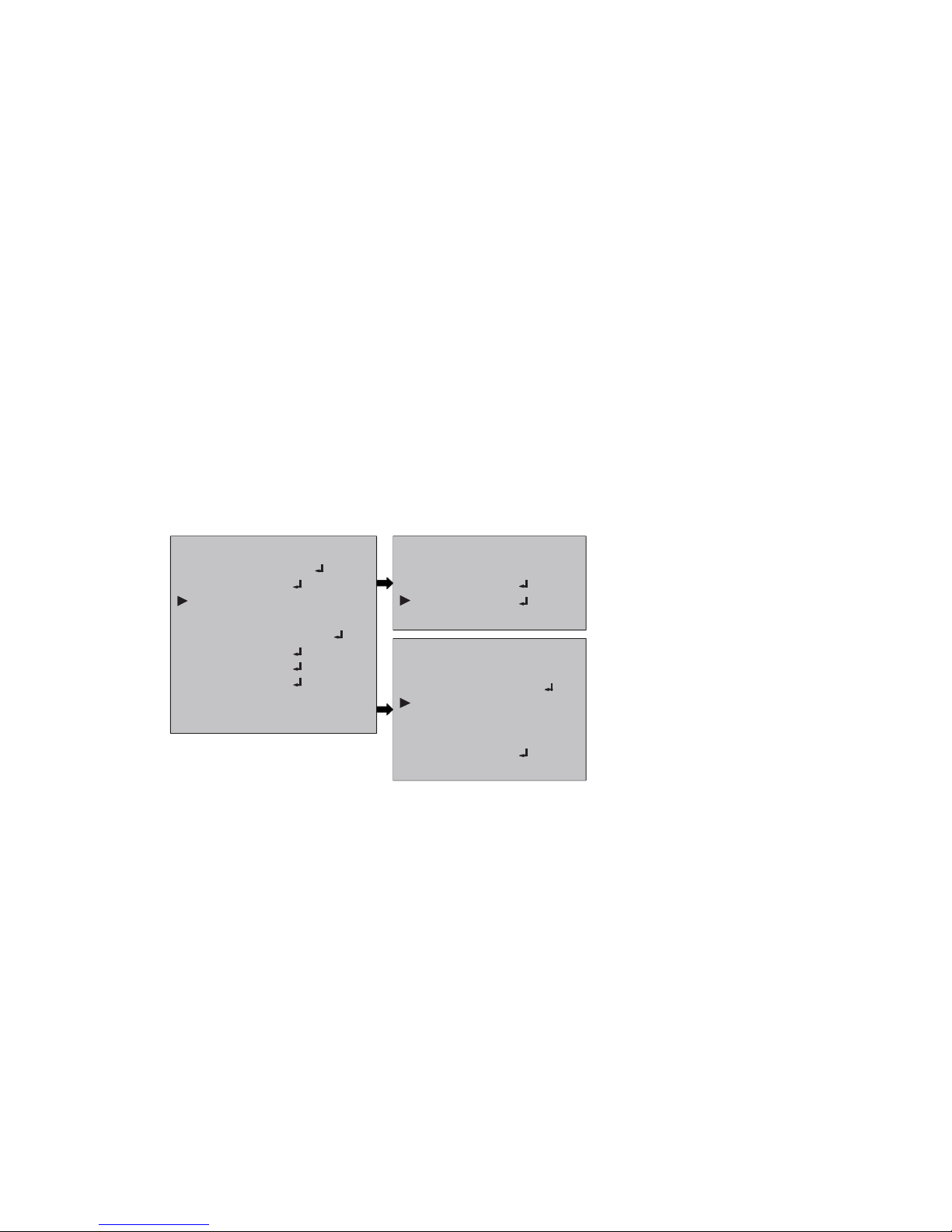

< EXPOSURE > MODE

MAIN

MANU

LENS DC

EXPOSURE

BACK LIGHT OFF

MAIN

MANU

LENS

MANUAL

EXPOSURE

BACK LIGHT OFF

WHITE BAL

DAY&NIGHT


FUNCTION

SYSTEM

EXIT

ATW

AUTO

SAVE&END

WHITE BAL

DAY&NIGHT


FUNCTION

SYSTEM

EXIT

ATW

AUTO

SAVE&END

MAIN

MANU

LENS DC

EXPOSURE

BACK LIGHT OFF

SHUTTER

AUTO

AGC

SENS-UP

|▪▪▪l▪|

AUTO

WHITE BAL

DAY&NIGHT


FUNCTION

SYSTEM

EXIT

ATW

AUTO

BRIGHTNESS

|▪▪l▪▪| 48

WDR

DEFOG

RETURN

OFF

RET

SAVE&END

NOTE Choose when installed in an external DC mode outdoor.

BACKLIGHT

The BACKLIGHT menu is used to the ability to prevent back lighting from the image.

BLC

Prevents such a back light effect to secure a clear image under All illumination

environments.

Adjust the size of Back Light Compensation area.

LEVEL

AREA

DEFAULT

SelecttheBLC gain

▶

Low,Middle,High

Adjustthewindowposition&size

Initialize the setting values

2)HSBLC Mask the high light zone with specific color & level.

SELECT

DISPLAY

SelecttheHSBLCarea

▶

AREA1 -AREA4

AdjusttheHSBLCareawindowposition&size

BLACKMASK

SelecttheBLACKMASK

▶

ON,OFF

LEVEL

MODE

DEFAULT

Select the HSBLC level

▶

0~100

AllDay,Night

Initialize the setting values.

< BACKLIGHT >

MAIN

MANU

LENS DC

EXPOSURE

BACK LIGHT OFF

BLC

WHITE BAL

DAY&NIGHT


FUNCTION

SYSTEM

EXIT

ATW

AUTO

LEVEL

AREA

DEFAULT

RETURN

MIDDLE

RET

HLBLC

SELECT

DISPLAY

AREA

SAVE&END

BLACK MASK

LEVEL

MODE

DEFAULT

RETURN

|▪▪l▪▪| 30

ALL

DAY

RET

WHITE BALANCE

The screen color can be adjusted by using theAuto White Balance function.

It compensates for deviations in the white color caused by changes in the color temperature of

the light source so that the colors are reproduced correctly.

1)ATW Automatically adjust color temperature.

2)AWC->SET Automatically readjust only by pressing AWC→SET.

3)INDOOR Set the color temperature to 3200°K

4)OUTDOOR Set the color temperature to 6300°K

5)MANUAL Manual mode.

User can change Red and Blue gain value manually.

BLUE 0 ~ 100

RED 0 ~ 100

6)AWB Automatically extended range of color temperature adjustment.

< WHITE BALANCE > MODE

MANUAL

BLUE |▪▪I▪▪| 50

RED |▪▪I▪▪| 50

RETURN RET

MAIN MANU

LENS DC

EXPOSURE

BACK LIGHT OFF

WHITE BAL ATW

DAY&NIGHT AUTO


FUNCTION

SYSTEM

EXIT SAVE&END
