Comelit IPNVR004CPOE Manuel utilisateur

4-8 PoE INPUTS H264 STAND-ALONE

NETWORK VIDEO RECORDER

ART. IPNVR004BPOE-IPNVR008BPOE

IPNVR004CPOE-IPNVR008CPOE

Please read this manual thoroughly before use and keep it for future reference

Technical parameters

Model

IPNVR004BPOE-IPNVR004CPOE-IPNVR008BPOE-IPNVR008CPOE

Operation Embedded Linux operation system

Operation system Graphical user interface (GUI), mouse, front button, remote control

Imagine compression H.264

Recording mode Manual, Scheduled, Event

Video Search Time, Event, Channel, Log

Backup Network, USB

Video input RJ45

Video output VGA, HDMI

Monitoring/Playback

resolution 1080p

Motion Detection each channel can set the detection area and the multi-level

sensitivity

Image display 1/4/8

Video Speed 1080p@25 ips

Video Save HDD, network

HDD interface SATA

USB Interface 2 x USB2.0

Power 100-240 VAC / 50-60 Hz

HDD Installation

Make sure to install the HDD when You first use it.

Front Panel Description

1. HDD led 9. PLAY: Playback key

2. State led, reserved 10. ESC: Exit key

3. 1 ~ 8: CH1 ~ CH8 Single-Screen keys 11. MENU: Menu key

4. ▲▼◄►: Direction key 12. : Confirm key

5. POWER led 13. N.C.

6. IR receiver

7. QUAD key

8. REC: Manual recording key

Rear Panel Description

CH1-Ch4 - - CH8: 4 / 8 Poe Inputs (RJ45 ports) WAN: 10/100 Mbit/sec. standard Ethernet

port

POWER:PoE power supply connector DC12V: 12 VDC power supply connector

VGA: VGA video output connector HDMI video output

USB: 2 x USB connectors

Operating System Description

Turn ON / OFF

Confirm that AC voltage matches with NVR .Ensure that the NVR power outlet connect with a good

middle ground grounding. After switching power, the device started,【POWER】light is on. Turn into

system, if the panel status light flashing ,it's normal conditions.

Preview

After device start, preview interface can be seen immediately. In the preview interface you can see

the system date, time, channel name. Press corresponding number key of panel or click the left

mouse button, user can preview the single channel; Press "QUAD" key in the panel or click the left

mouse button, you can return to a multi-interface monitoring state.

Menu operation instructions

【MENU】,enter the device's main menu interface. 【PLAY】shortcut keys for playback interface.

【REC】shortcut keys for manual recording.【PTZ】shortcut keys for PTZ control.

Note: default username is: admin, default password is empty.

Menu composition

Menu component units as following:

（1）Check box: two kinds of status available, "√" means enabled, "□" means disabled; direction key:

【↑】【↓】【←】【--->】; enter key【】. Also, click the left mouse button to choose.

For example: "channel" and "video mode" check box in the video research.

（2）Selection box: select the target content according to the drop-down box options. Use【↑】,【↓】

key or click the left mouse button to select.

For example: "channel" and "code stream" in the encode setup menu

（3）List Box: displays the research information in the list, you can try one option for operation

For example: press【】 button in the video backup file. or the left mouse button.

（4）Edit box: enter the name into edit box

For example: in the setup menu, you could input numbers, English letters, punctuation and so on in

the "channel" edit box.

a) use panel key 【↑】【↓】【←】, 【→】or move the mouse to edit box , press " " key or click

the left mouse button, then enter keyboard appears, select the desired input target characters

through the arrow keys or click the left mouse button.

b) after input the information, click 【OK】【CANCEL】button or button【ESC】can safe or exit

（5）button: used to implement a specific function or enter the next setup menu, click【OK /

key and the left mouse button.

ESC MENU

Press 【MENU】, 【ESC】or the right mouse button to exit the menu mode

Click the right mouse button and return to the previous menu level.

Main Menu Introduction

Press MENU key or right mouse, it will pop-up the main menu. Main menu consists of the following

components:

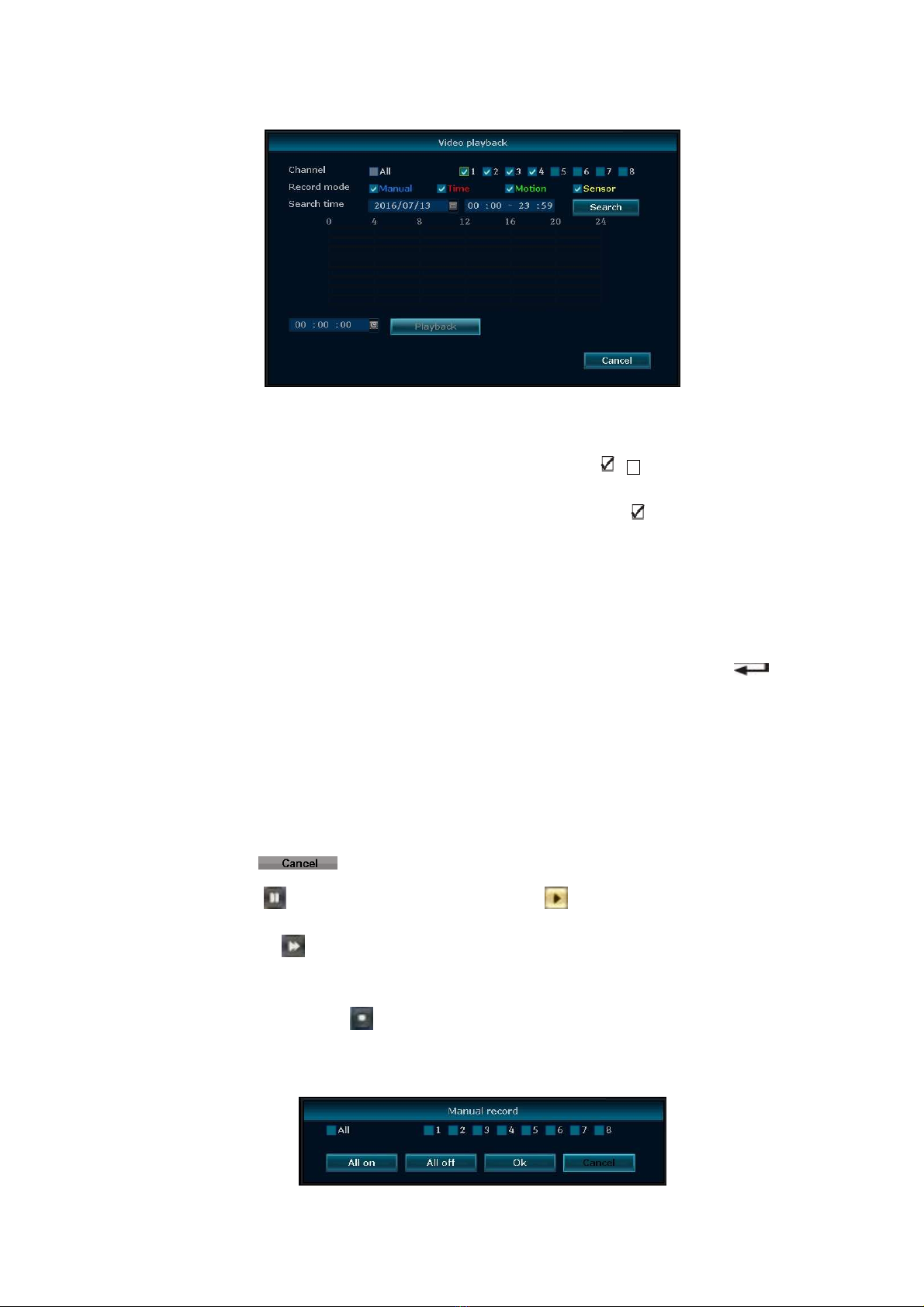

Video Playback

In the shortcut menu, click "Video Playback" to enter in the interface.

Video Search

Channel：to choose the target channel by clicking the check box means non-selected.

Record mode：to choose the recode mode by clicking the check box

Search time：input the starting and finishing time into edit box

Search：after setup the above search condition, click "search" to begin the corresponding video file

searching and show the files. Red means time recording, green means MD recording,

yellow means sensor recording.

Playback: chose playback and turn into playback interface. In the search list box, choose the time

bucket according up ,down, left ,right key or move the mouse. Click 【】or left

mouse to enter "video playback "Interface

Cancel：back to previous menu

Playback toolbar

Select the playback file or time playback file, it will turn into video playback interface.

Playback toolbar : it will show below the playback interface. Each channel can magnify or narrow by

clicking the left mouse .

Stop play：click to stop the video and turn back to playback interface.

Pause/play: click can pause the playback video, click can continue the playback video.

Fast forward：click can fast forward the video, also times fast forward the video by click the

button again.

Exit playback：click “ESC” or can exit the playback video; or exit until all file have been played.

Manual Record

In the shortcut menu, click manual record or click 【REC】to enter the setup the manual record

interface.

Manual record menu illustration

Manual record menu include several parts:

Channel：☑”means open；“□”means close.

All on：start all the channel.

All off：close all the channel.

OK：confirm an exit

Cancel：click cancel can exit the manual record interface and back to main menu.

PTZ control

Choose the "PTZ control" from shortcut menu .

PTZ control menu including: direction control; auto pan scan; zoom; focus; Iris.

Video backup

Choose the channel, and record mode; setup the search time, then begin search the file. After

choosing the needed file from list box, click backup and ok, wait for process bar until 100% and show

backup success.

Notes

：

USB driver pen must be FAT32 format when backup the file

System setup

The “system setup” menu include: General setup, Record setup, Network setup, Channel setup,

System Admin.

General setup

Choose the "General setup" and turn into it's setup interface.

Auto Logout: the present user will be logged off if there is no operation within 10 minutes, and it

needs login again.

Key Buzzer：enabled, there is sound with the controller or pressing key on front panel. Disabled,

without sound.

Language：there is multiple choices according to users, English and so on.

Remote ID：user can use this ID to control the NVR by remote controller. The remote controller

should be correspond with the ID so that it can work.

Time Setup：the real time when preview, click” refresh” after setting, make sure saving when it

shows” the recording will stop once you modify the time” and save the setting.

Screen Setup

Select “screen setup” in “general setup”.

OSD Alpha：OSD menu transparency can be adjusted as needed.

VGA Resolution:

three choice (800x600, 1024x768, 1280x1024)

Auto Switch:

user can setup the time of auto switching for preview image, it switch in single screen

or 4 channels screen.

Enable：“☑”start using, “□” non-start using

After the page setup is completed, click '"OK " to save the changes ; click "cancel ",

non-save.

HDD setup

In the " General setup", click "HDD setup", enter setting interface

Overwrite: “☑” earliest recording files will be covered when the disk is full, “□"shows not cover.

Format: “☑” stands selected, “□” stands not selected, when click "Format" a confirm interface will

pop up, then click confirm to format, click cancel to return the main interface

After setting finished, click "ok", the information will be saved. Click "cancel" to exit without saving.

Video Manage

If IP cameras are connected directly to NVR, there is no setup needed (PoE mode).

If not (Switch mode), before connecting and set up IPC, please confirm that IPC is already

connected to internet.

Right click on the preview interface, pop-up shortcut interface, click “Video Manage”, enter interface.

Search IPCs which connected to the same NVR network. Default NVR IP address is 192.168.1.114,

default IPC IP address is 192.168.1.168.

Auto Add: add all IPCs which in the same network and display in the different channels.

Add one: add the selected IPC

Delete channel: delete the selected connected IPC.

Modify/Manual Edit: modify the IPC parameters of the selected IPC

After finish setup, click “ Ok” button, it will be saved; click: “Cancel” button, it will be not save.

Record Setup

Select “Record setup” in system setup.

Channel：chose the channels as needed by clicking the inverted triangle

Weekday: chose the day as needed, "ALL" means all days in a week.

Schedule：

every time slot can set different recording modes in all 4 time slot. "Time " recording with

red color, "Motion" recording with green color, "Sensor" recording with yellow color; “☑" means

enabled, “□” means disabled. The bottom parts has times status display, whole schedule from time

0~24 hours

Copy to：select the target channel on the right of "copy to "button, click "copy to" and ''Ok" to set

the current channel setup informations to other target video channel. By clicking the button "Cancel",

the setup informations are non-saved.
