Come.up Winch SOLO 12.5rs Manuel utilisateur

Self-Recovery Winch

Model: SOLO 12.5rs

PN: 291202 12V DC

291285 12V DC

Introduction

Feature

Line pull: 5,670 kg / 12,500 lb synthetic rope first layer

Synthetic rope: 11mm × 25 m (7/16"×82′)

Brake: Patented cone brake holds full load

Clutch: Turn the T-handle for rapid rope payout

Control: Both handheld pendant switch and built-in digital

two ways wireless transmitter power the winch

Unpacking

．Winch assembly……………………………………………………...1 pc

．Control box……………………..………………….………………... 1 pc

．Remote control……………………………………………………….1 pc

．Synthetic rope with sling hook……………………………………. 1 pc

．Hawse fairlead………………………..………………………………1 pc

．1.8 m (6′) 2 gauge battery lead………………………..……………

1 pc

．Wireless transmitter………………………………………………… 1 pc

Read this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage.

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be

clear and dry.

Winch and hawse fairlead mountings

•It is very important that the winch will be mounted

on a flat and hard surface of mounting channel

in order to make sure the motor, drum and

gearbox housing are aligned correctly.

•Hawse fairlead does not mount to the winch directly.

•The synthetic rope shall be wound in an under-wound orientation only.

•Four (4) M10 x 1.50 pitch 10.9 grade with 63.8 N-m torque settings

(maximum) high tensile steel bolts must be used in order to sustain the

loads imposed on the winch mounting.

•Two (2) M10 x 1.50 pitch stainless steel bolts must be used for fastening the

hawse fairlead into the mounting channel.

Wiring Diagram

•Attach the ground lead firmly to the negative (–) battery terminal and power

lead to the positive (+) battery terminal. The voltage drop for the winch

motor must not exceed 10% of the nominal voltage of 12V DC.

Nut fastening for motor & contactor

1. Holding the lower nut on the stub and fastening the upper nut clockwise.

2. The torque setting for nut is 14 N-m/124 lb-in.

Warning

•The winch is not intended to be used in any manner for the movement or lifting

of personnel.

•The rated line pull shown is based on the first layer of rope on the drum.

•The rope winding on the drum shall remain 10 wraps from the drum to support

the rated load.

•

Manufacturer is not responsible for the results of misuse, misapplication, faulty

installation or abuse of synthetic rope in any way.

Parts List

Item No. Description Part No. Qty

1 Waterproof motor w/housing 12V 883882 1

2 Tie bar kit 883883 2

3 Motor coupling 880005 1

4 Drum bushing 880006 2

5 Drum kit 881521 1

6 Gearbox support rack 883906 1

7 Grounding lead 880009 1

8 Synthetic rope 883285 1

9 1st shaft 881523 1

10 3rd ring gear kit 883900 1

11 3rd stage carrier 881960 1

12 2nd stage carrier 881961 1

13 1st stage carrier 881962 1

14 1st & 2nd ring gear 881963 1

15 1st pinion 881964 1

16 Clutch kit 883885 1

17 Gear box kit 883901 1

18 Cone brake disc kit 880122 1

19 Brake cover kit 883892 1

20 Hawse fairlead 883410 1

21 Mounting hardware 880125 1

22 Remote control 883887 1

23 Handsaver strap 880026 1

24 Bridge Control box 12V 883888 1

24-1 Remote socket kit 12V 883889 1

24-2 Control pack 12V 883890 1

24-3 PC board kit 883891 1

24-4 On/Off switch kit 884091 1

24-5 Power lead 883893 1

24-6 Motor thermal connector 883894 1

24-7 Wireless transmitter 883822 1

25 Brake clutch base 881100 1

26 Sling hook 882477 1

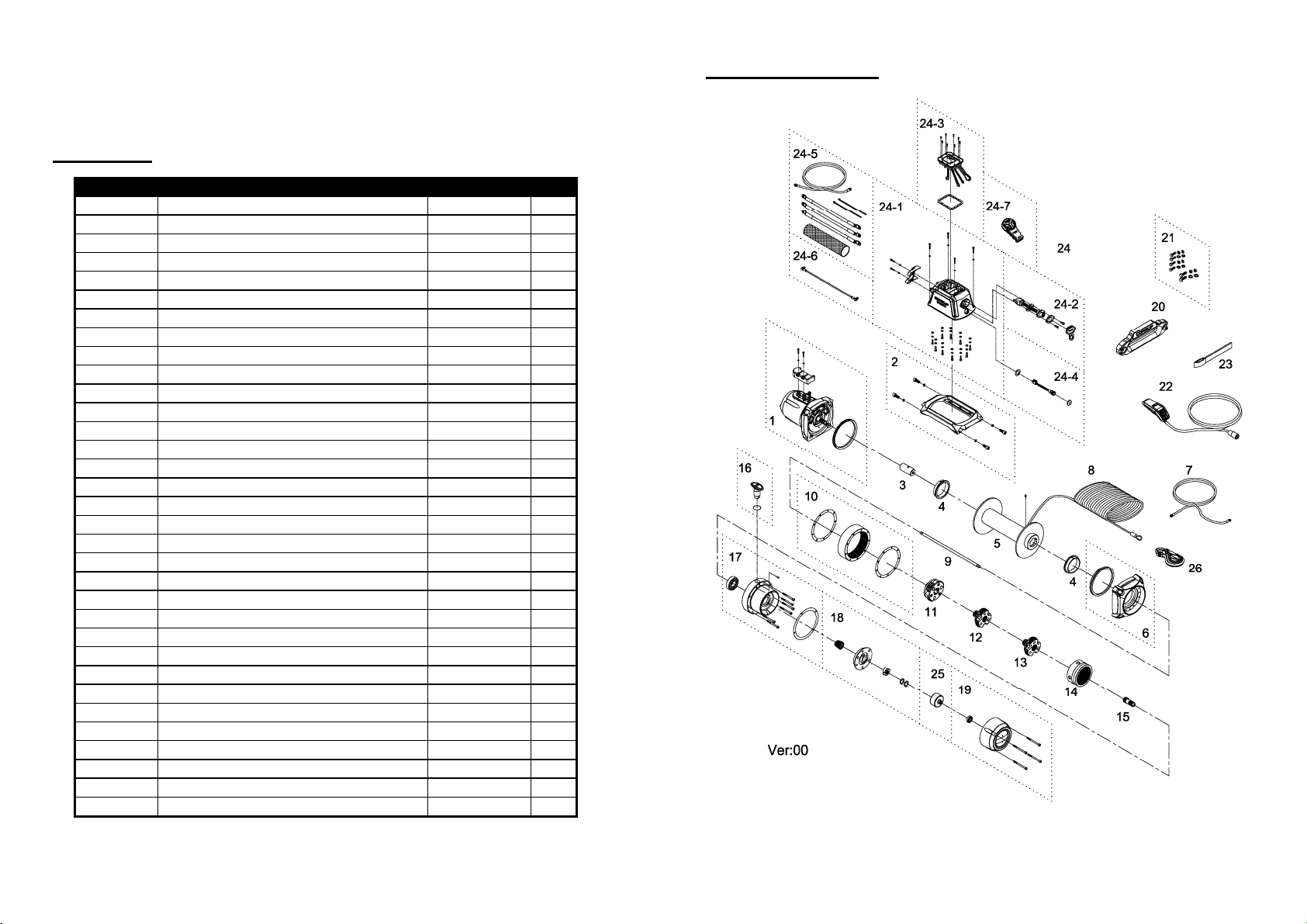

Winch Assembly

2022/11/21 Ver:00
