Coleman Tent 9277B151 Manuel utilisateur

Connect Frame to Tent

–Insert pin into the ends of the main tent poles

at the rear of the tent on either side of the Pet

Den. (illus. 3, illus. 4) Go to opposite end of

pole and gradually apply pressure to the pole

forming an arch until you are able to insert the

pin at the front tent corner, into the pole end.

(works best standing in the open door way,

with two people) Repeat for second pole.

–Insert pin on the side tent into the end of the

main pole running above the front door. Go to

opposite end of pole and gently apply

pressure to the pole forming an arch until you

can insert the side pin into the pole end.

(illus. 3), (illus. 4)

–Insert other side pin into grey side pole end

and gently apply pressure to the pole, forming

an arch until you can insert the pin at the rear

of tent into the pole end. (illus. 4), (illus. 5)

–Insert Pet Den pole into

grommets on the sides

of the Pet Den.

Bayside™Family Dome with Pet Den

15’x10’

1Layout & Positioning

of Tent, Pole Assembly

–Layout and position tent with door facing

desired direction. (illus. 1)

–Unzip door.

–Stake down tent, using the rings on the

stake loops and the corner fabric loops.

Keep the floor taut. (illus. 2)

–Assemble frame poles by interlocking

shock-corded poles. (3 main poles, 2 side

poles, 1 Pet Den pole)

–Insert one main tent pole through the pole

sleeve above the front door. Insert the other

two main poles through the pole sleeves

angling front to back, they will cross each

other. (illus. 1)

–Insert two (Grey) side poles through the pole

sleeves toward the back corners of the tent.

–Insert Pet Den pole through pole sleeve at

rear of tent.

When You Are Ready To Set

Up Your Tent

–Select a level campsite clear of

rocks, branches and other hard or

sharp objects.

–Do not set up your tent under trees.

–For best results in windy conditions,

position the end of tent into the wind.

Rainfly Pole

Front Door

Side Pole Side Pole

Pet Den Pole

Assembled black

main tent poles

inserted through

pole sleeves.

Instructions apply to Part Number 9277B151

illus. 1

illus. 2

Tent stake

through ring

on stake loop

illus. 4

Tent frame set-up

illus. 5

Pet Den

Part No. 9277A3301

Part No. 9277A3601

Main Tent

Poles (Black)

Part No. 9277A3501

Side Poles

(Grey)

Pet Den Pole

Part No. 9277A3401

illus. 3

Insert pin into

pole end

Rainfly Part No. 9277B3701

Side pole

Main pole

Side Pins

Main pole

above door

Pet Den

pole

THE COLEMAN CO., INC.

3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

MADE IN CHINA

Things You Should Know

• Under certain conditions (cold weather, high humidity, etc.)

condensation will form on the inside surfaces of your tent. Condensation is

caused by water vapor from your breath, perspiration, or any wet clothing

inside your tent. It is NOT LEAKAGE through the tent fabric. It can be

minimized by removing wet clothing from your tent and by providing good

ventilation through the tent.

• Never store tent, even for a short period of time, without drying it

thoroughly and brushing off caked dirt. Do not pack stakes or poles inside

your tent. Use a separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.

NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO

REMOVE STAKE.

• TENT POLES SHOULD NOT BE LEFT TELESCOPED

TOGETHER DURING STORAGE.

• Do not leave your tent set-up for weeks at a time, be aware that expo-

sure to the ultraviolet rays of the sun can seriously damage material and/or

cause it to become discolored.

WARNING: KEEP ALL FLAME AND HEAT SOURCES

AWAY FROM THIS TENT FABRIC. This tent meets the flammabili-

ty requirements of CPAI-84. The fabric may burn if left in continuous

contact with any flame source. The application of any foreign sub-

stance to the tent fabric may render the flame-resistant properties

ineffective.

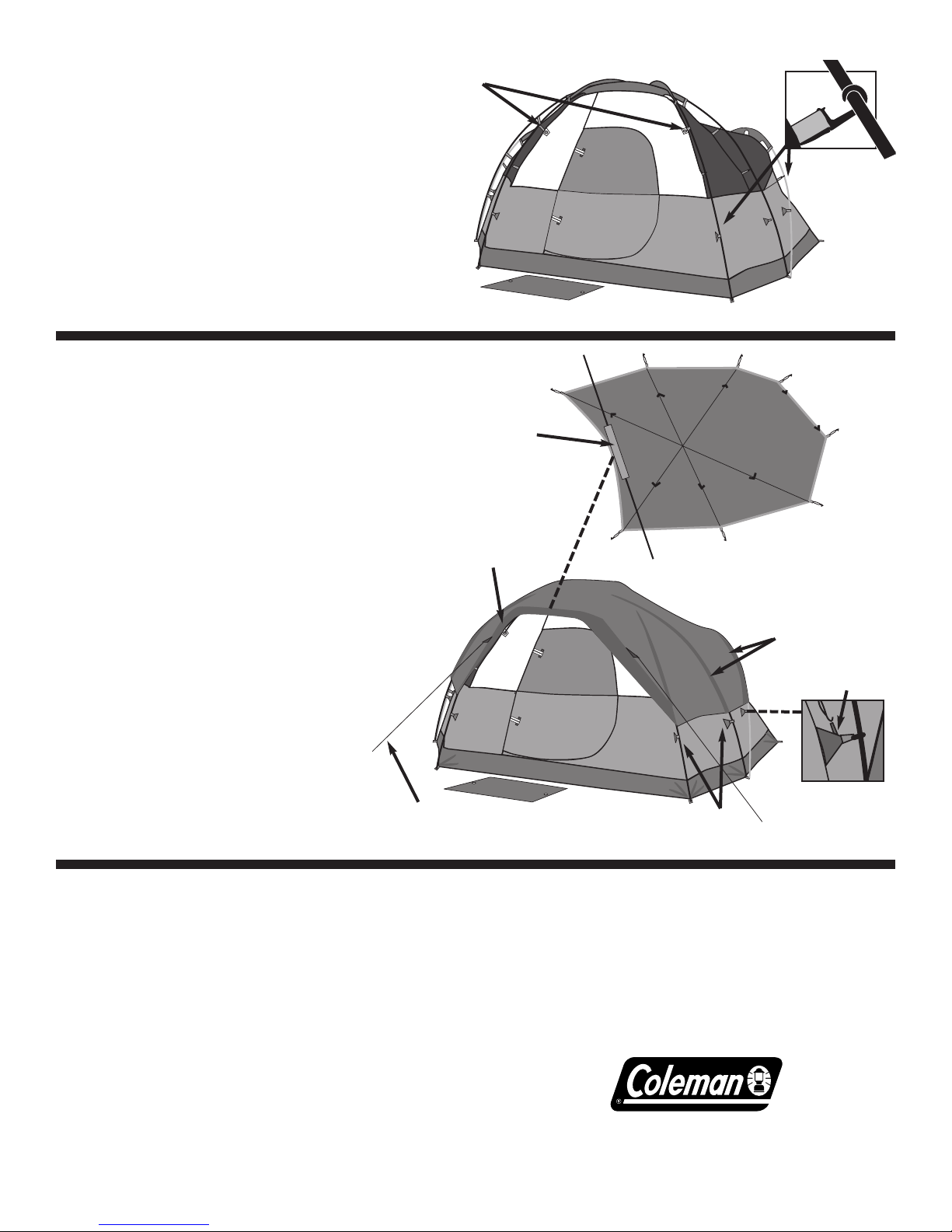

Attach Tent to Frame

Using Frame Clips

–Attach frame clips along

the edges of tent to frame poles.

(illus. 6), (illus. 7)

–Make any adjustments to the tent

corner stakes that are needed.

4Attach Rainfly

–Assemble rainfly pole by

interlocking shock-corded pole.

–Insert rainfly pole through pole

sleeve at the center of the front

curved edge on the underside of

rainfly. (illus. 8), (illus. 10)

–Drape rainfly over tent frame, pole

side down. Rainfly pole should be over

front door.

–Connect the eight elastic loops with

hooks, (found at the rainfly corners)

to the eight fabric loops on the bottom

row of frame clips. (illus. 9), (illus. 10)

–Insert the tips of the rainfly poles

into the grommets on the front

of tent. (See above illus. 7)

–Secure rainfly with attachments

located on underside of fly.

(illus. 9)

–Attach and stake out 4 guy lines

at the front and rear of tent.

illus. 7

Assembled tent without rainfly.

NOTE:

Grommets

for rainfly

pole are on

frame clip

webbing illus. 6

Frame clips

illus. 8 Insert rainfly

poles through the

pole sleeve on

underside of rainfly

illus. 10

Completed tent

with rainfly.

illus. 9

Underside of

rainfly attaches

to frame poles

Rainfly pole

in grommet

Rainfly hooks attach to fabric loops

on the corner frame clips (illus. 9)

Guy line

Hooks attaches

to fabric loop

PRINTED IN CHINA Rev. 10/06
