Coleman 9830-330 Manuel utilisateur

Heka X2

part number 9830-330

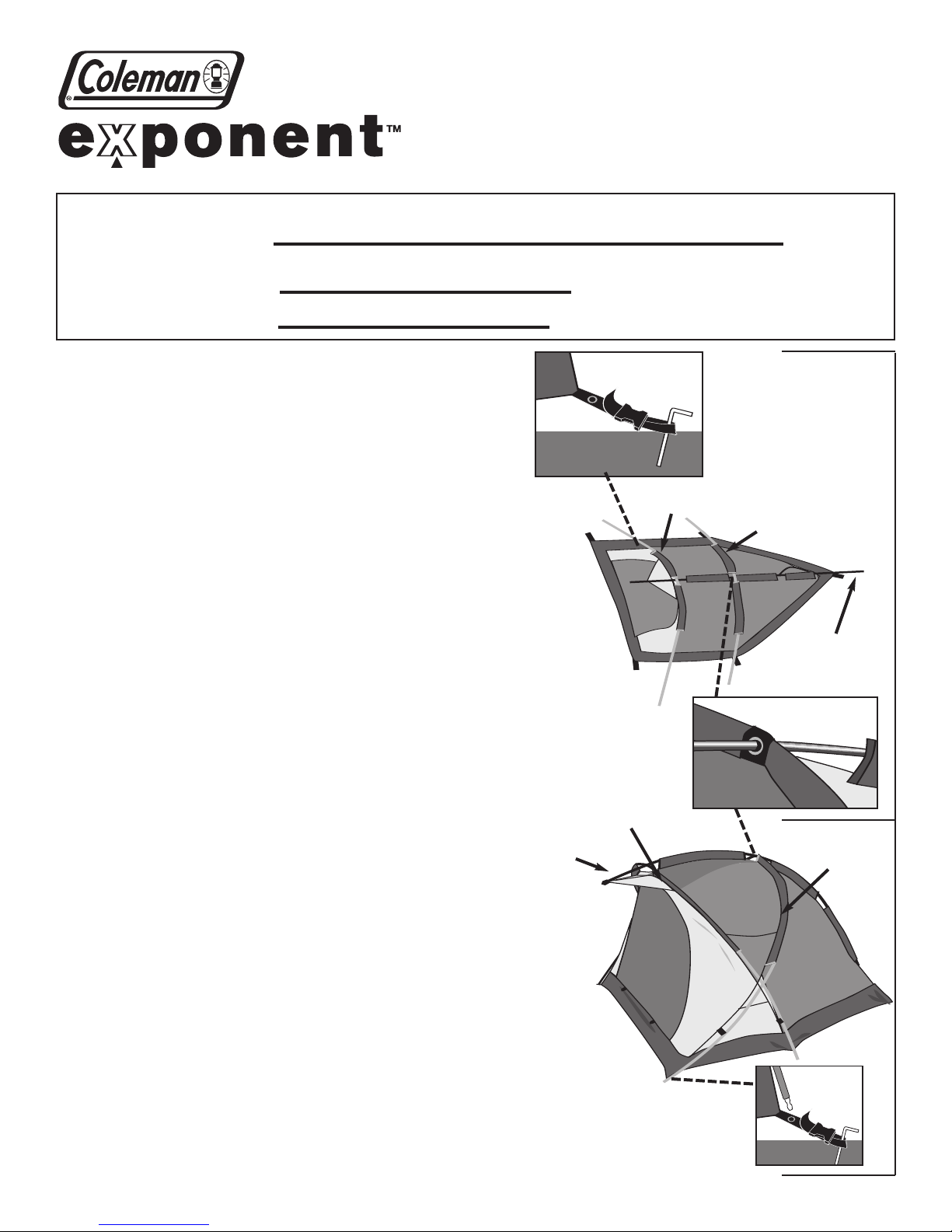

Layout & Positioning

of Tent, Pole Assembly

– Layout and position tent with door facing

desired direction. (illus. 2)

– For best results in windy conditions, postion

door or back of tent into the wind.

– Stake down tent corners. Keep the floor

taut. Unzip door. (illus. 1, illus. 2)

– Assemble Frame Poles by interlocking the

shock-corded sections. This will make one long

Main Pole and two shorter Crossover Poles.

– Insert the Main Pole (Red) through the pole

sleeves and through the grommet going from

the back of the tent to the front of the vestibule

webbing strap. (illus. 2, illus. 3)

– Insert the silver Crossover Pole in the front set

of pole sleeves going side to side. (illus. 2)

– Insert the gold Crossover Pole in the back set

of pole sleeves going side to side. (illus. 2)

Rainfly

Part No. 9830-1341

Removable Vestibule

Part No. 9850-3071

illus. 2

Crossover Poles through pole sleeves

Back Pole (gold)

Main Pole (red)

illus. 1

Tent stake

through

Loop

illus. 3

Long pole through

grommet

illus.5

Insert Pole Tip into

grommet

POLE ASSEMBLY PARTS

Main Tent Pole (red)

Part No. 9830-1441

Front Crossover Pole (silver)

Part No. 9830-1141

Back Crossover Pole (gold)

Part No. 9830-1241

Connect Frame to Tent

– Insert Pole Tip of Main Tent pole into the grommet

on the webbing at the back of the tent (illus. 5).

– Go to opposite end of the Main Pole and

gradually apply pressure to the pole, forming an

arch, until you are able to insert the pole tip

into the pole pocket at the point of the pole flap.

(illus. 4, illus. 5)

– Insert the Crossover Pole into the grommet

on the webbing located on the side of the

tent. The front pole goes toward the back.

The back pole angles toward the front. The

Crossover Poles will cross on each side.

(illus. 4, illus. 5)

illus. 4

Main Pole

Front Crossover Pole

Back

Crossover Pole

Front Pole (silver)

Things You Should Know

• Under certain conditions (cold weather, high humidity, etc.) condensation will form on the inside surfaces of your tent. Condensation

is caused by water vapor from your breath, perspiration, or any wet clothing inside your tent. It is NOT LEAKAGE through the tent

fabric. It can be minimized by removing wet clothing from your tent and by providing good ventilation through the tent.

• Never store tent, even for a short period of time, without

drying it thoroughly and brushing off caked dirt. Do not pack

stakes or poles inside your tent. Use separate storage bag.

• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE

ITSELF. NEVER PULL ON THE TENT FABRIC OR TENT STAKE

LOOP TO REMOVE STAKE.

3600 N. Hydraulic • Wichita, Kansas 67219

1-800-835-3278 • www.coleman.com

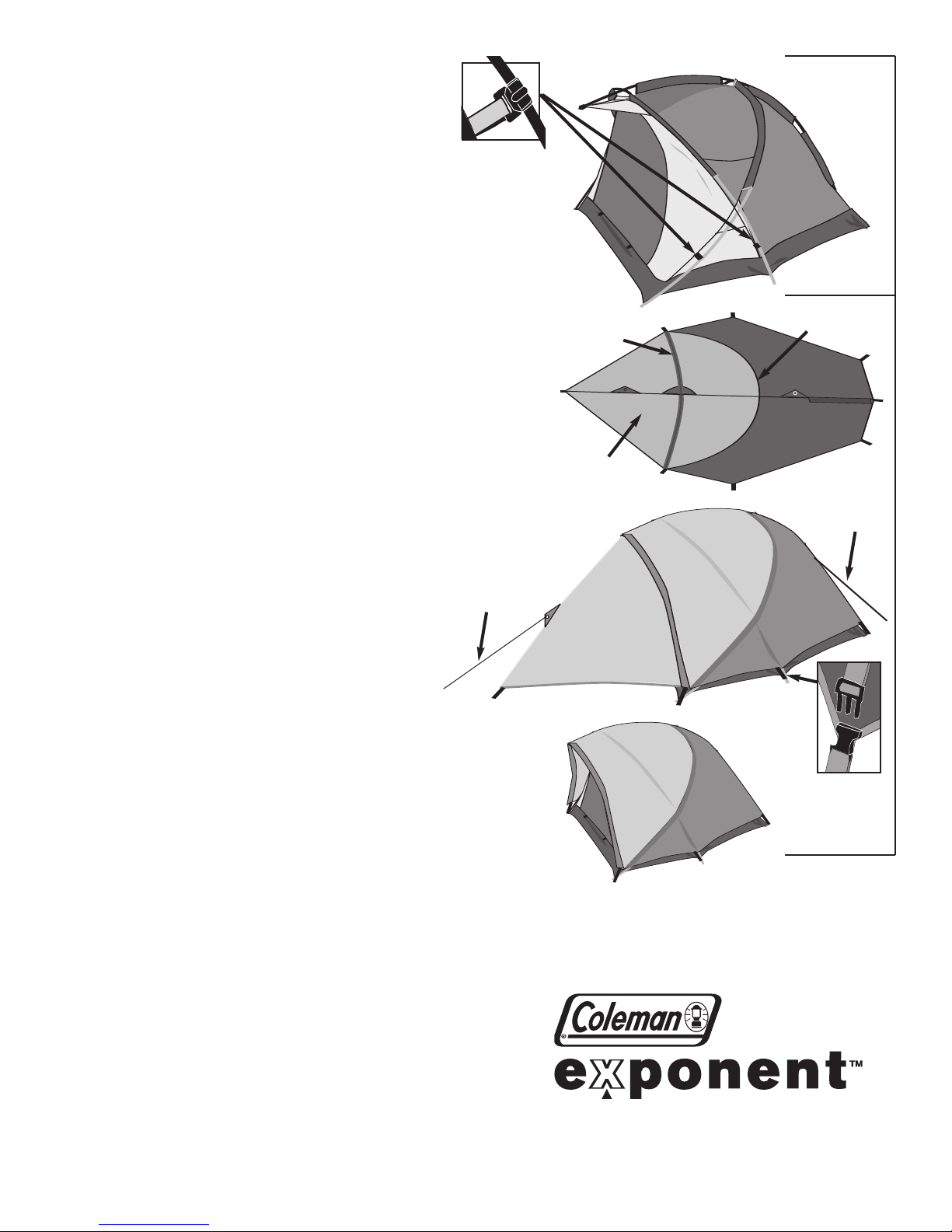

3Attach Tent to Frame

Using Frame Clips

– Attach remaining frame clips

along the side of tent and webbing

to frame poles (illus. 6), (illus. 7)

– Make any adjustments to the tent

corner stakes that are needed.

4Attach Rainfly with

Convertible Vestibule

– Drape Rainfly main section or zipped 2

sections over tent frame. Curved door

goes in front.

– Secure Rainfly with Frame Ties located

on underside of fly.

– Connect the clips (found at the

Rainfly points) to the clips located at

the points of the tent. (illus. 9)

– Insert the Main Pole end over the door into

the pole pocket on the underside of the

main section of the Rainfly.(illus. 11)

– Convertible vestibule section can be

zipped on or removed as desired.

When attaching also toggle it to the

main section for added stability.

– Attach Guy Lines and stake out.

(illus.11)

illus. 7

Assembled tent without

Rainfly. Note the frame

clips located on edge of tent.

illus. 6

Frame Clips

illus. 8

Rainfly with

Convertible

Vestiblue shown

zipped together

illus. 11

Completed tent with

Convertible Vestiblue removed.

illus. 10

Completed tent and Rainfly with

Convertible Vestibule.

Guy Line

illus. 9

Rainfly clips

onto pole

stake loop

Convertible

Vestibule

Zips together Main Section

PRINTED IN CHINA
