Coleman 2000007822 Manuel

MODEL 2000007822

Main Body Pole, black, long

Ridge Pole, black, short

5010000541

5010000547

Pole

Sleeve

Fig. 1

Fig. 3

Fig. 2

Fig. 5

Fig. 4

STITCH LINE

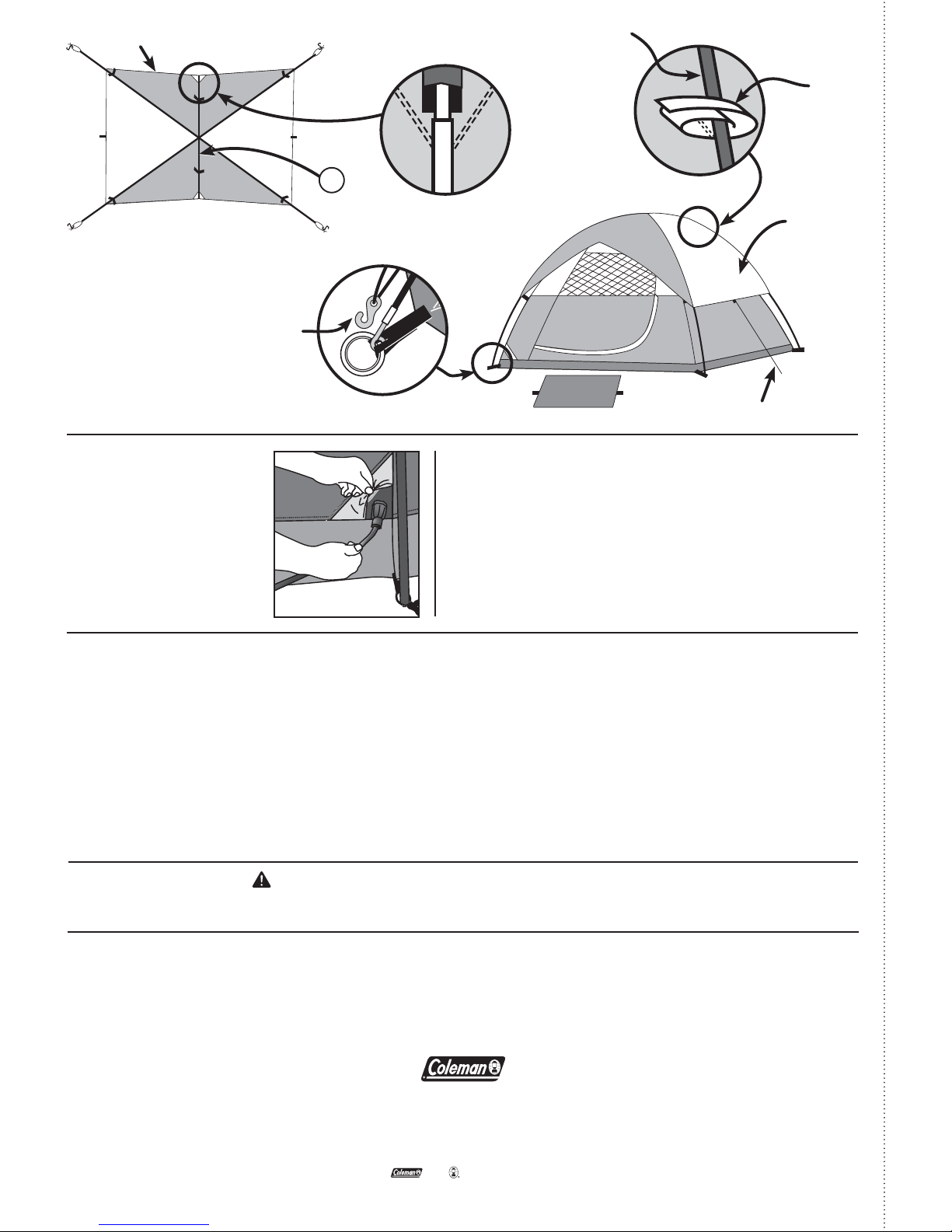

TENT SETUP INSTRUCTIONS

Connect Poles to Tent

t Insert one pin into one end of the pole. (Fig. 3 and 4)

t Go to opposite end of pole and carefully insert the pin into the

other pole end. (Fig. 4)

t Repeat for all poles.

Attach Tent to Body Poles

Using Clips

t Attach clips along the edges of tent to body poles. (Fig. 5)

t Make any adjustments to the tent stakes, if needed.

Attach Rainﬂy

t Attach top ridge pole to underside of rainﬂy with straps and

insert the tips of the top ridge pole into the pockets on underside

of rainﬂy. (Fig. 6 & 7)

t Drape rainﬂy over tent. (Fig. 8)

t Connect the elastic loops with “S” hooks, (found at the rainﬂy

corners) to the rings found at the tent corners. (Fig. 9)

t Secure rainﬂy with straps located on the underside of

rainﬂy. (Fig. 10)

t Attach and stake out elastic cord at ground vent and

guylines. (Fig. 8)

HINT: During setup, keep door zipped to keep proper tension

on fabric.

(continued on other side)

Layout & Positioning

of Tent and Poles

t Layout and position the tent with door facing desired

direction. (Fig. 1)

t Stake down tent corners ﬁrst through the stake rings. (Fig. 2)

t Keep the ﬂoor taut.

t Stake down the remainder of the stake rings.

t Assemble all poles by unfolding and interlocking the shock-

corded pole sections.

t Insert the body poles into the pole sleeves.

Before you begin

t Read all instructions before set up.

t Select a level site clear of rocks, branches, and other hard or

sharp objects, to install your tent.

WARNING: Keep clear of overhead power lines.

t Do not set up your tent under trees because of potential

lightning strikes or falling tree limbs in inclement weather.

t Secure with all stakes and guylines provided to prevent

property damage or personal injury.

t For best results in windy conditions, position narrow end of

tent into the wind.

t Enlist the help of at least one other person to assist you

when it is time to assemble the tent.

Pole Descriptions

Description Qty. Pole

Repair Kit

Pole

Replacement Kit

No.

Tent

Stake

Stake Ring

Pole Clip

Pole

Fig. 8

Fig. 6

(Bottom View)

Rainﬂy

Guyline

Fig. 10

Fig. 9

4010009306 (20100617)

Fig. 7

NOTE: Use only UL

approved cords rated for

outdoor usage. (Fig. 11)

Electrical

Cord

Access

Fig. 11

STITCH LINE

1. All poles and stakes must be placed in the storage bag to

prevent damage to the fabric items placed in the carry case.

2. Make sure tent is clean and dry before placing in carry case.

3. Remove rainﬂy, spread out on ﬂoor of tent, then unzip

door & vents before taking tent down for storage.

4. Neatly fold tent to width of pole storage bag, place on tent, roll

tightly, and place in carry case.

5. Store in a clean, dry area.

To Store

Things You Should Know:

t Under certain conditions (cold weather, high humidity, etc.) condensation will form on the inside of your tent. Condensation is caused

by water vapor from your breath, perspiration, or any wet clothing inside the tent. It is NOT LEAKAGE through the tent fabric. It can be

minimized by removing wet clothing from your tent and by providing good ventilation through the tent.

t Tree limbs, tree sap, bird droppings, or moisture steadily dripping off tree limbs can cause damage to the tent fabric and its coating

resulting in leaks or loss of ﬂame-resistant properties.

t Never store tent, even for a short period of time, without drying it thoroughly and brushing off caked dirt. Do not pack stakes or poles

inside your tent. Use a separate storage bag.

t Stakes should be removed by pulling on the stake itself. NEVER PULL ON THE TENT TO REMOVE STAKES AS THIS COULD RESULT IN

PROPERTY DAMAGE OR PERSONAL INJURY.

t Tent poles should not be left telescoped together during storage.

t Do not leave your tent set-up for weeks at a time. Be aware that exposure to ultraviolet rays from the sun can seriously damage material

and/or cause it to become discolored.

Pole

Strap

“S”

Hook

WARNING: Keep all ﬂame and heat sources away from this tent fabric.

This tent meets the ﬂammability requirements of CPAI-84. The fabric may burn if left in continuous contact with any ﬂame source. The

application of any foreign substance to the tent fabric may render the ﬂame-resistant properties ineffective.

5IF$PMFNBO$PNQBOZ*ODt/PSUI)ZESBVMJDt8JDIJUB,BOTBT64"

tXXXDPMFNBODPN

MADE IN CHINA

Coleman®, , and are registered trademarks of

The Coleman Company, Inc.
