Cognex DataMan 8050 Manuel utilisateur

DataMan®8050

Reference Manual

2019 October 08

Revision: 6.1.6SR1.5

Legal Notices

The software described in this document is furnished under license, and may be used or copied only in accordance with

the terms of such license and with the inclusion of the copyright notice shown on this page. Neither the software, this

document, nor any copies thereof may be provided to, or otherwise made available to, anyone other than the licensee.

Title to, and ownership of, this software remains with Cognex Corporation or its licensor. Cognex Corporation assumes

no responsibility for the use or reliability of its software on equipment that is not supplied by Cognex Corporation.

Cognex Corporation makes no warranties, either express or implied, regarding the described software, its

merchantability, non-infringement or its fitness for any particular purpose.

The information in this document is subject to change without notice and should not be construed as a commitment by

Cognex Corporation. Cognex Corporation is not responsible for any errors that may be present in either this document or

the associated software.

Companies, names, and data used in examples herein are fictitious unless otherwise noted. No part of this document

may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, nor

transferred to any other media or language without the written permission of Cognex Corporation.

Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as

well as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents.

The following are registered trademarks of Cognex Corporation:

Cognex, 2DMAX, Advantage, AlignPlus, Assemblyplus, CheckitwithChecker, Checker, CognexVisionforIndustry,

CognexVSOC, CVL, DataMan, DisplayInspect, DVT, EasyBuilder, Hotbars, IDMax, In-Sight, LaserKiller, MVS-8000,

OmniView, PatFind, PatFlex, PatInspect, PatMax, PatQuick, SensorView, SmartView, SmartAdvisor, SmartLearn,

UltraLight, VisionSolutions, VisionPro, VisionView

The following are trademarks of Cognex Corporation:

The Cognex logo, 1DMax, 3D-Locate, 3DMax, BGAII, CheckPoint, CognexVSoC, CVC-1000, FFD, iLearn, In-Sight

(design insignia with cross-hairs), In-Sight2000, InspectEdge, Inspection Designer, MVS, NotchMax, OCRMax,

PatMaxRedLine, ProofRead, SmartSync, ProfilePlus, SmartDisplay, SmartSystem, SMD4, VisiFlex, Xpand

Other product and company trademarks identified herein are the trademarks of their respective owners.

Legal Notices

Table of Contents

Legal Notices 2

Table of Contents 3

Symbols 5

Getting Started 6

About DataMan 8050 6

DataMan 8050 Accessories 7

DataMan 8050 Other Accessories 7

DataMan 8050 Reader Cables 8

DataMan 8000 Series Base Station Cables 9

Physical Layout of the Reader 10

Physical Layout of the Base Station 11

DMA-IBASE-01 11

DMA-IBASE-BT-XX 11

Setting Up Your DataMan 8050 13

Overview of Setting Up the Reader 13

Install the DataMan SetupTool 13

DataMan 8050 Specifications 14

DataMan 8050 Imager Specifications 15

DataMan Base Station Specifications 15

LED Wavelengths 15

Connection Options 16

Connecting a DataMan 8050 Through Ethernet 16

Troubleshooting an Ethernet Connection 17

Connecting a DataMan 8050 Through RS-232 17

Connecting a DataMan 8050 Through USB 19

Using Your Device Through USB 20

Using DataMan 8050 Wireless Reader 21

Connecting to a Wireless DataMan 8050 Through a Base Station 21

Pairing Strategy (DMA-IBASE-BT-XX) 23

Base Station Routing Capabilities 25

Ad-hoc Mode 25

Infrastructure Mode 26

Wireless Reader: Buffering Data 26

Summary of Wireless Buffering Indicators 29

Wireless Reader: Charging 29

Wireless Reader: Changing Batteries 31

Reading Codes with the DataMan 8050 34

Industrial Protocols 34

Trigger Types 35

Field of View and Reading Distances 35

Cleaning and Maintenance 37

Cleaning the Reader Housing 37

Cleaning the Reader Lens Cover 37

Table of Contents

Compliance Information, Warnings and Notices 38

Regulations/Conformity 38

Compliance Statements: DataMan Base Station 39

中国大陆RoHS (Information for China RoHS Compliance) 41

Reader Control Codes 42

Keyboard Language (Corded Readers Only) 42

Precautions 43

Table of Contents

Symbols

The following symbols indicate safety precautions and supplemental information:

WARNING:This symbol indicates a hazard that could cause death, serious personal injury or electrical shock.

CAUTION:This symbol indicates a hazard that could result in property damage.

Note: This symbol indicates additional information about a subject.

Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.

Symbols

Getting Started

This section provides general information about the DataMan 8050 readers and the DataMan 8000 series base stations.

You can also find information on the DataMan 8050 accessories and the physical layout of the reader and the base

stations in this section.

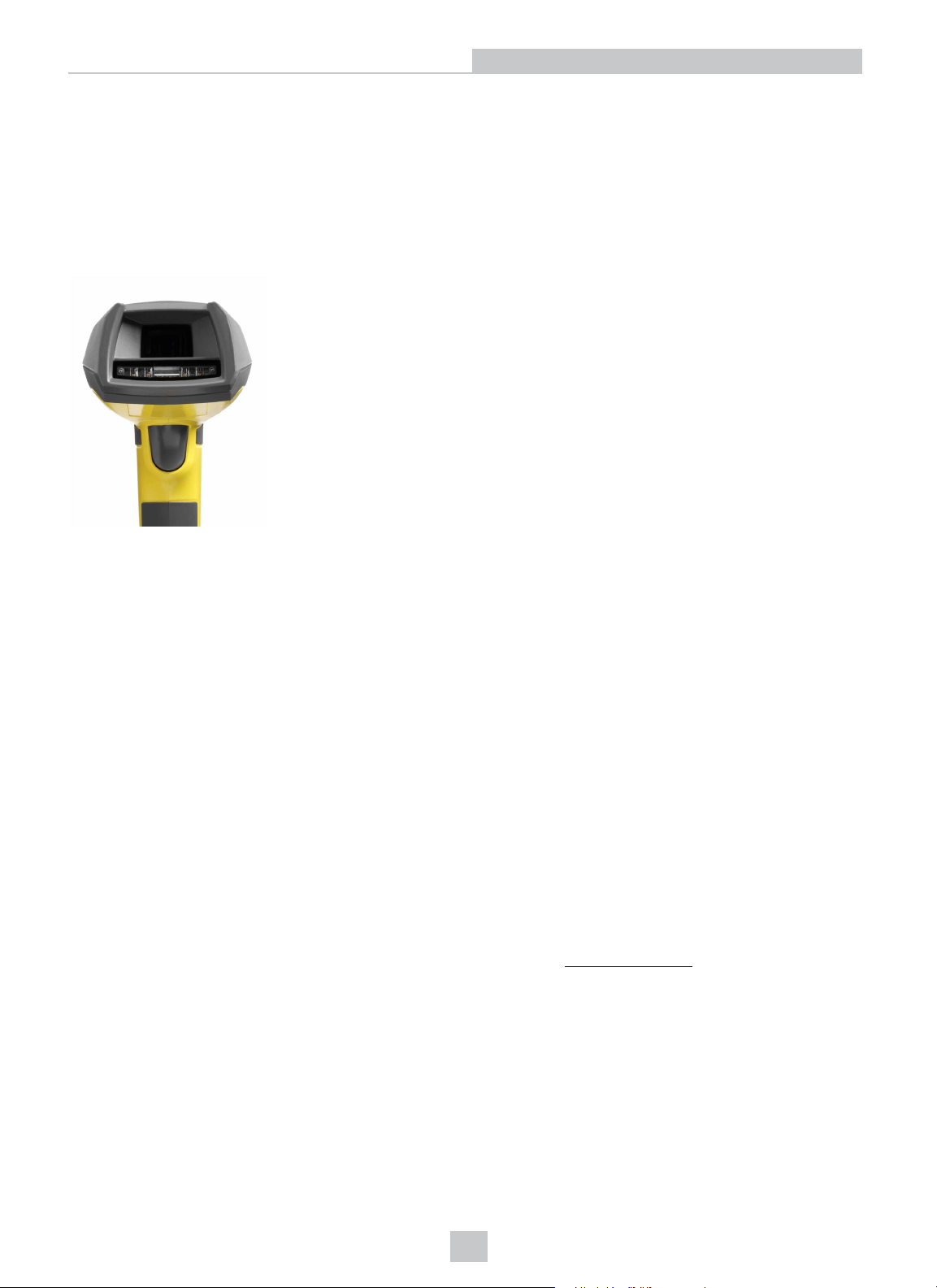

About DataMan 8050

The DataMan 8050 readers offer the industry’s most advanced technology for reading 1D and 2D codes regardless of

size, quality, printing method or surface, and belong to the only industrial handheld ID reader family that offers Industrial

Ethernet communication. DataMan 8050 is available with patented 1DMax+ with Hotbars, class-leading 2-D algorithms

and future-proof modular communication slide-ins.

The DataMan 8050 readers use bright field illumination and and class leading algorithms in three models: 8050, 8050X,

and 8050HDX. The DataMan 8050 is designed for high-speed reading of challenging label-based barcodes, the 8050X

reads more challenging barcodes, including direct part mark barcodes, while the 8050HDX is a high density reader with

a closer field of view.

The DataMan 8050 readers are available with the following communication options:

lUSB

lRS-232

lBluetooth

lWiFi

An intelligent base station is also provided when the DataMan 8050 reader uses the wireless (Bluetooth or WiFi)

communication module. The base station acts as a router between the reader and your computer or network.

Infrastructure Mode does not use the base station for communication. (See Infrastructure Mode.)

Getting Started

Note: Henceforward, the term ‘wireless’ refers in this document to the WiFi or to the Bluetooth communication

module of the reader.

The DataMan 8000 series base stations are available with the following communication options:

Base Station Communication Wireless Protocol

Ethernet with

Industrial

Protocols

USB RS-232 Bluetooth WiFi

DMA-CBASE-01 √

DMA-IBASE-BT-01 √ √ √

DMA-IBASE-BT-02 √ √ √ √

DMA-IBASE-01 √ √ √ √

DataMan 8050 Accessories

DataMan 8050 Other Accessories

Serial/USB slide-in DMCM-SERIALM-00

Ethernet slide-in DMCM-ENETM-00

Bluetooth slide-in DMCM-BTM-00

Wireless slide-in DMCM-WLESSM-00

Charging Base Station DMA-CBASE-01

Intelligent Base Station DMA-IBASE-01

Intelligent Bluetooth Base Station DMA-IBASE-BT-01

Intelligent Bluetooth Base Station DMA-IBASE-BT-02

Power Supply for base station DMA-24VPWR-xx*

Power Supply for reader DM100-PWR-000

Battery for the wireless reader DMA-HHBATTERY-01

Multi-Battery Charger DMA-MBC-xx*

Getting Started

POE Adapter CPS-24V-POE1

POE Adapter CPS-24V-POE4

POE Adapter CPS-AC-POE1A-xx*

Wall Mount DMA-WALL-8000-00

Wall Mount for Base Station DMA-IBASE-WALL-00

Stand DM-STAND-00

Rubber sleeve DM8050-SLEEVE-00

*XX can be US, EN, UK, or JP

DataMan 8050 Reader Cables

RS-232 coiled cable for reader, 2.5 m DM8000-RS232-02

RS-232 industrial cable for reader, 2.5 m DM8000-RS232IND-02

RS-232 coiled cable for reader, 4 m DM8000-RS232-05

USB cable, 2.5 m DM8500-USB-00

USB coiled cable, 2.5 m DM8500-USBC-02

Ethernet Coiled cable, 5m DM8000-ECABLEC-05*

Ethernet cable, 2.5 m DM8000-ECABLE-02

Ethernet cable, 5 m DM8000-ECABLE-05

Ethernet cable, 30 m DM8000-ECABLE-30

Getting Started

*Collimated cable length including DM8000-ECABLE-X should not exceed 50 m.

DataMan 8000 Series Base Station Cables

RJ25 (RJ12) to DSUB9 cable for base station, 5 m DMA-RS232RJ-05

Straight 10ft USB cable DMA-USB-00

lUSB cable for base station: Use any standard USB-A to USB-B 2.0 cable up to 3 meters.

lEthernet cable for base station: Use any standard CAT5/5e, SF/FTP or S/FTP cable.

Getting Started

Physical Layout of the Reader

1 LED aimer guide

2 Trigger (press and hold to read)

3 Communication module insertion point

4 Lanyard hook

5 Indicator light

Getting Started
