Cognex DataMan 475 Verifier Manuel utilisateur

DataMan®475 Verifier

Quick Reference Guide

2022 August 04

Revision: 6.3.2.5

Precautions

To reduce the risk of injury or equipment damage, observe the following precautions

when you install the Cognex product:

lThe verifier is intended to be supplied by a UL or NRTL listed power supply

with a 24VDC output rated for at least 2A continuous and a maximum short

circuit current rating of less than 8A and a maximum power rating of less

than 100VA and marked Class 2 or Limited Power Source (LPS). Any other

voltage creates a risk of fire or shockand can damage the components.

Applicable national and local wiring standards and rules must be followed.

lRoute cables and wires away from high-current wiring or high-voltage

power sources to reduce the risk of damage or malfunction from the

following causes: over-voltage, line noise, electrostatic discharge (ESD),

power surges, or other irregularities in the power supply.

lDo not install Cognex products where they are exposed to environmental

hazards such as excessive heat, dust, moisture, humidity, impact, vibration,

corrosive substances, flammable substances, or static electricity.

lDo not expose the image sensor to laser light. Image sensors can be

damaged by direct, or reflected, laser light. If your application requires laser

light that might strike the image sensor, use a lens filter at the corresponding

laser wavelength. For suggestions, contact your local integrator or

application engineer.

lChanges or modifications not expressly approved by the party responsible

for regulatory compliance could void the user’s authority to operate the

equipment.

lInclude service loops with cable connections.

lEnsure that the cable bend radius begins at least six inches from the

connector. Cable shielding can be degraded or cables can be damaged or

wear out faster if a service loop or bend radius is tighter than 10X the cable

diameter.

lThisdevice should be used in accordance with the instructions in this

manual.

lAll specifications are for reference purposes only and can change without

notice.

Symbols

The following symbols indicate safety precautions and supplemental information:

WARNING:This symbol indicates a hazard that could cause death, serious personal injury or electrical

shock.

CAUTION:This symbol indicates a hazard that could result in property damage.

Note: This symbol indicates additional information about a subject.

Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.

Product Overview

Number Item

1Lens

2 LabelLight attachment

3 Mounting holes (M3 x 5mm)

4 Indicator light ring

5 Ethernet connection

6 External lighting connection (disabled for verification)

7 Breakout cable connection

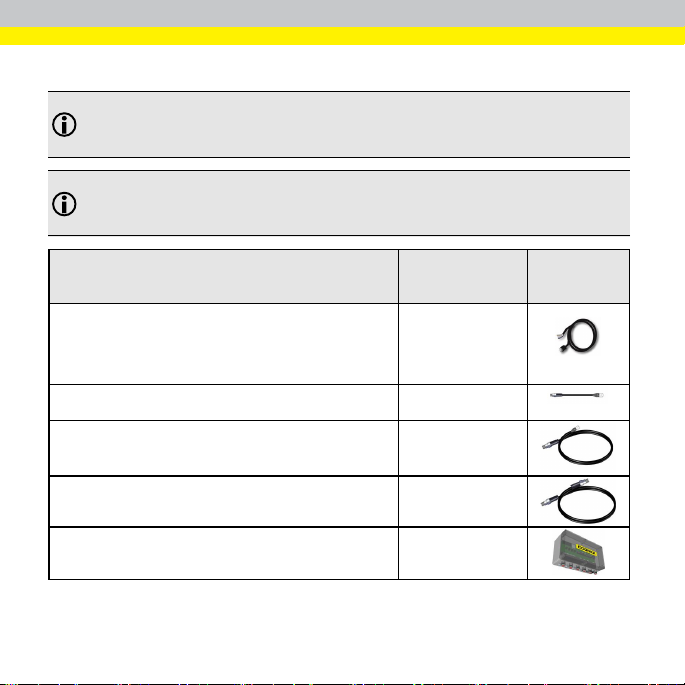

DataMan 475 Verifier Accessories

Note: For ISO compliant verification, equip the DM475V with LabelLight 45°

lighting accessory (DMV-475V-LBL-0200). Use other light accessories for

DM475V for Standards Based Grading only.

Note: The product images below serve illustration purposes only. You can

purchase the following components separately. For a list of options and

accessories, contact your local Cognex sales representative.

Accessory Name

Accessory Product

Number

Accessory

Illustration

Power and I/O breakout cable, M12-12, straight, xx specifies length:

5 m, 10 m, 15 m,

angled, xx specifies length: 5 m, 10 m, 15 m

CCB-PWRIO-xx

CCB-PWRIO-xxR

X-Coded to A-Coded Ethernet cable adapter, 0.5 m CCB-M12X8MS-XCAC

X-Coded to RJ45 Ethernet Cable. xx specifies length: 2 m, 5 m, 15

m, 30 m

CCB-84901-2001-xx

I/O extension cable, 5 m straight CKR-200-CBL-EXT

Connection module (up to 4 cameras including network switch)

xx can be US, EU, UK or JP DMA-CCM-4X-xx

Accessory Name

Accessory Product

Number

Accessory

Illustration

Connection module (1 camera)

xx can be US, EU, UK or JP DMA-CCM-1-xx

Mounting Bracket Kit DMBK-470-MNT

Pivot Mounting Bracket DM100-PIVOTM-00

External heat sink DMHS-370-470

45° LabelLight DMV-475V-LBL-0200

Dimensions

DataMan 475 Verifier

Mounting and Connecting the Verifier

CAUTION:Make sure that the Ethernet cable is grounded at the far end.

Whatever this cable is plugged into (usually a switch or router) should have a

grounded Ethernet connector. Use a digital voltmeter to validate the

grounding. If the far end device is not grounded, add a ground wire in

compliance with local electrical codes.

CAUTION:To reduce emissions, connect the far end of the Breakout cable

shield to frame ground.

Perform the following steps:

1. Mount the verifier so that the distance from the bottom of the light housing to

the plane of the code is 60 mm.

Tip: Measure each corner of the light housing to 60 mm (+/- 3 mm).

2. Connect the Ethernet cable to a computer or a network switch.

3. Connect the breakout cable to a 24 V power supply.

For information on the cable pinout and wire colors, see section Connections, Optics,

and Lighting in the DataMan 475 Verifier Reference Manual.

Note:

lCables are sold separately.

lIf a standard component is missing or damaged, immediately contact

your Cognex Authorized Service Provider (ASP) or Cognex

Technical Support.

CAUTION:All cable connectors are "keyed" to fit the connectors on the

DataMan system; do not force the connectors or damage may occur.

CAUTION:Make sure that the verifier is grounded, either by mounting the

verifier to a fixture that is electrically grounded or by attaching a wire from the

verifier’s mounting fixture to frame ground or Earth ground. If using a ground

wire, attach it to one of the four mounting points on the back plate of the

verifier; not to the mounting points on the front of the verifier.
