1.Preface

2.Safety Precautions

The following are included in this package:

3.Package Contents

Thank you for purchasing the HD 3-in1 Flatbed Scanner

Please read this user's manual carefully before using this product.

Please retain this manual for future reference.

USB Cable TV cable

Power adapter User’s Manual

Brush

Negative

Slide

3½" X5"

Clean cloth

Do not disassemble this unit.

Do not touch inner part of the scanner.

Do not clean the scanner with alcohol, gasoline, diluent and

other organic solvents.

Do not use in dusty or damp environments.



Please use film of standard size.

Cleaning：Please make sure the scanner is clean before using

so as to produce a clean image.

The USB cord or adapter should be unplugged when the unit is

left unused for a long period of time.

DPS1 400

HD 3-i n 1

Flat bed Sca nner

All manuals and user guides at all-guides.com

4.Parts Guide

(1).Photo positioning holder(3.5"X5",4"X6",5"X7"and name

card)

(2). Film holder(Positive、Negative)

(3). LCD color display screen

(4). USB interface

(5). TV-OUT interface

(6). SD card slot(up to 32GB)

(7). Film or Photo option

(8). Power button

(9). Left/Right button,MENU button,ENTER button

(10).SCAN button

(11).Film scan mode indicator light

(12)indicator light. Picture scan mode

5.Slide and Negative holder loading method

a.Hold the slide toward the light. Face

the right side of the slide towards

yourself.

b.Open the slide holder, then place

slides into recessed area in the

holder.Make sure the open logo is

facing forward towards you(film can

also be loaded as a strip into the

slide holder, see below picture)

c.Close the slide holder and press the

edges so that it locks in place

d. Insert the slide holder into the slot

on the right side of the film scanner

as shown.

ENTER

SCAN

Film


TV OUT

456

All manuals and user guides at all-guides.com

Loading Negatives

a.Hold the negative toward the light.

Face the right side of the negative

yourselftowards

b. Open the negative holder, make

sure the open logo is facing forwards

towards you.Place negative into

recessed area in the holder.

c.Close the negative holder and press

the edges so that it locks in place

d. Insert the negative holder into the

slot on the right side of the film

scanner as shown.

ENTER

SCAN

Film


TV OUT

:Handle film with care to avoid scrades or finger prints.It is

recommended to use compressed cotton to remove any dust

on the films.

(4R) (5R)(3R)

Please place the positioning sheet into the corresponding fixed

holes,then scan picture or name card.

6.Operation Guide

(1).Introduction of Negative Mode Main Menu

①

②

③ Capture

④ Playback

Film

Resolution

⑤Format

⑥USB MSDC

⑦Language

11 2 3 4 5 6 7

All manuals and user guides at all-guides.com

① Effect

②

③ Capture

④ Resolution

Format

⑤Playback

⑥USB MSDC

⑦Language

Photo siz e

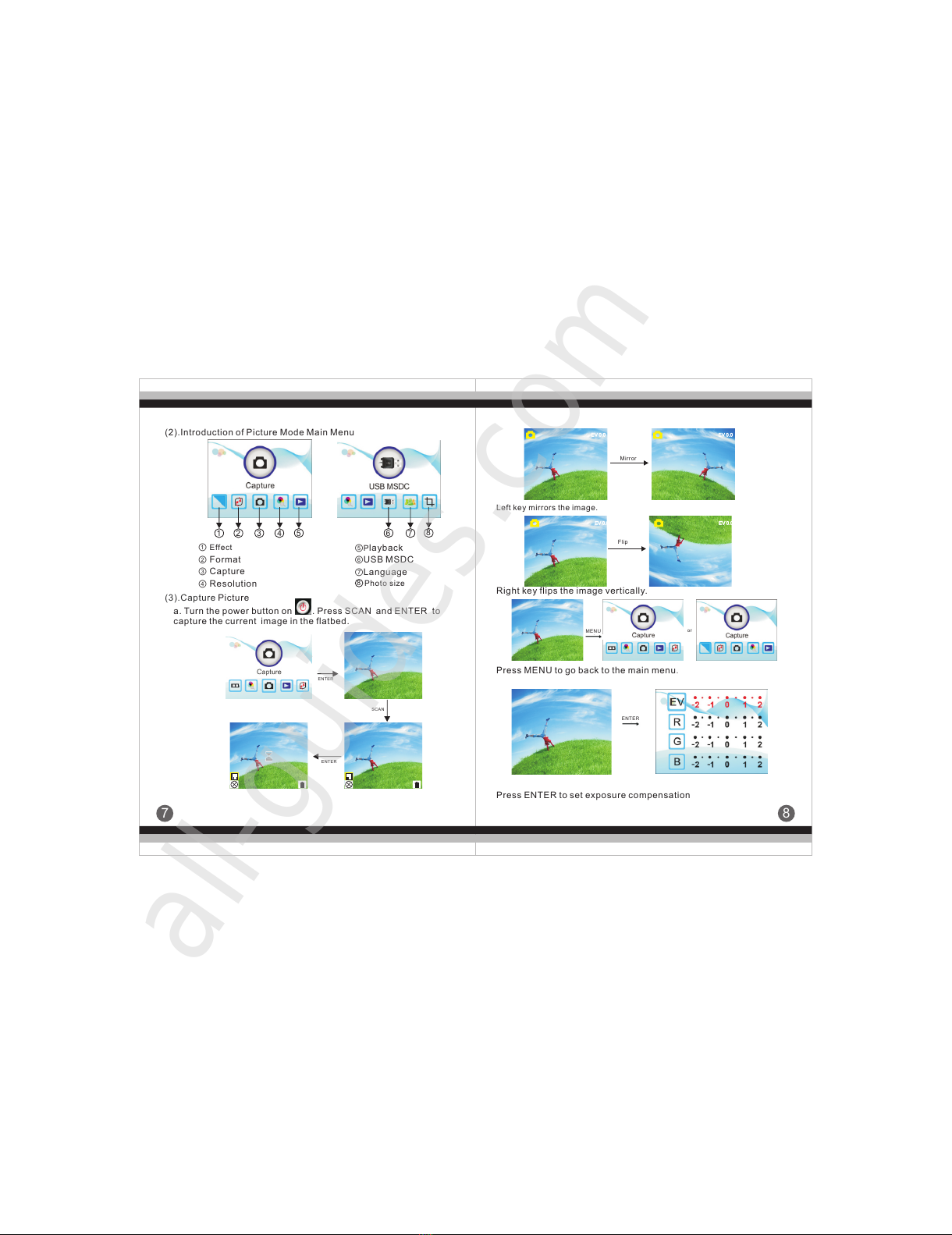

(2).Introduction of Picture Mode Main Menu

(3).

Capture Picture

a. Turn the power button . Press SCAN and ENTER to

capture the current image in the flatbed.

1 2 3 4 5 678

ENTER

SCAN

Right key flips the image vertically.

Left key mirrors the image.

ENTER

Mirror

Flip

EV 0.0 EV 0.0

Press MENU back to the main menu. to go

Press ENTER to set exposure compensation

All manuals and user guides at all-guides.com

all-guides.com

Using Film or Photo option side the button

mode: Left for Film and right for Photo

to the corresponding

b.In Photo mode, press

the choice of color ,B&W.

until ,then press ENTER into

(5).Playing scanned pictures

Under the film or photos main menu mode,press ,

until ,then press ENTER into autoplay scanned picture mode,

press ENTER again to suspend automatic play.

(4).Operation Guide

a.In main menu, press ,until ENTER . You

can now chose negative、slide、B&W

,then press

Enter

Exit

Enter

Home

Enter

The current picture rotates 90 digree clockwisely

The current picture rotates 90 digree counter clockwise

Deleting the current picture from memory card

Save the current edited picture

Exit the submenu edit mode,back

Exit the submenu edit mode,back to scan

Home

All manuals and user guides at all-guides.com

(6)、Resolution options are located in the main menu.Press

until , press ENTER into image resolution choice, press

to choose 5M or 10M.

Enter

ENTER

(7).Setting Language

Under main menu mode，press

chose language, then press and , one of following 8

language can be set：English、Franch、German、Italian、

Spanish、T-Chinese、S-Chinese、Japanese.

,until . Press to

(8)、Format

In the main menu mode，press key reach to ，press

ENTER into format interface:

，

or Enter

left

right

Enter

*Note:"FULL"icon on screen means the memory is full.Upload the image files to a computer

then format the memory.

and

All manuals and user guides at all-guides.com

(9)、USB MSDC options are in the main menu.

until ,press ENTER into USB MSDC,you can view and edit the

scanned picture in the computer after successful connecting.

Press ,

(10)、How to choose picture size under the main menu mode

Under the main menu mode,press ,

ENTER into cutting mode,you can choose correspoding size

to cut picture:5R(5"*7),4R(4"*6),3R(3.5"*5)and name card.

until ,press

Enter

7.Product Specification

Film scanner/ USB MSDC/Photo Scanner

Function

Interface

Image Sensor

USB2.0

5.0 Mega pixels (2592*1944)

1/3.2” CMOS sensor

Display Color 2.4〞TFT LCD

Exposure Control Automatic / Manual (-2.0 EV~ +2.0EV)

Resolution 5.0 Mega pixels/10Mega pixels

(interpolation)

Scan Quality(reference) 1800Dpi & 3600 Dpi(interpolation)

Picture aspect ratio 3：2

Scan Method Single pass

Film type 35mm Film、Monochrome、Slide

Picture Effects B&W,Slides,Negatives

Light Source LED Back light

File format Picture：JPEG

TV-OUT type NTSC/PAL

External memory card SD card up to 32GB

Power Supply DC 5V Adapter/ USB Port

Language S-Chinese / T-Chinese / English /

French /German / Italian / Spanish /

Japanese

Support system Windows XP/vista/Windows7/

Mac10.7.3

Product Size L245mm×W220mm×H140mm

Weight 1300g

Please note products spec is subject to improvement .

Any changes of product will not make additional specify.

8.Declaration

All manuals and user guides at all-guides.com
