Premium Automatic Multipoint Lock
for Vogue Doors
ML3120S Premium Vogue Door Lock
Product Code: ML3120S
VOGUE MULTIPOINT LOCK - PREMIUM AUTOMATIC
LIT-DC-ML3120S
Page 2 of 14
T01726 871 025 Esales@coastal-group.com Wcoastal-group.com
© Coastal Specialist Ironmongery Ltd
Provides a contemporary look with the cylinder &
central gearbox located half way up the door
Can be used with a pull handle, escutcheon &
thumb turn cylinder to create a contemporary
‘slam shut’ style door and also our Biometric
Fingerprint Scanner
Magnet only activates the hook bolts once door
is closed, auto locking the door and preventing
damage to frame
Dual hook bolts provide extra security and
enhanced weathersealing
The new practical Daytime Latch enables
temporary release of the locking system for
convenient access without a key – e.g. when
carrying shopping in from the car
Tested to PAS24 and Secured by Design Approved
Product Code: ML3120S
VOGUE MULTIPOINT LOCK - PREMIUM AUTOMATIC
LIT-DC-ML3120S
Page 3 of 14
T01726 871 025 Esales@coastal-group.com Wcoastal-group.com
© Coastal Specialist Ironmongery Ltd
LOCK CODES
LOCK PART NUMBER HANDING BACKSET FACEPLATE FINISH UNITS
ML3120S-LH-45-1-SV Left 45mm 20mm Square End Each
ML3120S-RH-45-1-SV Right 45mm 20mm Square End Each
ML3120S-LH-55-1-SV Left 55mm 20mm Square End Each
ML3120S-RH-55-1-SV Right 55mm 20mm Square End Each
ML3120S-LH-55-2-SV Left 55mm 20mm Square End Each
ML3120S-RH-55-2-SV Right 55mm 20mm Square End Each
KEEP CODES
KEEP PART NUMBER PRODUCT DESCRIPTION HANDING CENTRE FINISH UNITS
MK37-SV Single keep Universal Each
MK48-28-LH-SV Centre keep Left 28mm Each
MK48-28-RH-SV Centre keep Right 28mm Each
MK48-33-LH-SV Centre keep Left 33mm Each
MK48-33-RH-SV Centre keep Right 33mm Each
MK37-SVMK37-SV MK48
ML3120S Lock
FINISHES:
SV
Silver Passivated
KIT PART NUMBER HANDING BACKSET FACEPLATE CENTRE FINISH UNITS
ML3120S-KIT-45-1-LH Left 45mm 20mm Square End 33mm Each
ML3120S-KIT-45-1-RH Right 45mm 20mm Square End 33mm Each
ML3120S-KIT-55-1-LH Left 55mm 20mm Square End 33mm Each
ML3120S-KIT-55-1-RH Right 55mm 20mm Square End 33mm Each
KIT CODES
Kit includes 1 x ML3120S multipoint lock, 1 x MK48 Centre keep and 2 x MK37-SV
SV
SV
SV
SV
SV
SV
SV
SV
SV
SV
SV
SV
SV
SV
SV
Product Code: ML3120S
VOGUE MULTIPOINT LOCK - PREMIUM AUTOMATIC
LIT-DC-ML3120S
Page 4 of 14
T01726 871 025 Esales@coastal-group.com Wcoastal-group.com
© Coastal Specialist Ironmongery Ltd
DAYTIME LATCH FEATURE
Blue switch in ‘up’ position
• Daytime Latch deactivated
• Duo Hook Locks red by magnet once door is closed
• Door securely locked once more
• Key required to unlock and open door
Blue switch in ‘down’ position
• Daytime Latch activated - Door can be pushed and pulled
to open and close without key
• Prevents door from blowing open
• Very convenient for example when bringing shopping in
from car
• To deactivate Daytime Latch simply push blue switch up
Keep Handing (as viewed from outside)
Left Hand Lock Right Hand Lock
Product Code: ML3120S
VOGUE MULTIPOINT LOCK - PREMIUM AUTOMATIC
LIT-DC-ML3120S
Page 5 of 14
T01726 871 025 Esales@coastal-group.com Wcoastal-group.com
© Coastal Specialist Ironmongery Ltd
FEATURES:
•Vogue premium multipoint automatic door lock from
Winkhaus
•Provides a contemporary look with the cylinder and central
gearbox located approx halfway up the door
•Often used with a pull handle and thumbturn cylinder to
create a contemporary ‘slam shut’ style door.
•Innovative magnet only activates the anti ‘push back’ hook
bolts once the door is closed, automatically locking the door
and preventing damage to the door frame
•Dual hook bolts provide extra security and enhanced
weathersealing
•Daylatch switch enables temporary release of the locking
system for convenient access without a key - e.g. when
carrying shopping in from the car
•Tested to PAS24 and Secured by Design Approved
TECHNICAL INFORMATION:
•92mm Euro Lock Centre
•45 or 55mm Backset options
•Left & Right Lock Handing
GERMAN
10 YEAR
MECHANICAL
GUARANTEE
TESTED TO
PAS24
Product Code: ML3120S

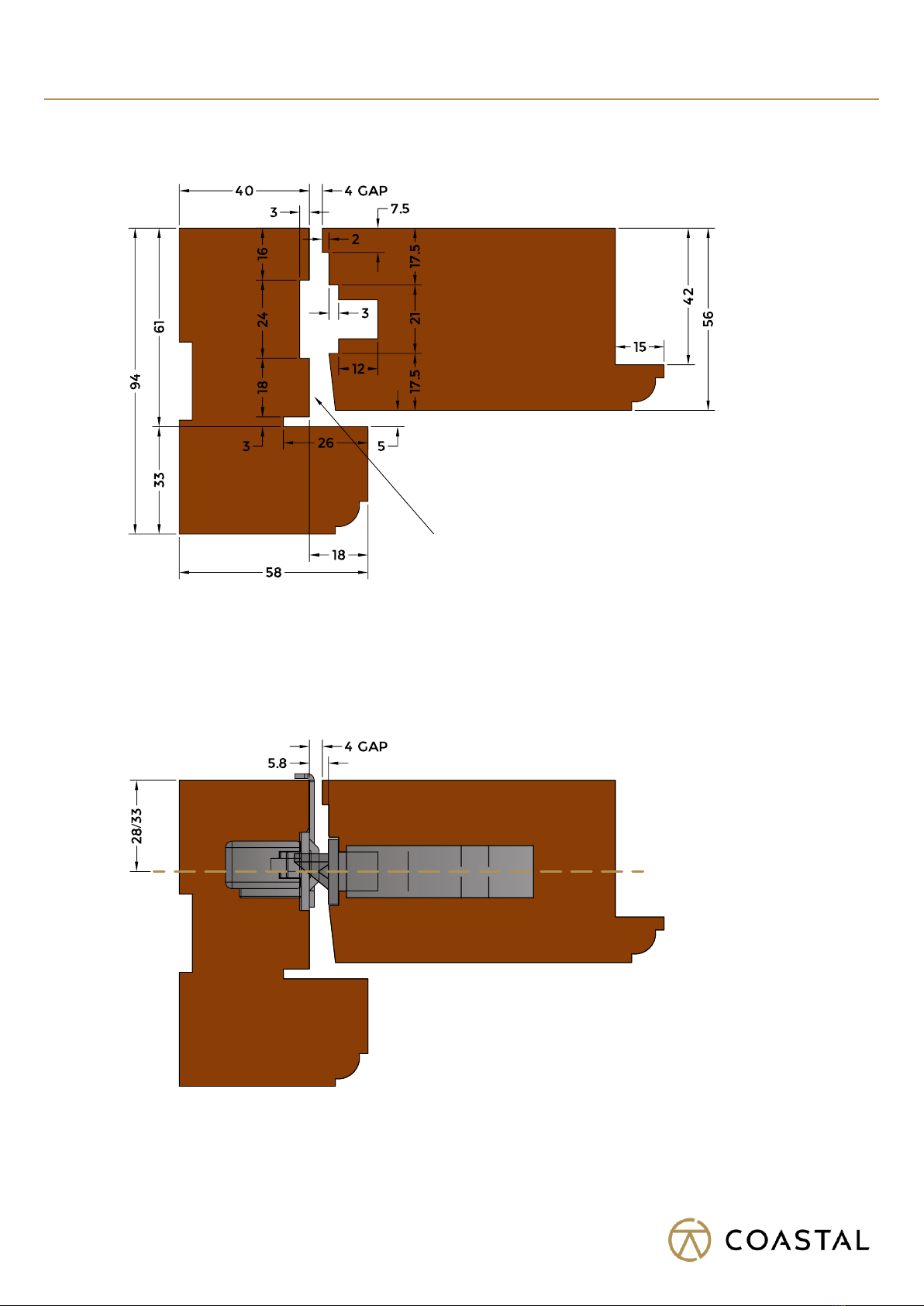

RECOMMENDED DETAIL FOR ML3120 (AV3) LOCKS
LIT-DC-ML3120S
Page 6 of 14
T01726 871 025 Esales@coastal-group.com Wcoastal-group.com
© Coastal Specialist Ironmongery Ltd
•Tooling is now available for ease
of machining this detail. Please
contact us for more information
•NOTE: Leading edge required
to avoid keep clash if door
swells
•The critical dimension is that
the face plate of lock & main
body of the keep is 4mm apart
SECTION (REF ONLY)
CENTER LINE
Product Code: ML3120S

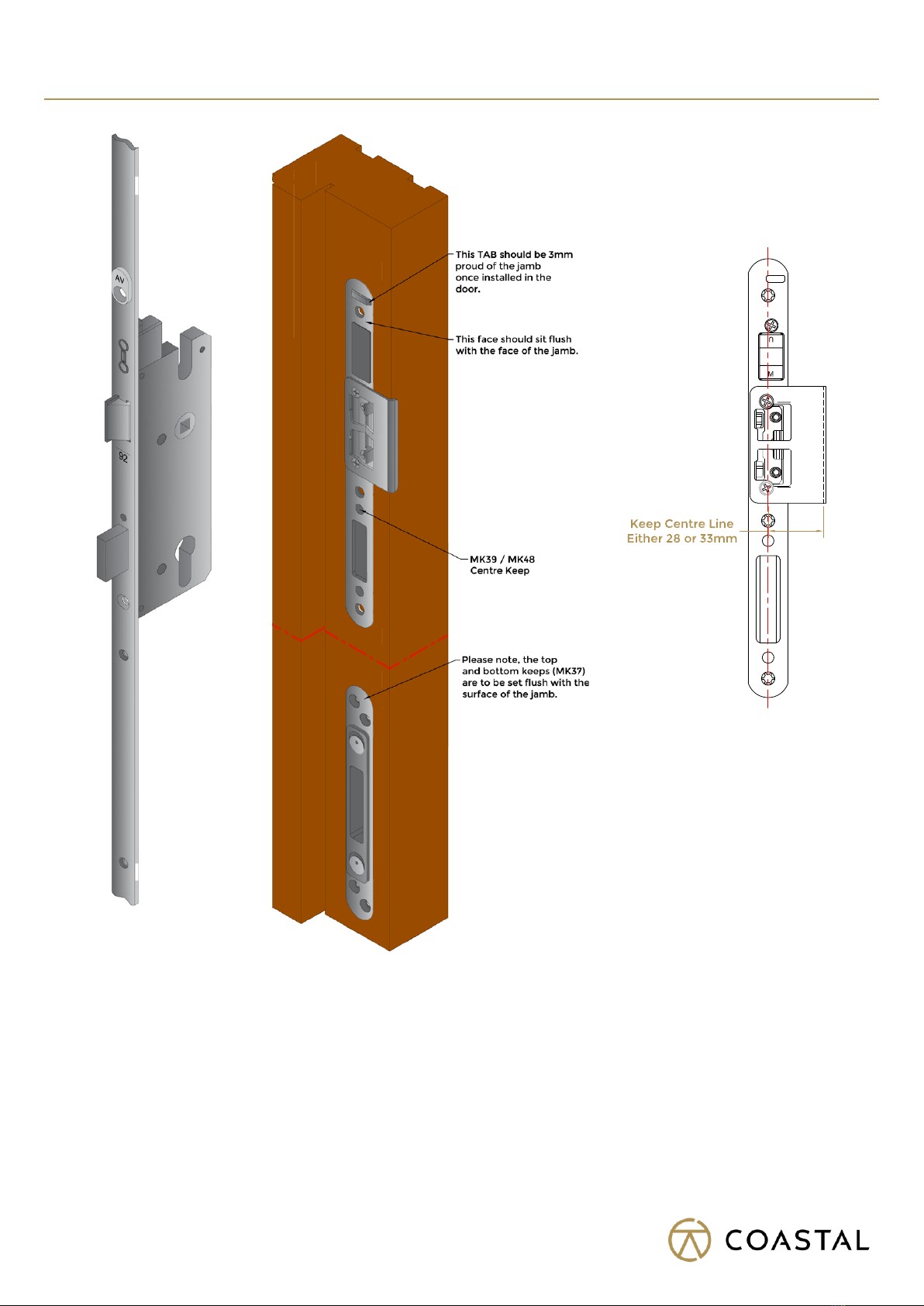

MK48 & MK37 KEEP FITTING TIPS
LIT-DC-ML3120S
Page 7 of 14
T01726 871 025 Esales@coastal-group.com Wcoastal-group.com
© Coastal Specialist Ironmongery Ltd
KeepLock
Some tips to help when tting the MK48 & MK37 keeps:
1. Ensure your frame/door section are correct - make sure you’ve got the correct amount of
clearance, see drawing on page 5.
2. Ensure keeps are aligned as shown on pages 7-8.
3. Allow clearance for daylatch to work - follow routing preparation as shown on page 9.
4. Use Shimwell Hinge Packers to simplify future door adjustments and maintenance.
5. Use Deventer Weatherseal for lower operating force.
Product Code: ML3120S
WINKHAUS MULTI-POINT LOCK ALIGNMENT GUIDE
LIT-DC-ML3120S
Page 8 of 14
T01726 871 025 Esales@coastal-group.com Wcoastal-group.com
© Coastal Specialist Ironmongery Ltd

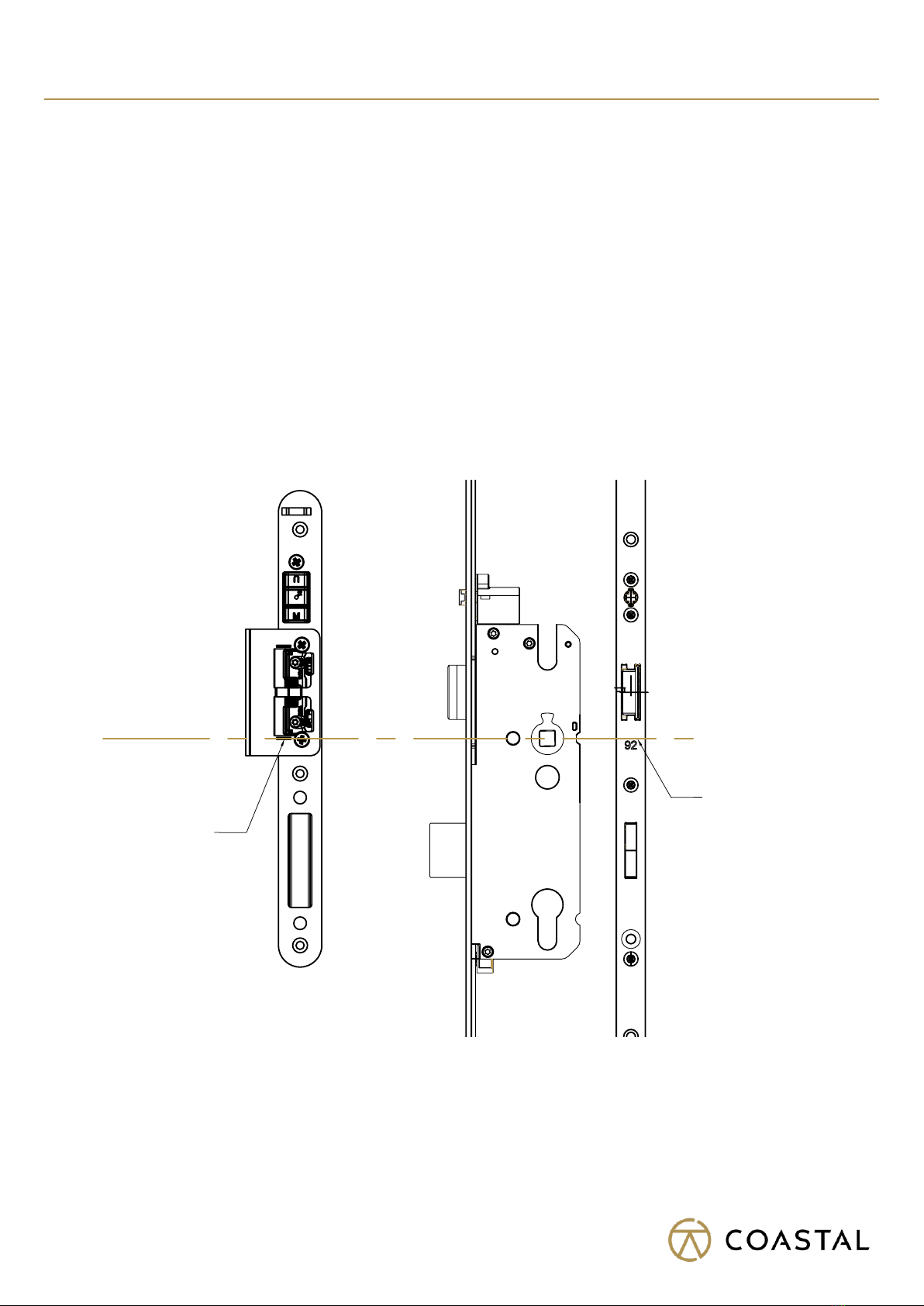

Spindle centre line
Line up here on
centre keep
MK48 Keep with
Daylatch
ML3120S Lock
Line up here on
lock
Winkhaus AV3 centre keeps (MK48) have alignment markings to help ensure correct alignment
of centre keep to lock (ML3120S). Please follow the below for correct keep to lock alignment:
1. Align the lower marking on the striker plate of the centre keep to the spindle centre line
marking on the lock faceplate.
2. Once centre keep is correctly aligned, the dimension from the spindle centre line to the
bottom of the top keep is 649mm as shown on drawing on page 9.
3. Once centre keep is correctly aligned, the dimension from the spindle centre line to the top
of the bottom keep is 665.5mm as shown on drawing on page 9.
Product Code: ML3120S

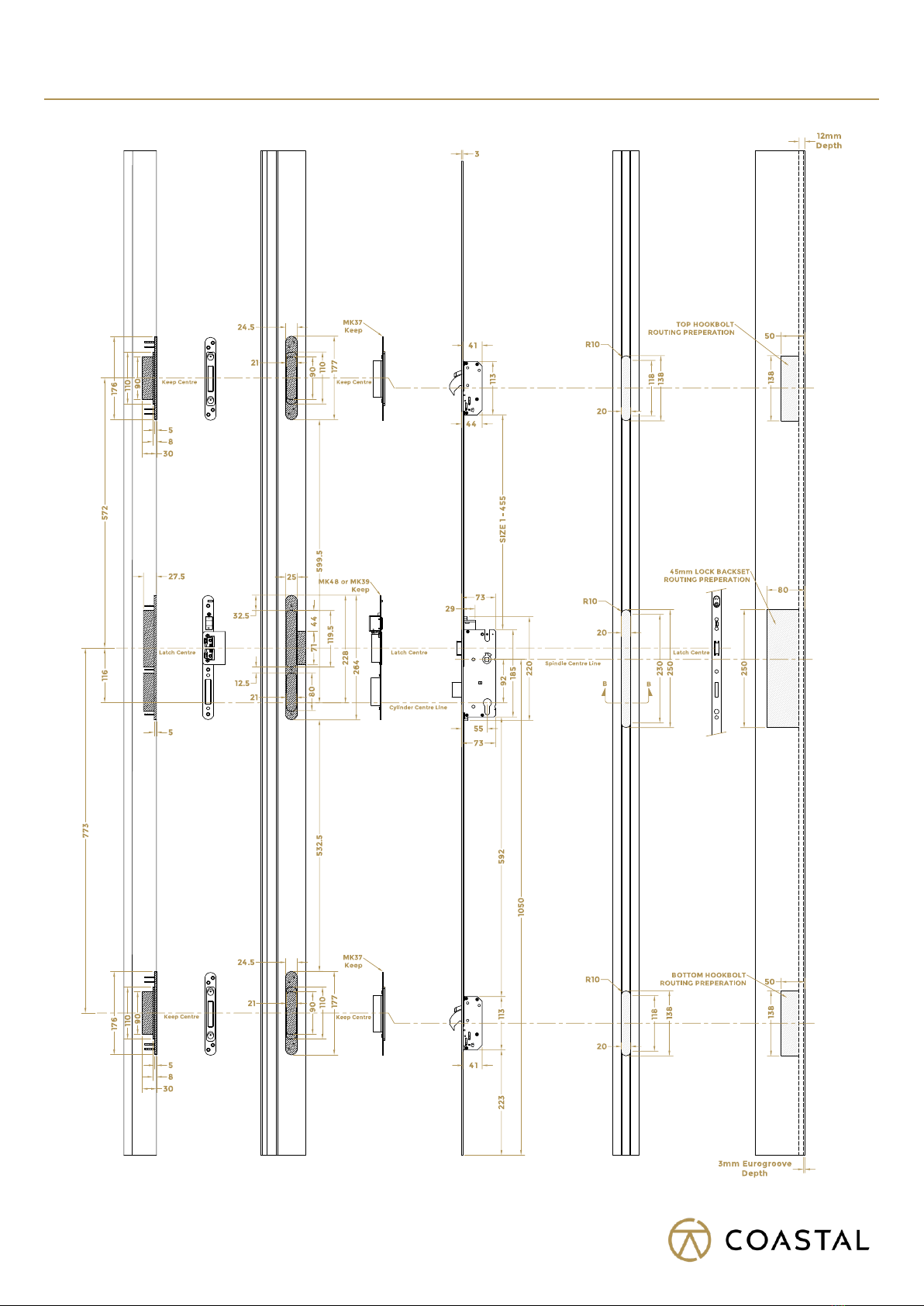

45MM BACKSET (BS) LOCK – FRAME/SASH ROUTER DETAIL
LIT-DC-ML3120S
Page 9 of 14
T01726 871 025 Esales@coastal-group.com Wcoastal-group.com
© Coastal Specialist Ironmongery Ltd
FRAME SASH
FRAME SASH
Product Code: ML3120S
55MM BACKSET (BS) LOCK – FRAME/SASH ROUTER DETAIL
LIT-DC-ML3120S
Page 10 of 14
T01726 871 025 Esales@coastal-group.com Wcoastal-group.com
© Coastal Specialist Ironmongery Ltd
