CNPOS ® USER MANUAL

CN-POS890/CN-POS887

USER MANUAL

CNPOS ® USER MANUAL

Content

Introduction.......................................................................................................................................................... 1
Chapter 1 Feature and Performance............................................................................................................... 1
1 Print Performance ........................................................................................................................................ 1
2 Print Paper .................................................................................................................................................... 2
3 Print Font....................................................................................................................................................... 2
4 Interface......................................................................................................................................................... 2
5 Print Control Commands............................................................................................................................. 3
6 Power Supply................................................................................................................................................ 3
7 Operation Environment ............................................................................................................................... 3
8 Outline Dimension........................................................................................................................................ 3
9 Model classification...................................................................................................................................... 3
Chapter 2 Operation Specification ................................................................................................................... 4
1 Printer Appearance...................................................................................................................................... 4
2 Paper Installation.......................................................................................................................................... 5
2.1 Paper Loading................................................................................................................................... 5
2.2 Solution to Paper Jam...................................................................................................................... 6
3 Interface......................................................................................................................................................... 6
3.1 Ethernet Interface............................................................................................................................. 6
Fig.2-2 Ethernet interface ................................................................................................................. 7
3.2 USB Interface.................................................................................................................................... 7
3.3 Cash Drawer Interface..................................................................................................................... 7
3.4 Power Connection............................................................................................................................ 8
4 Buttons and Indicators................................................................................................................................. 9
5 Power on status.......................................................................................................................................... 11
6 Self-test........................................................................................................................................................ 11
7 Hexadecimal Printing................................................................................................................................. 12
8 Parameter Setting ...................................................................................................................................... 13
9 Enter the program upgrade mode............................................................................................................ 14
Appendix A......................................................................................................................................................... 15








CNPOS ® USER MANUAL

Introduction

POS890 printer is a new type line thermal printer, it features in fast speed print, low

print noise, high reliability, perfect print quality and ribbon needless, avoiding the

vexation of regular maintenance.

POS890 printer: small in outline dimension, simple operation, and extensive

application, especially suitable for commercial cash register, PC-POS, bank POS

and all kinds of receipts print.

Warning

This is a class A product. In a domestic environment this product

may cause radio interference in which case the user may be

required to take adequate measures.

Chapter 1 Feature and Performance

1.1 Print Performance

● Print method: direct thermal

● Print paper width: 79.5±0.5mm

● Print density: 8 dots/mm, 576 dots/line

● Print speed: max 220mm/s

● Reliability

(1) Print head life: 100km

Using condition:

＊Print 12 × 24 ASCII characters, print 50 lines each time, intermittent print

repeatedly

＊Use specified thermal paper

CNPOS ® USER MANUAL

(2) Cutter life: 1000,000 cuts

Using condition: less than 30 cuts/minute

● Valid print width: 72mm

1.2 Print Paper

● Thermal paper roll model: TF50KS－E (Japan paper co.ltd)

AF50KS-E (JUJO THERMAL)

● Thermal paper roll: Width－－－ 79.5±0.5mm

Outer Diameter －－－ 80mm (max.)

Inner Diameter－－－13mm (min.)

Thickness －－－ 0.06mm～0.08mm

1.3 Print Font

● ANK Character Set

12×24 dots,1.5（W）×3.00（H）mm

● GB GB2312-80(Chinese):

24×24 dots,3.00（W）×3.00（H）mm.

1.4 Interface

● Ethernet Interface: Normal Ethernet interface.

● USB Interface:USB interface

● Cash Drawer Control

DC24V, 1A, 6-pin RJ-11 socket.

CNPOS ® USER MANUAL

1.5 Print Control Commands

● Character print commands: support double-width, double height print of ANK

characters, user-defined characters and Chinese characters, the character line

spacing is adjustable.

● Graphics print commands: support the print of bit-map graphics and download

bit-map graphics with different density

●GS barcode print commands:

support UPC-A，UPC-E，EAN-13，EAN-8，CODE39，ITF25，CODEBAR，CODE93，

CODE128,PDF417,QR code，DATA Matrix code print.

1.6 Power Supply

●DC24V±10％, 2A, A-1009-3P power socket

1.7 Operation Environment

● Operation temperature: 0～50℃; Relative humidity: 10～80％

● Storage temperature: -20～60℃; Relative humidity: 10～90℃

1.8 Outline Dimension

●185(L)mm×150(W) mm×123 (H)mm

1.9 Model classification

Model

Interface

CN-POS890E

Ethernet Interface, USB Interface

CN-POS890US

RS－232C Serial Interface, USB

Interface

CNPOS ® USER MANUAL

Chapter 2 Operation Specification

2.1 Printer Appearance

CNPOS ® USER MANUAL

2.2 Paper Installation

2.2.1 Paper Loading

POS890 adopts 79.5mm±0.5mm width thermal paper roll.

Steps of Loading Thermal Paper are as below:

Hold down the upper cover button on the left side, open the movable upper cover,

draw a certain length of the paper roll, put the paper end on the print head, close the

upper cover and press it downwards lightly.

1. Pay attention to the direction of loading paper,

make the printing surface face to the print head.

2. Please don’t feed or draw the paper forwards or

！Caution!

CNPOS ® USER MANUAL

backwards with hands.

3. Keep clean of the print head, avoid to influence

the printing quality.

2.2.2 Solution to Paper Jam

If cutter jam, turn off the power, and turn on again, the cutter will be back to original

position. If paper jam, open the paper strage cover, and take out the paper. If the

cutter can not be back to the original position, open the cover of it, and turn the white

plastic gear by the direction suggestive on the cutter by hand to make the cutter be

back to the original position.

If cutter jam, but hope no loss of data in printer, don’t turn off the power. Get the

cutter back to the original position by the above mentioned method by hand. Then

open the paper cover and take out the paper, close the paper cover. The printer will

recover automatically from Cutting Error.

2.3 Interface

2.3.1 Ethernet Interface

The model with Ethernet interface use RJ45 Network socket. The appearance is as

Fig.2-2 shows:

CNPOS ® USER MANUAL

Fig.2-2 Ethernet interface

2.3.2 USB Interface

The standard accessories of POS890 printer includes a Mini USB cable which

connects printer and main device. The USB type belongs to the slave device

type(DEVICE). Pins description of Mini-USB as Fig.2-3 below:

2.3.3 Cash Drawer Interface

The cash drawer interface of POS890 adopts RJ-11 6-pin socket, as Fig.2-5 shows:

Fig.2-4 Cash Drawer Interface

The pin assignment is as below:

Pin No.

Signal

Direction

Chassis Ground

——

Cash drawer driver

signal 1

Out

Function

Notes

V Bus

Power +5V

Data-

Data+

Data-

GND

Ground

Fig.2-3 USB interface

CNPOS ® USER MANUAL

Cash drawer on/off

status signal

+24VDC

——

Cash drawer driver

signal 2

Out

Signal ground

——

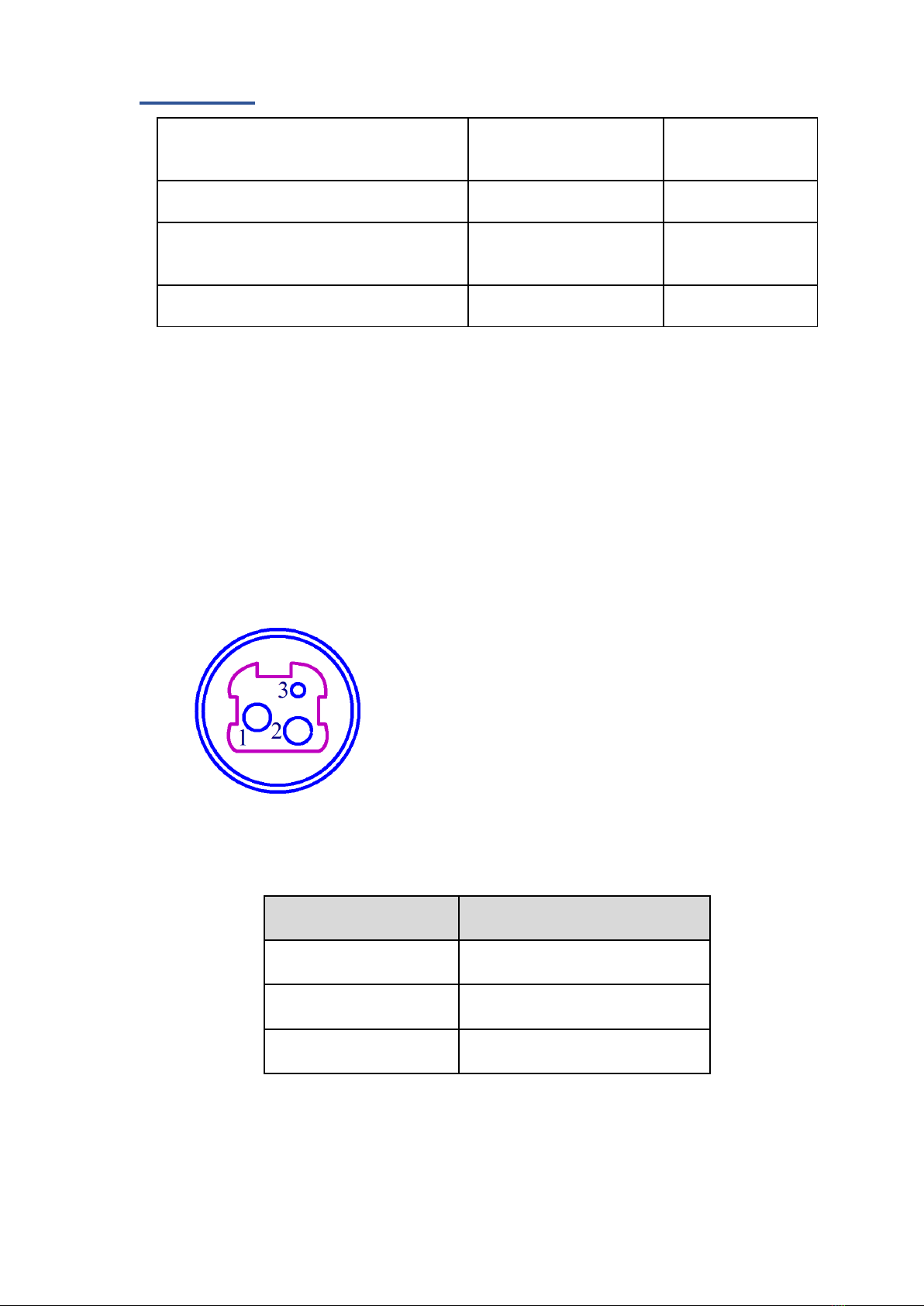

2.3.4 Power Connection

POS890 uses the external power supply adopter as 24V±10％,2A,

power socket is A-1009-3P model, as Fig. 2-5 shows:

The pin assignment is as below:

Pin No.

Signal

+24VDC

Ground

Fig.2-5 Definition of power socket and pin
