INSTRUCTION MANUAL

30X DAY/NIGHT ZOOM CAMERA

MODEL Z670

▪To prevent fire or shock hazard, do not expose the camera to rain or moisture.

▪To avoid electrical shock, do not open the case of this product.

▪Operate this product with the system such as COM22168, LCD2088, TFT2284C,

TFT2288C and LCD261616 or by using only the power supply included.

▪Do not overload electrical outlets or extension cords, this can result in fire or electric

shock.

▪Keep this product away from strong magnetic fields.

▪Do not expose this product in direct sunlight or strong reflected rays.

▪Refer servicing to qualified personnel only.

▪Do not change or modify this product, the warranty terms will be voided.

▪High Resolution: 480 TV Lines

▪ Up to 30 Times Zoom

▪ Color image automatically turns into black and white images at night (Day/Night)

▪ Distinguish Bills in a Cash Register

▪ View objects in more detail

▪ Auto White balance/Gain Control/Backlight Compensation

2. FEATURES

1. IMPORTANT SAFETY PRECAUTIONS

3. ZOOM CAMERA

[Fig.3-1 Rear view of the zoom camera]

1. Video Output/DC power Input (6 pin Din)

This is a 6pin Din connector for outputting video signals and for DC 12V input from

the system such as COM22168, LCD2088, TFT2284C, TFT2288C and LCD261616.

2. Video Output (BNC)

This is a BNC connector for outputting video signals.

3. 12V DC IN Jack

When the 6pin Din connector ① is not connected, apply DC12V 500 mA

regulated voltage to the DC IN Jack ③.

4. Power LED

It will be lit in green when the 6pin Din ①is connected or DC voltage is applied to

the DC IN Jack.

5. Terminal Block for RS485

This camera has a terminal block for 2 wires in polarity.

Connect the provided twisted pair cable to this terminal block and the other end to the

DVR system (refer to Chapter 5.0 Installation for more detail).

6. Menu, Tele/Wide, Near/Far

Refer to Section 4.1 On the zoom camera for more detailed information)

4.1 On the Zoom Camera

-Press the Menu button on the rear of the camera and then the following Menu will

display.

The Menu button enables users to access the menu screen and to go back to the

previous menu or exit from the present screen.

Note:

When the 6pin Din is connected, do not apply 12V DC to the DC IN Jack ③

and connect the BNC video out ②.

Note:

When the BNC connector ②is used, do not connect the 6pin Din cable to the

6pin Din jack①.

4. SETUP

▪ LANGUAGE

Choose “LANG (LANGUAGE)” in the Menu shown in Fig.4-1 by pressing

“TELE”/”WIDE” button and select “EN (English)” by pressing “NEAR”/”FAR”

button.

▪ FOCUS

Choose “FOCUS” in the Menu shown in Fig.4-1 by pressing “TELE”/”WIDE”

button and choose one among MANU (Manual), KCTL and AUTO by pressing

“NEAR”/”FAR” button.

▪ZOOM

Choose “ZOOM” in the Menu shown in Fig.4-1 by pressing “TELE”/”WIDE”

button and select “ON” or “OFF” by pressing “NEAR”/”FAR” button.

If the “ON” is selected, the zooming function will be operated properly.

If the “OFF” is selected, the zooming function won’t be working.

▪LOCK

Choose “LOCK” in the Menu shown in Fig.4-1 by pressing “TELE”/”WIDE”

button and select “ON” or “OFF” by pressing “NEAR”/”FAR” button.

If the “ON” is selected, the zooming function won’t be working.

If the “OFF” is selected, the zooming function will be operated properly.

▪ ID

Choose “ID” in the Menu shown in Fig.4-1 by pressing “TELE”/”WIDE” button

and choose a number among “0” to “255” by pressing “NEAR”/”FAR” button.

-Press the Menu button again and then the following Menu will be displayed.

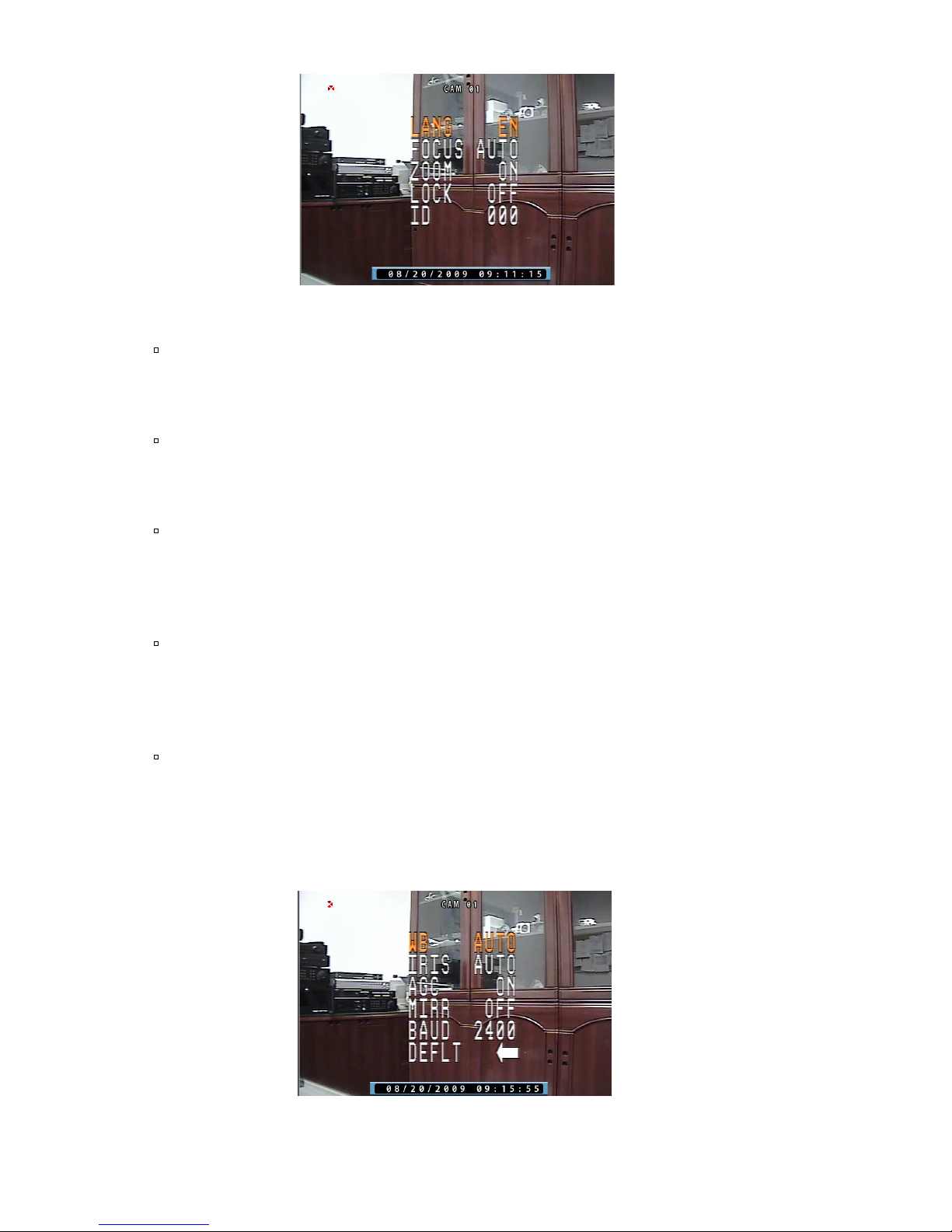

[Fig.4-1 Menu settings]

[Fig.4-2 Menu settings]

▪WHITE BALANCE (WB)

Choose “WB (WHITE BALANCE)” in the Menu shown in Fig.4-2 by pressing

“TELE”/”WIDE” button and choose one among AUTO, OUT DOOR, INDOOR

and LAMP by pressing “NEAR”/”FAR” button.

▪IRIS

Choose “IRIS” in the Menu shown in Fig.4-2 by pressing “TELE”/”WIDE” button

and choose one among AUTO, FIX, NIGHT and MOVE by pressing

“NEAR”/”FAR” button.

▪AGC

Choose “AGC” in the Menu shown in Fig.4-2 by pressing “TELE”/”WIDE” button

and select “ON” or “OFF” by pressing “NEAR”/”FAR” button.

▪MIRROR (MIRR)

Choose “MIRROR” in the Menu shown in Fig.4-2 by pressing “TELE”/”WIDE”

button and select “ON” or “OFF” by pressing “NEAR”/”FAR” button.

You can view the mirror image when the “ON” is selected and the normal image

when the “OFF” is selected.

▪BAUD RATE

Choose “BAUD” in the Menu shown in Fig.4-2 by pressing “TELE”/”WIDE”

button and choose 2400 BPS (Bit Per Second) among 2400, 4800 and 9600 by

pressing “NEAR”/”FAR” button.

▪DEFAULT (DEFLT)

Choose “DEFAULT (DEFLT)” in the Menu shown in Fig.4-2 by pressing

“TELE”/”WIDE” button and press the Menu button twice to set the factory default

values.

4.2 On the DVR system

▪ Click on the SETUP icon on the Menu Bar as shown below.

▪ Click the “CAMERA” in the Setup Menu and then the Camera Menu will be

displayed as shown in Fig.4-4.

Tips for Quick Setup on the zoom camera:

- You can operate the zoom camera without changing any settings.

- The factory default ID is “000”, but choose a number among “0” to “255” as

an ID if necessary.

- Do not chan

e the Baud Rate which is 2400.

[Fig.4-3 Menu Bar]

▪ Click the “PAN/TILT (PELCO D)” button on the channel you wish to install the

zoom camera and then the PAN/TILT Menu will be displayed as shown in Fig.4-5.

▪ Settings in the PAN/TILT Menu

(Refer to System manual section 7-4.5 on page 90 for more detail)

- Click the PTZ ID button in the PAN/TILT Menu shown in Fig.4-5, then the On

Screen Keyboard will show up.

- Delete the current PTZ ID with the button and enter a new ID by using On

Screen Keyboard, and then click “OK” button to set with the new ID. The ID

should be the same ID as the zoom camera has (e.g.: If the ID of the zoom camera

is set to 7, the PTZ ID in the PAN/TILT Menu as shown in Fig.4-5 should be

entered 7).

[Fig.4-4 Camera Menu]

[Fig.4-5 PAN/TILT Menu]

- Click the “PAN/TILT & REMOTE” button in the PAN/TILT menu shown in

Fig.4-5, then the vendor lists will show up. Select “PELCO” on the vendor lists

by clicking the mouse and then the protocol “PELCO D” will display.

- Click the “BAUD RATE” button in the PAN/TILT menu and choose 2400bps

among 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps and

115200bps on the Baud Rate pop-up window by clicking the mouse.

- Do not change the settings for Data Bits, Stop Bits and Parity Bits.

▪ Connect the RED and BLUE colored wire of the Data Cable (Twisted Pair Cable) to the

“+” and “-“ terminals on the rear of the camera and the DVR system as shown in Fig5-

1. Refer to the instruction manual of DVR system relevant to the location of “+” and

“-“ terminals for RS485.

▪ To connect the bared copper wire on the end of the RED and BLUE colored wire, push

the terminal with “-“driver (2mm) until inserting it into the round hole as shown in

Fig.5-2.

5. INSTALLATION

Tips for Quick Setup on the DVR system:

- Enter the same ID as the zoom camera has.

e.g.1: if the ID of the zoom camera is “000”, enter “0” in the PTZ ID box.

e.g.2: if the ID of the zoom camera is “007”, enter “7” in the PTZ ID box.

- The protocol should be “PELCO D”.

- Choose the Baud Rate (communication speed) 2400bps on the pop-up

menu.

[Fig.5-1 Installation]

Zoom Camera

61’Data Cable

6 Pin Din

60’Cable

RED BLUE

DVR SYSTEM

▪ Connect the one end of 60’ 6pin Din cable to the Din jack on the rear of the zoom

camera and the other end of cable to the DIN jack that the settings for PAN/TILT menu

on the DVR system has been completed.

-Be sure that the two arrows on the camera and the cable should be aimed at each

other.

-Do not apply DC 12V to the DC Jack and connect the BNC video out on the zoom

camera when the 6 pin Din Cable is connected.

▪ Make sure that the video quality is normal and the power LED on the rear of the zoom

camera is lit in green when the DVR system is turned ON for the next step.

▪ Attach the mounting bracket to the desired location on the wall or ceiling, wherever you

want to install the zoom camera. Locate a wall stud or ceiling joist and secure the

mounting bracket using the supplied screws.

▪ Attach the zoom camera to the mounting bracket and firmly tighten the swivel.

▪ Click the PAN/TILT button on the Menu bar in the Live mode to access the zoom

camera as shown in Fig. 6-1 and then the PAN/TILT Controller will be displayed as

shown in Fig. 6-2.

6. OPERATION

[Fig.5-2Connecting bared copper wire]

Zoom Camera Zoom Camera Zoom Camera

BLUE

Screwdriver

61’Data Cable

RED

BLUE

61’Data Cable

BLUE

DVR SYSTEM

61’Data Cable

DVR SYSTEM

61’Data Cable

DVR SYSTEM

BLUE

RED

▪ Click the Channel button in Fig. 6-2 and select the Channel number of zoom camera on

the pop-up screen.

▪ Click and hold the “+” or “-“ button for Zoom In/Out until getting the best quality of

objects. If the Focus is set to “AUTO” on the zoom camera, it won’t be adjusted by the

“+” or “-“button.

The function of PAN/TILT and PRESET are not available on the Zoom Camera.

If the product does not function properly, please check the following points before

contacting the service center.

seidemeRdnasesuaCsmelborP

neewtebelbac’06fonoitcennockcehC-erutcipoN

the DVR system and the camera

-Check the included AC power supply for

retail packaging.

elbacatadehtkcehC-tuO/nImoozoN

-Check the terminal block for wrong

wiring (polarity)

-Check the settings such as ID, Baud Rate

on the camera and the DVR system

weivfodleifehtnithgiltopsgnortS-gnirekcilferutciP

Dim picture, picture too dark or too bright -Adjust brightness on the DVR system

[Fig.6-2 PAN/TILT CONTROL window]

7. TROUBLE SHOOTING

[Fig.6-1 PAN/TILT button]

ZOOM / FOCUS

PAN / TILT

CHANNEL

EXIT

PRESET

Image pickup device SONY Color CCD

TV system NTSC

Resolution 480 TV lines

Minimum illumination 0.5 Lux

Video output 1.0v p-p composite @75 ohms

S/N ratio More than 48db

Gamma characteristics 0.45

Electronic Shutter Speed 1/60 to 1/100,000sec

Zoom Up to 30X Max.

White Balance Auto

Gain Control Auto

Control Interface RS485

Baud Rate 2400BPS

Focus Adjustment High Speed Auto or Manual Adjustment

Current consumption 250 mA @ DC12V

Power supply DC 12V

Operational temperature -10?C to 50?C RH95% Max

Dimensions 60 (W) x 60 (H) x 120(L) mm

Weight 0.9 Lbs

1-Zoom camera

1-Mounting bracket

1-60’ 6pin Din cable for COM22168

(Not included in the retail packaging)

1-60’ BNC/Power to BNC/Power for retail packaging

(Not included in the COM22168)

1-61’ Data cable (Twisted Pair Cable)

1-AC power supply (ADT120500R: not included in the COM22168)

1-Instruction manual

1-Warranty registration card

1-Warnig label

CA100 100’ Extension cable

CN020 Coupler for cable extension

CA100BP 100’ BNC/Power to BNC/Power extension cable w/BNC coupler

8. SPECIFICATIONS

9. PACKAGE INCLUDED

10. OPTIONAL ACCESSORIES

Table des matières

Autres manuels Clover Caméra de sécurité

Clover

Clover C1704DVR Manuel utilisateur

Clover

Clover OW0702 Manuel utilisateur

Clover

Clover WW2000 Manuel utilisateur

Clover

Clover CM800 Manuel utilisateur

Clover

Clover CCM630P Manuel utilisateur

Clover

Clover WW8000 Manuel utilisateur

Clover

Clover WW2000 Manuel utilisateur

Clover

Clover HDC100 Manuel utilisateur

Clover

Clover HDC500 Manuel utilisateur

Clover

Clover HDC211 Manuel utilisateur

Clover

Clover CCM630 Manuel utilisateur

Clover

Clover C2712 Manuel utilisateur

Clover

Clover DC534 Manuel utilisateur

Clover

Clover HDC365 Manuel utilisateur

Clover

Clover HDC041 Manuel utilisateur

Clover

Clover HDC150 Manuel utilisateur

Clover

Clover CC5301 Manuel utilisateur

Clover

Clover HDC238 Manuel utilisateur

Clover

Clover USB01PT Manuel utilisateur

Clover

Clover CW5700TX Manuel utilisateur

Clover

Clover DC355 Manuel utilisateur

Clover

Clover RD5354 Manuel utilisateur

Clover

Clover HDC560 Manuel utilisateur

Clover

Clover OC275 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
