Clover WW2000 Manuel utilisateur

I. Receiver (WW3000R)

1. Components

① Channel /Scanning Selection Button

② Power Button

③ Channel Indicator Lamp

④ Scanning Interval Time Indicator Lamp

⑤ Scanning Indicator Lamp

⑥ Infrared Emitting Window

⑦ Rectangle Antenna

⑧ Pull-shaft Antenna

⑨ IR Jack

⑩ Audio Left Output Jack

○

11 Video Output Jack

○

12 Audio Right Output Jack

○

13 Power Input Jack

○

14 Power Indicator Lamp

○

15 Infrared Emitting Window

Re a r

Front

Remote Controlle

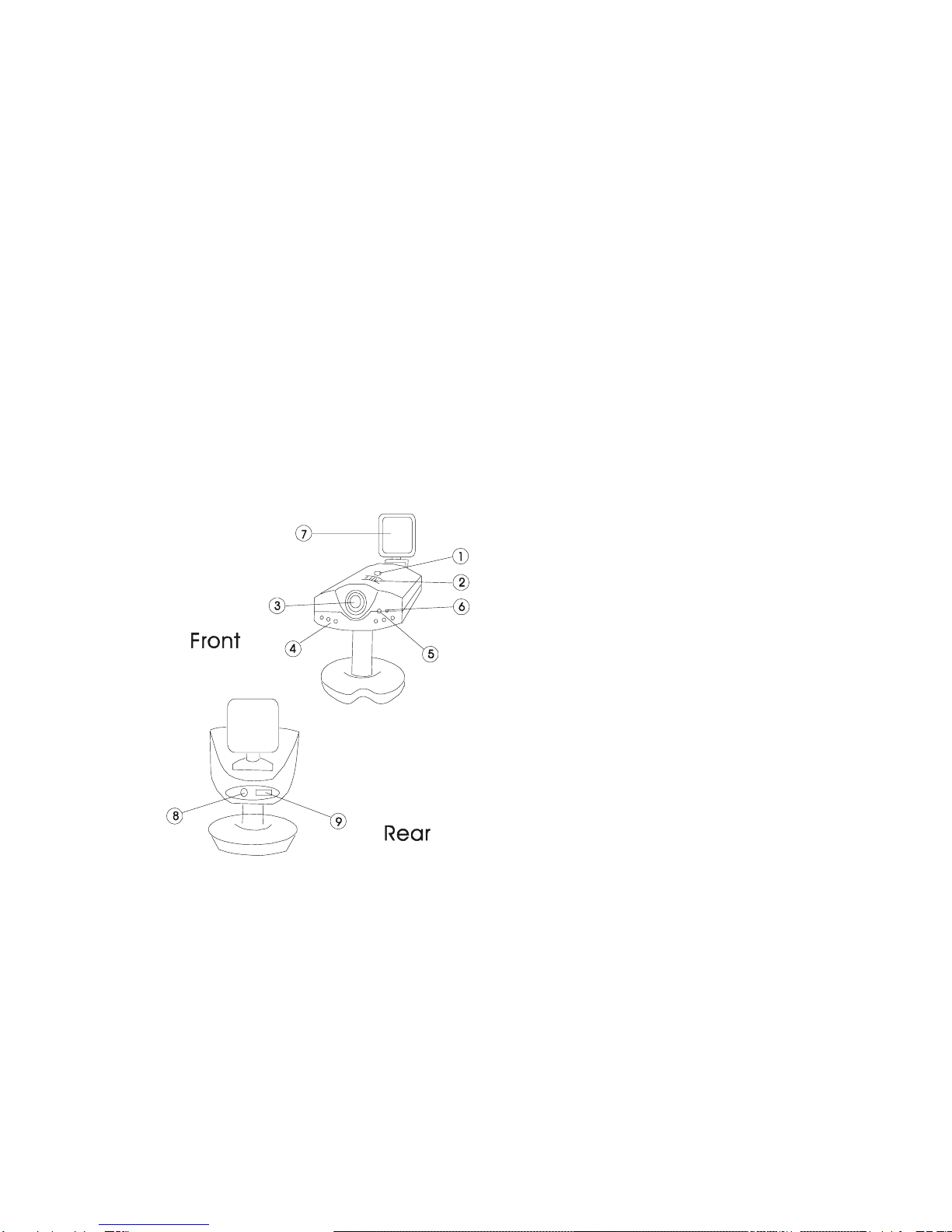

II. Transmitter --- Camera (WW2000)

1. Component

① Power Button

② Focus Adjustor

③ Camera Lens

④ Infrared Emitting Tube

⑤ Indicator Lamp

6.Crophone

7. RectangleAntenna

8. Input Jack of Power DC 12V

9. Channel Selector

1) Use the pin of power line with adaptor to insert into the jack ⑧, and plug the power

supply to connect the camera.

2) Press the Button ①to open the power then the indicator lamp ⑤will be bright.

3) Adjust the Channel Selector ⑨to the corresponding channel of monitor.

4) If the monitor is working, it will display the picture which camera was taken.

5) Adjust the Focus Adjustor ②to get the clearest image (when first time do it, then

afterward do not need to re-adjust it).

6) Place the camera in the far site, and synchronously adjust its antenna ⑦and monitorˊs

to get the clearest image.

7) You can also adjust the direction and the up-angle of camera when you need.

1) Connect the Video Output Jack ○

11 and Audio Output Jack ○

10 /○

12 to the Input jack of displaying

equipment (e.g. TV set, LCD, Overhead Projector, and Multimedia Computer, etc.) by an AV

signal line. Audio signal (L & R) can be singly connect to Stereo Device. Pull up the 2.4G

Rectangle Antenna ○

7, connect the power supply by a power line with adapter, and after press

down the Power Button ○

2, there will be appear a wonderful picture on screen, issue a pleasant

sound from the louder speaker.

2) If there is two-sets unit work on the same place, for erasing the interference from same channel,

you can respectively adjust the camera’s channel and press scanning button ○

1to difference

channel from another (Please note the Transmitter and Receiver must being wok in the same

channel). Carefully adjust the rectangle Antenna ○

7of both units can get the best receiving

effect.
