Clover CDR-4010 Manuel utilisateur

USER’S INSTRUCTIONS

Stand-Alone 4channel

DIGITALVIDEO RECORDER

MODEL CDR4010

- 2 -

1. About this manual---------------------------------------------- 4

2. Unpacking------------------------------------------------------ 4

2.1 Stand-alone DVR Units ------------------------------- 4

2.2 DC 12V SMPS Adapter ------------------------------- 4

3. Features--------------------------------------------------------- 4

4. What to do at the time of installation ------------------------ 5

5. Specifications--------------------------------------------------- 6

6. Installation------------------------------------------------------- 7

6.1 Controls and Connectors------------------------------- 7

6.2 System connection------------------------------------- 9

6.3 Installation----------------------------------------------- 10

7. How to operate------------------------------------------------- 13

7.1 General information------------------------------------ 13

7.2 Configuration of the front of the unit------------------ 14

7.3 Basic configuration of the monitor display----------- 15

7.4 Live ----------------------------------------------------- 15

7.5 Recording----------------------------------------------- 17

7.6 Replaying----------------------------------------------- 19

8. Setup ----------------------------------------------------------- 21

8.1 Setup displays tree------------------------------------- 21

8.2 How to set up DVR-------------------------------------- 23

8.3 Setup --------------------------------------------------- 23

8.4 Alarm --------------------------------------------------- 23

8.5 System -------------------------------------------------- 26

8.6 Video --------------------------------------------------- 34

8.7 Record -------------------------------------------------- 36

8.8 Display -------------------------------------------------- 41

8.9 User Account ------------------------------------------- 43

9. Installation of additional HDD---------------------------------- 44

9.1 Standard built-in HDD---------------------------------- 44

9.2 Installation of an additional HDD---------------------- 45

NTENT

- 3 -

10. NTSC/PAL Selection-------------------------------------------- 46

10.1 PAL/NTSC Selection------------------------------------ 46

11. Networking ----------------------------------------------------- 46

11.1 Requirements ------------------------------------------- 46

11.2 Loading the host program to PC ---------------------- 47

11.3 Cable connection ------------------------------------- 47

12. Networking 1:1 between PC and DVR ----------------------- 47

12.1 DVR Setting --------------------------------------------- 47

12.2 Connecting to a LAN using TCP/IP ------------------- 49

12.3 Setting up PC host program --------------------------- 50

12.4 Connect with network --------------------------------- 51

12.5 Function of buttons ------------------------------------- 54

13. Warranty information------------------------------------------- 61

14. How to obtain factory service--------------------------------- 61

APPENDIX -------------------------------------------------------------- 62

1. Recording time table -------------------------------------- 62

2. Factory default table -------------------------------------- 62

FAQ ------------------------------------------------------------------- 65

- 4 -

1. About this manual

 This is the User’s Manual for 4ch stand-alone type DVR (Digital Video Recorder).

 Please read this manual thoroughly to ensure correct use.

2. Unpacking

 Care should be taken when unpacking to avoid damaging the unit.

 Please check that the following items are included:

- DVR main unit

- All Accessories: Bracket, Power cable, DC 12V SMPS Adaptor

- User’s Manual

2.1 Stand-alone DVR (Digital Video Recorder)

Stand-alone DVR can record the video signals from 4 cameras to the built-in HDD and replay

them at real time or at 1~64x speeds. This system has numerous monitoring features such as

automatic sequential display, full screen display for a selected input video signal, pausing, 2x

digital zooming, quad splitting, etc. Additionally, real time monitoring, replaying and

buzzer/light alarming are possible via network (TCP/IP).

2.2 DC 12V SMPS Adapter

Use only the adapter provided or specified by the manufacturer. Use of non-approved

power adapter may damage the unit and or result in accidents or fire. Use of such a non-

approved devise could void the warranty.

 Input: AC 90~265V 50/60Hz

 Output: DC 12±0.5V MAX3.5A

 Ripple: Below ±50mV

3. Features

 Titling for each quad display, dwell time setting for automatic sequential channel

switching and alarming against signal loss.

 This unit incorporates powerful recording modes including automatic motion

detection which enables automatic prolonged recording time.

 Wavelet algorithm adopted by DVR achieves very high compression ratio while

enabling high resolution compression and decoding.

 Very easy to operate.

 Easy to install, just connect cameras to DVR and power up the unit.

 Remote controlling is available via TCP/IP networking.

 Recorded data can be transmitted to a computer and any captured image can be

printed.

- 5 -

4. What to do at the time of installation

DVR should be installed in the following order:

1. Make sure all the required hardware is available.

 DVR unit

 Up to 4 cameras (including power source)

 CCTV monitor (or TV set)

 Network cable if connecting to a PC

2. Connect the cameras, the DVR unit and monitor (Refer to Fig 6-3).

3. Connect the AC power supply (SMPS) to the DVR.

4. Confirm live video is displayed on the monitor before going to the next step.

5. Select Set Menu and set current date and time. (Refer to 8.setting).

6. Run FACTORY DEFAULT menu on the SYSTEM menu.

7. Perform HDD formatting.

8. Escape from set Menu.

9. Set values for required options.

10. Network cable should be connected to the DVR unit before turning the power on.

Refer to Fig 6-7 for the cable specification.

- 6 -

5. Specifications

Television System NTSC PAL

Refresh Rate 60 field/sec 50 field/sec

Digital Memory 720x484 720x572

Video Inputs 4 Cameras

Video Input Signal 1.0 Vp-p Composite, 75 Ohms

Video Outputs 4 Looping camera signal, 1 Main monitor,

1 Extra monitor, 1Y/C

VIDEO SIGNAL

Video Output Signal 1.0 Vp-p 75 Ohms

Zoom 2 times real time Digital

Freeze Each 4 Camera

PIP PIP Window

Display Format 1 screen, quad, 1+3(1/3,2/3 Scale)

Video Loss Indicate Alarm with Blue screen

VIDEO

FEATURES

Border Line Thickness, Color

Recording Speed 1 Frame/sec ~ 120

Frames/sec 1 Frame/sec ~ 100

Frames/sec

Compression rate 4:1 ~ 250:1

Algorism Wavelet

Recording (Timer, Alarm, Manual) + Motion

RECORD

Material HDD (Over Write)

REPLAY Time or Event Normal (real speed), Pause, Step

Forward, Step Backward, Fast Forward

(1~64 times), Fast Backward (1~64 times)

PAN/TILT RS232C 4 Cameras

Ethernet (TCP/IP) 10/100MbpsREMOTE RS232C 1200bps ~ 115200bps

HDD IDE (7200rpm) 120 GB (Built in) + 1 HDD (Vacant)

DC POWER External Adapter DC12V SMPS

AC POWER Free voltage

(100~240V, 50~60Hz) Approx. 35W Consumption

Video Inputs 4 BNC

Looping Outputs 4 BNC

Main monitor Output 1 BNC, 1 Y/C

Extra monitor Output I BNC

Alarm In/Out 8-pin Terminal

Ethernet RJ45

CONNECTOR

RS232C DSUB9

19 inch, 1U(Standard) (H)44 x (W)420 x (D)300 (mm)MECHANICAL Weight 8.7Kg(Rack type)

Operating

Temperature 0 ~ 60 deg C

ENVIRONMENT

Humidity 10 ~ 90%

Fig. 5-1

Design and specifications are subject to change without notice.

- 7 -

6. Installation

6.1 Controls and Connectors

Fig.6-1(Front)

Fig. 6-2(Rear)

 Unpacking the unit

►

DVR unit (including one built-in HDD)

►AC adapter (SMPS)

►AC power cord

►Rack mounting bracket and bolts.

►User’sManual

►PC program CD or diskette for remote control.

RS232C PORT

Quick Play

Play

Stop

Seq. Screen

Recording

SETUP

Power LED

HDD

LAN LINK

LAN DATA

Screen fixed

Screen

PIP Screen

Split Screen

Choose 1~4Ch,

Seq. Screen Rew.

Quick Rew.

MAIN MONITOR

AUX MONITOR

S-VHS MONITOR

BNC INPUT

LOOP

ALARM INPUT

ALARM

LAN

POWER INPUT

Seq. Screen

- 8 -

 Notes for installation

►Install the system according to the instructions supplied in this manual.

►This product is designed for indoor use and should not be used outdoors.

►Avoid any area with high humidity or dust which can shorten the life the unit.

►Choose a well ventilated area and keep a minimum of 30 ㎝away from

obstructions. Do not place unit near heat generating devices. Do not place

items on the unit.

►Avoid any area with movement as this can interfere with the internal Hard Drive.

►Use a compatible input/output signal type of cameras and monitor.

►Contact your dealer if you are having any difficulty. The Warranty may be

voided in case of unauthorized disassembling or modification.

Note : Contact the dealer immediately if any components are

missing.

- 9 -

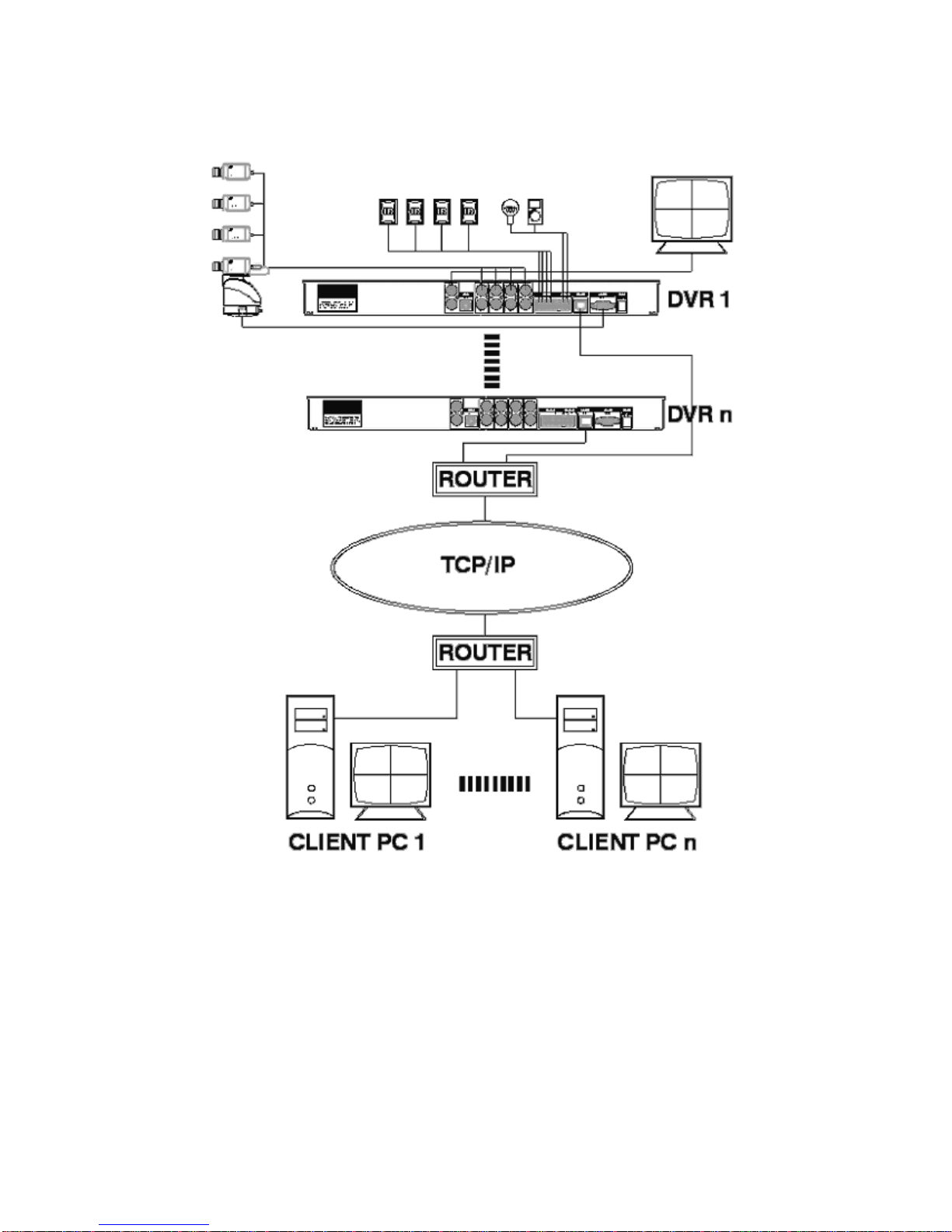

6.2 System Connection

Fig.6-3

- 10 -

6.3 Installation

 Camera Connection

►

Connection of cameras

Connect the cameras to Video Input (BNC connector) on the back of the unit

as shown in above Fig. 6-4

►

Connection of Loop Output

The Camera or video output is available from the Video Output (Loop Output)

on the back of the unit. (When BNC jack is connected to the Video Output, the

termination resistance (75Ω) is automatically switched to impedance status so

the external device must have termination resistance.)

 Monitor Connection

►

Connection of main monitor

Connect the monitor to “ Main” on the upper part of BNC connector.

►

Connection of auxiliary monitor

Connect the monitor to “Aux” on the lower part of BNC connector.

The output of auxiliary monitor is the same as the main monitor. For the unit is

equipped with a separate output buffer, so it works independently from the

main monitor.

►

Connection of S-VHS monitor

Connect the S-VHS monitor to “S-VHS” DIN jack on the rear of the unit.

It works independently from the main monitor.

►

Pin configuration of S-VHS connector.

Fig. 6-4

 Connection of Sensor and ALARM OUT

►

Connection of alarm (ALARM IN)

Connect the sensor to ALM (Alarm) IN.

The sensor should be contactor type and support NO (Normally Open). Refer to

Fig. 6-5 for connection.

►

Connection of ALARM OUT
