Clover CDR 0440 Manuel utilisateur

SAFETY PRECAUTIONS

EXPLANATION OF SYMBOLS

WARNING

To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.

CAUTION

Changes or modifications not expressly approved by the manufacturer may void the user’s authority to

operate this equipment.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer.

This symbol is intended to alert the user to the presence of important

operation and maintenance (servicing) instructions in the literature

accompanying the appliance.

This symbol is intended to alert the user to the presence of

unprotected “dangerous voltage” within the product’s enclosure that

may be strong enough to cause a risk of electric shock persons.

The bellow safety precautions must be followed.

WARNING

zDo not use if the unit emits smoke, strange sounds is heard, or odor is emitted.

zMake sure the power cable is not damaged.

zMake sure there is no dust accumulation on the power plug or the outlet.

zDisassembly prohibited

zDo not place any foreign objects inside the unit.

zDo not place a container holding water or other liquids above the unit when it is connected to power.

zDo not allow the unit to get wet.

zDo not use during thunder/thunder storms.

zDo not place in an unstable position.

zDo not expose to shock or vibration.

zDo not use this unit in areas where it is exposed to the possibility of explosion.

CAUTION

zDo not pull on the power cable when removing the power plug from the outlet.

zDo not touch the power plug with wet hands.

zDo not sit on.

zMake sure the cables are connected properly.

zDo not place heavy objects on connected units.

zNever move this unit while the power is turned on.

zDo not block the cooling fans or air ducts.

zDo not expose to extreme temperatures or humidity changes.

Precautions for supplied AC Adaptor

CAUTION

zNever disassemble or modify.

zNever get the adaptor wet.

CAUTION

zUse only the supplied AC adapter.

zDo not connect to other appliances.

zDo not connect this unit with the AC adapter in areas reachable to children or where pets move

freely.

zNever touch the AC adapter with wet hands.

zIf the unit emits smoke, strange sounds or smells immediately remove the AC adapter from the outlet.

zDo not use during thunder/thunder storms.

CAUTION

zMake sure the cable is connected properly.

zPreventing damage to a cable

Mainfeatures

zH.264 Video compression

zTRIPLEX operation (recording, playback, and networking)

zInstant and convenient data backup & firmware upgrade using USB flash drive

zSimple user interface

zIndividual channel setting and operation

zMotion detection

System components and Installation

Requirements for installation and safety

This chapter is for the requirements for safe installation and use.

This kit should be installed on a flat table or in a rack.

The location in which the DVR is installed in the room is very important for proper operation of the system.

When the DVR is installed too closely together or the location is poorly ventilated, the DVR may not operate

properly and maintenance of the DVR may be difficult. Make sure that the air should be sufficiently circulated

within the system operating room and the cover of the main system must be tightly fastened to prevent

malfunction.

There are high voltage parts inside. Do not open the cover during operation.

The DVR must be installed in a place that meets the following environmental conditions.

• Operating temperature: 5°C ~ 40°C (41°F ~ 104°F)

• Operating humidity: 30% ~ 90% RH

• Input voltage: DC +12V 5A

• Power usage: About 25Watts

• Frequency: 60Hz/50Hz

Main replacement parts

חHard disk (When HDD is factory-installed.): 1 year (25°C environment)

חCooling fan: 1 year (25°C environment)

חBattery: 2 years (25°C environment)

CAUTION

During the operation of this product, the fluctuation of input voltage must be within 10% of the rated voltage

and the external power outlet must be grounded, otherwise, it may cause electric shock or malfunction of the

product.

Do not connect heat-generating appliances to the same power outlet in which the product is plugged,

otherwise it may cause a fire or malfunction of the product.

The use of an Automatic Voltage Regulator (AVR) is highly recommended to ensure that stable power is

supplied.

CAUTION

HDD that is installed in DVR can be changed with a new one. However we guarantee that the new HDD must

be the same brand and model.

Components of DVR Package

The package contains the main unit and its components as specified below. When you purchase the package,

please check to ensure the components specified below are included.

DVR Set

Remote Control

Battery1.5V (AAA x 2EA)

Adaptor and Power cable

Client Software CD

User Guide

HDD Power & SATA Cable

HDD Screws

Audio Cable (for 16ch)

Mouse (Option)

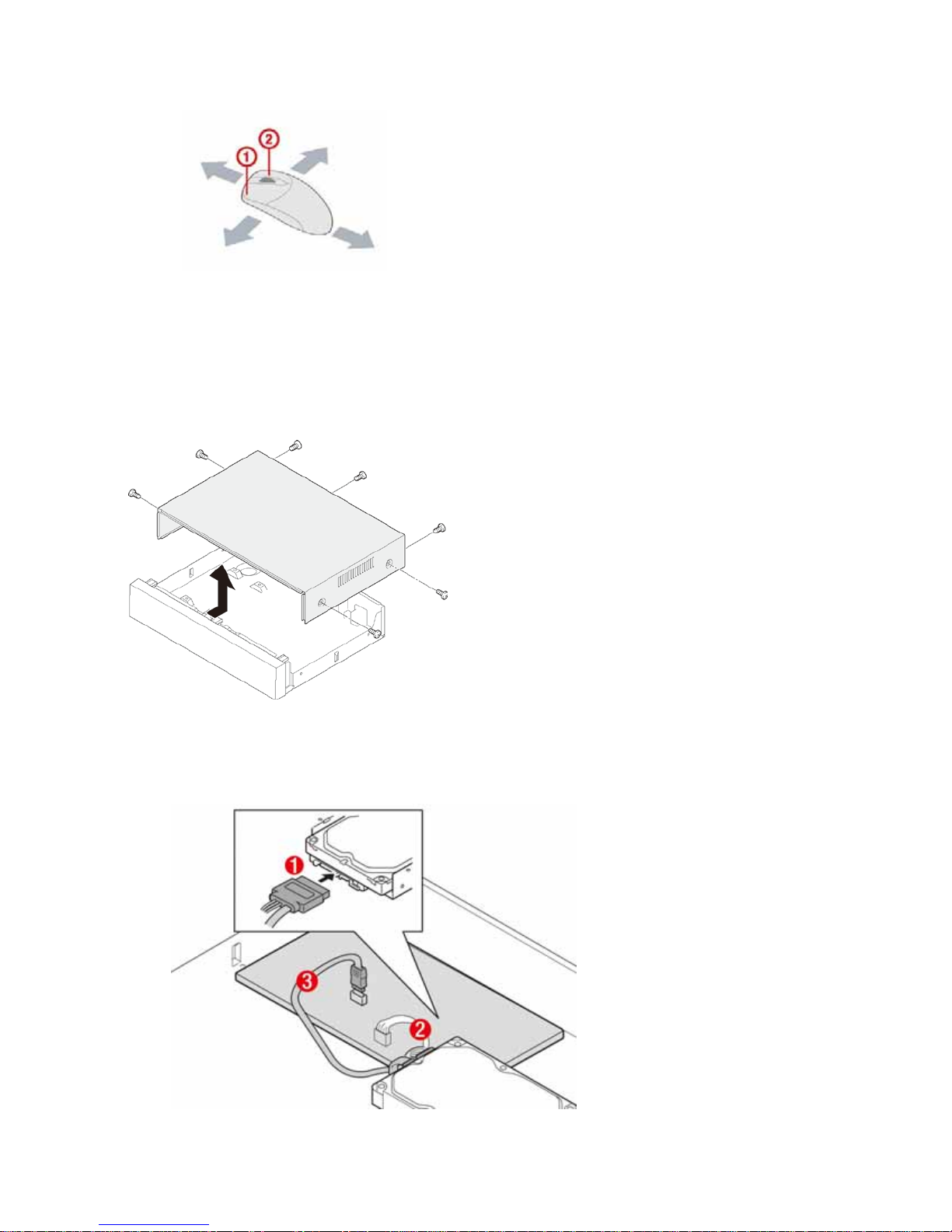

Basic function of the MOUSE

¢:Left button: SELECT function

£:Right button: ESC function

¢:Double click: Go to sub menu

Mounting the HARD DISK

1. Unfasten the cover of the unit.

2. Fix the supplied HDD mounting bracket to the hard disk using the supplied mounting bracket screws.

3. Connect the supplied SATA cable and power cable to the hard disk and fix the hard disk to the unit using

the supplied HDD fixing screws.

SPECIFICATIONS

ITEM 4CH 8CH 16CH

Video

Input

Channel, Input Level 4CH, Composite 8CH, Composite 16CH, Composite

Signal Format NTSC/PAL

Video Loss Check Yes

Output

Main Monitor Output 1 CH BNC, 1CH VGA: Selectable

Signal Format NTSC/PAL & VGA

Audio

Input & Output 4 CH Line input & 1 CH Line output

Audio Codec G.711(ADPCM)

Alarm

Sensor Input ((NC/NO Selectable) 4 4 4

Alarm Output 1 Alarm out by Alarm, Motion, Video Loss

Record

Compression H.264

Multi-operation TRIPLEX (Playback/Record/Network)

Resolution

NTSC

352x240 352x240 352x240

-704x240 704x240

704x480 704x480 704x480

PAL

352x288 352x288 352x288

-704x288 704x288

704x576 704x576 704x576

Recording quality grade NETWORK, ECONOMY, NORMAL, HIGH, FINE.

Recording Mode Continuous / Schedule / Motion/ Sensor/ Manual

Motion Detection Motion detection setup by Grid

Pre Recording 1 fps for 5 seconds before an event

Post Recording 10 seconds to 3 minutes after an event

Display Frame Rate ( /Sec) NTSC: 30fps/ch, 60 fields / PAL: 25fps/ch, 50 fields

Playback

Multi-Decoding 1, 4 1, 4, 9 1, 4, 9, 16

Playback Speed

Single channel × 2, 4, 8

Multi-channels × 2, 4

Search Mode Timeline, Event, Archive, Log

Storage

HDD

Interface Type Serial ATA I

Max. Capacity of 1 HDD 1TB

Internal HDD Number 1 1 1

File system NaFS

Backup

USB Flash drive Video & Still Image

Network Video & Still Image

User I/F

Menu Display GUI

Input Method Front buttons, Remote control, Mouse Control

PTZ control & Keyboard DVR control 1 RS-485

Termination Yes

Network

Dynamic DNS Yes (Free DDNS)

Network Interface 10/100 base-TX Ethernet (RJ-45)

Network

Access

Client Software (1:1) Live, Search, Backup, PTZF Camera Control

Web viewer (1:1) Live, Search, Backup, PTZF Camera Control

Multi-sites Monitoring System (1:n) Live, Search, Backup, PTZF Camera Control

Features

DLS (Day Light Saving) Yes

Internal Beep By Alarm, Motion, Video Loss, HDD error

Multi-Language Yes

S/W Upgrade USB Flash drive

Water - mark Yes (Exclusive viewer)

Power Power DC 12V 3A(for 4CH), DC 12V 5A(for 8,16CH)

Weight Unit Weight (Gross weight) 1.6 Kgs (3.1 Kgs) / 3.5 Lbs (6.8 Lbs)

Dimension Unit Dimension (W x H x D) 340 mm x 262 mm x 63 mm / 13.4" x 10.3" x 2.5"

Compatible HDD Models

Seagate ST31000340SV(Surveillance) 1 TB 7200 RPM 32 MB

Seagate ST3500830SCE 500 GB 7200 RPM 8 MB

Seagate ST3250410AS(Barracuda) 250 GB 7200 RPM 16 MB

Seagate ST3250310SV(Surveillance) 250 GB 7200 RPM 8 MB

Seagate ST3160815AS(Barracuda) 160 GB 7200 RPM 8 MB

Seagate ST3500418AS(Barracuda) 500 GB 7200 RPM 16 MB

Seagate ST3500410AS(Barracuda) 500 GB 7200 RPM 16 MB

Seagate ST3250318AS(Barracuda) 250 GB 7200 RPM 8 MB

Seagate ST3100528AS(Barracuda) 1 TB 7200 RPM 32 MB

HITACHI HDS721010KLA330 1 TB 7200 RPM 32 MB

HITACHI HDS721050CLA362 500 GB 7200 RPM 16 MB

HITACHI HDP725050GLA360 500 GB 7200 RPM 16 MB

HITACHI HDS721032CLA362 320 GB 7200 RPM 16 MB

HITACHI HDT721025SLA380 250 GB 7200 RPM 8 MB

HITACHI HDS721025CLA382 250 GB 7200 RPM 8 MB

HITACHI HDP725025GLA380 250 GB 7200 RPM 8 MB

HITACHI HDT721010SLA360 1 TB 7200 RPM 16 MB

Western Digital WD10EACS 1 TB 7200 RPM 16 MB

Western Digital WD5000AACS 500 GB 7200 RPM 16 MB

Western Digital WD2500AAKS 250 GB 7200 RPM 16 MB

<NOTICE> The brands and models of all HDD should be the same. If the brands and models of each HDD

are different with others, the DVR may not recognize HDD.
