Clipper Cutter Manuel utilisateur

NOTE: ALWAYS WEAR CUT-RESISTANT GLOVES WHEN WORKING WITH THE BELT CUTTER.

1. Remove Belt Cutter from carton and install handle using the cotter pin provided. Insert handle in the

 socketuntilthegrooveinthehandlelinesupwiththecotterpinholeinthesocket.Insertandarethe

end of the cotter pin.

2. Install the 10" table extrusion by sliding the matching dovetails into the adjacent table section until it

butts up against the bottom beam. Install the three (3) 10-24 x 1-1/4" hex head screws through the

holes in the bottom beam to secure extrusion to beam.

3. Belt Cutter is now ready for use.

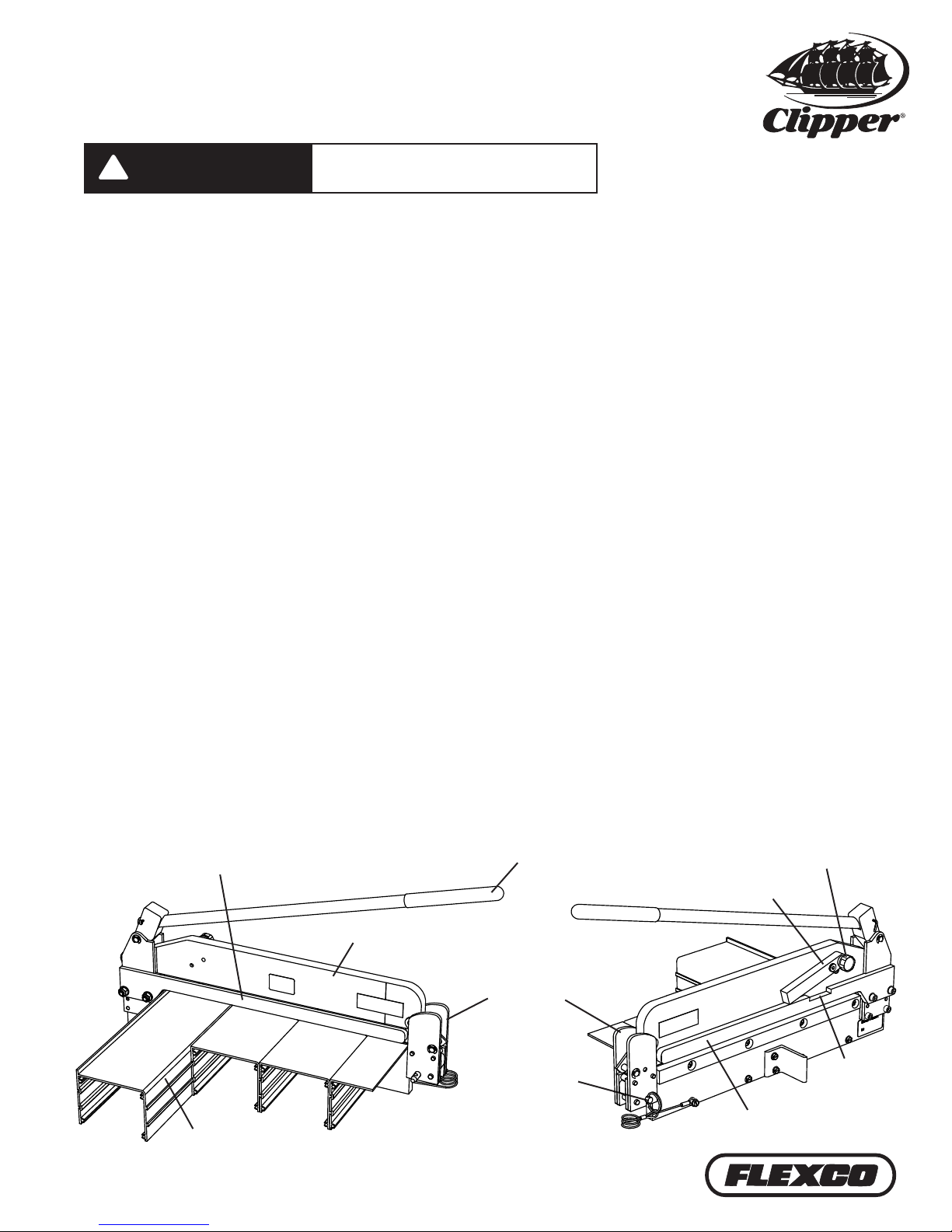

14" BELT CUTTER TABLE INSTALLATION

14" BELT CUTTER OPERATING INSTRUCTIONS

TO OPEN END BEAM - To allow a cut in the middle of a roll of belting:

NOTE: ALWAYS WEAR CUT-RESISTANT GLOVES WHEN WORKING WITH THE BELT CUTTER.

AVOID PLACING HANDS BENEATH THE BEAM, BLADE AND BEAM LATCH ASSEMBLY.

1. Lift handle to upright position.

2. To release the beam latch assembly, pull the release pin from the latch assembly.

3. Open end beam.

4. Ensure that the safety latch is positioned in the groove on the right blade guard.

TO CUT THE BELT:

NOTE: ALWAYS WEAR CUT-RESISTANT GLOVES WHEN WORKING WITH THE BELT CUTTER.

1. Insert belt under blade, ensuring that it is squared up with the 90°cutting table edge.

2. If the beam latch assembly is engaged, press handle down until belt is cut. If the top beam

is raised, lift top beam, rotate safety latch knob to disengage safety latch, lower top beam,

engage beam latch assembly, insert release pin, then press down on handle until belt is cut.

WARNING

!Keep ngers and hands away from

razor sharp blade at all times.

90° CUTTING TABLE

10" TABLE EXTRUSION

HANDLE

SAFETY LATCH

GROOVE

SAFETY LATCH KNOB

RIGHT BLADE GUARD

TOP BEAM

LEFT BLADE GUARD

BEAM LATCH

ASSEMBLY

RELEASE PIN

14" BELT CUTTER PARTS LIST

ITEM # DESCRIPTION ITEM # DESCRIPTION

03000 LOWER GUIDE END SPACE STUD ASSY G0710 10 - 24 X 1-1/4 HEX WASHER HEAD SCREW

03002 KNIFE BLADE LINKS GUIDE END G0722 10 - 24 X 3/8 ZN SOCKET HEAD SCREW

03004 LINK PIN G1150 SERIAL NO. LABEL

03005 LEVER SOCKET PIN G1230 GUARD SCREW

03079 RELEASE PIN LANYARD G2264 SCREW SOCKET HEAD CAP 1/4-20 x 7/16-3/8 SHLD

03196 3/32 X 1-1/2 COTTER PIN G2265 SCREW FLAT HEAD SOCKET CAP 1/4-20 x .75 BLACK

03275 STABILIZER SCREW G2266 NUT HEX NYLOCK FLNG 1/4-20 ZINC PL

03450 14" BELT CUTTER BLADE G2267 WASHER 1/4" MIL SPEC SS

03451 14" NYLON CUTTER BLOCK G2268 WASHER NO. 12 0.250 ID x 0.562 OD ZINC PL

03472 'E' RING 5/16 EXTERNAL TOOTH G2269 SCREW SOCKET HEAD CAP 1/4-20 x .5" BLACK

03484 .625 X 5-1/4" FOAM GRIP HANDLE G5616 RELEASE PIN

04454 CUTTER TABLE EXTRUSION 10" G6012 LONG LINK

04466 CUTTER TABLE EXTRUSION 5" G6013 14" BELT CUTTER TOP BEAM

04468 GUARD KIT 14" CUTTER GQ000 BLADE GUARD RIGHT

04469 EXTENSION TABLE GQ001 BLADE GUARD LEFT

G0110 BRAND LABEL GQ002 BOTTOM GUARD

G0625 14" BELT CUTTER HANDLE SOCKET GQ003 SAFETY LATCH

G0626 14" BELT CUTTER LEVER HANDLE GQ004 LATCH KNOB

G0627 STABILIZER Q1699 HAZARD LABEL

G0631 14" BELT CUTTER BOTTOM BEAM ASSY

2525 Wisconsin Avenue • Downers Grove, IL 60515-4200 • USA

Tel: (630) 971-0150 • Fax: (630) 971-1180 • E-mail: info@exco.com

Visit www.ﬂexco.com for other Flexco locations and products.

G6013

G0627

03275 (2)

G0710 (8)

G0631

03451 (INSIDE GROOVE OF G0631)

G1150

G1230 (2)

GQ002

G2264

GQ003

G2269

G2267

(2)

GQ004 (SECURE WITH G2265)

G2268 (2)

DETAIL B

03000

03002 (4)

03005 (3)

G5616

03079

GQ000

04454

04466 (2)

G0722 (7)

(BLADE SCREWS)

03450

G0110

G0626

03484

Q1699 (2)

GQ001

04469

G0625

03196

03472 (6)

G6012

03004 (3)

DETAIL A

G2266 (2)
