iGate2.0

User Manual

Getting Started............................... 2

iGate Connect Thermostat Basics............... 2

Home Screen ................................ 2

Swiping ..................................... 3

IDLE Screen ................................. 3

About Your iGate Connect Thermostat ......... 3

Connecting to the Internet ..................... 3

Creating a myUplink Portal Account ........... 3

Accept Cookies ........................... 3

Language Selection ....................... 3

Setting up Wi-Fi and Connecting to

Your myUplink Account ....................... 4

Congure Wi-Fi from Your Mobile Device .... 4

Congure Wi-Fi from the Thermostat ....... 5

Add Thermostat to myUplink Account....... 5

Using Your iGate Connect Thermostat. . . . . . . . . . . 5

MODE Screen................................ 5

SETPOINT Screen............................ 6

FAN Screen.................................. 6

PROGRAM .................................. 7

VACATION .................................. 8

SETTINGS Screen ............................ 8

HOT WATER Screen. . . . . . . . . . . . . . . . . . . . . . . 8

WEATHER Screen ........................ 8

HUMIDITY Screen ......................... 8

BANNER Screen .......................... 9

SOFTWARE Screen ....................... 9

BACKLIGHT Screen ......................10

ALERTS & REMINDERS Settings ..........10

ADVANCED SETTINGS...................10

FILTER Screen ...........................10

LOCKOUT/PIN Screen ....................11

CLEANING the iGate Connect Thermostat ..11

LOG Screen..............................11

SERVICE Screen .........................12

What To Do if You Move...................... 12

Disconnect Wi-Fi ...........................12

Removing Thermostat from myUplink Account. 12

Using myUplink ............................. 13

System Menu ...............................13

Schedule ...................................14

Creating Your Weekly Schedule............14

Using the Weekly Schedule Editor .........15

Scheduling a Vacation ....................16

Faults/Conditions ............................17

Advanced System Settings ...................18

Revision History ............................. 20

97B0133N01

Created: December 3, 2021

iGate2.0 User Manual

Created: December 3, 2021

Geothermal Heating and Cooling

Getting Started

iGate Connect Thermostat Basics

72º

COOL 75ºEquipment Status

Banner

Wi-Fi Signal

Space Temperature

Page Indicator

Home Screen

Page Indicator — Either swipe left or right or tap the dots to navigate between HOME screen, SETPOINT screen,

MODE screen, FAN screen or SETTINGS screen. The white dot indicates the page you are on.

• Pressing anywhere on the screen, other than the active icons described below, will activate an animated SWIPE

indicator on the screen.

Space Temperature — The center portion of the screen displays the sensed space temperature, in whole numbers

only. Default temperature units is Fahrenheit. Navigate to the SETTINGS screen to change to Celsius.

Banner — Press the center of the scrolling Banner to switch to the screen indicated by the displayed text. The Banner

scrolls through the screen options every 3 seconds. The Banner may also be swiped left or right to navigate through

the options.

NOTE: On the thermostat itself, you can select those screen options on the SYSTEM SETTINGS > BANNER screen.

Wi-Fi Signal

• The number of green bars indicate the signal strength.

• Red indicates it is not connected to a router.

• Pressing the Wi-Fi icon displays a screen with connectivity details.

Equipment Status — The equipment status icon ashes when there is a call for heating or cooling.

• Tapping the Fan mode/operation icon will display the FAN screen.

• Tapping the Heat or Cool icons displays the MODE screen.

iGate2.0 User Manual

Created: December 3, 2021

climatemaster.com 3

Swiping

Swipe left or right to navigate from screen to screen.

IDLE Screen

OUTDOOR 81º

72º

This screen displays temperature when the thermostat

is idle. To reach the HOME Screen, tap anywhere on

the screen.

About Your iGate Connect Thermostat

Power

Requirements 24 VAC +/- 10% @ 3 VA

Network

Requirements

Wi-Fi connectivity supports Wi-Fi 802.11 a/b/g/n

standards on 2.4 GHz networks

Environmental

Operating Range

32° to 104°F (0° to 40°C), 10 to 95% relative

humidity, non-condensing

Mounting Standard 4x2-in. electrical box using the 6-32 x 1/2”

mounting screws provided

Overall

Dimensions

Width:

Height:

Depth:

3.52 in. (90 mm)

2.52 in. (64 mm)

0.83 in. (21 mm)

Listed By FCC Part 15, Subpart J compliant

Connecting to the Internet

Creating a myUplink Portal Account

Visit https://myuplink.com/login to begin or download

myUplink mobile app from your app store.

Accept Cookies

When rst opening the page, the message on use of

cookies will appear. Press the “Accept Cookies” button

to clear the message.

Language Selection

Provides a drop-down list of available web interface

languages.

iGate2.0 User Manual

Created: December 3, 2021

Geothermal Heating and Cooling

Select “Create Your Account” to begin.

Enter your email and password. Read and accept the

Passwords must be 8-128 characters long with upper-

and lower-case letters, numbers and symbols.

• at least 1 uppercase character (A-Z)

• at least 1 lowercase character (a-z)

• at least 1 digit (0-9)

• symbols are allowed, but not required

• not more than 2 identical characters in a row

(e.g., 111 not allowed)

Enter the required information

then press “Next”

You will receive a conrmation

email at the address provided.

Press the "Log In" button to

return to the myUplink –

HOME screen.

After Conrming your email

address, you will be able to log

in to myUplink.

Enter the email address and password then press the

"Log In" button to open your myUplink account.

Setting Up Wi-Fi and Connecting to your

myUplink account

Supports 802.11 a/b/g/n standards.

Congure Wi-Fi from Your Mobile Device

If connecting your rst device to

myUplink, tap the orange “Add System”

button on the myUplink app. If this is not

your rst device, tap the green banner

at the top of the screen and tap “Add

System” in the drop-down menu.

If your device is already connected

to Wi-Fi, press “Yes, scan for device”

button and skip to the section Add

Thermostat to myUplink Account

(page 5).

If your device is not connected to Wi-Fi,

press “No, setup the device” button.

Press the red Wi-Fi button on the top

left of the thermostat display.

Scan the QR code shown on the

thermostat display using the myUplink

app on your mobile device.

The mobile app will scan for all available

Wi-Fi networks. Tap the name of the

network you wish the thermostat to join.

Enter the network password and tap

“Connect”.

iGate2.0 User Manual

Created: December 3, 2021

climatemaster.com 5

Congure Wi-Fi from the Thermostat

• In the top-left corner of the thermostat display,

press the red Wi-Fi icon

• Press the SETUP button.

• From the list of discovered Wi-Fi routers, select the

desired router for conguration

• Enter the wireless credentials for the Wi-Fi router.

Add Thermostat to myUplink Account

From the SELECT YOUR SYSTEM drop down in the

middle of the page, select "Add System".

The Serial Number and Connection Token can be

accessed from the thermostat display by pressing the

Wi-Fi Status icon (top-left of the banner).

Using your iGate Connect Thermostat

MODE Screen

COOL

OFF HEAT AUTO E-HEAT

MODE

Use this screen to view and change the current MODE,

choices are:

• OFF

• HEAT

• COOL

• AUTO

• E- HEAT

NOTE: The horizontal yellow bar always appears

above the current mode. The thermostat does not

change until the newly selected MODE has been on

for at least 10 seconds.

EXAMPLE:

There may be a delay switching modes from HEAT to

COOL as the minimum on and off timers are fullled.

Going from any HEAT or COOL to OFF shuts off any

active equipment after the 10 second delay.

iGate2.0 User Manual

Created: December 3, 2021

Geothermal Heating and Cooling

SETPOINT Screen

Use this screen to view, adjust, or hold heat and cool

setpoints. Use the wheels to adjust setpoints. Drag a

wheel up or down or tap the top or bottom of the wheel

to increase or decrease by 1 increment.

There are two different buttons that can appear in

the center of this screen. Press to switch buttons and

functions.

• OCCUPIED/UNOCCUPIED button (commercial

applications only).

• PLAY/PAUSE button allows you to either play

(use as is) or alter the program schedule.

(residential applications only)

• Text above the button is the current state.

• Text beneath the button is what will happen when

the button is pressed.

If the schedule is running, the Occupancy button and

the text will display whether the schedule is currently

running OCCUPIED or UNOCCUPIED setpoints. Press

the button to switch heat and/or cool setpoints between

Occupied and Unoccupied settings and then the

Occupancy button changes to the PLAY button.

When the schedule is not running, the text above

the Play button says OCCUPIED if the heat and cool

setpoints are the same as the OCCUPIED setpoints

or UNOCCUPIED if the heat and cool setpoints match

the UNOCCUPIED setpoints. If neither is true, HOLD

displays. When the schedule is paused, the remaining

hold time shows in the lower right corner.

Commercial Screen has a Schedule pause button.

FAN Screen

Congure the supply fan for ON or AUTO, in either

occupied or unoccupied mode.

• ON – Fan runs continuously regardless of demand.

Options are to run the fan for: 15 min, 30 min, 45

min, per hour or always.

• AUTO – Fan cycles with heat or cool demand

or if there is a demand for humidication or

dehumidication.

Use this screen to adjust fan operation. The default

setting for fan operation is AUTO for both OCCUPIED

and UNOCCUPIED periods. When operating in AUTO

MODE, the fan only runs when there is an active heating

or cooling demand. When you select ON, the fan runs

continuously, except during the BLOWER ON DELAY

when a heat cycle is starting. There is a 30-second

minimum on/off timer when changing the FAN MODE.

These selections are not available if the thermostat has

been congured for non-programmable operation. To

enter Programmable mode, press and hold the FAN

screen for 5 seconds.

iGate2.0 User Manual

Created: December 3, 2021

climatemaster.com 7

PROGRAM

If programmable mode is enabled, you can only view the program schedule on this screen on the thermostat.

To view the Program Schedule, Select the “Program”

PROGRAM

button from the Settings Screen.

You cannot adjust the schedule or setpoints. Permanent program schedule changes require the myUplink app. Making

temporary changes or pausing the program schedule are outlined in Schedule Section (page 14).

The top center of the screen displays the program schedule day of the week. Swipe up or down to move from one day

to the next on the program schedule. The vertical yellow Row Indicator moves up and down at the same time.

• The cool setpoints are shown above the blue horizontal lines, for each of the 4 programmable periods of the

day (up to 3 occupied periods and 1 unoccupied period, if congured).

• The heating setpoints are shown below the horizontal red lines, for each of the 4 programmable periods of

the day.

• Occupied and Unoccupied icons appear at the top of each period.

• The vertical dashed lines separate the program time changes throughout the day.

• The times at the bottom of the dashed lines show the schedule.

• The vertical yellow dashed line displays the current time of day.

• A short horizontal yellow dashed line depicts the current measured space temperature.

• Thermostat only: yellow vertical line shows current time of day.

• The yellow lines show up only when viewing the current day of the week.

iGate2.0 User Manual

Created: December 3, 2021

Geothermal Heating and Cooling

VACATION

This screen displays the current year’s holiday schedule.

On a holiday, the setpoints for the rst UNOCCUPIED

time range are used for the entire day. Scroll the vertical

yellow Row Indicator to see more holidays.

SETTINGS Screen

SETTINGS

WEATHER

HOT WATER HUMIDITY

BANNER SOFTWARE BACKLIGHT

SETTINGS

FILTER

ADVANCED LOCKOUT

CLEAN LOG SERVICE

The yellow Row Indicator at the right side of the screen

indicates the current location in the list of advanced

settings options. Swipe up or down to navigate through

options and then tap to select one.

Swipe on any of the SYSTEM SETTINGS sub-screens to

return to the SYSTEM SETTINGS main screen.

HOT WATER Screen

HOT WATER SETTINGS

TEMPERATURE

SETPOINT

OPERATING MODE

EFFICIENCY

121ºF

120ºF

OFF

COMFORT

Tap the value to adjust the hot water setting shown.

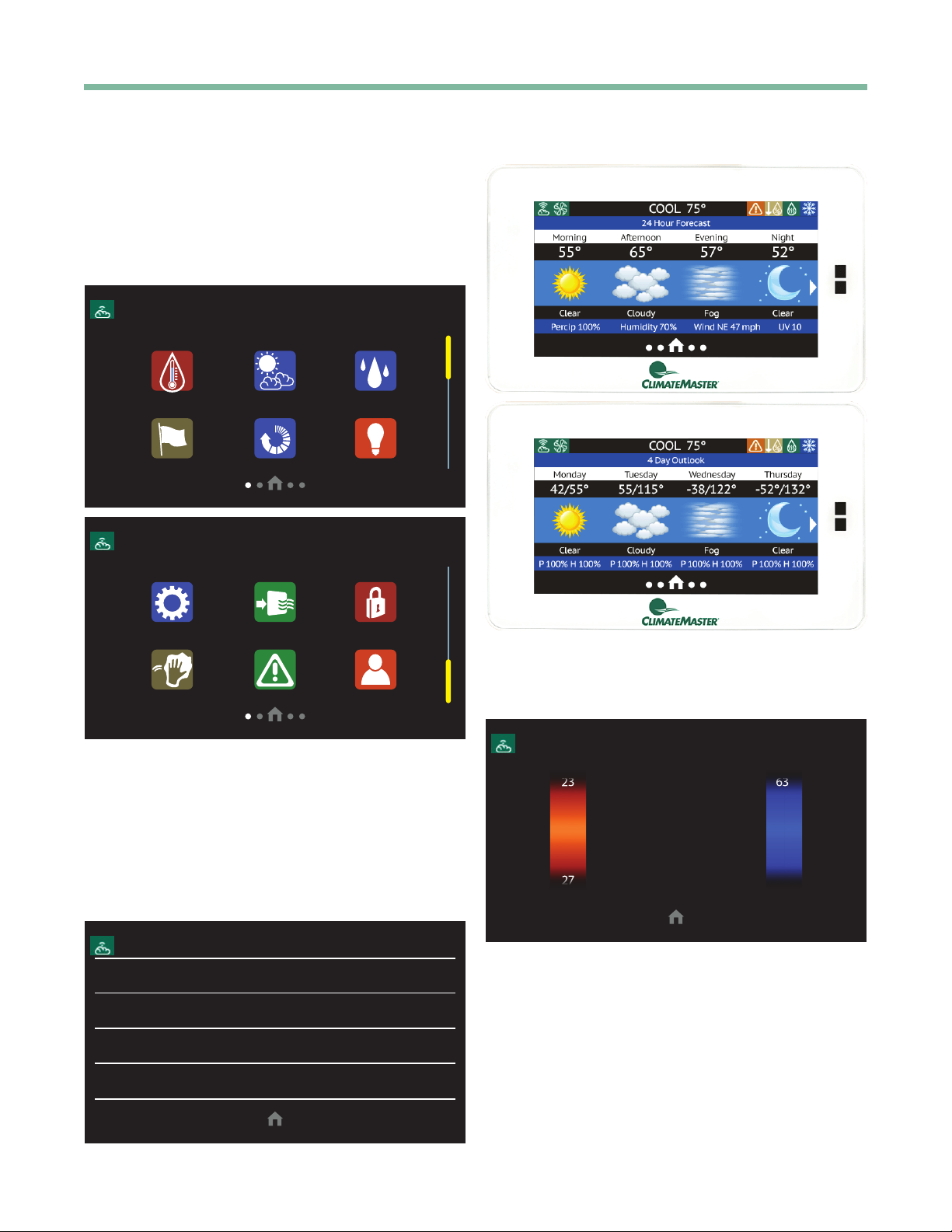

WEATHER Screen

Displays the 24-hour or 4-day weather forecast for the

registered location of the thermostat.

HUMIDITY Screen

HUMIDITY

When enabled, scroll the wheels to set the Humidication

percentage for heating and the dehumidication setting

for cooling. Use the wheels to adjust setpoints. Drag a

wheel up or down or tap the top or bottom of the wheel to

increase or decrease by 1 increment.

iGate2.0 User Manual

Created: December 3, 2021

climatemaster.com 9

BANNER Screen

BANNER

DATE &

TIME

FAN

STATUS

OUTDOOR

TEMP

COOL

SETPOINT

The Banner Screen allows the user to choose which

options are in the list that scrolls through the banner

location. Use the Yellow Scroll Bar on the right to access

more options.

Press the center of the scrolling Banner to switch to the

screen indicated by the text. You can swipe the banner

to change options, or, every 3 seconds a different screen

name scrolls across the top that you can navigate to.

On the thermostat itself, you can select which screens

you want on the Banner by pressing the buttons to

check the ones you want and then uncheck the ones

you do not want.

The default screens are:

• DATE & TIME

• FAN STATUS

• OUTDOOR TEMP

• COOL SETPOINT

• HUMIDITY

• HEAT SETPOINT

DATE and TIME

On this screen, scroll or tap the Orange Hour wheel or

Blue Minute wheel to adjust the date and time on the

thermostat.

Switch to the Date Adjust screen and the Time Adjust

screen using the green icon button at the right side of

the screen. Scroll or tap the Orange Month wheel or Blue

Day wheel.

Drag a wheel up or down or tap the top or bottom of the

wheel to increase or decrease by 1 increment.

When the thermostat is rst registered and connected to

a Wi-Fi router, both the date and time are synced with

the server (based on the location of the phone/tablet

used to connect the thermostat to a router or based on

the ISP location if a computer is used to connect the

thermostat to a router). The time and date are synced

at the top of each hour automatically, unless the Sync

Time To Server option in the SETTINGS > ADVANCED

screen is set to NO.

BANNER

HUMIDITY HEAT

SETPOINT

OPERATING

MODE

SOFTWARE Screen

SOFTWARE

Thermostat: Version 01.00nz (CLM)

Wi-Fi Chip: Non-Release Version

Boot: Version 01.00bt (CLM)

EXM U1: v2.08

EXM U2: v2.08

WXM: v1.01

ZXM: v1.03

Serial #:

This screen Displays the Software version installed on the

thermostat and serial number of the thermostat.

• Thermostats connected to Wi-Fi will receive the

software notication and update automatically.

iGate2.0 User Manual

Created: December 3, 2021

Geothermal Heating and Cooling

BACKLIGHT Screen

BACKLIGHT

Scroll the wheels to set the screen brightness when

active and when dormant.

BACKLIGHT — Use to change the backlight intensity in

Active and Dormant modes.

• The blue Active Backlight wheel adjusts the

backlight intensity from 10% to 100%, (75% is the

default and recommended) when the thermostat is

in an active state (being accessed or viewed by the

end user).

• The purple Dormant Backlight wheel adjusts

backlight intensity from 0% to 25%, (25% is the

default and recommended) when the thermostat

is in a dormant state (not being viewed or adjusted

by the end user).

Drag a wheel up or down or tap the top or bottom of the

wheel to increase or decrease by 1 increment.

ADVANCED SETTINGS

Use the advanced options on the Advanced Settings

screens to congure and setup your system, change,

and view options.

ADVANCED

SYNCH TIME TO SERVER

TIME ZONE

SCREEN TIMEOUT

PROXIMITY

YES

CENTRAL

15 SEC

YES

Some of the Advanced Settings are only available from

the thermostat. Press a button or scroll the vertical yellow

Row Indicator to see more buttons. When a button is

pressed, the corresponding screen appears where you

can view status and make adjustments. Use the Yellow

Scroll Bar on the right to access more options.

FILTER Screen

FILTER

FILTER REMINDER

HOURS REMAINING: 5475

RESET

This screen displays the remaining time before a lter

change is required. When lters are changed, press the

“Reset” button to restart the timer.

FILTER STATUS is based on the supply fan runtime,

which can be congured from 500 to 15,000 hours. A

lter status alert displays when the lter timer exceeds

the congured number of hours. Press the alert to see

the message.

Use to reset the FILTER ALERT and see the FILTER

RESET REMINDER timer information. Press the RESET

button to reset the timer to its congured value in the

Advanced Settings.

Table des matières

Autres manuels ClimateMaster Thermostat

ClimateMaster

ClimateMaster Trilogy Q-Mode (QE) Series Manuel utilisateur

ClimateMaster

ClimateMaster Trilogy Variable (VE) Series Mode d’emploi

ClimateMaster

ClimateMaster ATA32V01 Instructions originales

ClimateMaster

ClimateMaster ATC32U01 iGate Manuel utilisateur

ClimateMaster

ClimateMaster iGate ATC32U02 Manuel utilisateur

ClimateMaster

ClimateMaster CM300 Series Instructions originales

ClimateMaster

ClimateMaster ET Series Instructions de montage

ClimateMaster

ClimateMaster iGate ATC32U02 Manuel utilisateur

ClimateMaster

ClimateMaster AVB32V03R Instructions originales

ClimateMaster

ClimateMaster iGate Connect Manuel utilisateur

ClimateMaster

ClimateMaster ATP32U03 Manuel utilisateur

ClimateMaster

ClimateMaster ATM11C11 Guide d'installation et d'utilisation

ClimateMaster

ClimateMaster ATC32U01 iGate Manuel utilisateur

ClimateMaster

ClimateMaster iGate AWC99U01 Manuel du propriétaire

ClimateMaster

ClimateMaster iGate ATC32U02 Instructions de montage

ClimateMaster

ClimateMaster iGate ATC32U03 Manuel utilisateur

ClimateMaster

ClimateMaster ATA11H01 Manuel utilisateur

ClimateMaster

ClimateMaster ATC32U01 iGate Manuel utilisateur

ClimateMaster

ClimateMaster iGate 2.0 Manuel utilisateur

ClimateMaster

ClimateMaster iGate 2.0 Manuel utilisateur

ClimateMaster

ClimateMaster AVB32V02R Instructions originales

ClimateMaster

ClimateMaster CM500 Series Instructions originales

ClimateMaster

ClimateMaster ATA11U03 Manuel utilisateur

ClimateMaster

ClimateMaster ATC32U01 iGate Instructions de montage

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur

ClimateMaster iGate2.0 Manuel utilisateur

Manuels Thermostat populaires d'autres marques
