CLIMASET
8
Pressing either "Right" or "Left" key, leads you to schedule settings screen. Find more description about it in the
next section.
2.4. To set the schedule program
Schedule program is the fundamental advantage of FP compared to SDT series. Enabling the schedule program,
the air conditioner shuts down automatically when it's presence is no longer necessary and it restarts again at
the preset time. FP series are provided with four time periods for each day, including wake up, leave, return

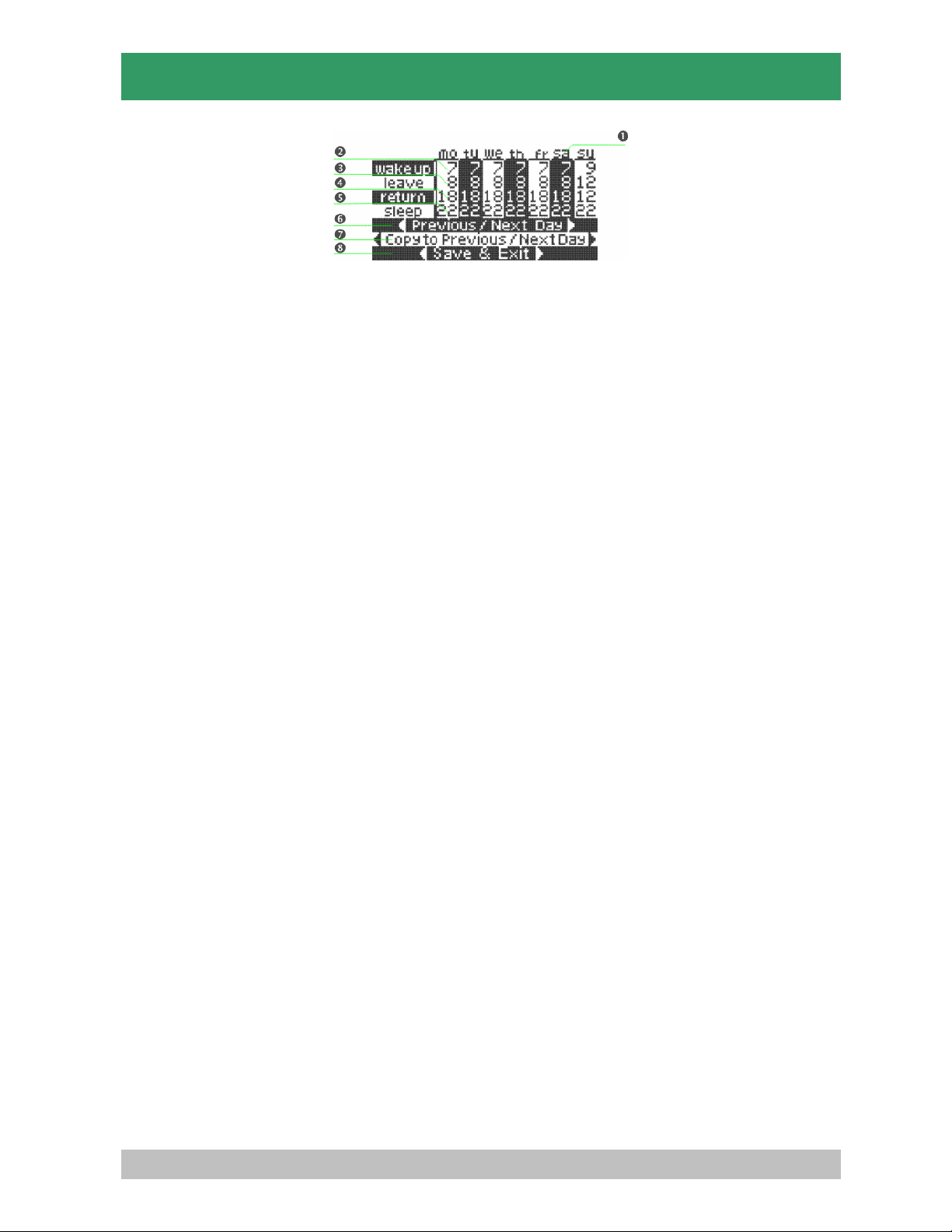

and sleep periods. The schedule settings screen consists of two main sections, the upper part is the schedule
itself, the last three rows of the screen contributes the command section.
2.4.1. Schedule section
The blinking cursor indicates the time period and the day. You may adjust the schedule time in hours by
pressing "Right" or "Left" key. Each row title indicates the related time period and the column title indicates the
related day. The FP series is provided with four time periods listed and described as below:
n"Wake up": It indicates the start time in hours of the air conditioner unit. The air conditioner shuts down
automatically at the previous day sleep time setting. It restarts again at this time. You may increase the wake
up time till the "Leave" time by pressing the "Right" key or decrease it till the midnight (0 o'clock) by pressing
the "Left" key.
Note: "Up" key is not functional while you are at wake up setting.
Note: You may enter the "Leave" setting by pressing the "Down" key.
Note: When you enter the program schedule settings, the "Wake up" program for Monday will be selected
automatically and the related cell starts to blink accordingly.
Note: You may set "Wake up" program an hour before the real wake up time to allow the room temperature to
reach at the desired level when you wake up.
o"Leave": It is defined as the time in hours which all of the occupants leave the house for work and there is no
need for air conditioner to continue the operation. So the air conditioner shuts down at this time. You may use
"Right" key to increase it till the "Return" time or decrease it by pressing the "Left" key till the wake up time.
Note: You can move the cursor to the wake up program for the same day by pressing the "Up" key.
Note: You may move the cursor to the "Return" program for the same day by pressing the "Down" key.
Note: It is possible to bypass the working period of the air conditioner between wake up and leave time by
selecting the same time for both.
Note: You may bypass the off period of the air conditioner between leave and return by selecting the same time
for both programs. It may be suitable for holidays, when there is always someone in the house and you need
the air conditioner to continue it's operation.
p"Return": Return program is defined as the time in hours when the first person returns home from work and
you need the air conditioner to restart. Use the "Right" key to increase it up to the sleep time or "Left" key to
decrease it till the leave time.
Note: Setting the same value for both the return and leave time causes the air conditioner not to shut down till
the sleep time. Such a setting may be helpful during holidays, when there is always need for air conditioner to
operate during the day.
Note: It is possible to bypass the working period program between return and sleep time by setting the same
value for both. Such a setting may be useful for office environment where you can consider wake up program
as the time work starts and "Leave" program as the time everyone leaves the office and you need the air
conditioner to shut down.
Note: You may set the return time, one hour before your actual return time to let the temperature reaches to its
desirable value for your presence.
Note: You may move to "Leave" program by pressing the "Up" key or to "Sleep" program by pressing the "Down"
key.
