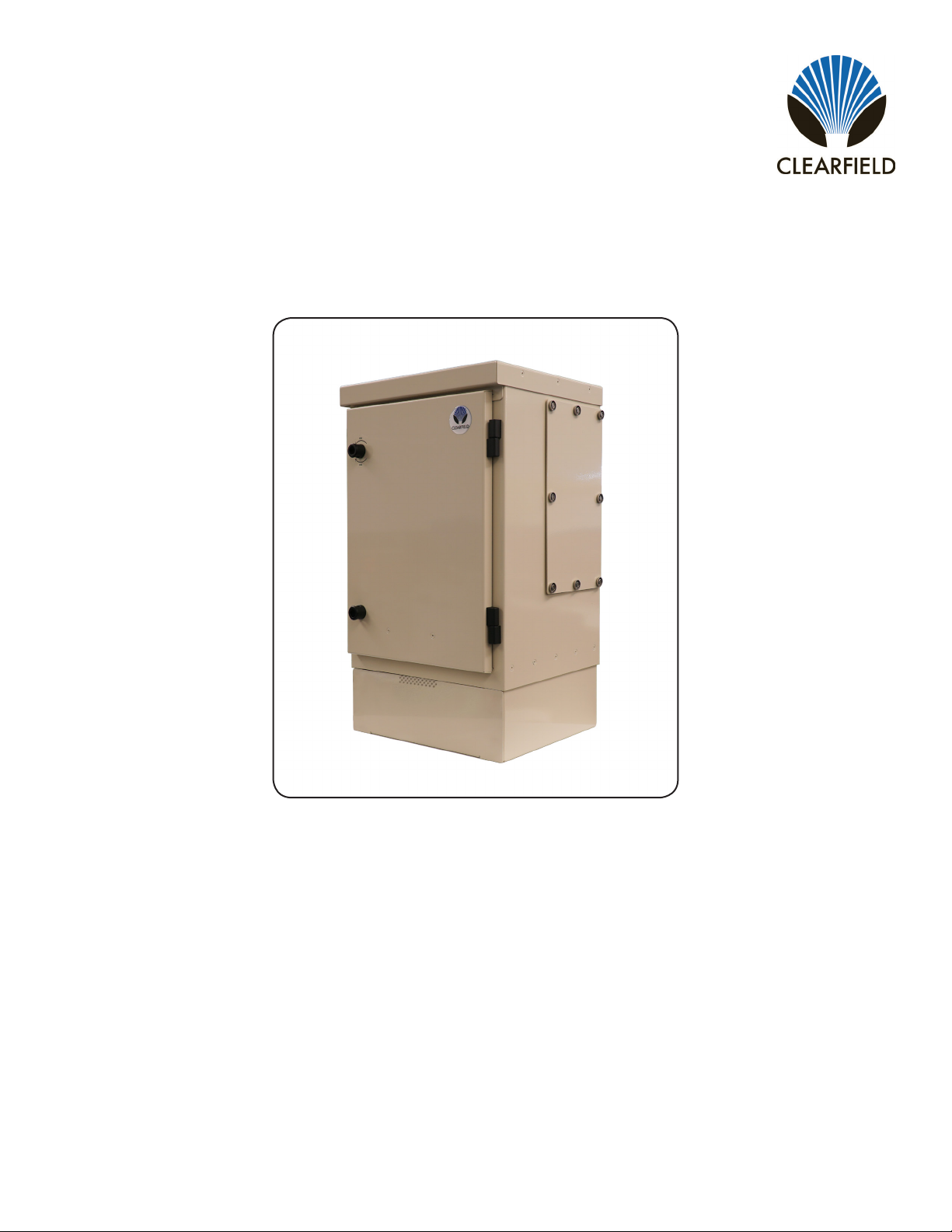

StreetSmart Pre-Terminated FDH Cabinet
__________________________________________________________ Installation Manual
Direct: 763.476.6866 • National: 800.422.2537 • www
.SeeCleareld.com •
[email protected] Manual 021814 REV A - Jan 2021
Application

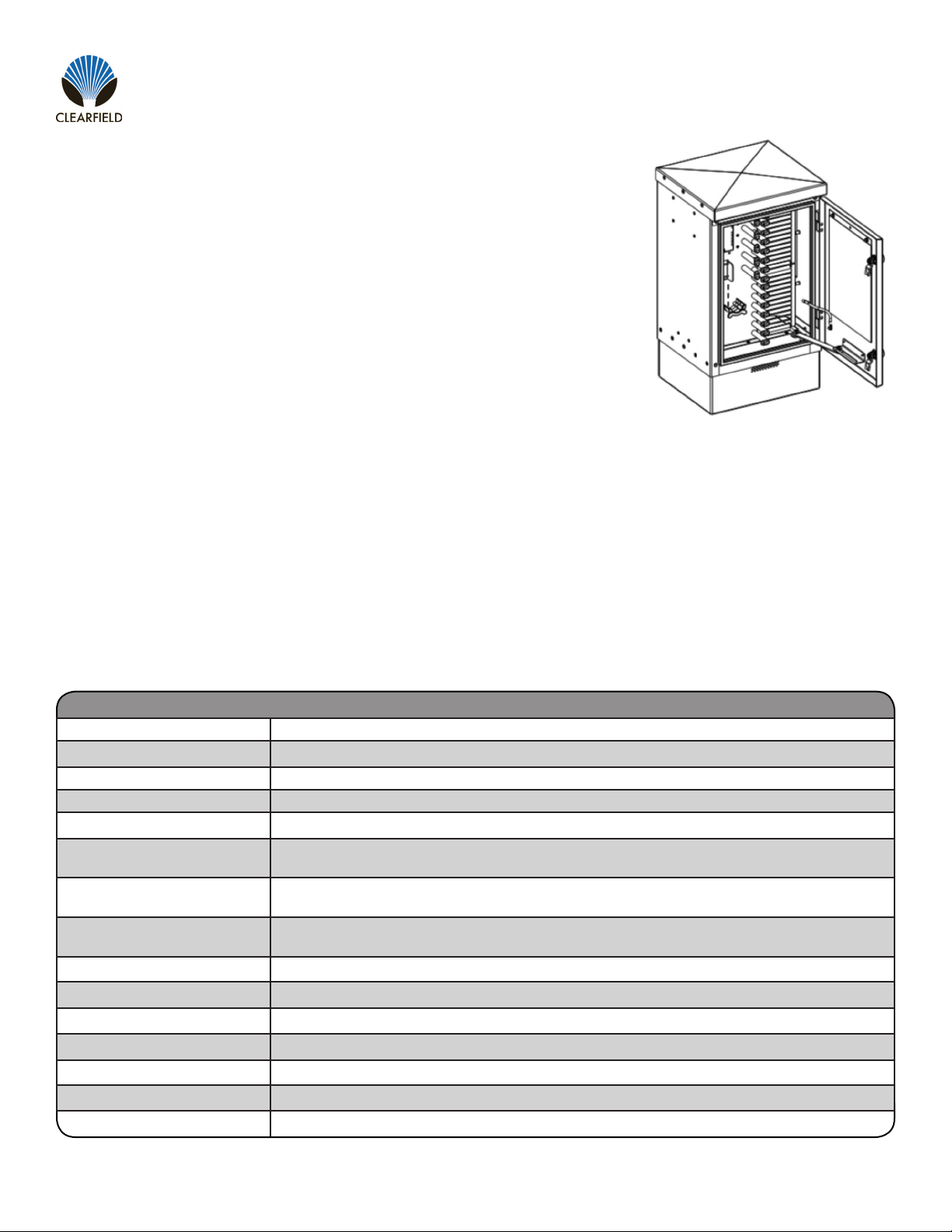

Technical Specications
StreetSmart Pre-Terminated FDH Cabinet
Dimensions 22.72” T x 15.47” W x 14.18” D (577.08mm T x 393.94mm W x 360.17mm D) * Without Riser
Weight 40 lbs. (18.14 kg)
Dist. Port Density 144 or 288
Max. Feeder/Express Ports 12 or 24
Cable Entrances 4
Mounting Options (Hoist kits

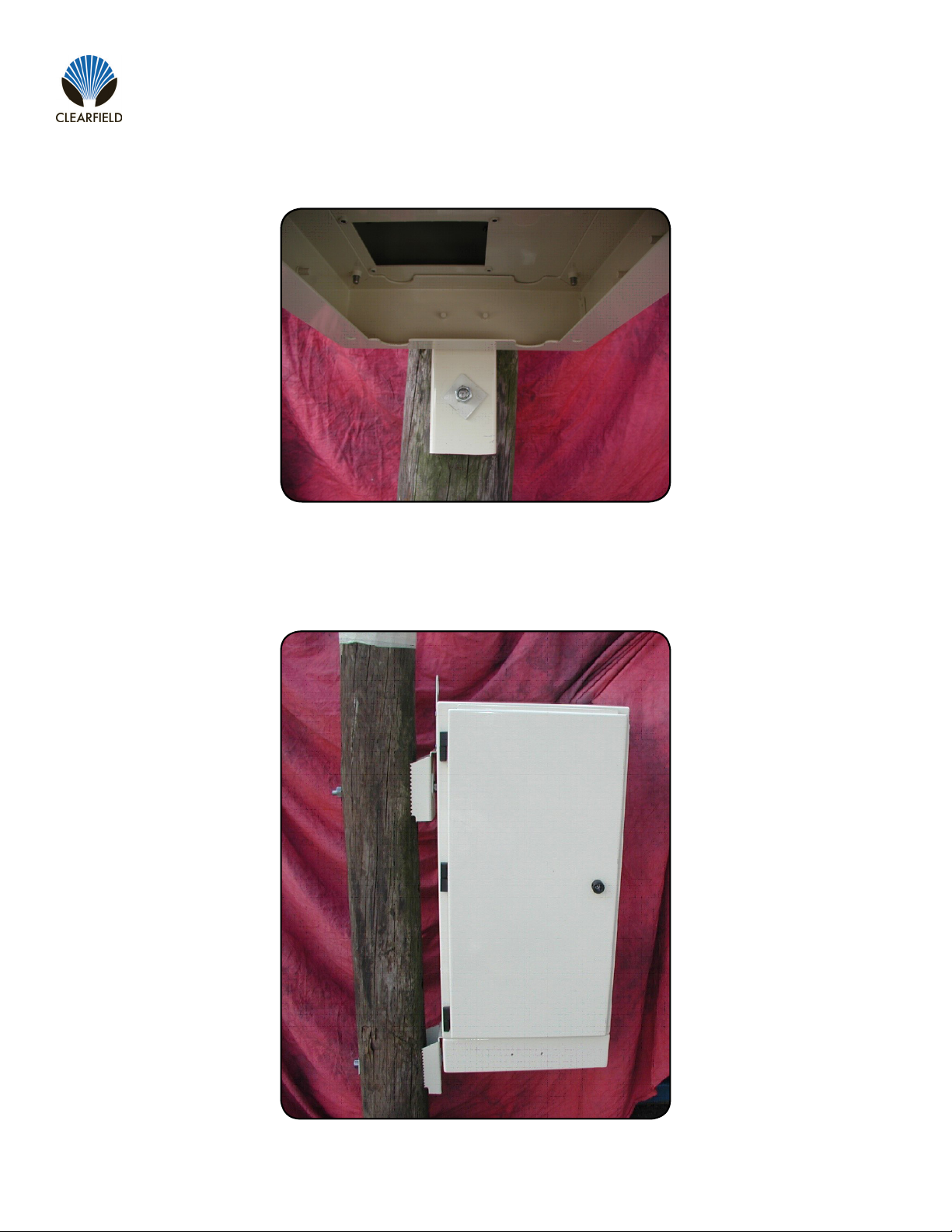

included with each cabinet) Vault mount; pole mount; pad mount
Riser Base 6”; 8 lbs (127 mm; 2.72 kg)
12”; 12 lbs. (304.80 mm; 5.44 kg)
Pre-loaded WaveSmart High
Density Splitters with 900um Legs 4 or 8
Splitter Staging Capacity 72
Connector Modules 12 Pack Adapter Modules
Connector Types SC/UPC, SC/APC
Cable Types Indoor/Outdoor, Outdoor, Outdoor Armored, Ribbon and Loose Tube
Door Locks 2 per door
Venting Built-in Replaceable Roof Vent
Material 0.90 (2.286 mm) Aluminum with almond powder coating
Cleareld’s StreetSmart Pre-Assigned FDH PON Cabinet provides an interconnect
environment from the feeder network through the passive optical splitter to the
distribution network.
Designed for rapid PON Network deployments, these cabinets provide a single
distribution point to deploy FTTH in large scale MDU’s, urban or dense neighbor-
hoods. Pre-Assigned WaveSmart High Density 1 x 32 Splitters are loaded into the
cabinet with a pre-terminated ber tail, making installation and deployment very
cost and time effective.
Description

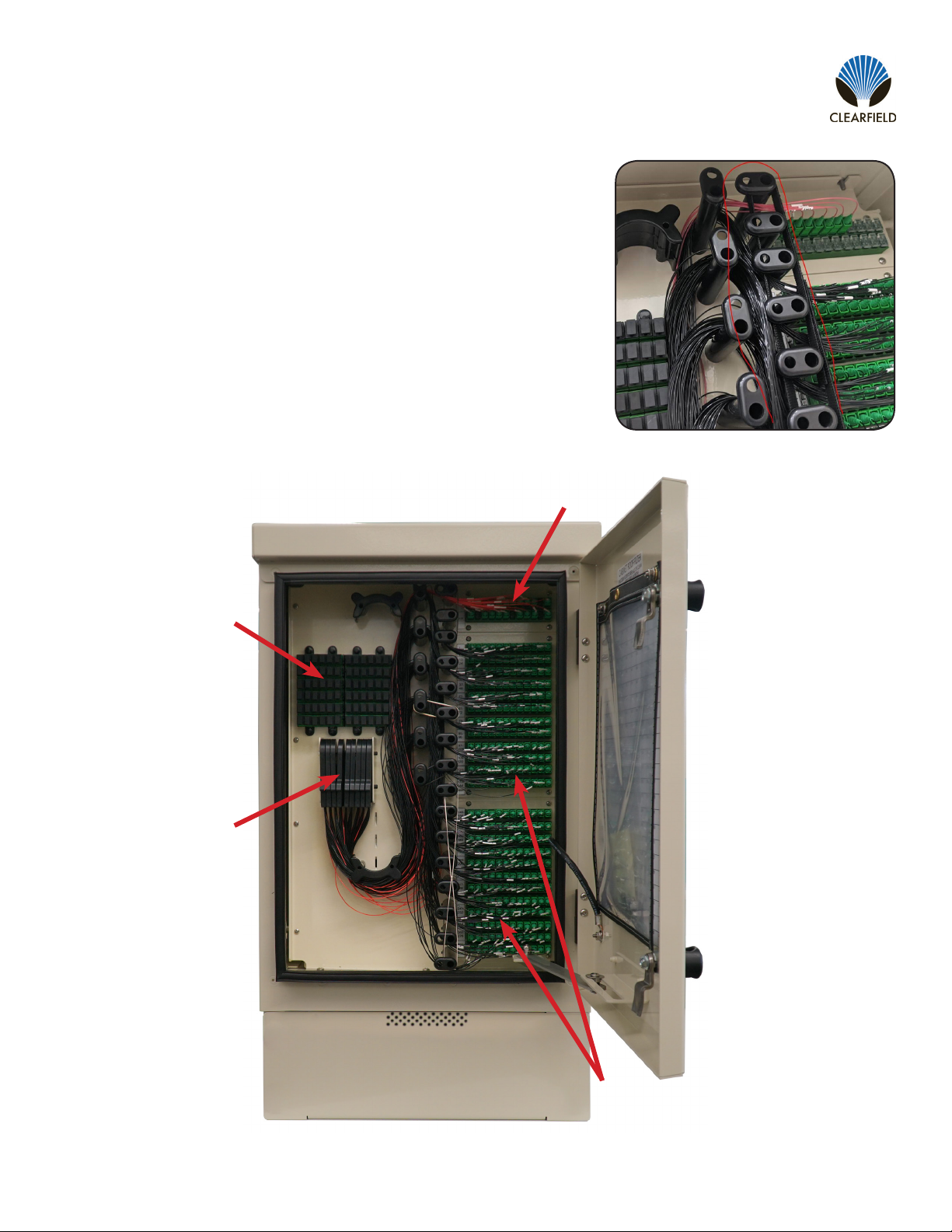

The StreetSmart Pre-Assigned FDH PON Cabinet provides a turn-key solution for up to 288 distribution bers for an outside
plant FTTx PON application. WaveSmart High Density 1 x 32 Splitters are installed and pre-assigned into Cleareld’s 12
pack SC/APC module adapters, allowing the service provider to instantly turn-up revenue-generating circuits.
The StreetSmart 288 PON Cabinet incorporates a cross-cut roof designed to shed water and includes a roof/solar shield
and a reusable/replaceable venting feature, providing additional protection for deployed ber. The outer shell of the cabinet

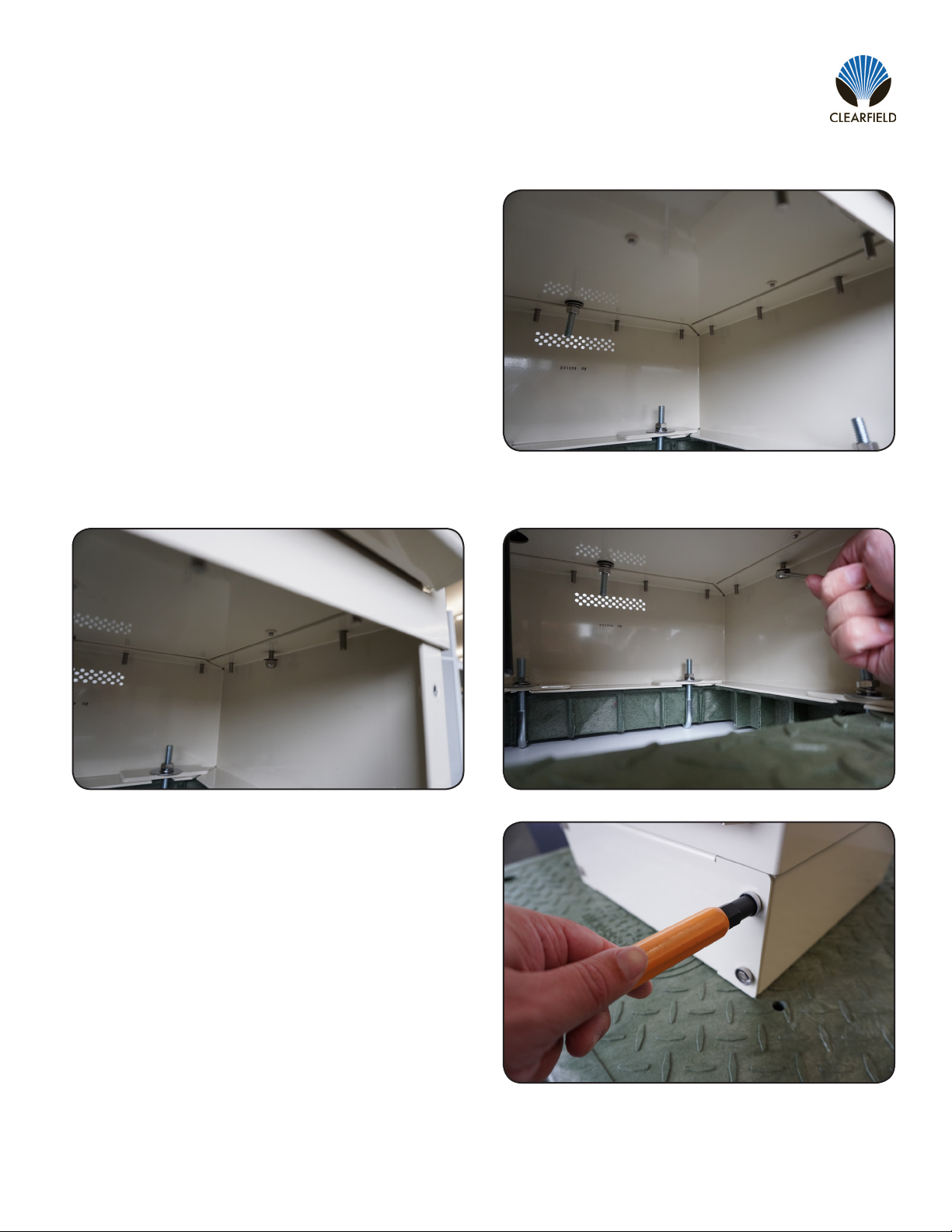

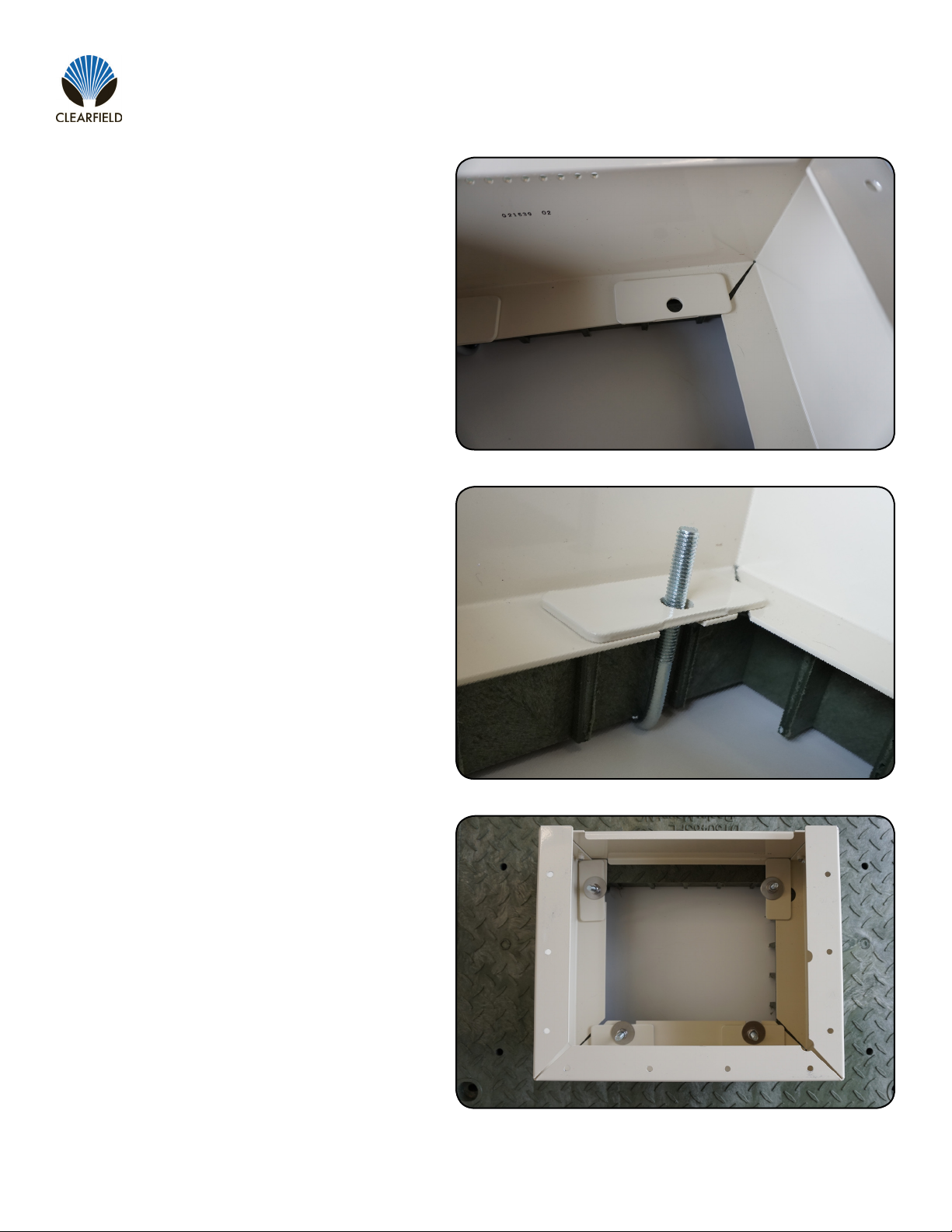

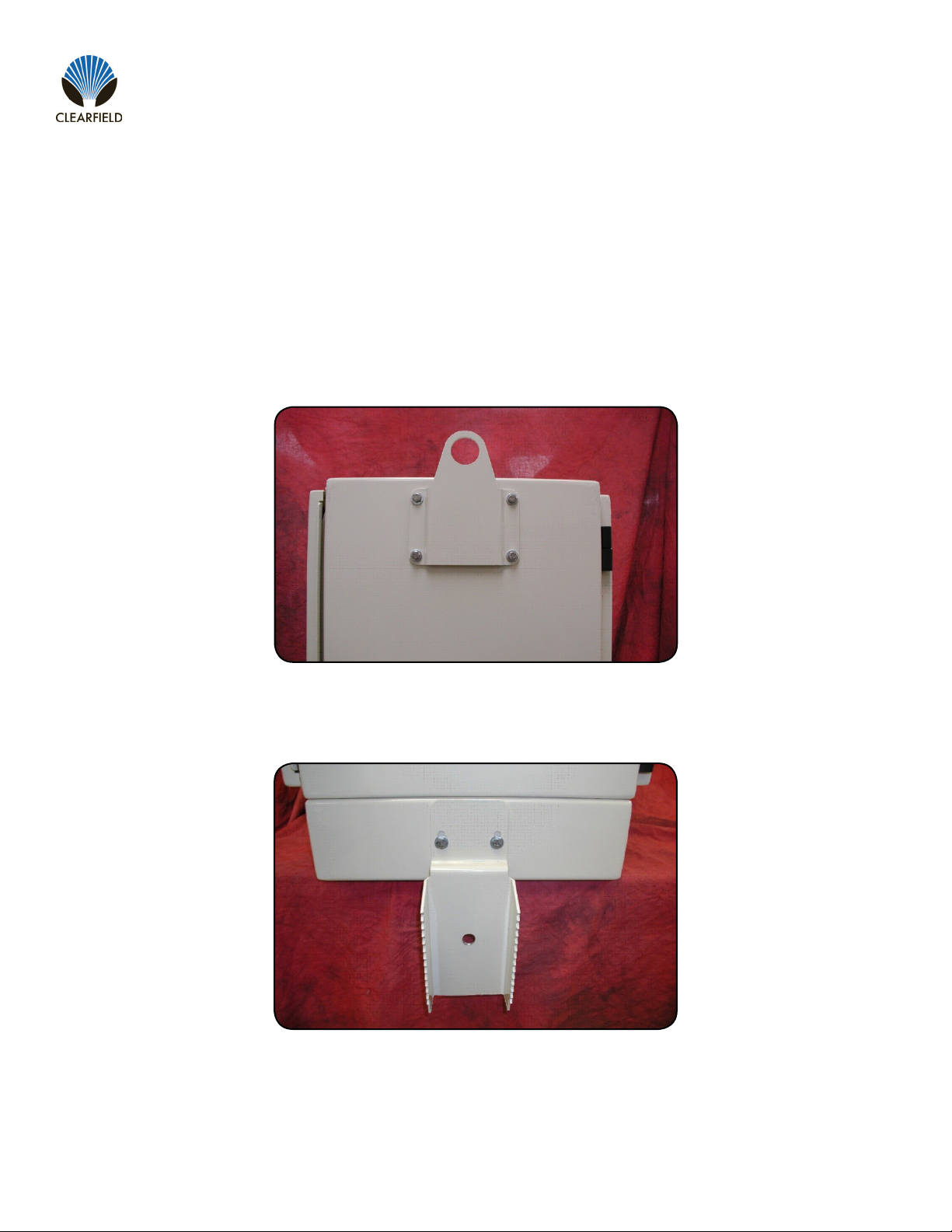

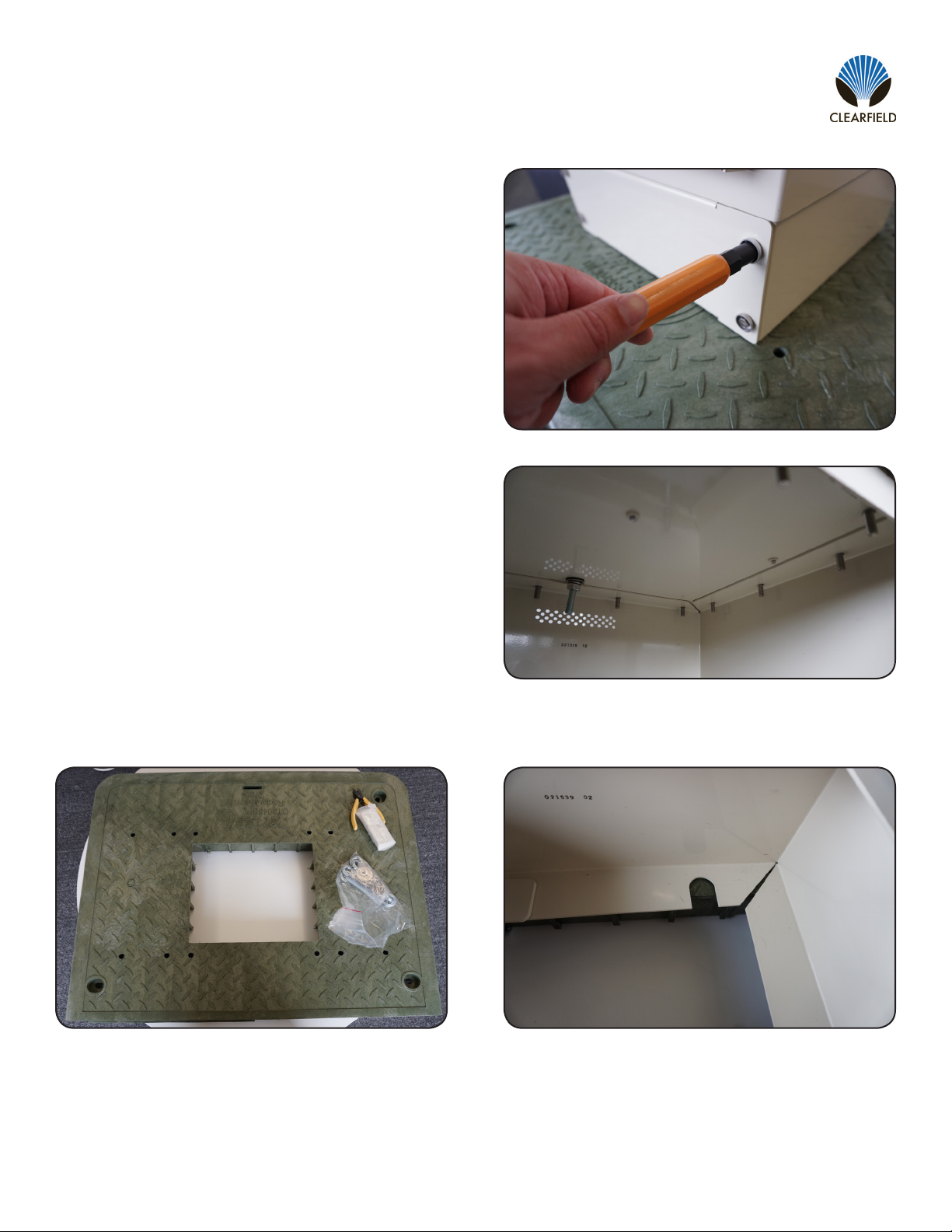

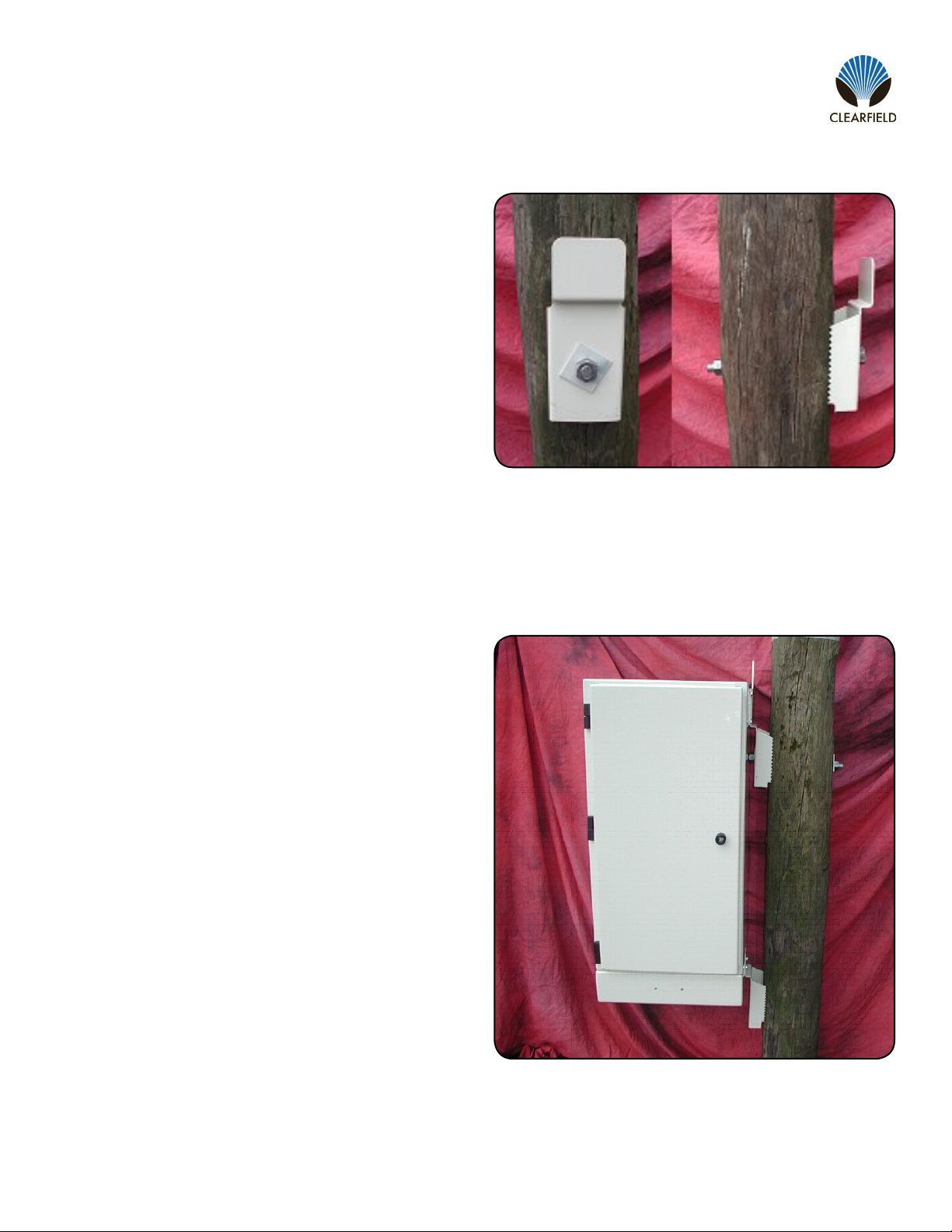

is replaceable, allowing the cabinet to be repaired if damaged. Mounting options include pad, pole or vault mounted with
either a 6” or 12” riser.
