ClearCube V5340 Manuel utilisateur

Page 1 of 19 P/N G0200145 Rev B —1.1.06.07.2012

ClearCube Technology, Inc. 8834 Capital of Texas Hwy N Austin, TX 78759 (512) 652-3500 www.clearcube.com

About A6105D PC Blade V5340 and V5320 Upgrade Kits

Introduction

This guide explains how to install

V5340 Host Card Upgrade Kits (V5340 kits) and,

V5320 Host Card Upgrade Kits (V5320 kits)

in ClearCube®A6105D PC Blades (A6105D blade or A6105D from this point forward).

Audience

ClearCube Technology, Inc. employees and Authorized Partners are authorized to

install PCoIP®Host Cards in ClearCube products.

Configuration

types and

required host

cards

The picture below shows that a

Quad configuration (supporting up to four monitors) requires a V5340 host card and a

V5320 host card

Dual configuration (supporting up to two monitors) requires a V5320 host card.

Figure 1. The host cards required for quad and dual systems

Continued on next page

Quad System

requires a

V5340 Host Card

and

a V5320 Host Card

A6105D Blade

Dual System

requires a

V5320 Host Card

A6105D Blade

Page 2 of 19 P/N G0200145 Rev B —1.1.06.07.2012

ClearCube Technology, Inc. 8834 Capital of Texas Hwy N Austin, TX 78759 (512) 652-3500 www.clearcube.com

About A6105D PC Blade V5340 and V5320 Upgrade Kits, Continued

V5340 Upgrade

Kit contents

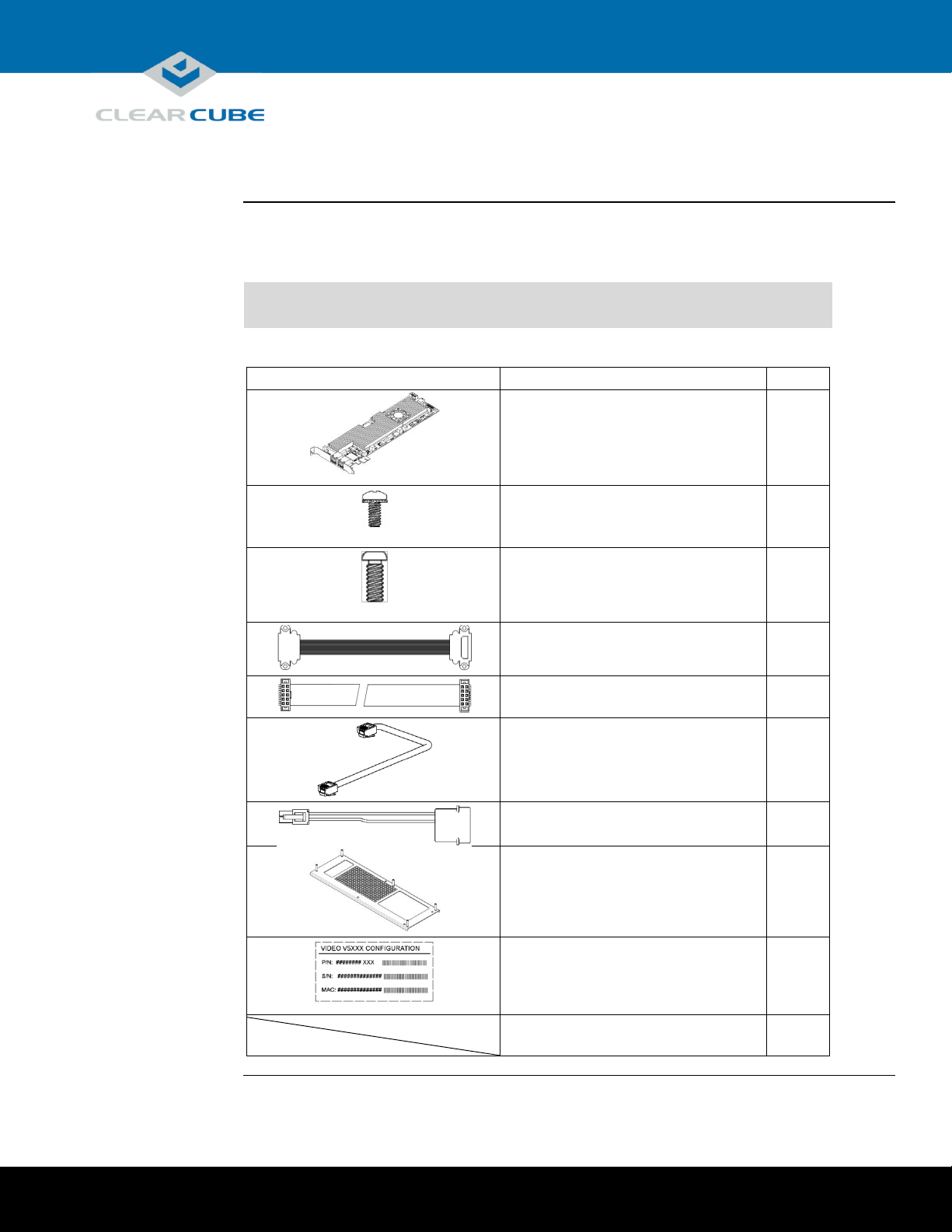

The table below shows the contents of the V5340 kit (components are not shown to

scale).

NOTE: Quad systems require a V5320 Host Card and a V5340 Host Card. You must

install both cards.

Part

Description

Pieces

( A)

V5340 Host Card

( B)

Pan head screw with external

washer

( C)

Pan head screw without washer

( D)

Blue, twinaxial cable

( E)

Gray, 10-pin flat cable

( F)

8.5-inch CAT5e (Ethernet) cable

( G)

V5340 power adapter

( H)

V5340 bracket

( I)

Video configuration label

This Quick Start Guide

Continued on next page

Page 3 of 19 P/N G0200145 Rev B —1.1.06.07.2012

ClearCube Technology, Inc. 8834 Capital of Texas Hwy N Austin, TX 78759 (512) 652-3500 www.clearcube.com

About A6105D PC Blade V5340 and V5320 Upgrade Kits, Continued

V5320 Upgrade

Kit components

The table below shows the contents of the V5320 Kit (components are not shown to scale).

Part

Description

Pieces

( J)

V5320 Host Card

( K)

V5320 bottom bracket

( L)

V5320 top bracket

( M)

PCIe®flex riser card

NOTE: If the blade you are

updating contains a flex riser card,

ClearCube recommends using the

existing flex riser card. This riser is

included for systems that do not

contain one.

( N)

Hex head screw

( P)

Pan head screw with external

washer

( R)

Video configuration label

This Quick Start Guide

Continued on next page

Page 4 of 19 P/N G0200145 Rev B —1.1.06.07.2012

ClearCube Technology, Inc. 8834 Capital of Texas Hwy N Austin, TX 78759 (512) 652-3500 www.clearcube.com

Process: Upgrade Overview

Introduction

Upgrading V53x0 Host Cards consists of multiple stages including

removing firmware from a blade,

removing and installing upgrade kit components, and

installing host card drivers.

Process

overview

The table below shows each stage in the in the process of upgrading V53x0 Host

Cards in an A6105D blade.

Stage

Description

Remove existing GPU/graphic drivers (with associated hardware installed)

Open blade

If installing a V5340 kit: Remove V5240 and bracket

Remove V5220 and brackets

If installing a V5340 kit: Install V5340 bracket, cables, and host card

Install V5320 brackets, cables, and host card

Close blade

Install drivers

Additional

documentation

resources

The list below shows all related documentation resources.

PC-over-IP®Device Firmware Support and Compatibility Guide

PC-over-IP System User’s Guide

A-Series Blade and Chassis User’s Guide

Operating System Image Requirements for ClearCube®Blades

All documentation is available from ClearCube Support.

http://www.clearcube.com/support/

Page 5 of 19 P/N G0200145 Rev B —1.1.06.07.2012

ClearCube Technology, Inc. 8834 Capital of Texas Hwy N Austin, TX 78759 (512) 652-3500 www.clearcube.com

Before You Begin

Personal and

product safety

Observe the following.

WARNING: Disconnect the computer’s power supply from its AC power source

before performing any installation steps or maintenance, including

opening or moving the device. Failure to do so can cause personal

injury, cause damage to devices, or both.

CAUTION: Electrostatic discharge (ESD) can damage upgrade kit components

and the computer in which you are installing a kit. Be sure to wear an

anti-static wrist strap to prevent ESD, or take safety measures (such

as touching the anti-static bag containing the host card) before

touching any components.

Firmware

requirements

Ensure that host cards and zero clients

use the same version TERA firmware

if updating a V5340, use compatible versions of TERA and COMM firmware, and

only use firmware from ClearCube Support.

See PC-over-IP Device Firmware Support and Compatibility Guide and PC-over-IP

System User’s Guide and on the ClearCube Support site for information about firmware

support and for instructions about upgrading firmware.

Driver

installation

prerequisite

Uninstall all GPU drivers or graphics drivers before installing an upgrade kit. In

dual- and quad-monitor systems, the V5320 GPU driver should be the only graphics

driver on the A6105D.

NOTE: Before removing any graphics drivers, ensure that the associated

hardware is installed on the blade. Many graphics drivers require that the

associated hardware is present for successful removal.

Required items

Before installing the upgrade kit, be sure to have

a Phillips screwdriver, and

V53x0 drivers

Continued on next page

Page 6 of 19 P/N G0200145 Rev B —1.1.06.07.2012

ClearCube Technology, Inc. 8834 Capital of Texas Hwy N Austin, TX 78759 (512) 652-3500 www.clearcube.com

Preparing and opening an A6105D blade

Before you

begin

Be sure to observe the notes below.

NOTE: Ensure that you have removed all existing GPU and graphics drivers as

described in “Driver installation prerequisite” on page 5.

NOTE: ClearCube recommends leaving all HDD SATA cables in place. If you must

disconnect any SATA cables, mark them so you can easily reconnect each

cable in the correct position. For more information about how SATA headers

correspond to HDDs , see A-Series Blade and Chassis User’s Guide.

Procedure:

open the blade

The table below shows how to prepare and open an A6105D blade for upgrade.

Step

Action

Power off the blade and remove it from the chassis.

Place the blade on a stable surface such as a desk or a bench so the

power connector is in the upper left, and the front LCD panel is in the

lower right as shown below.

Remove the four screws from the side of the blade. Lift the cover up

and slide to the left to remove.

Figure 2. The location of the blade cover screws

Next steps:

If you are installing a ...

Then ...

V5340 Upgrade Kit

Continue to “Removing V5240 Host Card and

Brackets” on page 7.

V5320 Upgrade Kit

Continue to “Removing V5220 Host Card and

Bracket” on page 9.

Continued on next page

Page 7 of 19 P/N G0200145 Rev B —1.1.06.07.2012

ClearCube Technology, Inc. 8834 Capital of Texas Hwy N Austin, TX 78759 (512) 652-3500 www.clearcube.com

Removing V5240 Host Card and Brackets

Procedure:

removing the

V5240 Host

Card

This procedureassumes youhave removed all graphics drivers and performed the steps

shown in the previous section. The table below shows how to remove a V5240 Host Card

from an A6105D blade.

NOTE: This procedure is for V5340 kits only.

Step

Action

Mark the V5240 Ethernet cables to identify the RJ-45 ports they are

connected to for correct reassembly. Remove the Ethernet cables from

the V5240 Host Card.

Figure 3. V5240 Ethernet cables

Remove the screws from the perimeter of the V5240 Host Card.

Continued on next page

Page 8 of 19 P/N G0200145 Rev B —1.1.06.07.2012

ClearCube Technology, Inc. 8834 Capital of Texas Hwy N Austin, TX 78759 (512) 652-3500 www.clearcube.com

Removing V5240 Host Card and Brackets, Continued

Procedure:

removing the

V5240 Host

Card

(continued)

Step

Action

Carefully lift the V5240 Host Card and rotate it toward yourself to remove

the cables. The table and picture below shows each cable to remove.

Step

Action

Remove the screws from the blue, twinaxial cable,

then remove the cable from the V5240 Host Card.

Remove the V5240 power cable.

Remove the gray, 30-pin flat cable from the V5240

Host Card.

Figure 4. Removing cables from the V5240 Host Card

Lift the V5240 Host Card up out of the blade, and place the host card

in an anti-static bag.

Remove the hex head screws from the V5240 bracket and set them

aside to attach the V5340 bracket in a later procedure. Remove the

bracket from the blade.

Next steps: remove the V5220 Host Card and brackets as shown below.

Continued on next page

Page 9 of 19 P/N G0200145 Rev B —1.1.06.07.2012

ClearCube Technology, Inc. 8834 Capital of Texas Hwy N Austin, TX 78759 (512) 652-3500 www.clearcube.com

Removing V5220 Host Card and Brackets

Procedure:

removing the

V5220 Host

Card

This procedure assumes you have removed all graphics drivers and performed the steps

shown in “Procedure: open the blade” on page 6. The table below shows how to remove

a V5220 Host Card froman A6105D blade.

Step

Action

Remove the screws from the upper-left and lower-left corners of the

V5220 Host Card.

Pull the V5220 Host Card away from the PCIe flex riser card and

carefully lift up the host card so you can remove the connected cables.

NOTE: ClearCube recommends leaving an existing PCIe flex riser

card in the blade. The PCIe flex riser card in the kit is

intended for systems that do not contain a riser card.

Figure 5. Removing the V5220 Host Card from the PCIe flex riser card

Remove the V5x20 power cable on the bottom edge of the card.

Figure 6. The V5x20 power cable

Remove the Ethernet cable from the opposite edge of the card.

Only if the V5220 was connected to a V5240 card:

Carefully rotate the host card so the fan faces up, and remove the

screws from the blue, twinaxial cable. Then remove the twinaxial

cable from the V5220 Host Card.

Remove the gray, 30-pin flat cable from the V5220 Host Card.

Continued on next page

Page 10 of 19 P/N G0200145 Rev B —1.1.06.07.2012

ClearCube Technology, Inc. 8834 Capital of Texas Hwy N Austin, TX 78759 (512) 652-3500 www.clearcube.com

Removing V5220 Host Card and Brackets, Continued

Procedure:

removing the

V5220 Host

Card

(continued)

Step

Action

Remove the V5220 Host Card and place it in an anti-static bag.

Remove the hex head screws from the V5220 top bracket and the

V5220 bottom bracket and then remove the brackets from the blade.

NOTE: ClearCube recommends leaving all HDD SATA cables in

place. If you must disconnect any SATA cables, mark them

so you can easily reconnect each cable in the correct position.

For more information about how SATA headers map to

HDDs , see A-Series Blade and Chassis User’s Guide.

Figure 7. The V5220 top and bottom brackets

NOTE: Existing V5220 brackets do not accommodate V53x0 Host

Cards. Be sure to remove these brackets and replace them

with the V5320 brackets in the kit.

Next steps:

If you are installing a ...

Then ...

V5340 Upgrade Kit

Continue to “Installing the V5340 ” on page 11.

V5320 Upgrade Kit

Continue to “Installing the V5320 ” on page 13.

Continued on next page

Top

Bracket

Bottom

Bracket

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ClearCube Serveur

ClearCube

ClearCube I9422 Zero Client Manuel utilisateur

ClearCube

ClearCube R3040S Manuel utilisateur

ClearCube

ClearCube SmartVDI-110 Manuel utilisateur

ClearCube

ClearCube I8800 Manuel de service

ClearCube

ClearCube CD9424 Manuel utilisateur

ClearCube

ClearCube R4300 Manuel utilisateur

ClearCube

ClearCube I8442 Manuel utilisateur

ClearCube

ClearCube CD7424SFPST Manuel utilisateur

ClearCube

ClearCube I9420 Manuel utilisateur

ClearCube

ClearCube A1010 Manuel technique

ClearCube

ClearCube C7424 Manuel utilisateur

ClearCube

ClearCube Thin Client CD8831 Manuel utilisateur

ClearCube

ClearCube R2200 Mode d'emploi

ClearCube

ClearCube R1200 Manuel technique

ClearCube

ClearCube R2200 Manuel utilisateur

ClearCube

ClearCube I8440 Manuel utilisateur

ClearCube

ClearCube A1410 Manuel utilisateur

ClearCube

ClearCube M2010S Manuel utilisateur

ClearCube

ClearCube A6108 Manuel utilisateur

ClearCube

ClearCube R1200 Manuel technique

ClearCube

ClearCube I8020 Manuel utilisateur

ClearCube

ClearCube A1410 Manuel utilisateur

ClearCube

ClearCube A1010 Guide de référence rapide

ClearCube

ClearCube R1200 Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
