Classe Audio CAP-100 Manuel utilisateur

PRO-SVR_LEGACY Page 1 of 12

Date: August 22, 2007

Model Number: CAP-100 / CAP-150

Classé Audio Inc. Subject: Service manual

Classé Audio, Inc. 5070 François Cusson Lachine, Québec Canada H8T1B3, www.classeaudio.com

PRO-SVR_LEGACY Page 2 of 12

Table of Contents

Introduction 3

Important Notes on Servicing 3

Ordering Replacement Parts 3

Block Diagrams 4

Start up Procedure 5

Protection Modes and Indicators 6

Troubleshooting Guide 7

Output Transistors Testing and Replacement 8

Calibrations and Adjustments 9

Parts List 10

Fuses 11

Voltage Change 12

Schematics 13

The contents of this document as well as the files associated with it contain confidential information that is proprietary to Classé Audio

Incorporated and are intended solely for the purpose of servicing product. No part of its contents may be used, copied, disclosed, or conveyed to

any party in any manner whatsoever without prior written permission from Classé Audio Incorporated.

PRO-SVR_LEGACY Page 3 of 12

Introduction

Please read this manual carefully before commencing servicing!

Only qualified and authorized personnel should attempt to service this product.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended

to alert the user to the presence of uninsulated dangerous voltage within the

product’s enclosure that may be of sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and maintenance (servicing) instructions.

Classé has a global product support network. For product assistance or to order replacement parts please

contact your nearest service center always quoting the unit serial number.

North America

Phone: (978) 664-2870 E-mail: [email protected]

Europe

Phone: 44 (0) 1903 221 700 E-mail: [email protected]

Asia

Phone: (852) 2790 8903 E-mail: [email protected]

Rest of the World

Phone: (514) 636-6384 E-mail: [email protected]

Important Notes on Servicing

1. ALWAYS observe ESD precautions when handling electronic modules or PCBAs.

2. NEVER exchange boards with a different revision number, unless authorized by Classé.

3. ALWAYS use Classé original replacement parts. The use of generic parts may void the warranty of

the unit.

Ordering Replacement Parts

There may be a delay in processing incomplete requests. Please be sure to include all required information.

Remember to quote the serial number of the unit on all replacement part orders and the Classé order number

when returning defective parts for credit.

PRO-SVR_LEGACY Page 4 of 12

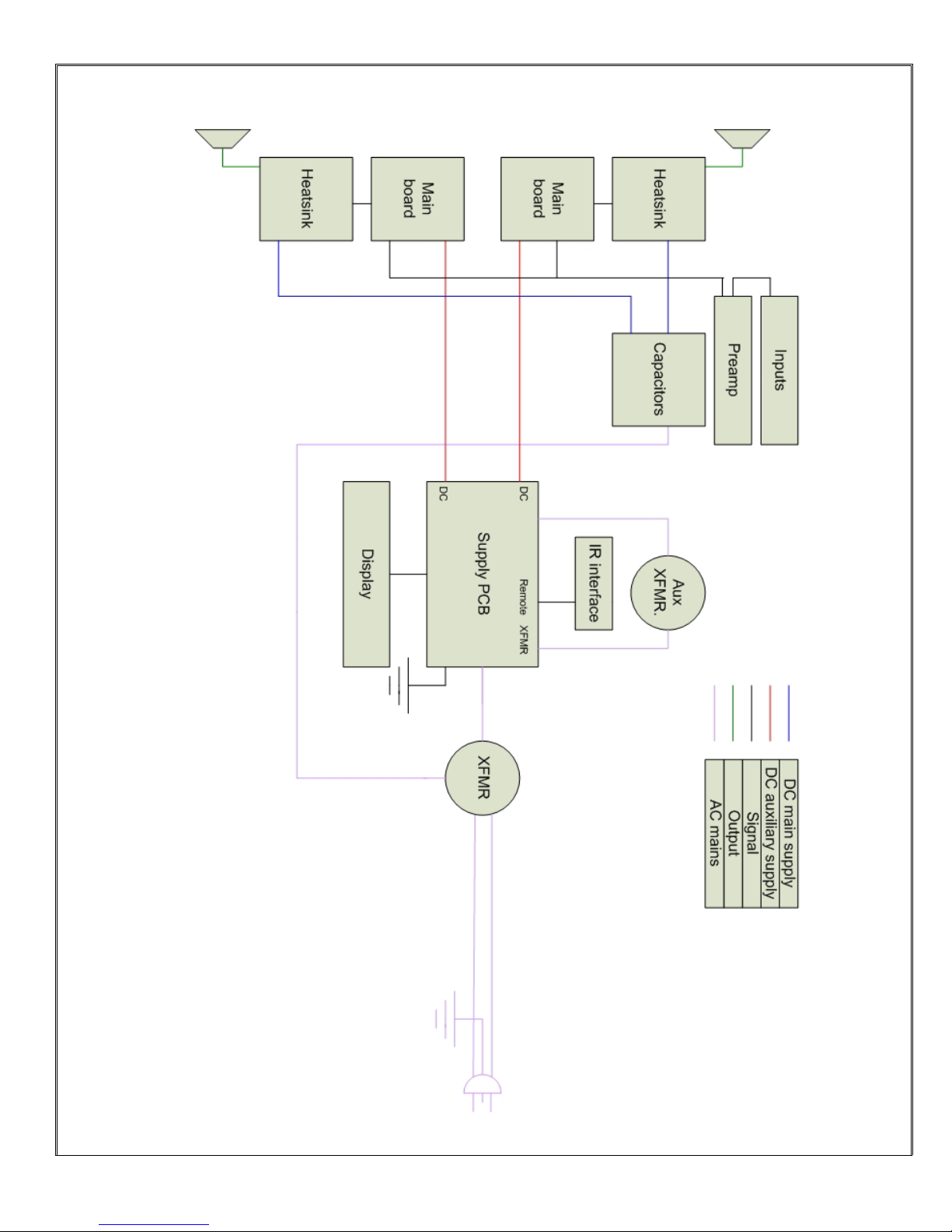

Block diagrams

PRO-SVR_LEGACY Page 5 of 12

Start Up Procedure

When receiving a unit, an assiduous visual inspection must be performed. Do not connect the unit without

analysing the symptoms reported by the customer and the results of the inspection.

Using the troubleshooting guide, find the problem and proceed to the repair. Once this step is done, follow

these steps, known as the start-up procedure, to ensure that everything in the unit is in working condition.

1. Proceed with a post repair visual inspection. Take the time to check if every wire is reconnected

properly, every screw is bolted on, no soldering and/or metal residues lying in the unit, every fuse has

been replaced, etc.

2. Turn the bias trimpots, counter clockwise until a click is heard.

3. Since there is no soft-start sequence of the CAP-100 / CAP-150, it is impossible to use a bypass to

perform a slow start up.

4. Connect Main supply, and turn on the unit.

5. If one or more supply are not within specifications, return to the troubleshooting guide.

6. If every supply is within specifications, report to calibration and adjusments to adjust bias and DC

offset. Note that bias can be adjusted to 20mV, and the following tests can be performed before the

unit is send to the burn-in bench for a 24 hours warm-up.

7. Connect the unit to a load, and to a source using single ended inputs.

8. Perform a test with a 200Hz, a 2kHz and a 20kHz tone, both sinus wave and square wave. Check the

output with a oscilloscope, on 4 ohms and 8 ohms loads. Take special cares about oscillation and phase

correlation between channels.

9. Connect the unit to a small speaker, and short the input. Check for any noise.

10. Put the unit on a burn-in bench, and let it sit for 24 hours, then readjust bias. Let the unit on the burn-

in bench for another 72 hours.

11. Redo steps 7 to 11 before shipping to the customer.

PRO-SVR_LEGACY Page 6 of 12

Protection Modes and Indicators

The front LED display shows the status of the amplifier. When starting up normally, the CAP100 / CAP150 will

show a FLASHING MUTE LED for about 20 sec. However, there is no protection on the CAP100 / CAP150. The

CAP100 / CAP150 is equipped with four rail protection fuses. In the event that one or more of these fuses

would blow, the technician will first need to identify and cure the cause of failure (please report to

troubleshooting guide). When the cause has been identified, disconnect the unit from the system including the

AC power. Remove the top cover and look for damaged or burned components. If no other components than

the fuses appear to be damaged, the technician can then replace the broken fuses with the same value and

rating (please report to fuses section). The rail fuses are located on the main board. When replacing fuses,

please make sure that the fuse holder are holding the fuses very tightly. A loose fuse holder can translate into

distortion on top of the signal.

PRO-SVR_LEGACY Page 7 of 12

Troubleshooting Guide

Symptom Possible cause

Unit won’t turn on Check connections;

Check fuses;

Check soft-start circuit;

Check relays;

Check power supply circuits (positive rail, negative rail, Mosfet

supply).

Smoked and/or burned

components

Check for short between components and ground;

Check output transistors;

Check output relays;

Check power supply circuits (positive rail, negative rail, Mosfet

supply).

Blown fuses Check for short between fuse and ground;

Check power supply circuits (positive rail, negative rail, Mosfet

supply).

No output Check connexions;

Check output relays;

Check power supply circuits (positive rail, negative rail, Mosfet

supply);

Check output transistors.

Unit turn into protection Check for smoked and/or burned components;

Check power supply circuits (positive rail, negative rail, Mosfet

supply);

Check source and load;

Check protection circuit;

Check sensor wires between sensor PCB and control PCB;

Check outputs transistors and Mosfet drivers.

Excessive buzz and/or hum Check electrical lines;

Check for a ground loop in the system.

Oscillation Check source;

Check capacitors on main board;

Check 4.7ƻresistor.

Intermittent signal Check connections;

Replace shield wires.

PRO-SVR_LEGACY Page 8 of 12

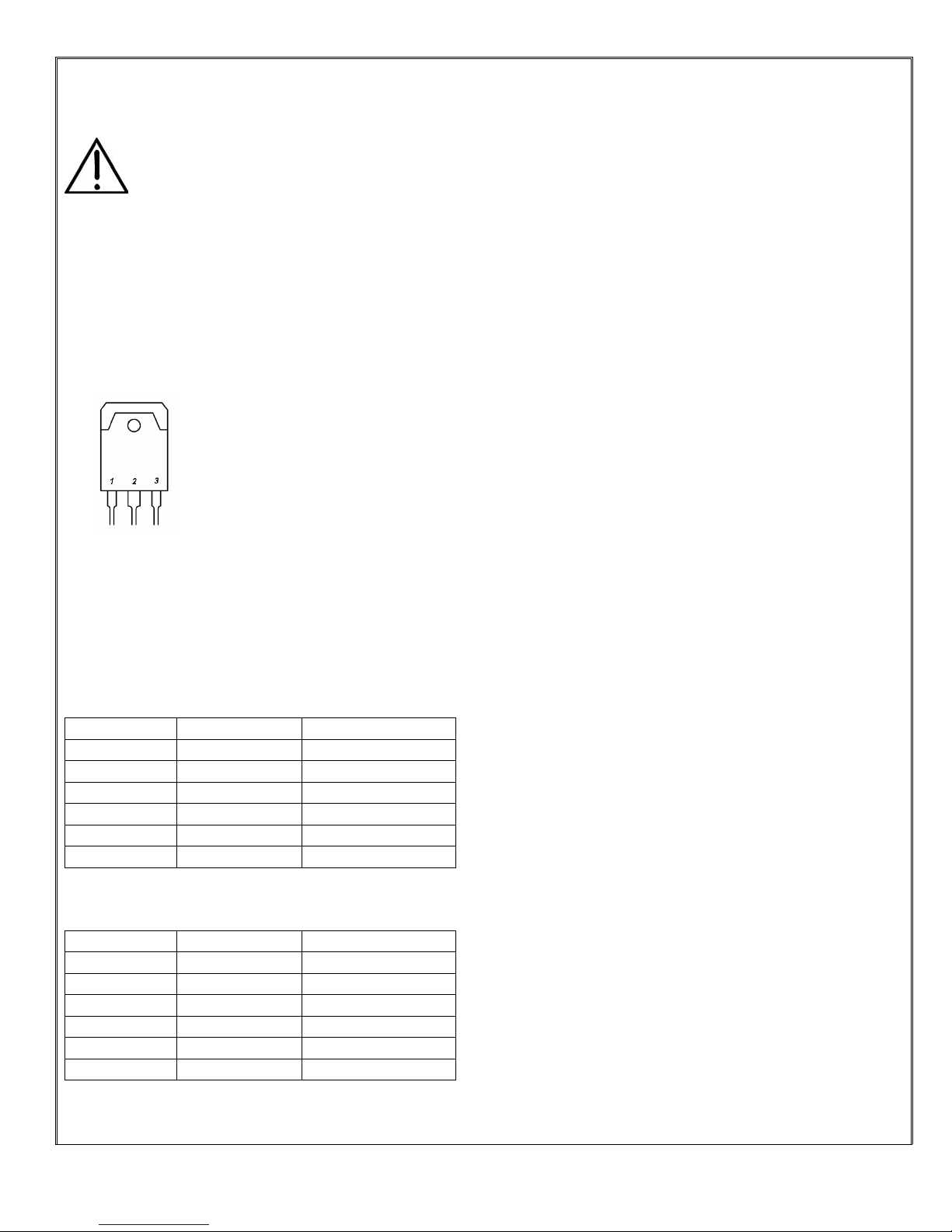

Output Transistors Testing and Replacement

PLEASE NOTE THAT THESE TESTS ARE ONLY EFFECTIVE ON BIPOLAR TRANSISTORS.

DO NOT PERFORM THESE TESTS ON MOSFET DEVICES, AS THEY ARE LIKELY TO

BECOME SHORT DURING THE TEST.

You should check all pin combinaisons, as there is a chance that only one side of the transistor is short. When

replacing outputs transistors, the technician should first disconnect both outputs and main board to check if

the blown outputs were caused by a faulty component on the amplifier’s base. Blown output transistors should

be replaced by kits, not individually. These kits contains matched transistors for both rails of one channel.

When replacing blown output transistors, you must also replace positive and negative Mosfet drivers and bias

transistor. Carefully inspect 4.7ƻresistor and 10ƻsoft start resistor, and replace if necessary. Replace any

burnt component or board.

Pins : 1 Base

2 Collector

3 Emitter

You should have these results, if the transistor is good.

2SC3264 (NPN)

Positive lead Negative lead Result

B C Conductive

B E Conductive

C B Infinite

C E Infinite

E B Infinite

E C Infinite

2SA1295 (PNP)

Positive lead Negative lead Result

B C Infinite

B E Infinite

C B Conductive

C E Infinite

E B Conductive

E C Infinite

PRO-SVR_LEGACY Page 9 of 12

Calibrations and Adjustments

Bias adjustment:

Note: Bias adjustment should be made without any load connected to the amplifier’s output, and no signal

connected to the amplifier’s input.

1. Since it is impossible to connect a multimeter to both emitter’s resistors in order to measure and adjust

bias without disassembling the heatsink from the chassis, we provided a test point to ease the bias

procedure. It is located near the bias trimpot.

2. Connect the positive probe of a millivoltmeter to the test point and the negative probe to the positive

speaker post of the channel to be adjusted.

3. Turn trimpots counterclockwise until it reaches 0ƻ. A click should be heard.

4. Turn on amplifier, and let it warm up for 15 minutes on idle.

5. Adjust trimpot to get a 20mV reading.

6. Let the amplifier warm up for a 24 hours period with signal and load.

7. Remove signal and load, and reconnect the multimeter.

8. Readjust to 24mV.

DC offset:

Note: DC offset adjustment should be made without any load connected to the amplifier’s output, and no

signal connected to the amplifier’s input.

On these units, DC offset can’t be adjusted. Measure DC offset using a voltmeter connected to the output

posts, scale setted to mV. DC offset should be less than 10mV.

PRO-SVR_LEGACY Page 10 of 12

Parts List

This is not a detailed part list. It is a list of major chassis parts and PCBs. If you need to order a specific part,

please contact Classe Audio with the part location, PCB number, and model and serial number of the unit.

If you need a complete PCB, please replace the (x) in the Classe part number with the revision number printed

on the board.

Parts Description Classe part number

B0F1X Complete PCB, input B0F1XR(x)

B0F2X Complete PCB, supply B0F2XR(x)

B0F3X Complete PCB, heatsink B0F3XR(x)

B0F4X Complete PCB, amplifier B0F4XR(x)

B0F5X Complete PCB, caps B0F5XR(x)

B0F6X Complete PCB, preamp B0F6XR(x)

B0F7X Complete PCB, front panel B0F7XR(x)

B0F9X Complete PCB, phono B0F9XR(x)
