OPERATING & MAINTENANCE

INSTRUCTIONS

GC0614

ANGLE DIE GRINDER SET

MODEL NO: CAT65

PART NO: 3110725

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Angle Die Grinder Set.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

Your tool kit has been designed to give long and trouble free service. If,

however, having followed the instructions in this booklet carefully, you

encounter problems, take the unit to your local CLARKE dealer.

IMPORTANT

Please read all of the safety and operating instructions carefully before using

this product. The following safety symbols may be found on the air tools.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

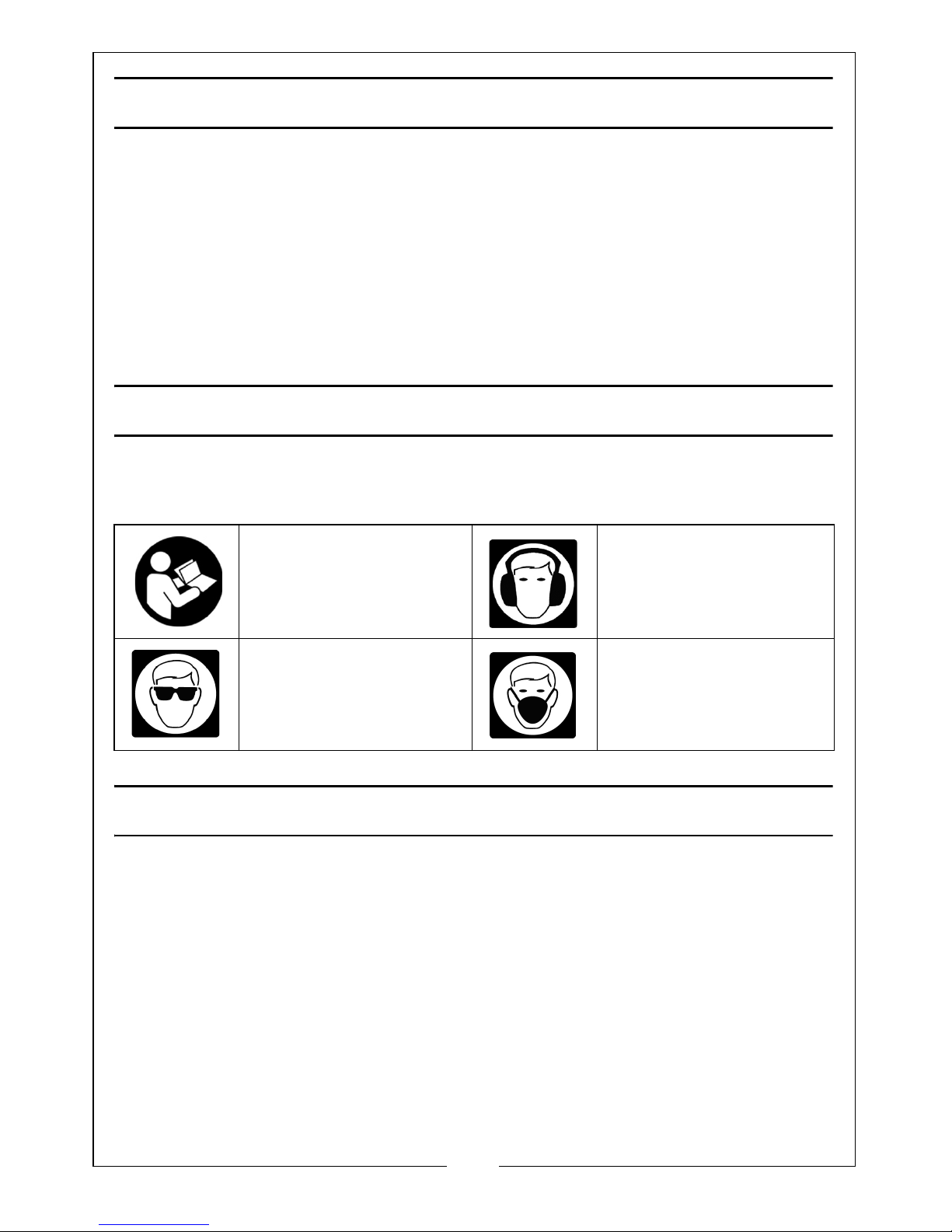

Read this instruction

booklet carefully

before use.

Wear ear protection.

Wear eye protection. Wear dust mask.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair

out of the way.

3. Keep children and visitors away - Do not let children handle the tool.

4. Do not operate the tool where there are flammable liquids or gases.

PERSONAL SAFETY

1. Stay alert and use common sense - do not operate the air tool when you

are tired or under the influence of alcohol, drugs or medication.

2. Always wear eye protectors when using the tool - Eye protectors must

provide protection from flying particles from the front and the side.

3. Always wear ear protectors when using the air tool.

4. Always wear a dust mask when operating this type of tool.

5. Do not overreach - Keep proper footing and balance at all times.

6. Remove any wrench before turning the power tool on. A wrench left

attached to a rotating part of the power tool may result in personal injury.

USE OF AIR POWERED TOOLS

1. Never use oxygen, CO2, combustible gases or any type of bottled gas as a

source of power for the tool.

2. Do not connect the air supply hose with your finger on the trigger.

3. Do not exceed the maximum pressure for the tool of 90 psi / 6.2 bar.

4. Check hoses for leaks or worn condition before use, and ensure that all

connections are secure.

5. Do not use the tool for any other purpose than that described in this

manual.

6. Keep the air supply hose away from heat, oil and sharp edges.

7. Do not fit the tool to any stand or clamping device that may damage it.

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN

PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

8. Do not carry out any alterations or modifications to the tool.

9. Always disconnect from the air supply when:

• Performing any maintenance.

• The tool is not in use.

• The tool will be left unattended.

• Moving to another work area.

• Passing the tool to another person.

10. Never use the tool if it is defective or operating abnormally.

11. The tool should be serviced at regular intervals by qualified service

personnel.

12. Avoid damaging the tool by applying excessive force of any kind.

13. Always maintain the tool with care. Keep it clean for the best and safest

performance.

14. Quick change couplings should not be located at the tool. They add

weight and could fail due to vibration.

15. Do not force or misuse the tool. It will do a better and safer job at the rate

for which it was designed.

16. Do not remove any labels. Damaged labels should be replaced.

17. This tool vibrates with use. Vibration may be harmful to your hands or arms.

Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek

medical advice before resuming use.

TRANSPORTATION AND STORAGE

1. Never carry the tool by the air supply hose.

2. Never carry the tool with your finger on the trigger.

3. When not in use the tool should be disconnected from the air supply and

stored in a dry place out of the reach of children (preferably in a locked

cabinet).

4. Avoid storing the tool in environments where the temperature is below 0oC.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

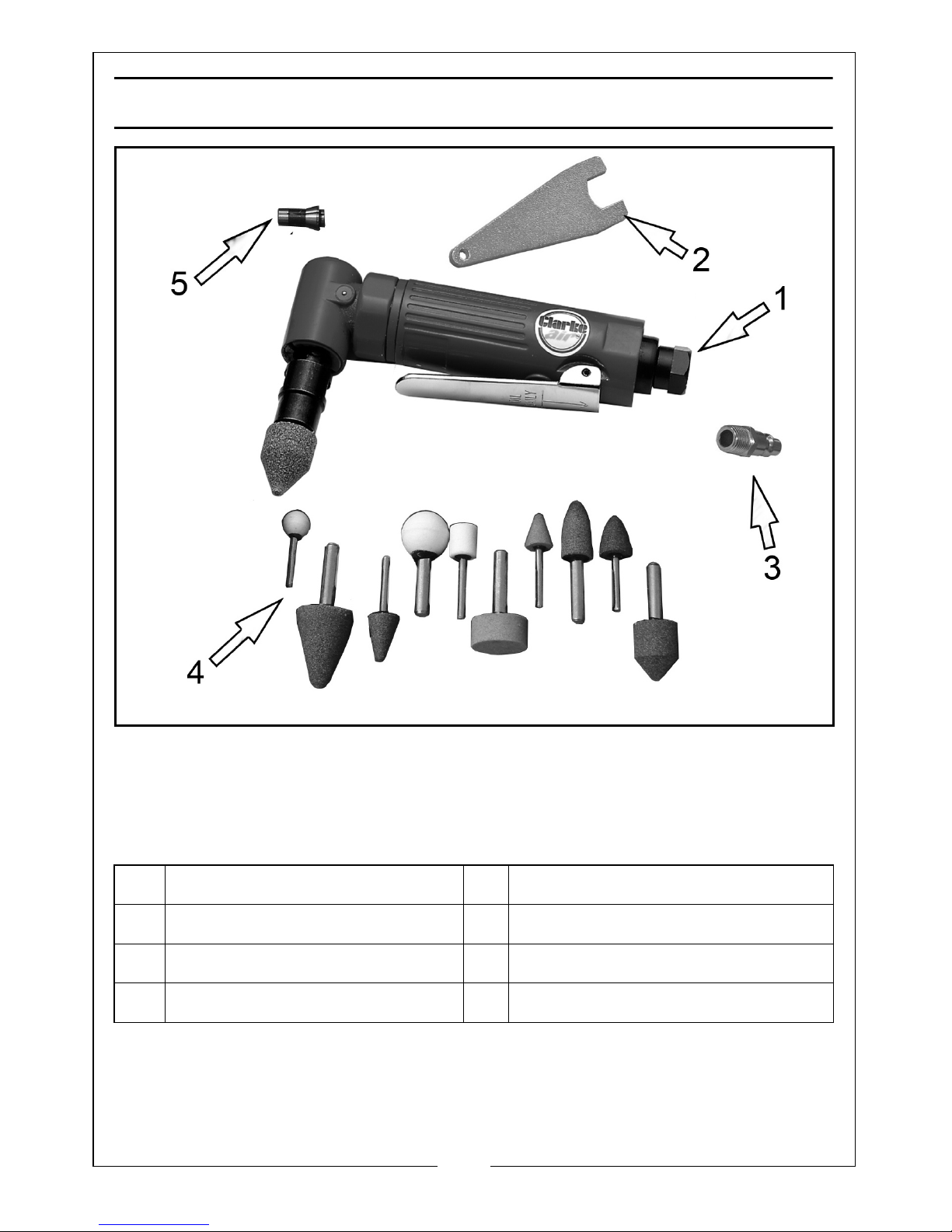

OVERVIEW

The CAT65 Die Grinder Set includes the accessories shown. When opening the

case for the first time, check against the following list that all the items are

present. Any damage or deficiency should be reported to your CLARKE dealer

immediately.

NO DESCRIPTION NO DESCRIPTION

1 Die Grinder Tool 4 10 Grinding Stones

2 2 x Wrenches 5 2 x Collets (1 already fitted to tool)

3 Male Snap Connector

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SPECIFICATIONS

Please note that the details and specifications contained herein are correct at

the time of going to print. However CLARKE International reserve the right to

change specifications at any time without prior notice. Always consult the

machine’s data plate.

Model Number CAT65 Angle Die Grinder

Weight 0.5 kg

Air Inlet Size 1/4“BSP (female)

Collet Sizes 1/8” and 1/4”

Operating Pressure 90 psi (6.2 bar)

Air Consumption 8 cfm average

No Load Speed 18000 rpm @ 90psi

Sound Pressure Level (LpA dB) 93 dB(A)

Sound Power Level (LwA dB) 105 dB(A)

Vibration Levels 2.5 m/s2

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

COMPRESSED AIR REQUIREMENTS

• Use only clean, dry, regulated compressed air as a power source.

• Air compressors used with the tool must comply with the appropriate

European Community Safety Directives.

• A build-up of moisture or oil in the air compressor will accelerate

wear and corrosion in the tool. ensure any moisture is drained from

the compressor daily and the inlet filter is kept clean.

• If an unusually long air hose is required, (over 8 metres), the line

pressure or the hose inside diameter may need to be increased.

• The air hose must be rated at least 150% of the maximum operating

pressure of the tool.

• A typical air line layout is shown above. If an automatic in-line filter/

regulator is used, it will keep the tool in good condition, but should

be regularly checked and topped up with oil. SAE 10 oil should be

used, and the lubricator adjusted to approx 2 drops per minute.

• Never exceed the maximum operating pressure for the tool. It is

recommended that air pressure to this tool does not exceed 90 psi

at the tool when running. Higher pressures and unclean air will

shorten the life of the tool due to faster wear and is a possible safety

hazard.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

BEFORE USE

NOTE: Ensure the compressor is turned off.

1. Remove the blanking plug from the inlet connection of the tool.

2. If required, connect an in-line mini oiler to the tool.

• A mini oiler helps to prolong the life of the air tool.

3. If a mini-oiler is not being used, run

a few drops of oil through the tool

before use. It can be entered

through the air inlet or via the hose

at the nearest connection to the

air supply.

4. Connect a suitable hose to the air

inlet as shown.

5. Connect the other end of the hose

to the compressor.

Your air tool is now ready for use.

You can fit a whip hose with a quick fit coupling if required (available from

your Clarke dealer).

INSTALLING THE COLLET TO THE DIE GRINDER

1. Select the grinding stone you require.

2. Two collets of different sizes are

provided. Select whichever fits

the shank of the stone you have

chosen.

• The larger collet is probably

already installed in the grinder.

3. If the other collet is to be used,

undo the screw cap completely

and pull out the collet from the

collet seat. Replace it with the

new collet and screw the cap loosely back on.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR

COMPRESSORS AND COMPRESSED AIR SUPPLIES.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

FITTING THE GRINDING STONE INTO THE DIE GRINDER

IMPORTANT: Never use chipped or cracked grindstones. Never use

grindstones not rated to operate at a speed equal to, or greater than, the

full operating speed of the air tool.

1. Slip the shank of the chosen stone

into the collet and tighten the

screw cap finger tight.

2. Place the smaller of the two

wrenches over the collet seat to

stop the tool from rotating.

3. Use the larger wrench to fully

tighten the collet and grip the

stone in position as shown.

SETTING THE SPEED

1. Adjust the tool speed by setting

the air regulator on top of the tool

body using a suitable screwdriver.

OPERATING THE TOOL

1. Use your thumb to slide the

throttle locking lever forward while

squeezing the trigger against the

body of the tool.

2. Do not use excess pressure on the

grinding stone as this will shorten

its life.

3. Release the trigger to stop the

tool.

• The tool will continue to rotate

very briefly after the trigger has been released.

4. Always ensure the tool has stopped before putting it down.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GRINDING TIPS

• The key to efficient grinding is to control the pressure and surface

contact between the grinding tool and the workpiece.

• Allow the tool to reach full speed before grinding.

• Avoid overloading the die grinder. If it becomes hot during use, rest

for a few minutes while it cools down.

DISCONNECTING THE AIR SUPPLY

1. Do not disconnect the air supply hose until the compressor has been shut

down and the compressed air released.

2. Refer to the compressor instruction manual for the procedure to shut down

and release the compressed air.

3. Once the pressure has been released, disconnect the air supply hose from

the tool.

MAINTENANCE

PERFORMANCE

Please note that factors other than the tool may effect its operation and

efficiency such as reduced compressor output, excessive drain on the airline

moisture or restrictions in the air-line, or the use of connectors of improper size

or poor condition which will reduce air supply.

**Clarke Air Line Oil (part no. 3050825) is available from your CLARKE dealer.

DAILY

1. Before use, drain water from the air tank, air line and compressor.

2. Pour a few drops of CLARKE airline oil, into the air inlet. This should be

carried out regardless of whether or not an in-line mini oiler is used. If an in-

line mini oiler is not used, this procedure should be repeated after every

two to three hours of use.

WARNING: MAKE SURE THAT THE AIR TOOL IS DISCONNECTED FROM THE

AIR SUPPLY BEFORE STARTING ANY CLEANING OR MAINTENANCE

PROCEDURES.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Clarke Broyeur

Clarke

Clarke CON115 Manuel d'installation et d'exploitation

Clarke

Clarke Metalworker CBG8370LW Mode d’emploi

Clarke

Clarke CAT36B Manuel d'installation et d'exploitation

Clarke

Clarke Metalworker CBG6250 Mode d’emploi

Clarke

Clarke CAG232 Manuel d'installation et d'exploitation

Clarke

Clarke X-Pro CAT206 Manuel d'installation et d'exploitation

Clarke

Clarke Air CAT122 Mode d’emploi

Clarke

Clarke CONTRACTOR CON1050B Manuel d'installation et d'exploitation

Clarke

Clarke CAG2350 Mode d’emploi

Clarke

Clarke CBG8W Manuel d'installation et d'exploitation

Clarke

Clarke CBG6RL Manuel

Clarke

Clarke CBG6RP Manuel d'installation et d'exploitation

Clarke

Clarke METALWORKER CBG6RZ Manuel d'installation et d'exploitation

Clarke

Clarke CGP75F Mode d’emploi

Clarke

Clarke METALWORKER CBG6SC Manuel d'installation et d'exploitation

Clarke

Clarke CBG8W Manuel d'installation et d'exploitation

Clarke

Clarke METALWORKER CHDBG900 Mode d’emploi

Clarke

Clarke CAT130 Manuel d'installation et d'exploitation

Clarke

Clarke Metalworker CBG8370L Mode d’emploi

Clarke

Clarke CAG115C Manuel d'installation et d'exploitation

Clarke

Clarke CAG2350C Manuel d'installation et d'exploitation

Clarke

Clarke CAT83 Manuel d'installation et d'exploitation

Clarke

Clarke CBG8W Manuel d'installation et d'exploitation

Clarke

Clarke CAG800 Manuel d'installation et d'exploitation

Manuels Broyeur populaires d'autres marques

Parkside

Parkside PWS 230 C3 Manuel utilisateur

SUHNER ABRASIVE

SUHNER ABRASIVE ASC 9 Manuel technique

PTA

PTA P1322 Manuel utilisateur

Crown

Crown CT13313 Manuel utilisateur

Parkside

Parkside 280250 Manuel utilisateur

Climax

Climax VM2150 Series Manuel utilisateur

Jet

Jet JPSG-618M1 Manuel de service

Makita

Makita GA4030 Manuel utilisateur

DeWalt

DeWalt DWEN202 Manuel utilisateur

Grizzly

Grizzly G2790 Manuel utilisateur

Fein

Fein MSf843-1a Manuel utilisateur

Bosch

Bosch GWS 14,4 V PROFESSIONAL Manuel utilisateur

RAMSET

RAMSET CBAGR18 Manuel utilisateur

Bosch

Bosch 8-115 Z Manuel utilisateur

STEELE PRODUCTS

STEELE PRODUCTS SP-PB008 Manuel utilisateur

MW TOOLS

MW TOOLS ME15W Manuel utilisateur

Caravaggi

Caravaggi SP 20 Mode d'emploi

SUHNER ABRASIVE

SUHNER ABRASIVE UWK 10-R125 Manuel technique
