OPERATING & MAINTENANCE

INSTRUCTIONS

GC0414

1/4” AIR DIE GRINDER (C/W 5” EXTN)

MODEL NO: CAT130

PART NO: 3120144

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Die Grinder which is ideal for light tasks

such as automotive porting & polishing applications.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

Your Die Grinder has been designed to give long and trouble free service. If,

however, having followed the instructions in this booklet carefully, you

encounter problems, take the unit to your local CLARKE dealer.

IMPORTANT

Please read all of the safety and operating instructions carefully before using

this product. The following safety symbols are to be found on the machine.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

Read this instruction

booklet carefully

before use.

Wear ear protection.

Wear eye protection. Wear dust mask.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair

out of the way.

3. Keep children and visitors away - Do not let children handle the tool.

4. Do not operate the tool where there are flammable liquids or gases.

USE OF POWER TOOLS

1. Stay alert and use common sense - do not operate the air tool when you

are tired or under the influence of alcohol, drugs or medication.

2. Always wear eye protectors when using the tool - Eye protectors must

provide protection from flying particles from the front and the side.

3. Always wear ear protectors when using the air tool.

4. Do not overreach - Keep proper footing and balance at all times.

5. Never use oxygen, CO2, combustible gases or any type of bottled gas as a

source of power for the tool.

6. Do not connect the air supply hose with your finger on the trigger.

7. Do not exceed the maximum pressure for the tool of 90 psi / 6.2 bar.

8. Check hoses for leaks or worn condition before use, and ensure that all

connections are secure.

9. Do not use the tool for any other purpose than that described in this

manual.

10. Keep the air supply hose away from heat, oil and sharp edges.

11. Do not fit the tool to any stand or clamping device that may damage it.

12. Do not carry out any alterations or modifications to the tool.

13. Always disconnect from the air supply when:

• Performing any maintenance.

• The tool is not in use.

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN

PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• The tool will be left unattended.

• Moving to another work area.

• Passing the tool to another person.

14. Never use the tool if it is defective or operating abnormally.

15. The tool should be serviced at regular intervals by qualified service

personnel.

16. Avoid damaging the tool for example by applying excessive force of any

kind.

17. Always maintain the tool with care. Keep it clean for the best and safest

performance.

18. Quick change couplings should not be located at the tool. They add

weight and could fail due to vibration.

19. Do not force or misuse the tool. It will do a better and safer job at the rate

for which it was designed.

20. Do not remove any labels. Damaged labels should be replaced.

21. This tool vibrates with use. Vibration may be harmful to your hands or arms.

Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek

medical advice before resuming use.

TRANSPORTATION AND STORAGE

1. Never carry the tool by the air supply hose.

2. Never carry the tool with your finger on the trigger.

3. When not in use the tool must be disconnected from the air supply and

stored in a dry place out of the reach of children (preferably in a locked

cabinet).

4. Avoid storing the tool in environments where the temperature is below 0oC.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

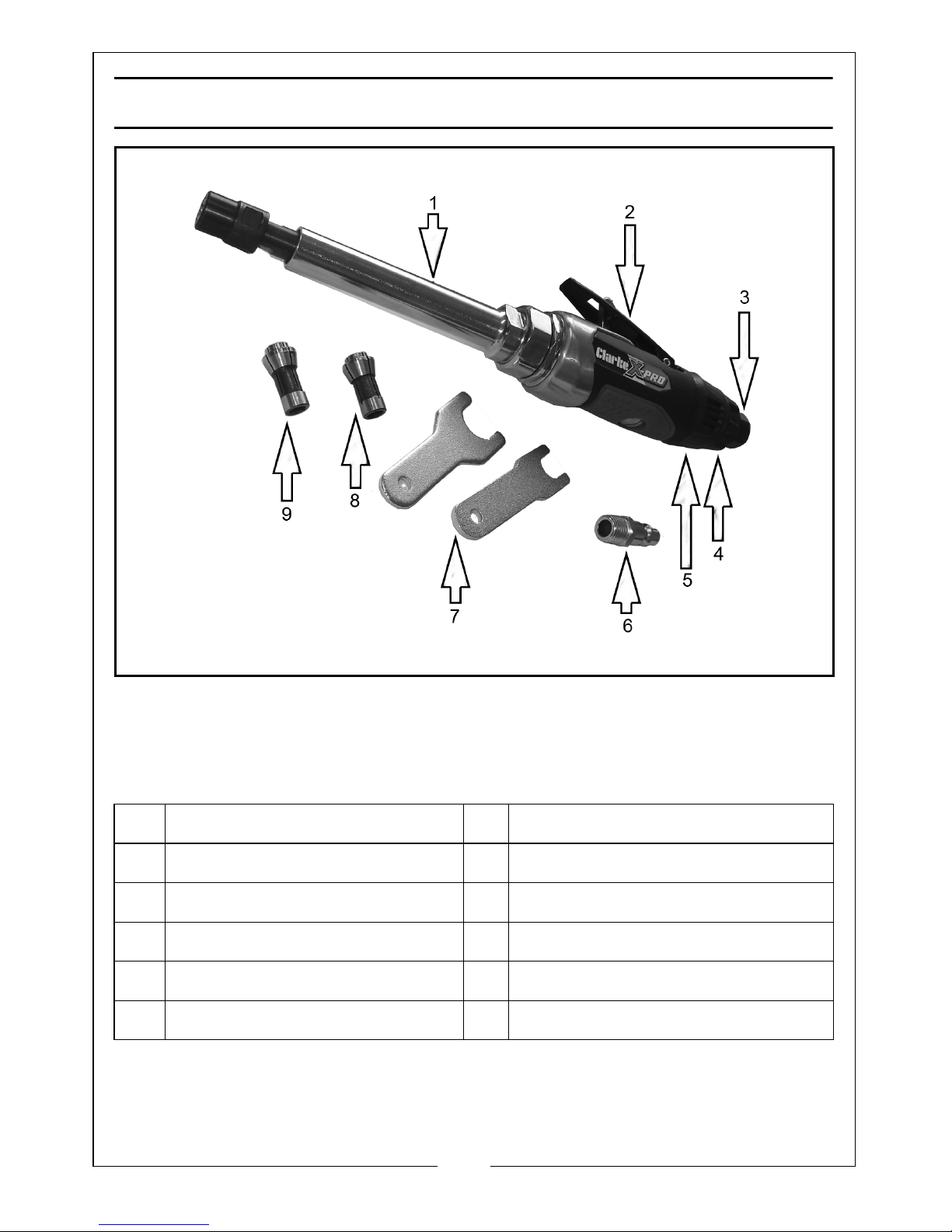

OVERVIEW

When opening the carton for the first time, check against the following list that

all the items are present. Any damage or deficiency should be reported to

your CLARKE dealer immediately.

NO DESCRIPTION NO DESCRIPTION

1 5” Die Grinder (with 1/4” Collet) 6 Male Snap Connector

2 Trigger 7 2 x Collet Wrenches

3 Air Inlet 8 6 mm Collet

4 Speed Control 9 1/8” Collet

5 Air Exhaust Deflector

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

COMPRESSED AIR REQUIREMENTS

• Use only clean, dry, regulated compressed air as a power source.

• Air compressors used with the tool must comply with the appropriate

European Community Safety Directives.

• A build-up of moisture or oil in the air compressor will accelerate

wear and corrosion in the tool. ensure any moisture is drained from

the compressor daily and the inlet filter is kept clean.

• If an unusually long air hose is required, (over 8 metres), the line

pressure or the hose inside diameter may need to be increased.

• The air hose must be rated at least 150% of the maximum operating

pressure of the tool.

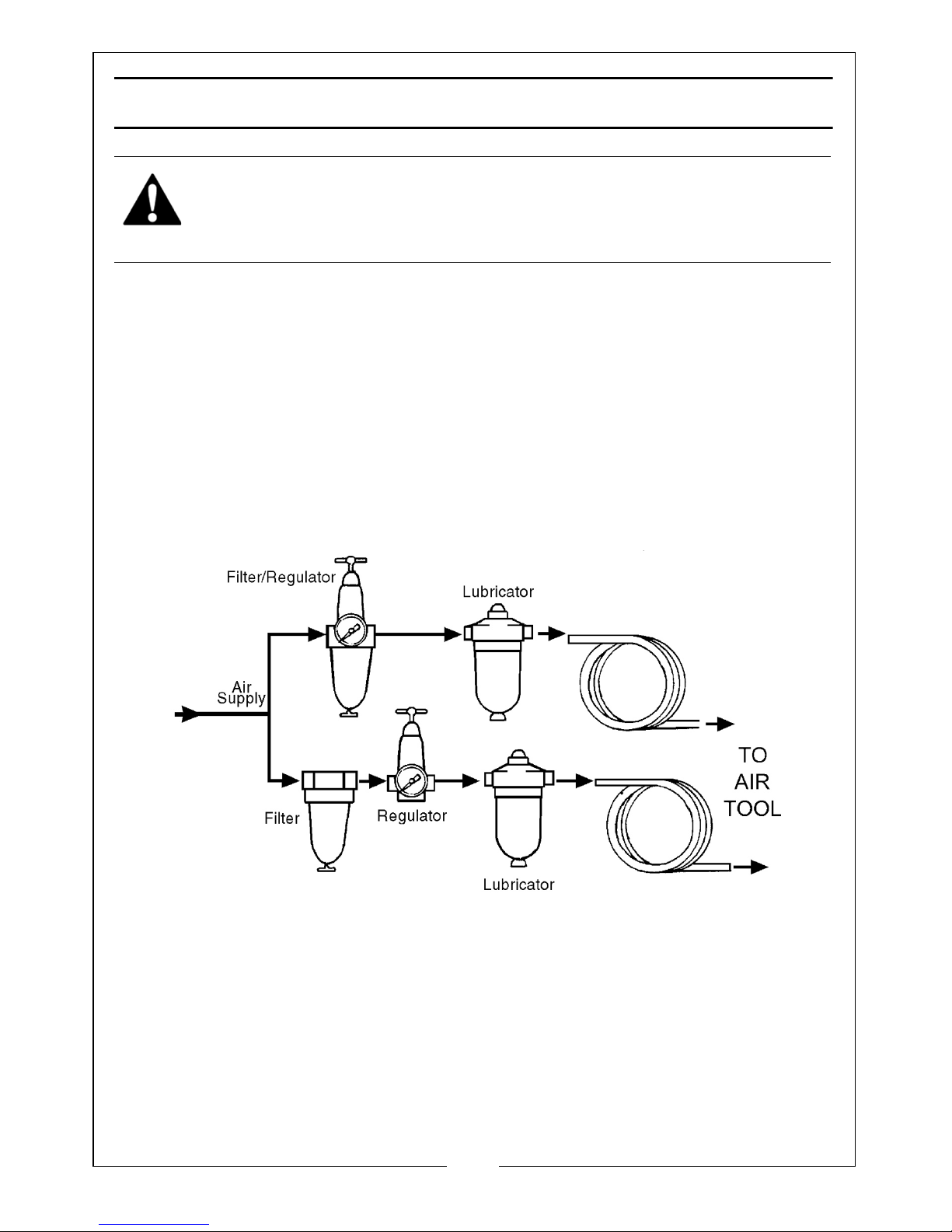

• A typical air line layout is shown above. If an automatic in-line filter/

regulator is used, it will keep the tool in good condition, but should

be regularly checked and topped up with oil. SAE 10 oil should be

used, and the lubricator adjusted to approx 2 drops per minute.

• Never exceed the maximum operating pressure for the tool. It is

recommended that air pressure to this tool does not exceed 90 psi

at the tool when running. Higher pressures and unclean air will

shorten the life of the tool due to faster wear and is a possible safety

hazard.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

BEFORE USE

NOTE: Ensure the compressor is turned off.

1. Remove the blanking plug from the inlet of the tool.

2. If required, connect an in-line mini oiler to the tool.

• A mini oiler helps to prolong the life of the air tool.

3. If a mini-oiler is not being used, run

a few drops of oil through the tool

before use. It can be entered

through the inlet strainer or via the

hose at the nearest connection to

the air supply.

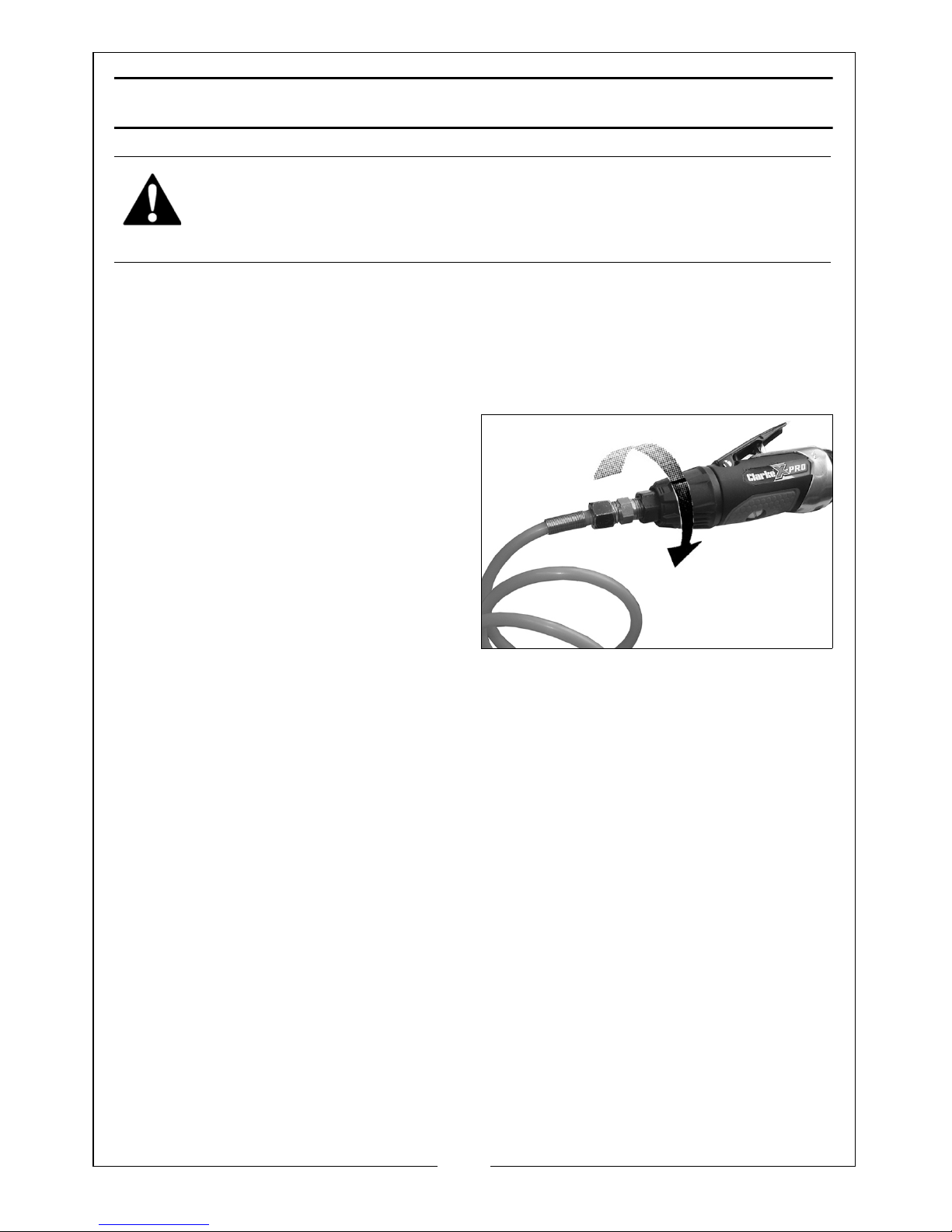

4. Connect a suitable hose to the air

inlet as shown.

5. Connect the other end of the hose

to the compressor.

Your air tool is now ready for use.

You can fit a whip hose with a quick fit coupling if required (available from

your Clarke dealer).

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR

COMPRESSORS AND COMPRESSED AIR SUPPLIES.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

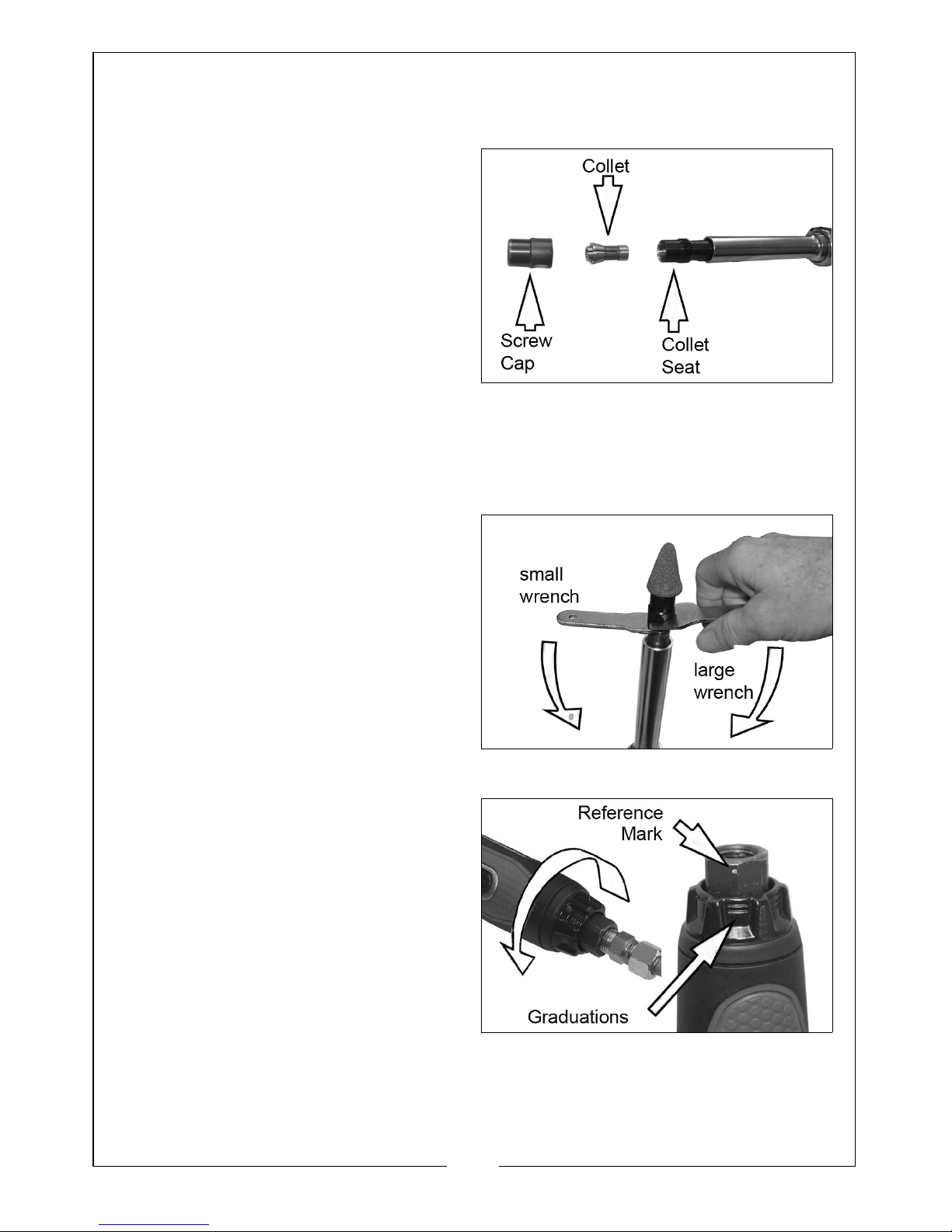

INSTALLING THE COLLET

1. Select the grinding stone you require.

2. Three collets of different sizes are

provided. Select whichever fits

the shank of the stone you have

chosen.

• The larger collet is probably

already installed in the grinder.

3. If another collet is to be used,

undo the screw cap completely

and pull out the collet from the

collet seat. Replace it with the

new collet and screw the cap loosely back on.

FITTING THE GRINDING STONE

IMPORTANT: Never use chipped or cracked grindstones.

1. Slip the shank of the chosen stone

into the collet and tighten the

screw cap finger tight.

2. Place the smaller of the two

wrenches over the collet seat to

stop the tool from rotating.

3. Use the larger wrench to fully

tighten the collet and grip the

stone in position as shown.

ADJUSTING THE SPEED

1. Set the tool speed by rotating the

control to one of the four settings.

• The graduations on the speed

control indicate the speed

setting when aligned with the

reference mark on the air inlet.

• Speeds available are: 12000,

17500, 22000 or 25000 rpm (+/-

10%).

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

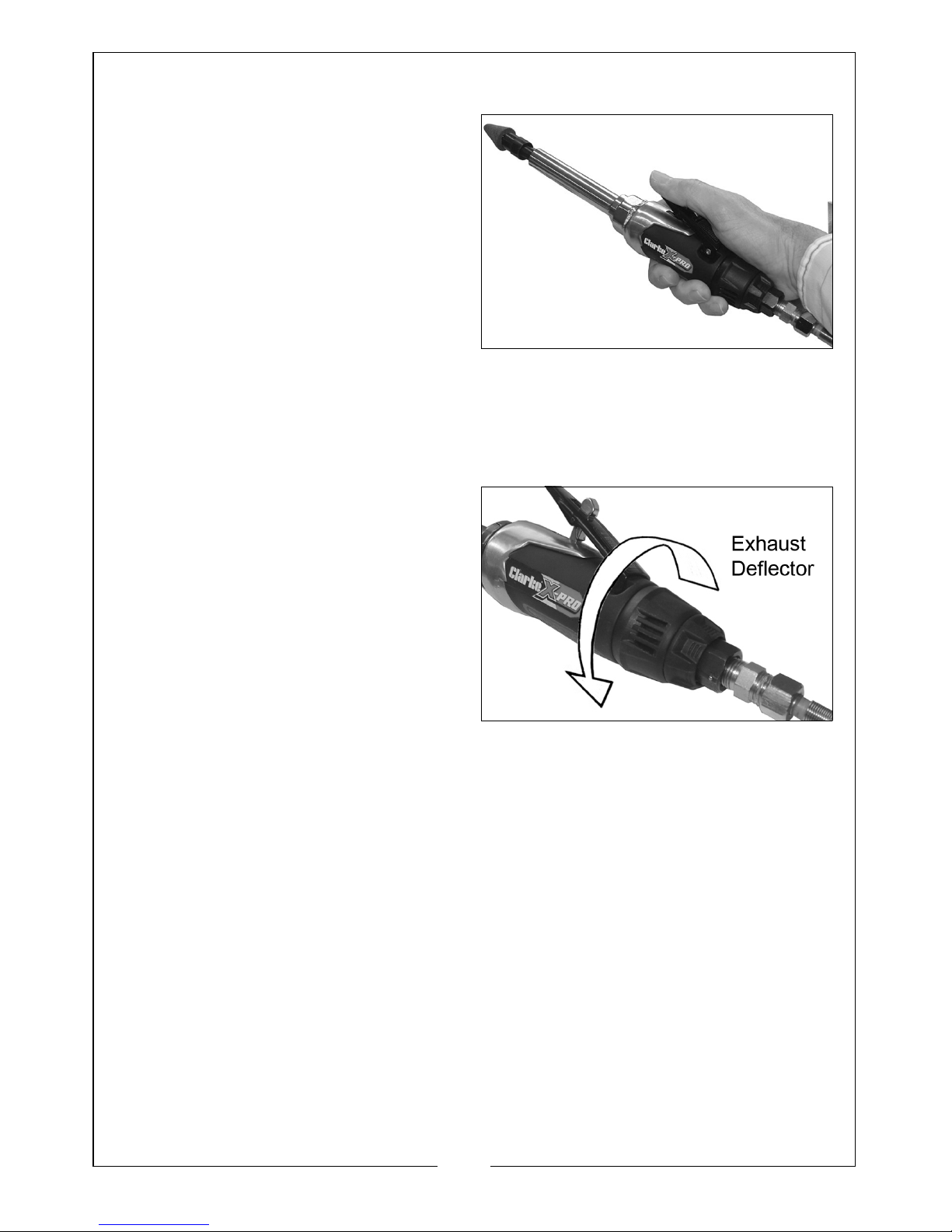

OPERATING THE DIE GRINDER

1. Use your thumb to slide the

throttle locking lever forward while

squeezing the trigger against the

body of the tool.

2. Do not use excess pressure on the

grinding stone as this will shorten

its life.

3. Release the trigger to stop the

grinder.

• The tool will continue to rotate

for a for a short time after the trigger has been released.

4. Always ensure the grinder has stopped before putting it down.

SETTING THE EXHAUST DEFLECTOR

The direction of the exhaust air

leaving the tool can be adjusted by

rotating the exhaust deflector.

Twist the exhaust deflector sleeve to

direct the air as required to deflect air

away from the workpiece or operator.

DISCONNECTING THE AIR SUPPLY

1. Do not disconnect the air supply hose until the compressor has been shut

down and the compressed air released.

2. Refer to the compressor instruction manual for the procedure to shut down

and release the compressed air.

3. Once the pressure has been released, disconnect the air supply hose from

the tool.

STORAGE

If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of

Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to

lubricate the internal parts.

When not in use, disconnect from air supply, clean tool and store in a safe, dry

place. When storing, ensure the blanking plug is replaced on the airline

connector once the airline is disconnected.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION

Tool runs at normal

speed but slows down

under any load.

1. Excessive pressure on

tool.

2. Motor parts worn.

3. Worn or sticking

mechanism due to

lack of lubricant.

1. Reduce the force

applied to the tool.

2. Return to Clarke dealer

for repair.

3. Drip air tool lubricating

oil into air inlet. Allow oil

to soak moving parts

before using.

Tool runs slowly. Air flows

weakly from exhaust.

1. Motor parts jammed

with gum/dirt.

2. Regulator in closed

position.

3. General airflow

blocked by dirt.

1. Examine inlet air filter for

cleanliness.

2. Adjust regulator to open

position.

3. Operate tool in short

bursts.

Tool will not run. Air flows

freely from exhaust.

1. Motor vanes stuck

due to buildup of

foreign material.

1. Disconnect air supply

and rotate tool assembly

manually.

2. Try operating tool in

short bursts.

3. Drip a few drops of air

tool lubricating oil into air

inlet to soak moving

parts.

Tool will not shut off. 1. Throttle O-rings

damaged or ill-fitting

in seat.

1. Return to Clarke dealer

for repair.

Table des matières

Autres manuels Clarke Broyeur

Clarke

Clarke air CAT129 Manuel d'installation et d'exploitation

Clarke

Clarke METALWORKER CHDBG500 Mode d’emploi

Clarke

Clarke CAT143 Manuel d'installation et d'exploitation

Clarke

Clarke CAT36B Manuel d'installation et d'exploitation

Clarke

Clarke METALWORKER CBG6SB Manuel d'installation et d'exploitation

Clarke

Clarke METALWORKER CBG6RZ Manuel d'installation et d'exploitation

Clarke

Clarke CGP75F Mode d’emploi

Clarke

Clarke X-Pro CAT206 Manuel d'installation et d'exploitation

Clarke

Clarke METALWORKER CAG121 Manuel d'installation et d'exploitation

Clarke

Clarke CAG800B Manuel d'installation et d'exploitation

Clarke

Clarke Metalworker CBG6250LW Mode d’emploi

Clarke

Clarke CBG6RP Manuel d'installation et d'exploitation

Clarke

Clarke CBG6RL Manuel

Clarke

Clarke CAG115C Manuel d'installation et d'exploitation

Clarke

Clarke Contractor CON1050 Manuel d'installation et d'exploitation

Clarke

Clarke CBG8W Manuel d'installation et d'exploitation

Clarke

Clarke METALWORKER CBG6RZ Manuel

Clarke

Clarke CAG2350B Manuel d'installation et d'exploitation

Clarke

Clarke CAG800 Manuel d'installation et d'exploitation

Clarke

Clarke CAG2350 Mode d’emploi

Clarke

Clarke Metalworker CBG8370LW Mode d’emploi

Clarke

Clarke CON115 Manuel d'installation et d'exploitation

Clarke

Clarke CAG900 Manuel d'installation et d'exploitation

Clarke

Clarke Metalworker CBG8370L Mode d’emploi

Manuels Broyeur populaires d'autres marques

Parkside

Parkside PWS 230 C3 Manuel utilisateur

SUHNER ABRASIVE

SUHNER ABRASIVE ASC 9 Manuel technique

PTA

PTA P1322 Manuel utilisateur

Crown

Crown CT13313 Manuel utilisateur

Parkside

Parkside 280250 Manuel utilisateur

Climax

Climax VM2150 Series Manuel utilisateur

Jet

Jet JPSG-618M1 Manuel de service

Makita

Makita GA4030 Manuel utilisateur

DeWalt

DeWalt DWEN202 Manuel utilisateur

Grizzly

Grizzly G2790 Manuel utilisateur

Fein

Fein MSf843-1a Manuel utilisateur

Bosch

Bosch GWS 14,4 V PROFESSIONAL Manuel utilisateur

RAMSET

RAMSET CBAGR18 Manuel utilisateur

Bosch

Bosch 8-115 Z Manuel utilisateur

STEELE PRODUCTS

STEELE PRODUCTS SP-PB008 Manuel utilisateur

MW TOOLS

MW TOOLS ME15W Manuel utilisateur

Caravaggi

Caravaggi SP 20 Mode d'emploi

SUHNER ABRASIVE

SUHNER ABRASIVE UWK 10-R125 Manuel technique
