WARNING: Read these instructions before using the bender

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC06/23

710mm METAL BENDER

MODEL NO: CMB710

PART NO: 7610905

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]om

INTRODUCTION

Thank you for purchasing this CLARKE Metal Bender. Before attempting to use

it please read this manual and carefully follow all instructions given. In doing so

you will ensure the safety of yourself and that of others around you, and you

can also look forward to the product giving you long and satisfactory service.

Ensure the product suffered no damage during transit and that all items are

present. Should any loss or damage become apparent, please contact your

CLARKE dealer immediately.

SAFETY PRECAUTIONS

As with all tools and workshop equipment it is necessary to exercise caution

when it is put to use, being aware of any associated or inherent dangers.

• Due to the weight of the metal bender, the help of an assistant may be

beneficial during unpacking and mounting.

• ALWAYS operate on a suitably strong bench with adequate light.

• This metal bender must be firmly secured to a firm and level bench using

suitable bolts (not supplied).

• Leave adequate working space around the bender for safer and

convenient operation.

• ALWAYS check for signs of structural damage before starting work. DO NOT

use if damage is found. Have repairs made only by a CLARKE service

centre.

• ALWAYS ensure the workpiece is secure and properly positioned before

applying pressure.

• ALWAYS keep hands and fingers away from moving parts that may pinch.

• NEVER use extension tubes to increase the length of the handles. Excessive

effort can cause damage and/or accidents.

• NEVER attempt to bend materials which exceed the sizes stated above.

Failure to heed these warnings may result in damage to the equipment or

personal injury.

Dimensions D x W x H 155 x 902 x 128 (+420mm handle) mm

Net Weight 17.9 kg

Bending Capacity Thickness-1.2mm Width 730mm Angle - 0-90o

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

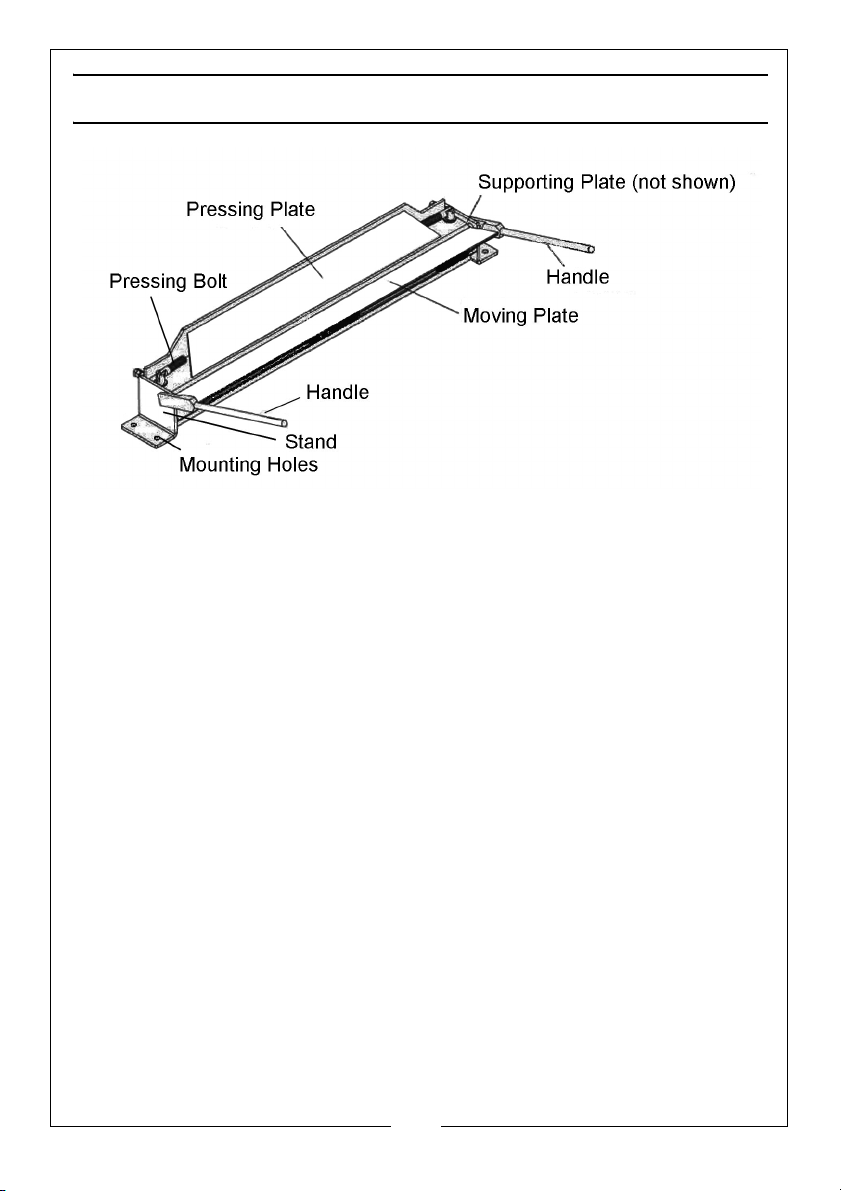

METHOD OF USE

Mount the Metal Bender on a sturdy workbench at a height which allows easy

operation taking into account the nature of the work, with the handles

pointing towards you.

• 4 x10 mm bolts will be required (not supplied) for mounting to the chosen

bench. Holes will need to be drilled in the bench at the positions shown.

WARNING: NEVER EXCEED THE MAX BENDING CAPACITY (1.2mm MATERIAL).

1. Lower the handle until the moving plate becomes parallel to the

workbench.

2. Position the workpiece on the supporting plate and the moving plate so

that the edge to be bent lines up with the back edge of the supporting

plate.

3. Place the pressing plate on top of the supporting plate so that the back

edge of the Pressing Plate lines up flush with the back edge of the

Supporting Plate.

NOTE: To ensure a proper bend, leave a 2-3mm gap for 1.2mm material,

decrease the gap when using thinner material. Experiment with

scrap pieces.

4. Raise the two handles to bend the material.

WARNING: WHEN BENDING SHEET METAL, KEEP YOUR HANDS CLEAR OF THE

SUPPORTING AND MOVING PLATE TO AVOID INJURY.

If disposing of scrap metal, DO NOT dispose of with general waste. Metal

products and scrap should be taken to your local civic amenity site for the

recycling of metal products according to local regulations.
