MOVEMENT SPECIFICATIONS

CAL.FS00/01, FS10/11, FS20/21

10-1/2 LIGNE, 3 EYES CHRONOGRAPH

ANALOGUE QUARTZ, 0 JEWEL

MANUFACTURED IN JAPAN

1.BASIC SPECIFICATION

(1) CaL. No. *TO CONFIRM WITH MOV'T DRAWING ATTACHED

CALIBRE FS01 ／FS11 FS21

PUSHER PARALLE

Ligne

Size*mm

Date

Total height 4.28 ／5.25 5.25

Figure

(push button

placed angle)

FS00 ／FS10 FS20 FS01 (FS11) (FS21)

Battery & Life SR626SW 2YEARS

* based on 1 hour/day chronograph us

(2) Time standard

Type of quartz : Tuning fork type quartz crysta

Frequency : 32,768H

ccuracy : +/-20 s/month worn under normal circumstances

(3) Balanceable weight of hand

Minute hand Max. 0.4 µN.m

Second hand Max. 0.035 µN.m

Other small hands Max. 0.02 µN.m

(4) Function FS10 / FS11

Chronograph 1/1 sec. Basis (Up to 59 min. 59 sec.)

Powercell Saving Reset Mechanism(PSRM)

Over-loading Compensation Device(OLCD)

Digital Frequency Control(DFC) for time adjustment chrono 60 min.→

(9H)

FS00 / FS01 (EYE POSITION)

second hand (6H)↑

FS20 / FS21

chrono 60 min.→

(9H)

second hand (6H)↑

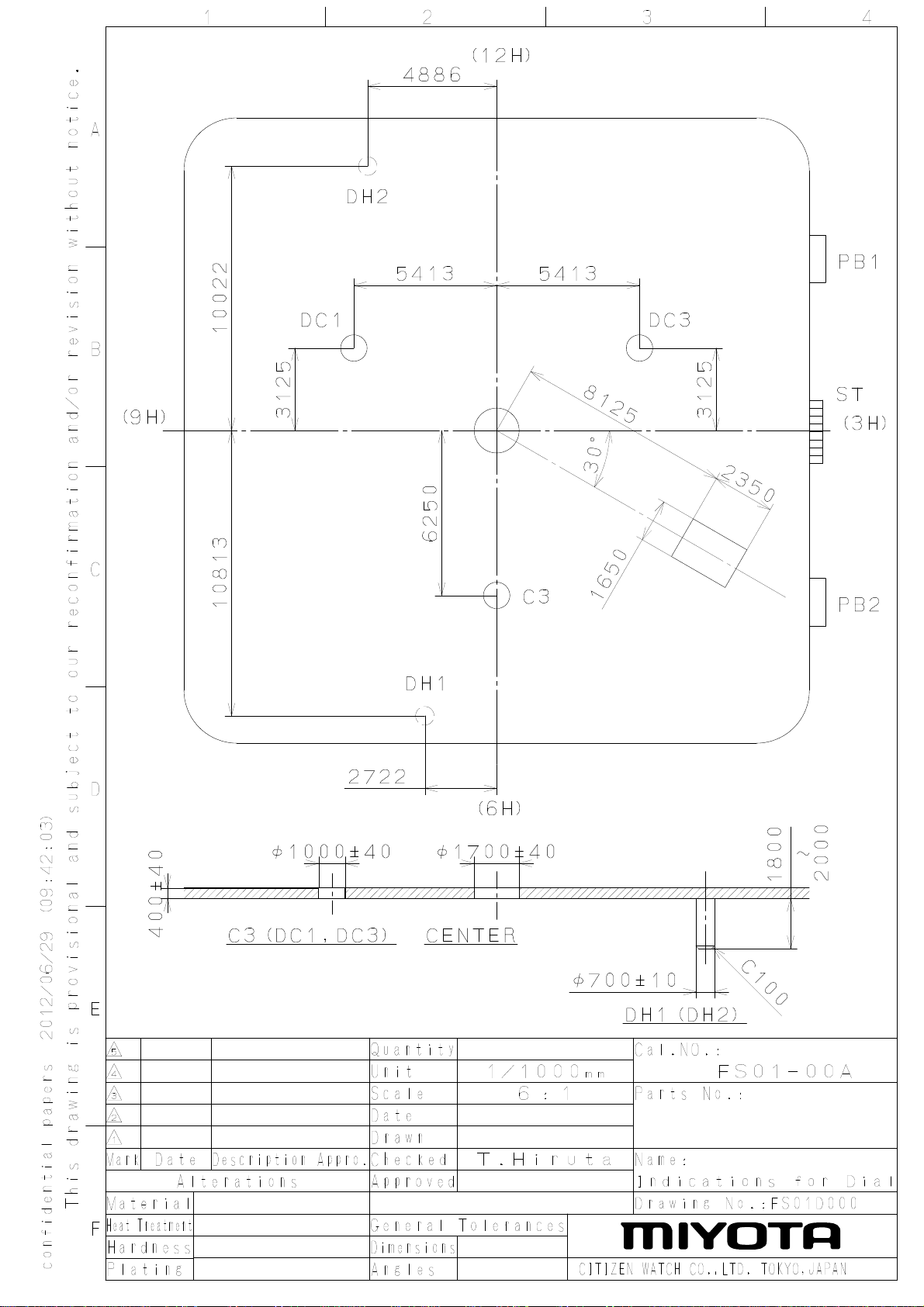

4.13mm ／5.10mm 5.10mm

23.7X22mm (3H-9H)

FS00 ／FS10 FS20

SLANTED

10-1/2

Slante Parallel

2.SEPARATED PART

Setting stem x1

Code 065-549

Length from movement center to far end 20.00mm

of setting stem

Thread................................. Ф0.9mm x 9.06mm

3.OTHERS

* Measurement of time rate

The unit(gate) time of measurement must be set at "10 sec." or integer fold

value of 10 sec. owing to the DFC system, and the measurement must be

performed in the form of complete watch.

* Marking on movement

JAPAN

MIYOTA CO.

(CAL. NO.)

NO JEWELS

* Typical clearance

Mov't - Caseback minimum 200 microns

Top of hands - Glass 300 - 400 microns *

* subject to the glass, case structure, and the length of hand

* Note

Please use aluminum material hand for Chrono second hand

* TACHYMETER

The tachymeter is the device which measures the speed of an automobile. Knowing is how

many seconds the car covers a distance of 1km, the meter can measure the approximate

average speed per hour during a journey (up to the maxinum measurable range of

tachymeter is 60 seconds.)

If the chronograph is started at the same time as measurement, and stopped after 1 km,

the average speed per hour can be determined according to the position of the second

hand. If the car covers the distance of 1km in 45 seconds, the average hourly speed during

the journey will be about 80 km.

4 INSTRUCTION MANUAL

) DISPLAYS AND BUTTONS

B) SETTING THE TIME

1. Pull the crown out to the 2nd-click position so that the second hand stops at (0) position.

2. Turn the crown to set the hour and minute hands.

C) SETTING THE DATE

1. Pull the crown out to the 1st position.

2. Turn the crown by clockwise to set the date.

* If the date is set between the hours of around 9:00 PM and 1:00 AM, the date may

not change on the following day.

3. After the date has been set, push the crown back to the normanl position.

D) USING THE CHRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to

maxinum of 1 hour.

Measuring time with the chronograph

1. The chronograph can be started and stopped each time button "A" is pressed.

2. To reset, press button "B" and the chronograph second & minute hands return to their 0 positions.

RESET "A" TIME MEASUREMENT STOP

"B" "A"

"B"

E) CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY)

This procedure shoud be performed when the chronograph second hand

do not return to the 0 second position after the chronograph has been reset,

and including after the battery has been replaced.

1. Pull the crown out to the 2nd position.

2. Press button "A" to set the chronograph second hand to the 0 position.

3. The chronograph hands can be advanced rapidly by continuously pressing button "A"

4. Once the hands have been zeroed, reset the time and return the crown to its

normal position.

* Do not return crown to normal position while chronograph second hand

return to 12:00 (ZERO) position.

Hand stops on the way when crown are returned to normal position and these

positions are recognized as 12:00 (ZERO) position.

F) FITTING METHOD OF HANDS

Place the module on case back shown in the figure and position the reference hand,

then fit the hands according to the following procedure.

1. After the dial assembling, push A first and then B to make sure all the hands is not moving.

2. Pull out the crown to the time setting position.

3. Turn the crown anticlockwise, and stop it just after the date changes. (When the date

starts changing, turn the crown very slowly. And stop it when it changes the date.

)

4. Push in the crown by one step, taking care not to turn it.

5.Fit the reference hand,hour hand and minute hand to the 12-o'clock position.

When fitting the hands, remove the case back and place the movement on work stand.

This specifications might be changed without prior notice.
