Citizen CT-E301TR Manuel utilisateur

MODEL : CT-E301TR

Ethernet Interface function

Manual

Ver.1.00


 2
Contents
Contents.........................................................................................................................2
Read before using .........................................................................................................3
1. Introduction .............................................................................................................4
1-1. Specifications ......................................................................................................................... 4
1-2. Part Names and Functions................................................................................................... 5
1-3. LED Functions....................................................................................................................... 6
1-4. Using the Panel Button ........................................................................................................ 7
1-4-1. Printing the Network Configuration................................................................................... 7
1-4-2. Returning the Network Configuration to Factory Default Settings ................................. 8
1-5. Print Server ........................................................................................................................... 9
1-5-1. Accessing Print Server Configuration screen..................................................................... 9
1-5-2. Changing the Print Server Configuration ........................................................................ 10
2. Network Settings...................................................................................................12
2-1. Network settings from the browser ................................................................................... 12
2-1-1. Accessing the Print Server configuration screen ............................................................. 12
2-1-2. Setting the IP address........................................................................................................ 12
2-1-3. Changing other settings..................................................................................................... 13
2-2. Network setting from “Network Seeker” ........................................................................... 14
2-2-1. Starting Network Seeker ................................................................................................... 14
2-2-2. Changing Settings.............................................................................................................. 16


Read before using

Be sure to read this manual carefully before using the product. After you read it, store it in a

safe place so that you can reread it when necessary.

⚫Contents of this manual may be changed without notice.

⚫Reproducing and/or copying the contents of this manual by any means without

permission are prohibited.

⚫We will not be responsible for any adverse occurrence that results from the use of this

manual, regardless if it contains omissions, errors/misprints, etc.

⚫Note that we will not be responsible for (a) loss caused by improper operation or

mishandling of the device by the user, or (b) loss due to operational environment.

⚫Data etc., are basically impermanent; long time or permanent storing/saving of data by

the device is not possible.

⚫Note that we will not be responsible for any loss or loss of profits owing to loss of data

due to breakdown, repairs, inspections, etc.

⚫Please contact us if there are omissions, errors, ambiguities, etc. in this manual.

⚫Refer to this document along with the user manual of the printer.

⚫This product operates by setting up a wireless connection between itself and other

wireless LAN equipment for data transmission. Therefore, other wireless LAN

equipment is required to use this product. While we have confirmed the operation of

this product with certain wireless LAN equipment, operation with all types of wireless

LAN equipment is not guaranteed. Carry out a sufficient evaluation before using this

product.

Trademarks

・Microsoft, Windows XP, Windows Vista, Windows 7, Windows 8 and Windows10 are

registered trademarks of Microsoft Corporation U.S.A.

・Ethernet is a registered trademark of Fuji Xerox Co., Ltd.

・Other company names and product names mentioned here are trademarks or

registered trademarks of those companies.

1. Introduction

Thank you for purchasing the Citizen CT-E301 printer.

This manual is to explain the details of the Ethernet interface function of the printer.

Using Ethernet function, you can relay data between a network of multiple computers and

the printer. In addition, the computers and printer are able to communicate with each other:

the operational status, print settings, and other information about the printer can be

checked from computers on the network.

1-1. Specifications

Printer model name

CT-E301TR （Ethernet Interface model）

Operation panel

LED: 2 (RJ45 connector)

Button: 1 (on panel)

Network Interface

Auto-Negotiation (100Base-TX/10-Base-T)

AUTO-MDIX (Straight/Cross cable auto detection)

IP Version

IPv4

Network protocols

TCP, UDP, HTTP, SNMP, ICMP, DHCP

Port number for printing

TCP 9100 (Default)

Configuration changes

from the browser

Yes

Interactive communication

Yes (only when CITIZEN TCP/IP port driver is used)

Safety standards

VCCI Class A

CITIZEN Label Printer Library for Windows - Programming Manual

1-2. Part Names and Functions

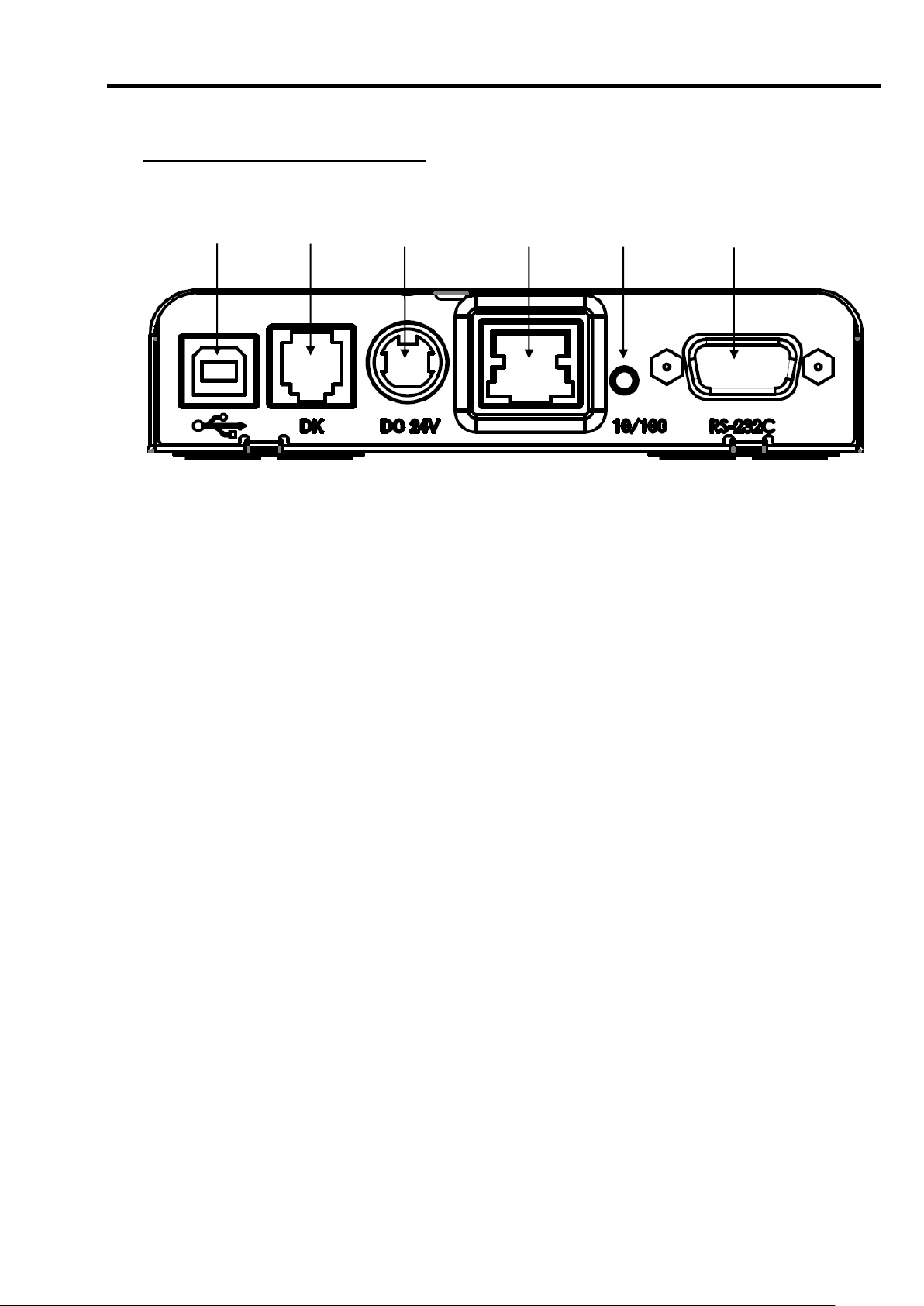

External view of Ethernet interface

①USB connector

②Cash drawer kick-out connector

Connect to the cable from the cash drawer.

③Power connector

Connect to the AC adapter cable.

④Ethernet connector

⑤Panel button

The current configuration can be printed.

⑥Serial connector

①

②

③

④

⑤

⑥

Introduction

1-3. LED Functions

The following charts show what each LED indicator indicates.

①Network transmission speed

Transmission speed

LED (green)

100 Mbps

10 Mbps / disconnected

Off

②Link status with network

Link status

LED (yellow)

Connected

Disconnected

Off

Transmitting data

Flashing

①

②

CITIZEN Label Printer Library for Windows - Programming Manual

1-4. Using the Panel Button

The panel button on the operation panel is used to operate the Ethernet function. You can

use it to print settings information and restore factory default settings.

1-4-1.Printing the Network Configuration

Press the panel button to print out the network configuration.

■Configuration items that are printed

①Title of the printout.

②Firmware version of printer..

③Network settings such as the IP address

currently being used. When the network is

not connected, the IP address is “0.0.0.0”.

*** With DHCP setting ON, DHCP status is

printed as follows.

ON (Acquiring) - Still trying to get IP address

ON (Success) - Getting IP address succeeded

ON (Fail) - Getting IP address failed.

If panel button is pressed within 60 seconds

after power on with DHCP enabled settings, IP

address may not be obtained yet. In such

case, IP address is shown as 0.0.0.0.

①

②

③

Panel Button

Network

Information

Firm Ver. : ES00-000X

Current Status

MAC : 00:01:02:0a:0b:0c

Host Name : no name

DHCP : ON (Success)

IP Addr. : 192.168.11.4

Subnet : 255.255.255.0

Gateway : 192.168.11.1

Timeout : 60

PrintPort : 9100

Introduction

1-4-2.Returning the Network Configuration to Factory Default Settings

1) Press and hold the panel button.

2) When you hear the beep, press and hold the panel button again within 3 seconds.

The following message is printed, and the network settings return to factory default

settings.

]

When the operation is complete, the printer restarts automatically.

When the network setting is set to automatically obtain the IP address from the DHCP

server, the IP address assigned may be different from the previous one.

Warning

I/F Board

Information

--!Caution!--

Printer will

automatically restart.

Network

Information

CITIZEN Label Printer Library for Windows - Programming Manual

1-5. Print Server

Using a Web browser, you can go to the Print Server Configuration screen to view or

change the network settings.

1-5-1.Accessing Print Server Configuration screen

1) Launch your browser and go to the URL of the Print Server Configuration screen.

For the URL, enter the IP address assigned to the printer.

(For example, if the IP address is “169.254.1.10”, enter “http://169.254.1.10”.)

2) Print Server Configuration page to show current settings appears.

3) By clicking “Change Settings” button, screen move to the page to change the settings.

Introduction

1-5-2.Changing the Print Server Configuration

By clicking “Change Settingst”button, screen is changed for the page to change the

network settings.

[Back To Home] button: The page moves back to the page to check the current network settings.

[Cancel Settings] button: The entry data on this page is canceled.

[Save Settings] button: The entry data on this page is saved and move the page below then the

printer reboots after few seconds.

When the operation is complete, the printer restarts automatically.

When the network setting is set to automatically obtain the IP address from the DHCP

server, the IP address assigned may be different from the previous one.

Warning
