Quick Start Guide

Cisco WAP571E Wireless-AC/N Premium Dual

Radio Outdoor Access Point

1 Cisco WAP571E Wireless Access Point

Welcome

Thank you for choosing the Cisco WAP571E Wireless-AC/N Premium Dual

Radio Outdoor Access Point. The Cisco WAP571E is an outdoor dual radio

802.11ac + 802.11n access point.

This guide is designed to familiarize you with the general layout of the

access point, describe how to deploy the device in your network, and

describe how to configure the device. Your access point has more features

and functionality than what is described in this guide. For additional

information, see the Administration Guide. A link to the Administration

Guide is found in Where to Go From Here.

Package Contents

•Wireless Access Point

•Mounting kit

•This Quick Start Guide

•Ethernet cable

•Pointer Card with China RoHS

•Technical Support Contacts

•EU Directives 1999/5/EC Compliance Information (for EU SKU only)

Before You Begin

Before you begin the installation, make sure that you have the following

equipment and services:

•A computer with browser support for:

– Internet Explorer v7.0 or later

– Chrome v5.0 or later

– Firefox v3.0 or later

–Safariv3.0orlater

•Tools for installing the hardware

•One or more Ethernet network switches with PoE

•Must use only 26 AWG or larger Ethernet cable

Cisco WAP571E Wireless Access Point 2

Cisco WAP571E Wireless-AC/N Premium

Dual Radio Outdoor Access Point Features

Front Panel

The front panel of the device consists of a single system LED. For a full

description of the colors of the light and its indications, see Verifying the

Hardware Installation.

Back Panel

The back panel of the device has a water proof RJ-45 Ethernet port and

reset bottom. Facing the side of the device, the right port (labeled

"ETH0/PD") is an 802.3at and 802.3af Power over Ethernet (PoE) port

which is used to power your device. The left port (labeled "ETH1") is a

general Gigabit Ethernet LAN interface. Both are auto-sensing, Gigabit

Ethernet (802.3) ports used to connect your WAP devices to network

devices, such as computers, routers, or switches. We strongly

recommend that you use a Category 5e or better cable for Gigabit

connectivity.

Side Panel

The side panel of the device has a Reset button at right. See Rebooting

the Devices or Returning them to their Factory Default Settings for

information on the Reset button.

Default Setting

If you are using a Cisco RV Series router, the default range for the DHCP

assigned address is from 192.168.1.100 to 192.168.1.254. Any device

connecting to the same LAN will be assigned an IP address in this range.

If your network does not have an existing DHCP server, the WAP571E will

start a DHCP server for WLAN stations and stop the DHCP client when

WAP571E is in factory default. The DHCP server will assign the IP address

from 192.168.1.20 to 192.168.1.100.

Parameter Default Value

Username cisco

Password cisco

LAN IP Address DHCP address assigned

by server

Fallback LAN IP 192.168.1.245

Subnetwork Mask 255.255.255.0

3 Cisco WAP571E Wireless Access Point

Mounting the Cisco WAP571E Wireless-

AC/N Premium Dual Radio Outdoor Access

Point

You can place your access point at an outdoor location and mount it on a

wall or pole.

Placement Tips

• Ambient Temperature—To prevent the access point from overheating,

do not operate it in an area that exceeds an ambient temperature of

122°F (55°C).

• Mechanical Loading—The device should be level, stable, and secure

to prevent it from sliding or shifting out of position.

Wall and Pole Mounting

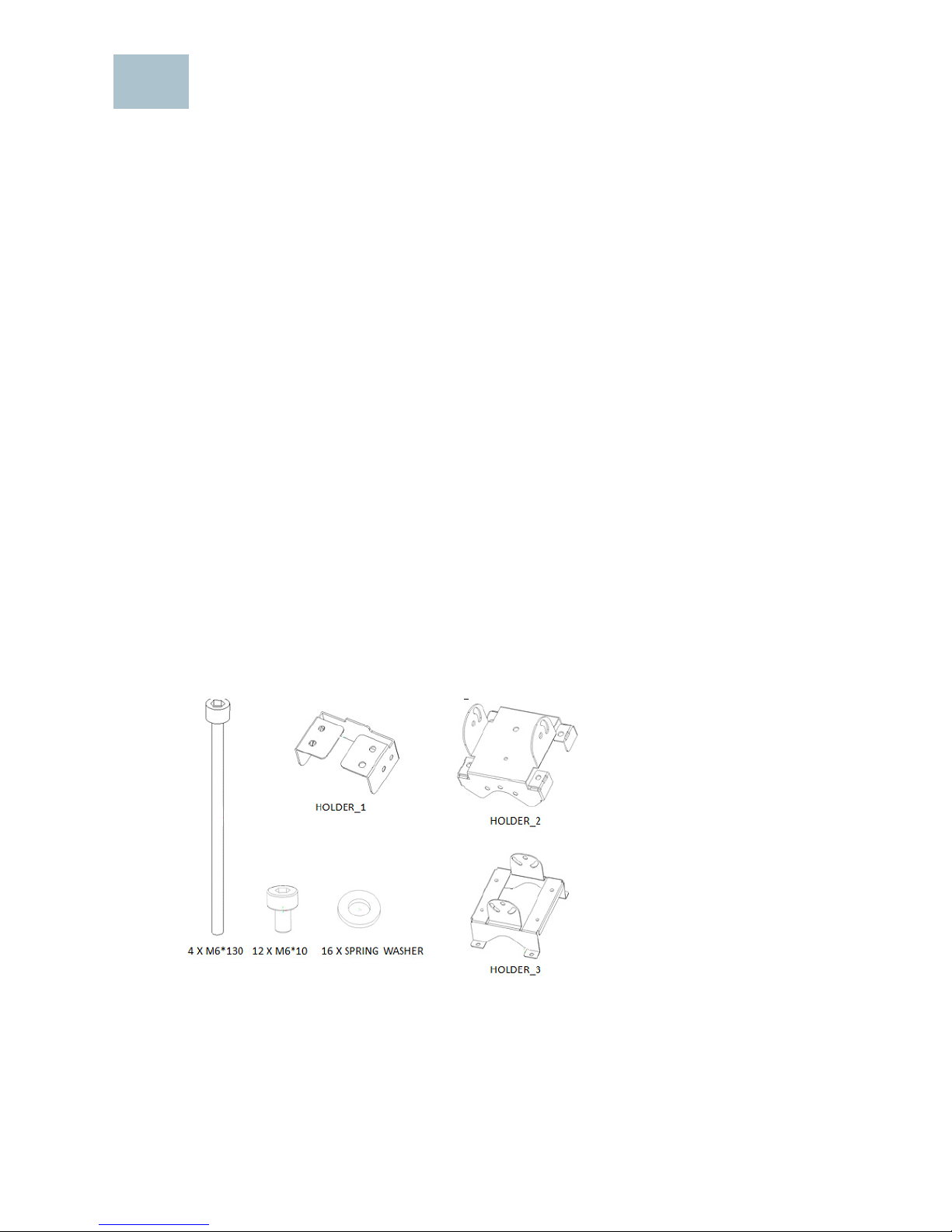

The Cisco WAP571E device can be wall or pole-mounted. A mounting kit is

packaged with your device. The kit is designed to install your device to the

wall or a pole.

The outdoor model includes an adjustable bracket to mount on a flat

vertical surface. Adjustments can be made in up/down, left/right direction

for signal optimization. Pole-mount allows for mounting to small pole (3"

diameter max) and is also adjustable.

Cisco WAP571E Wireless Access Point 4

WARNING Insecure mounting might damage the device or cause injury.

Cisco is not responsible for damages incurred by insecure wall

or pole mounting.

Pole-mounting: To mount the Cisco WAP 571E device on a pole:

STEP 1Fix Holder_1 and GND wire on WAP571E by 4 M6*10 screws and

screw washers. GND wire can provide better ESD protection.

STEP 2Fix Holder_2 and Holder_3 on Pole by 4 M6*130 screws and screw

washers.

STEP 3Fix WAP571E and Holder_1 to Holder_2 by 4 M6*10 Screws and

screw washers.



5 Cisco WAP571E Wireless Access Point

Wall-mounting: To mount the Cisco WAP 571E device on a wall:

STEP 1Fix Holder_1 and GND wire on WAP571E by 4 M6*10 screws and

screw washers. GNDwirecanprovidebetterESDprotection.

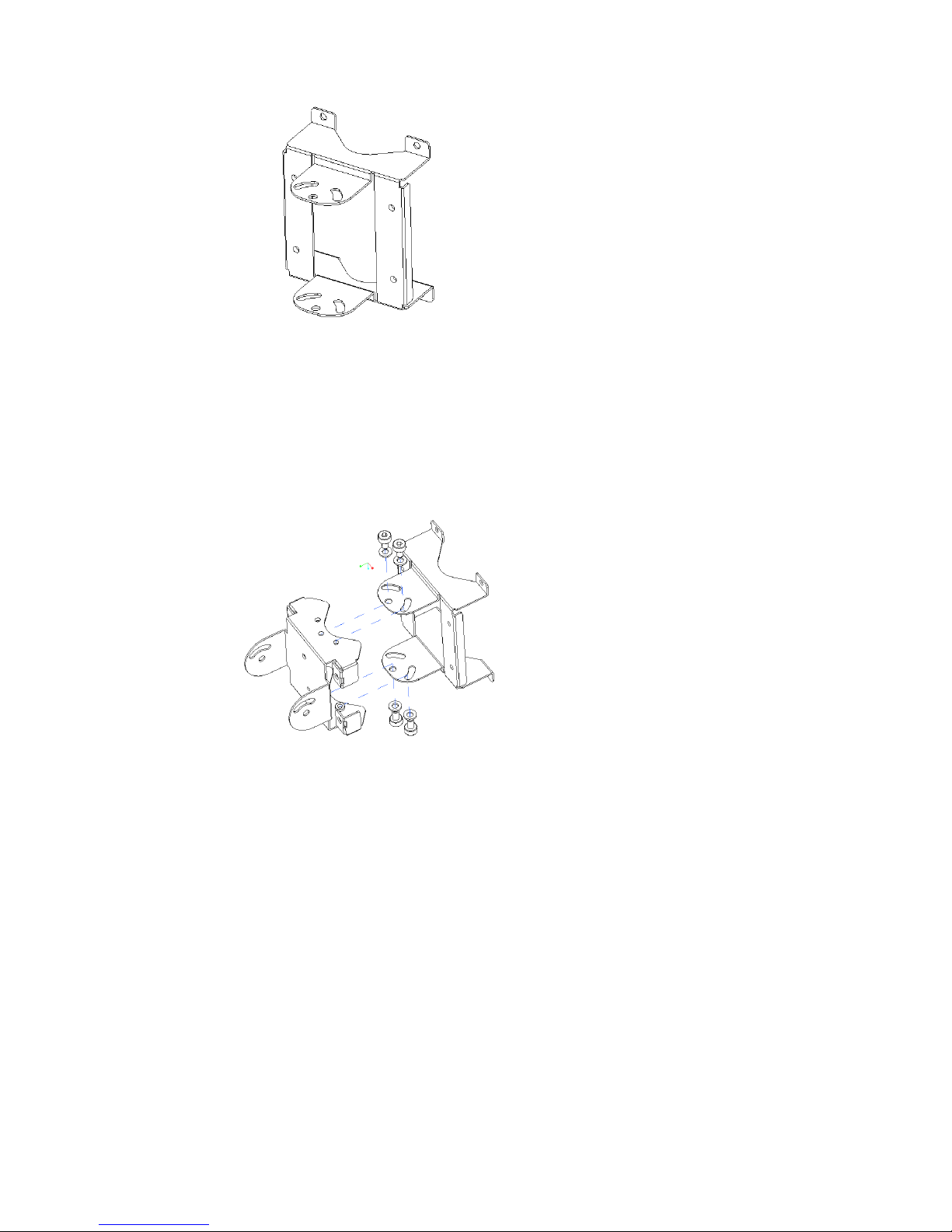

STEP 2Fix HOLDER_3 on wall by 4 anchors.



Cisco WAP571E Wireless Access Point 6

STEP 3Fix Holder_2 and Holder_3 by 4 M6*10 screws and screw

washers.

STEP 4Fix WAP571E and Holder_1 to Holder_2 by 4 M6*10 Screws and

screw washers.



7 Cisco WAP571E Wireless Access Point



Cisco WAP571E Wireless Access Point 8

Connecting the Cisco WAP571E Wireless-

AC/N Premium Dual Radio Outdoor Access

Point

You can perform the initial configuration using either a wired or wireless

connection. The default configuration of the WAP 571 has the Wi-Fi radio

turned on.

To connect the WAP 571E to the wired network:

STEP 1Connect the Ethernet cable to the Ethernet port of a PoE switch.

STEP 2Connect the other end of the network Ethernet cable to the

Ethernet port (PoE) of the wireless access point.

NOTE WAP571E bundles the two Ethernet ports to be link aggregation

mode. If the two Ethernet ports have been connected at the same time,

the link partner must also support link aggregation.

This wireless default configuration will not allow traffic between WiFi and

Ethernet; users will need to go through the setup wizard to resume the

traffic between WiFi and Ethernet.

To connect the WAP 571E to the network wirelessly:

STEP 1Use wireless clients to locate the WAP571E’s SSID (CiscoSB-

Setup).

STEP 2Use the ‘cisco123’ passkey to access the access point.

NOTE The system provides a one-time-only access to configure the

access point using a wireless connection.

After installation, all lights should be active. Refer to Verifying the

Hardware Installation for details about the different lights on the WAP

571E.

9 Cisco WAP571E Wireless Access Point

Verifying the Hardware Installation

To verify the hardware installation, complete the following tasks:

•Check the cable connections.

•Check the state of the indicator lights.

NOTE If you need help resolving a problem, visit the Cisco Support

Community at www.cisco.com/go/smallbizsupport.

Label Activity Description

Power Off The WAP571E is out of power.

Solid (Green) The Cisco WAP571E is normal; no wireless

client connected.

Solid (Blue) The Cisco WAP571E is normal; at least one

wireless client connected.

Flashing (Blue) The Cisco WAP571E is upgrading the

firmware.

Solid (Red) The Cisco WAP571E fails to boot with both

firmware images.
